Rising Gate Automation with Secure Access Control Options for Double Swing Sloping Driveways Automation

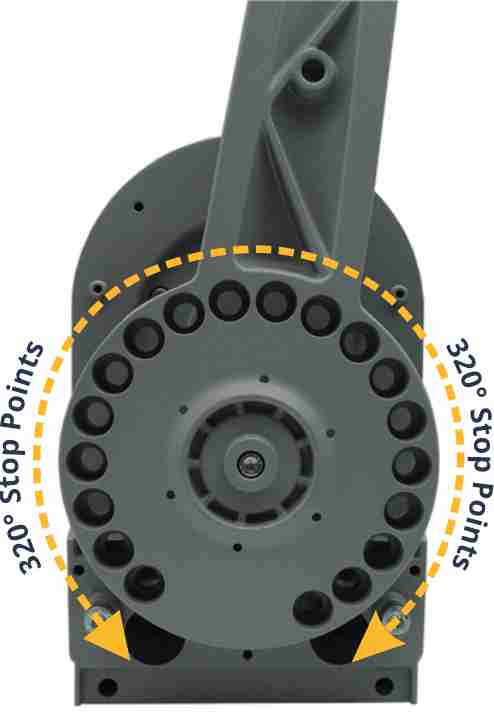

Packing a punch the Proteous 4200 system can deliver 760N of thrust to operate gates up to 500kg or 4.2m in length each gate. With a built in adjustable stop for both the open and closed positions making the system is versatile in its stopping arangment.
Thrust | 760N |
Motor Voltage
|
24v DC
|
Manual override
|
Via override key supplied
|
Working temperature
|
-20° - +50°
|
Duty Cycle
|
80%
|
Max. Operating Angle
|
120°
|
Gates size
|
8.4m (2x 4.2m max)
|
Gate weight
|
1000KG (2x 500kg max)
|
| Rising Gate Opener for Double Swing Sloping Driveways Gate
| APC Automated Rising Gate Opener System, With Italian-Made Proteous PA-4200/PA-8400 Heavy Duty Articulated Rising Arms
| APC Double and Single Swing Gates Automation Systems

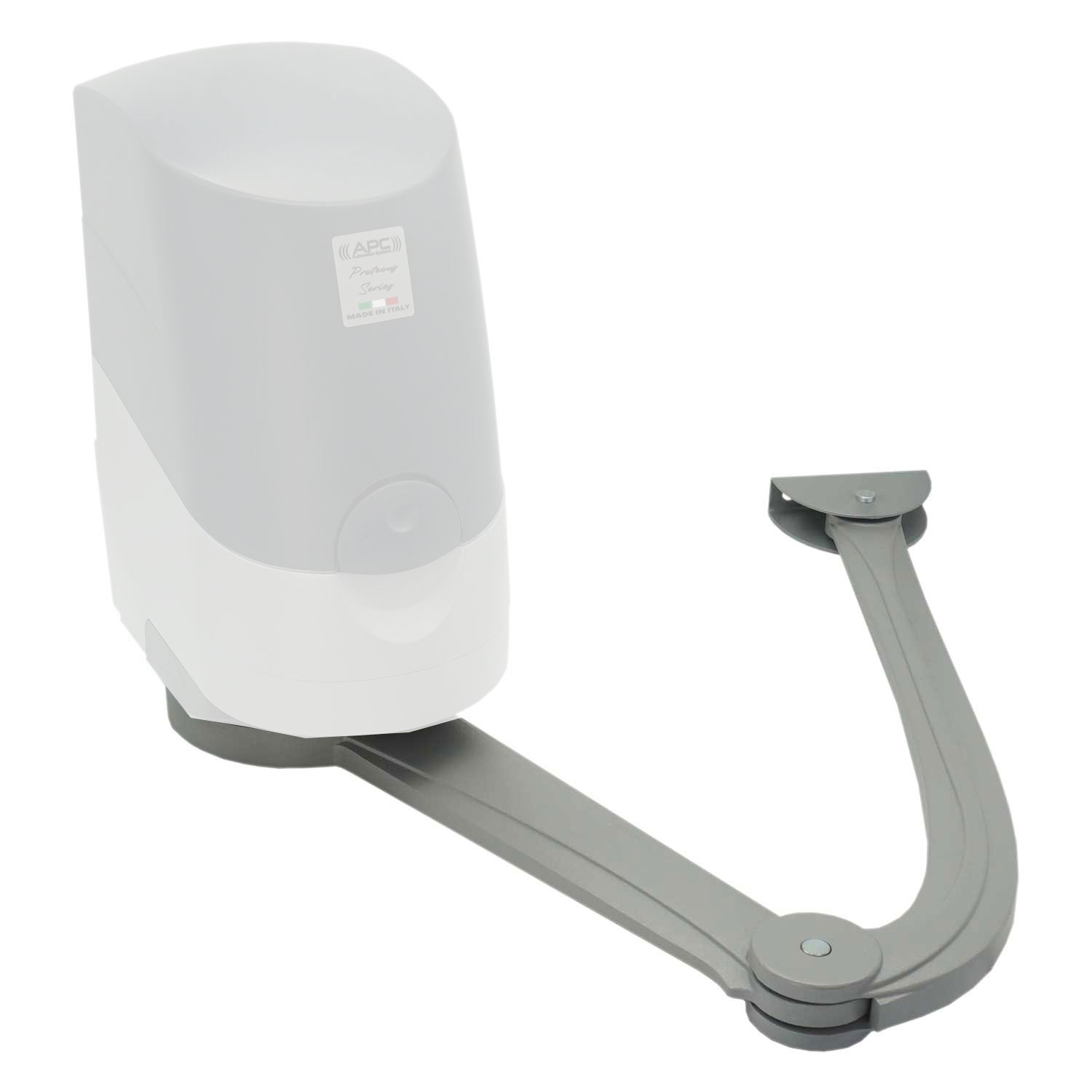

Rotating Ball Joint Arm For Rising Gates
Rotative arm (Inclination +/- 8°)
Leaves max dimensions 4.2 m - 500 kg
The Proteous PA-4200 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Transformer | 24V AC |
Rectification | In Box Rectifier |
Motor Output Voltage | 24v DC |
Max Operating Power | 250 Watts (Accesories + Running Motors) |
Max. Accesories Load | 7W |
Control Board Duty Cycle | 80% |
Working temperature | -20° - 50° |
RF | APC Rolling code 433.92mhz |
Auxiliary Inputs | 0V Momentary Pulse |
Accessories Voltage | 24V DC |
Operator Inbuilt Safety | Over current + Encoder Sensitivity |
An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the proteous system.
