Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Reflector Detector

APC PE Sensor + 10m Cable Combo

APC-PE2000-4C-10M-NS

Product Information

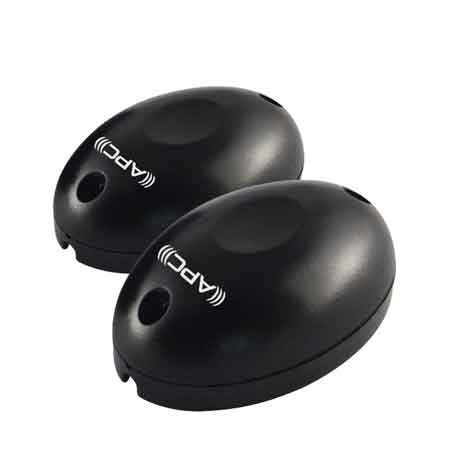

Photoelectric Beam Gate Sensor



Infrared beam security sensor.
The PE sensor is a safety beam sensor, used on sliding gates, swing gates, and garages opening systems to stop the gate(s) from closing on a car, person, or objects,

The APC-PE2000 allows for N/O & N/C contacts.

Specifications
Detection technology: Infrared
Range: 15m
Frequency: 1.92Khz
Power: 12-24V AC/DC
Wave Length: 940mm
Input: RX 15mA, TX 30mA
Operating temperature: -20 to 70 degrees
Relay output: 1Amp max 30V
Dimension: 49.2 x 76 21mm
Please note: The range give above may vary according to the site environment conditions and according to the weather

Photoelectric beam gate sensor


Example wiring for the PE Gate Sensor

Photoelectric beam gate sensor


Photoelectric Beam Gate Sensor also well-known as;

  • Gate sensor - Safety sensor,
  • Infrared Photocell gate sensor,
  • Infrared gate sensors,
  • Photoelectric gate sensors,
  • Sliding gate safety beams,
  • Sliding gate safety sensor,
  • Photo Beams for Gates,
  • Safety Beam
  • Infrared Photocell Gate Sensor
  • Reflector Detector
