APC Wireless Double Push Button Switch with Key Issolation

PBD-KW

Product Information

APC Wireless Push Button Switch with Isolation Switch

Please note:

  • This switch is compatible with the APC brand of gate opening systems.
  • If used with any other brand, operation of the switch cannot be guaranteed under warranty.

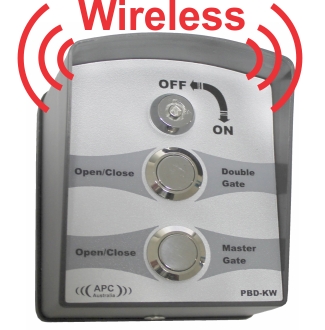

APC Wireless Push Button Switch with Isolation SwitchThis wireless APC double push-button switch with isolation key is a stand-alone unit powered by a durable 12V internal battery.
This switch is wireless and DOES NOT require any wiring or external power to operate any of the APC automatic gate openers.

The isolation key switch is used to turn ON and OFF the operation of the push button switch.
Example: The user can switch the key switch OFF using the supplied key to de-activate the usage of the push button switch or switch ON to allow visitors access to the property.

The Pushbutton is highly weather-resistant, neat in appearance and consists of a rubber seal casing at the back of the switch to further protect from weather and to accommodate installation on uneven surfaces.

Usage:
Automatic Gates
Automatic Garage Doors
Automatic Shutters
Electric Locks or Strikers
Industrial Roller Doors

Please note:

  • The wireless switch can be used to operate the above devices when paired with an APC receiver which can be found in our store.


Specifications:
Switch Type: Momentary
Wireless Frequency: 433.92Mhz
Key switch Type: Latching ON or OFF
Switch(s) Status: Normally Open (NO)
Battery: 12V DC
Expected Battery Life: 2-3 Years
Material: ABS Plastic

See the videos below for pairing examples to several APC Automation Systems equipment:

Double Swing Gate System Pairing Procedure





Sliding Gate System Pairing Procedure
