APC Two Channel Wireless Keypad

APC-KP2W

Product Information



Two Channel Wireless Keypad



Two Channel Wireless Keypad

Please Note: This wireless keypad will only work on the APC range of gate, garage and boom gate opening systems, Click Here for the wireless keypad including a receiver that will work on most makes and models

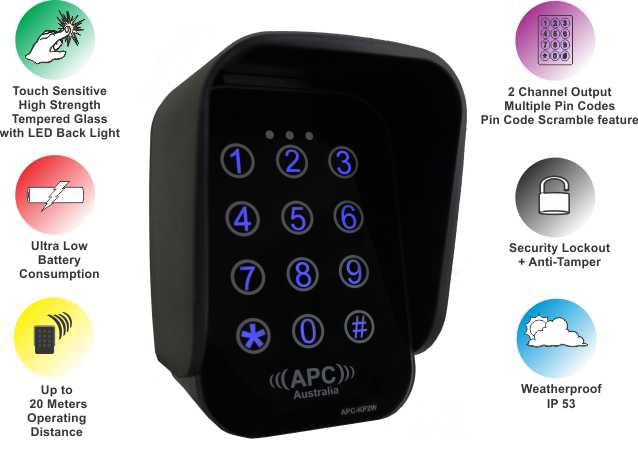

APC-KP2W Wireless Keypad Features

  • Low Power Consumption only 18uA in standby.
  • Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.
  • High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.
  • Blue Backlight illumination upon touch with an automatic timeout to return to standby.
  • Two-Channel operation allowing the user to control two different items or functions using separate pin codes.
Channel 1 supports up to 8 Pin Numbers
Channel 2 supports up to 3 Pin Numbers
  • Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)
  • IP53 Weatherproof rated and suited for outdoor and indoor environments.
  • Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.
  • Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.

Compatibility:

  • APC sliding gate systems
  • APC Swing gate systems
  • APC Boom gate systems
  • APC Receivers

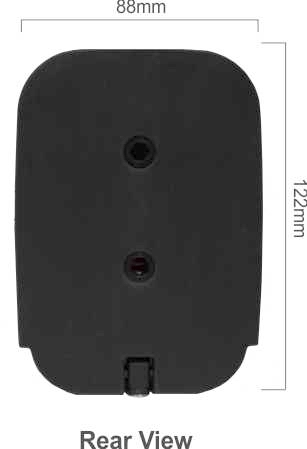

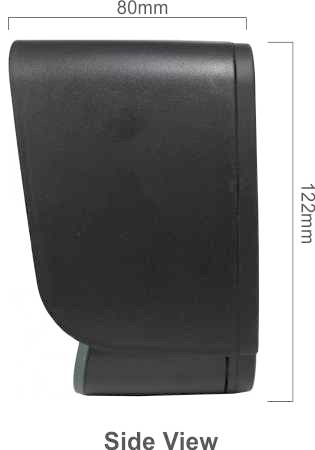

Dimensions:

  • 88mm (W) x122mm (H) x80mm (D)

Two Channel Wireless Keypad Two Channel Wireless Keypad

Specifications:

  • Touch-sensitive buttons
  • Tempered glass faceplate
  • 6V DC supply (4x AA Batteries)
  • Consumption 18uA Standby, 6mA Active, 28mA Working
  • Two-channel output (CH1=8 Pins, CH2=3 Pins)
  • LED Indicators + Backlight
  • Anti-tamper + Pin code scramble
  • IP53 Rated

See the videos below for pairing examples to several APC Automation Systems equipment:

Single Swing Gate System Pairing Procedure

Double Swing Gate System Pairing Procedure

Sliding Gate System Pairing Procedure

Programming a PIN number into Channel 1

Programming a PIN number into Channel 2

Available Option for the Above Keypad

Heavy Duty Gooseneck Pedestal

Heavy Duty Pedestal, Keypad Stand & Intercom Stand

Heavy Duty Construction
Powder-coated in Safety Yellow

Heavy Duty Pedestal, Keypad Stand & Intercom Stand

Why get out of the car?,
the gooseneck pedestal makes it easy to reach the opening device for your automatic gate.

Ideally used at the entry or exit point of a property to mount the following:
- Intercoms door stations
- Keypads
- Push Button Switches
- Key Switches

Easy to install

  • 3 Pcs design (see below sketch)
  • Supplied with mounting dyna bolts

Example usage for the Pedestal It can be used for most of the opening /closing controllers Keypad, Switches and Intercoms door stations See the dimensions below

Heavy Duty Pedestal, Keypad Stand & Intercom Stand



WARNING:

  • Please note this product is for use with the APC gate automation systems.
  • Warranty is only valid when used in conjunction with the APC equipment.
  • No guarantee is given when used for another brand other than the APC brand.
