Product SKU: GTR25-T700TL-WF7KP21

2.5M Ring Top Extra Heavy Duty Single Swing Gate Kit with Smartphone Intercom Kit

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

VIDEO INTERCOM

2.5M Ring Top Extra Heavy Duty Single Swing Gate Kit with Smartphone Intercom Kit

Product SKU: GTR25-T700TL-WF7KP21

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$2,118.00

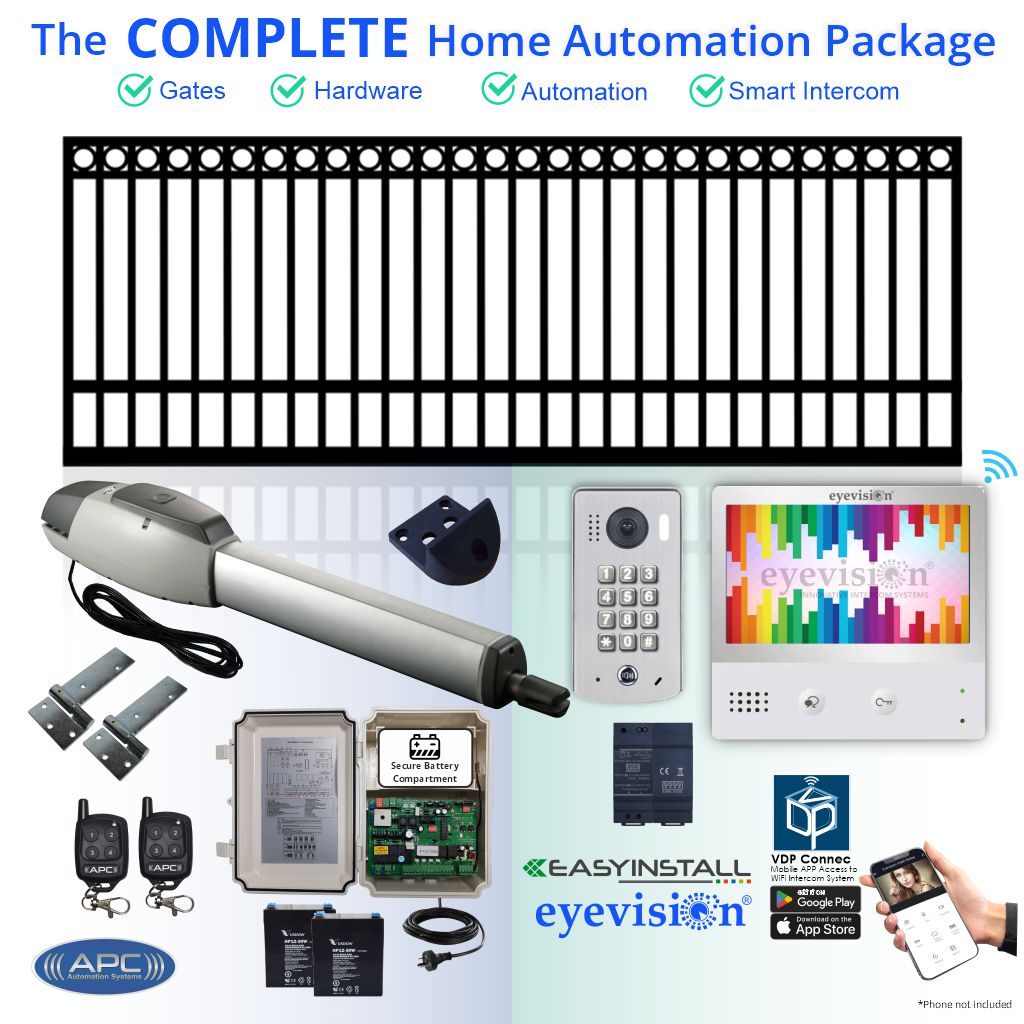

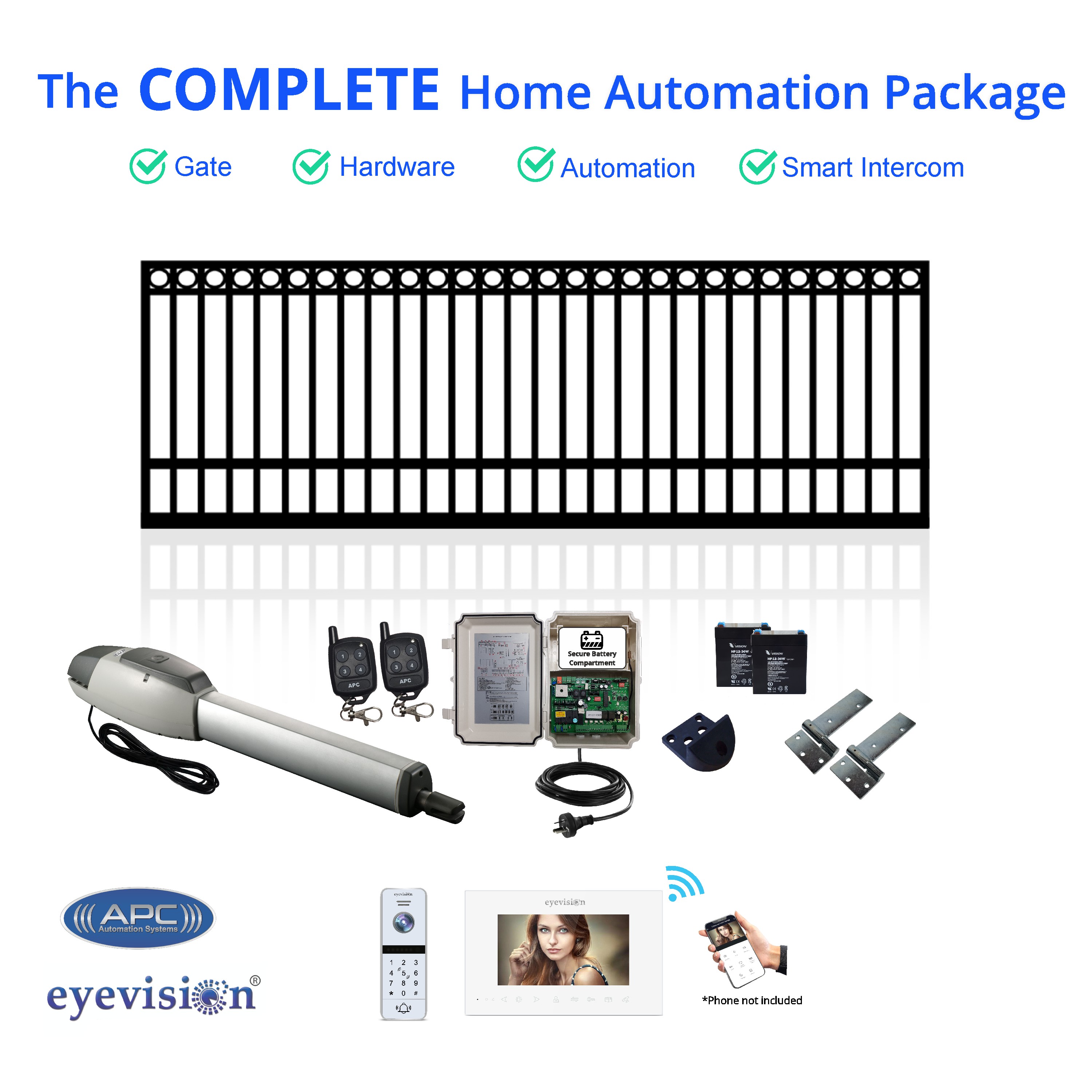

  • 2.5M Complete Smart Home Gate and Gate Automation Package with Smartphone Intercom

  • Kit Includes

    01 2.5m Ring Top Gate (QTY: 1)
    02 APC-T700TL Top Limit Actuator Kit (QTY: 1)
    03 APC Weatherproof Control Box with Built in Battery Compartment and 1.2m Power Cord (Ready to Plug In) (QTY: 1)
    04 Eyevision Intelli Keypad & IC Card Outdoor Station (2x IC Cards & Power Adapter Supplied) Intercom System (QTY: 1)
    05 Eyevision Intelli 7" Smart 4 Wire indoor Intercom Monitor with Wi-Fi feature for smartphone APP (includes power adapter) (QTY: 1)
    06 Rain Cover for Eyevision Intelli Intercom System Outdoor Station (QTY: 1)
    07 Left Side Strap Hinges (Top & Bottom Left Side Hinge Set) (QTY: 1)
    08 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    09 10m 4 Core Non Shielded Cable (QTY: 1)
    10 5aH Battery Backup (QTY: 2)
    11 APC Four Button Keyring Remote (QTY: 2)
    12 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Classic Ring Design Gate with 19mm Pickets and an additional Horizontal Support Rail




Key Features
  • Classic Ring Design
  • 1500mm Height
  • 19mm Pickets
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

Suitability
  • Sliding Gate Applications
  • Swing Gate Applications
  • Residential Use
  • Commercial Use

Extra Heavy Duty Telescopic Linear Actuator with Open and Close Limit Switches






Heavy Duty 24V Motor with powerful and quiet operation Sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3.5m maximum length.

Easy to Adjust Top Limit Switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.



Emergency Override


Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.


Actuator Overview



Extra Heavy Duty Single Gate Opener



Installation Geometry



Specifications

Gear Type Metal Lead Screw, Mixed Reduction
Motor Voltage
24v DC
Manual override
Via override keys supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
350mm (without limit switches)
Gates size
3.5m max
Gate weight
250kg max

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point



System Features

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output



Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.



Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output



Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Battery Back Up





Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.

Remote Features

Specifications



Power Input 240V AC (Pre wired with 1.2m Cable)
Transformer 24V AC
Rectification On Board Bridge Rectifier
Motor Output Voltage 24v DC
Battery Backup 24V
Working temperature -10° - 50°
RF APC Rolling code 433.92mhz
Lock Output (Primary) 12-30V DC (Depending on Configuration)
Lock Output (Secondary) 12V DC
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Over current 1A to 5A

Outdoor Station Features


  • Ultra narrow 45mm Width fits onto any post, pier or fence
  • 1.3MP AHD Camers
  • 120° Lense
  • 45° Wedge Bracket for best mounting direction
  • Built in Keypad with common PIN CODE system
  • Built in IC Tag/Card Reader
  • Up to 100 Users when using IC Tags (allows for individual User ID's and PIN Codes
  • Lockout feature after too many incorrect PIN/IC tag uses
  • Supports Exit Buttons
  • Supports Fail Secure and Fail Safe Electric Strikers
  • Supports Automatic Gate Release



45° Angle Wedge



The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing and the guest may be standing to its left or right side.

The wedge is a universal mount allowing for both left facing and right facing setups.

Outdoor Station Technical Specifications

Power 12-15V DC
Relay NO/NC
Exit Button Input Yes
Swipe Tag Type IC Tag
IP Rating IP65



Eyevision Intelli Series Intercom Systems



The eyevision Intelli Series intercom is a feature rich state of the art intercom system boasting every feature requested from an intercom syste (and much more...).

Any visitor calls can be recieved by the APP on your smartphone or table along with the monitor at the same time with a large feature set from the APP and also the indoor monitor. No extra modules are required to connect to the internet as the WF 7 slimline indoor monitor has built in Wi-Fi and is able to connect directly to your homes 2.4GHZ Wi-Fi connection.

Two oudoor stations can be connected for front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home allowing for the visitors call to be answered from any station and transfered to a diffrent station if required. Within the home you can selectivly intercom between any of the installed indoor monitors. All monitors connected into the system can view any of the installed CCTV camers (up to TWO can be connected into the system). If the CCTV cameras are interconnected with a seperate alarm sensor the system can have alarm recording events occur which can be saved directly to a micro SD card.

The intelli series can have a common release connected directly to the monitor allowing for simultaneous front gate - front door release making it easier than ever to let a guest in without having to switch between menus or running to the door.



System Capacity & Capabilities
  • Supports up to TWO Outdoor Stations each with its own electric striker/gate release feature
  • Supports up to SIX indoor Monitors
  • Common independent electric striker/automatic gate release feature
  • Supports up to Two CCTV Cameras (CVI,TVI,AHD or CVBS up to 1.3MP)
  • Supports Motion Detection for Outdoor Stations (uses its own built in sensor)
  • Supports Motion Detection/Alarm Function for CCTV using external PIR or Reed Switches
  • Supports live video stream to a DVR



Indoor Monitor Base Features
  • Built-in WiFi to connect to your home internet connection
  • Tempered Glass with Touch Sensitive Buttons
  • Simple easy to use user Interface
  • Free to use Tuya Smart APP for all modern mobile phones and tablets
  • 11 Languages to choose from
  • Ultra Slim 18mm Depth
  • 7" TFT LCD Monitor 1024x600 HD Resolution
  • Built in mute switch
  • Intercom calls direct to Smart phone and Monitor Simultaneously
  • Intercom internal call and Call transfer
  • Calender screen (time and date) option before entering the main menu
  • Anytime REALTIME monitoring of any connected outdoor station/cctv camera
  • Set scheduled ring volumes for Morning, Afternoon, Evening and Night
  • Can Enable/Disable Rigtone at the outdoor station



Special Features (Micro SD Required)
  • Automatic recording for Motion Detection and Alarm events
  • Digital Photo Frame on Standby
  • MP3 Player
  • Away Voice Message (Voicemail System)
  • Custom ringtones



Tuya App for Direct to Phone



Indoor Monitor Technical Specifications

Screen Size 7" 1024x600 AHD LCD Display
Power 12-15V DC
Wi-Fi Yes, 2.4GHZ
SD Card Micro SD (Not Supplied) Class 10 up to 32GB
CCTV Input Maximum 2
Alarm Sensor Input Maximum 2
Outdoor Unit Input Maximum 2
Indoor Monitors Maximum 6



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,118.00
