Product SKU: APC-PA-8400-LV-KB

Build Your Own Kit with Italian Made Proteous PA-8400 Heavy Duty Articulated Arms, Double Swing Gates Automation With Battery Back-up

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

FREE BATTERY BACKUP
  • Double Swing Gates Automation

    YEAR END SALE

    TOP DEALS

Build Your Own Kit with Italian Made Proteous PA-8400 Heavy Duty Articulated Arms, Double Swing Gates Automation With Battery Back-up

Product SKU: APC-PA-8400-LV-KB

  • In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,399.00 $2,495.00 APC Automotion Plus Sale

  • Electric Gate Opener with Secure Access Control Options for Double Swing Gates Automation

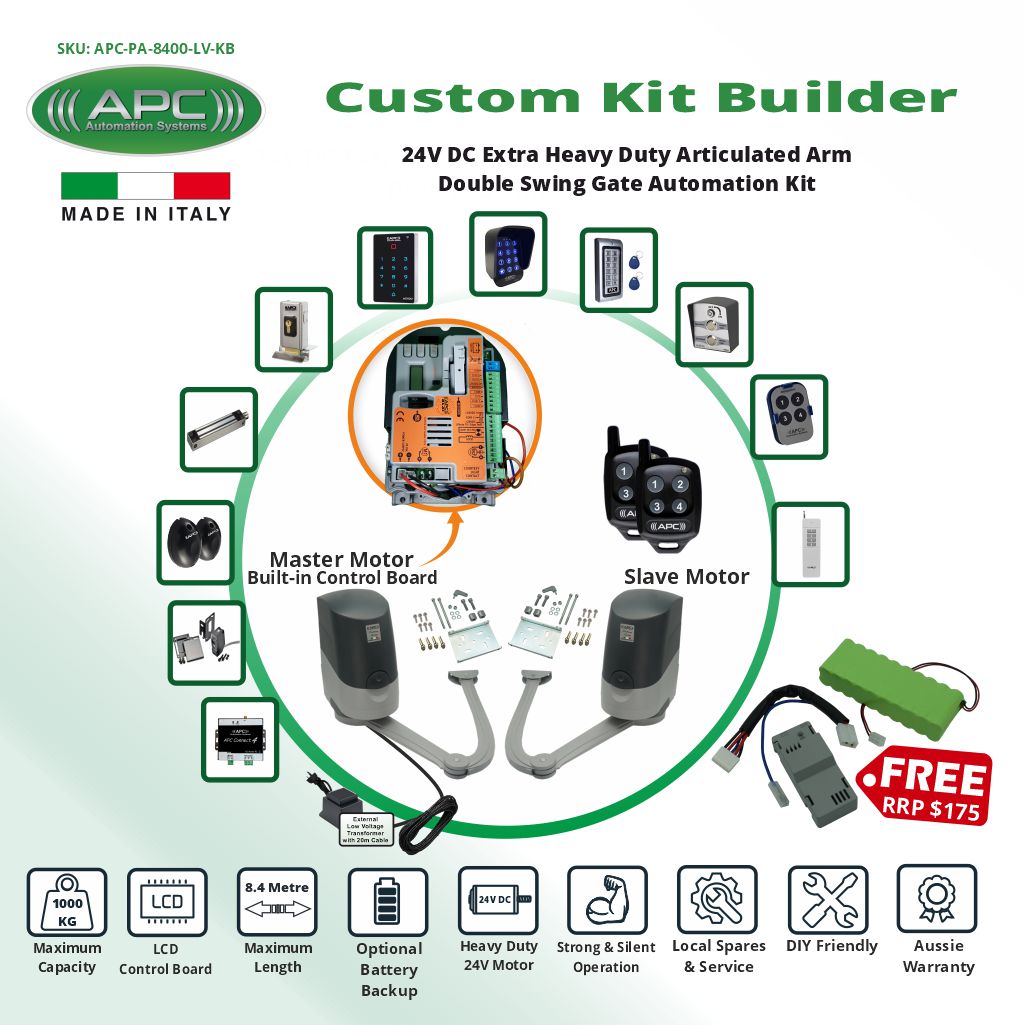

  • Kit Includes

    01 APC Proteous 4200 (Master Motor) Articulated Arm with Built-in Control Board and Adjustable Stops (QTY: 1)
    02 APC Proteous 4200 (Slave Motor) Articulated Arm with Built-in Adjustable Stops (QTY: 1)
    03 APC Proteous 4200 Long Arm (QTY: 2)
    04 APC Four Button Keyring Remote (QTY: 2)
    05 Cable for Proteous Swing Gate Opener Motor - 11m (QTY: 1)
    06 Weatherproof External 24V Transformer with 20m Low Voltage Cable | Suitable for outdoor use. (QTY: 1)
    07 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
    08 FREE Battery Backup System (Promotion) for Proteous P450, P500 Sliding Gate Opener and PA-4200/8400 Swing Gate Opener LV and DC Electric Gate Automation Kit Order. (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Extra Heavy Duty Articulated Arm System






Packing a punch the Proteous 4200 system can deliver 760N of thrust to operate gates up to 500kg or 4.2m in length each gate. With a built in adjustable stop for both the open and closed positions making the system is versatile in its stopping arangment.



Adjustable built in stopper


Simple to adjust just install the supplied Open position stopper in the hole at the desired stop point and tighten. Repeat again for the Closed position stopper.


System Capacity





Installation Geometry





Specifications

Thrust 760N
Motor Voltage
24v DC
Manual override
Via override key supplied
Working temperature
-20° - +50°
Duty Cycle
80%
Max. Operating Angle
120°
Gates size
8.4m (2x 4.2m max)
Gate weight
1000KG (2x 500kg max)

Feature Rich and Highly Versatile Control Box



The Proteous PA-4200 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features



External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.





Specifications

Transformer 24V AC
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accesories + Running Motors)
Max. Accesories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity







Optional Battery Back Up

An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the proteous system.

Compartment with Battery Pack and Charger Installed



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,399.00
