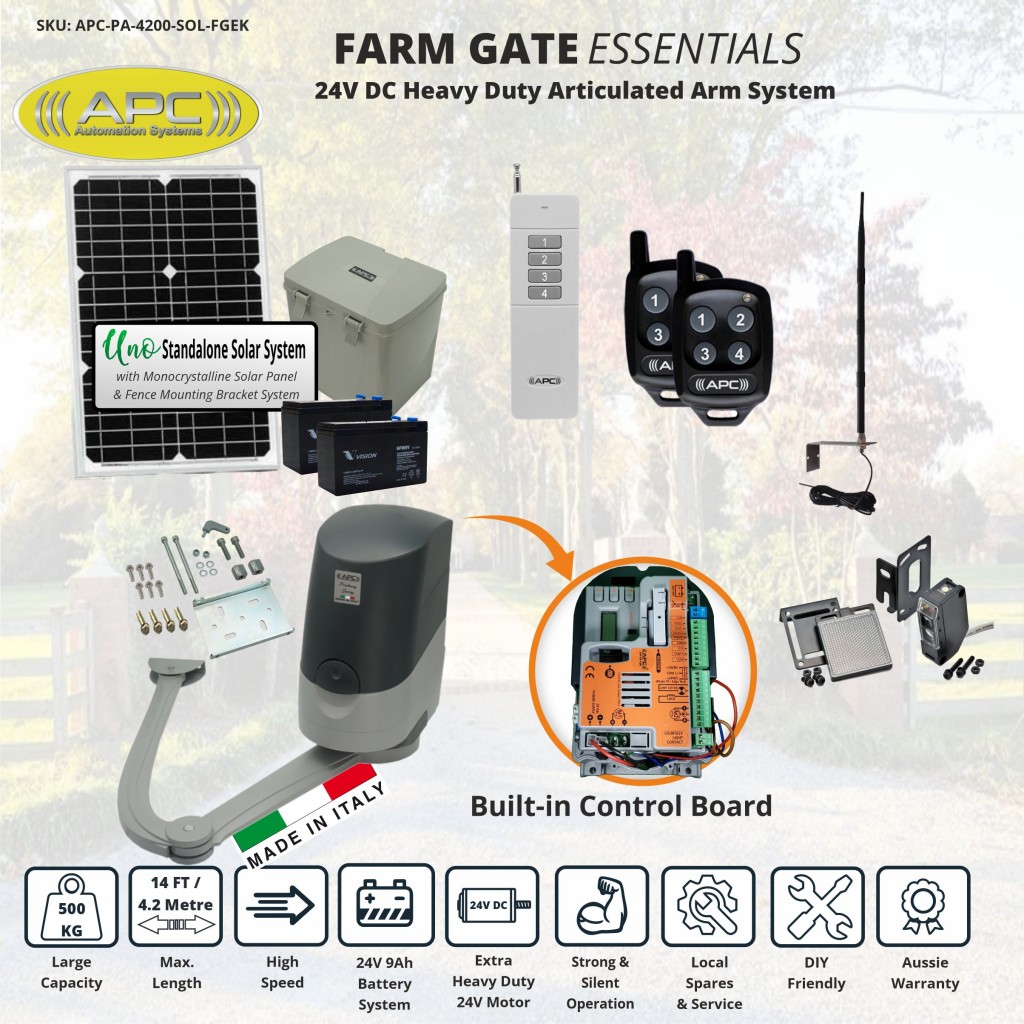

Italian Made Extra Heavy Duty Articulated Arm System
Packing a punch the Proteous 4200 system can deliver 760N of thrust to operate gates up to 500kg or 4.2m in length. With a built in adjustable stop for both the open and closed positions making the system is versatile in its stopping arangment.
Adjustable built in stopper
Simple to adjust just install the supplied Open position stopper in the hole at the desired stop point and tighten. Repeat again for the Closed position stopper.
System Capacity
Installation Geometry
Specifications
Thrust |
760N |
Motor Voltage
|
24v DC
|
Manual override
|
Via override key supplied
|
Working temperature
|
-20° - +50°
|
Duty Cycle
|
80%
|
Max. Operating Angle
|
120°
|
Gates size
|
4.2m max
|
Gate weight
|
500kg max
|
Feature Rich and Highly Versatile Control Box
Special Features
Energy Saving Mode (5mA Standby Current)
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Safety Features
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface

Control Board Overview

Accessories Compatibility and Controlling Options
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)
Remote Features

24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications |
Maximum Power |
20W/40W/60W |
Optimum Operational Voltage |
36V |
Open Circuit Voltage |
43.2V |
20W Panel Dimensions |
640 x 300 x 25mm |
40W Upgrade Panel Dimensions |
535 x 515 x 30mm |
60W Upgrade Panel Dimensions |
805 x 535 x 30mm |
APC Uno Standalone Solar System
The APC Uno is an articulate all-in-one design allowing for the clean and secure housing of the APC Sun Power Solar Regulator and multiple batteries.
Key Features:
- APC Sun power Regulator Built In
- Sleek contoured design
- Cable management entries for a clean installation
- Subtle grey to suit all installation environments
- Heavy duty 5mm galvanized 6-hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
- Easy to access with the tool-free clip lock system
- Can be secured with a small padlock
- Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each
Dimensions

24V 9aH Battery System
Supplied with the automation kit the 24V 9aH battery system will allow for continued use of the gate system wether in day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirments or higher duty there are upgrade options to 17aH and 33aH battery systems.
Specifications
Power Input |
24V (Uno Solar System) |
Rectification |
In Box Rectifier |
Motor Output Voltage |
24v DC |
Max Operating Power |
250 Watts (Accessories + Running Motors) |
Max. Accessories Load |
7W |
Control Board Duty Cycle |
80% |
Working temperature |
-20° - 50° |
RF |
APC Rolling code 433.92mhz |
Auxiliary Inputs |
0V Momentary Pulse |
Accessories Voltage |
24V DC |
Operator Inbuilt Safety |
Over current + Encoder Sensitivity |
Long Distance Remote
The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.
APC Booster 433mhz Antenna
The APC booster antenna is suitable for gate automation systems, garage doors, receivers and any other devices using the 433mhz or 433.92mhz radio frequency band.
As a general rule of thumb on a properly function system you can expect to see results of doubling the range of the transmitter.
The antenna can also help in resolving issues where the transmitter range is decreased due to installation methods such a receiver being behind a metal fence, brick pillar , metal box and numerous other range decreasing factors
Compatible devices
- APC-RC4S Four Button Keyring remote, up to 80m operating distance
- APC-RC4-SV Four Button Sun Visor Remote (six colour choices), up to 100m operating distance
- APC-RC450S Long Distance Remote, up to 800m operating distance
- APC-KP2W Two Channel Wireless Keypad APC-KP2W, up to 40m operating distance
- APC-PBS-KW Single Wireless Button with Isolation Key, up to 10m operating distance
- APC-PBD-KW Double Wireless Button with Isolation Key, up to 10m operating distance
- APC-PBS-KW (2nd Generation) Single Wireless Button with Isolation Key, up to 100m operating distance
- APC-PBD-KW (2nd Generation) Double Wireless Button with Isolation Key, up to 100m operating distance
Specifications
- Suits all 433MHz and 433.92MHz motors
- Can potentially double the specified operating range
- 5m RG58 Pre-wired Coaxial Cable
- Stainless Steel Mounting Bracket
- Long Range 6.5dbi
APC-RR-11 Retro Reflective Sensor
The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.
- Up to 11 Metres Infrared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment & Misalignment led to assist in the installation process
- Resin filled for the ultimate weatherproofing
