Universal Galvanized Farm Gate Bracket ( Suitable with 700,750,790, 800,850,890 Motors )

APC-FGB2532-GB

Product Information

APC Gate Bracket

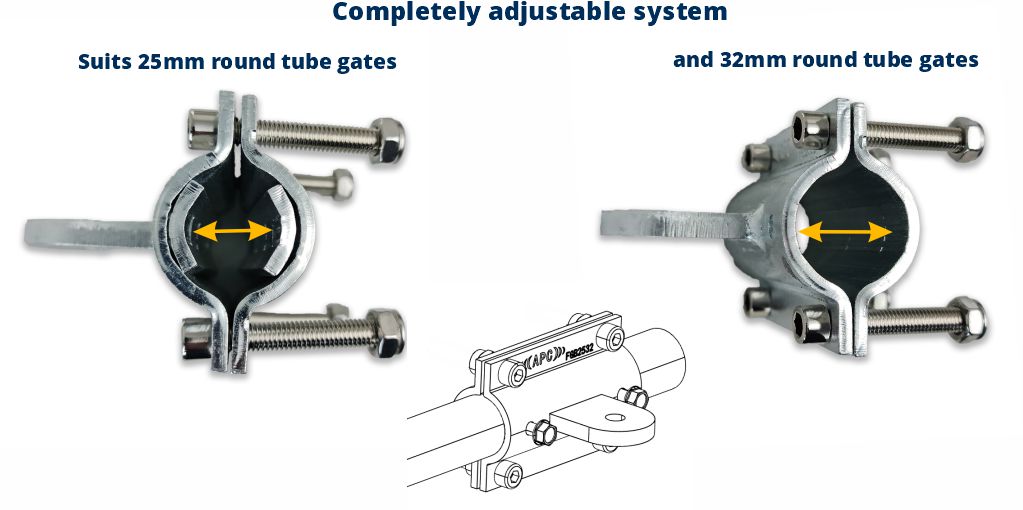

  • Gate bracket will work on ANY round tube gate design, 32mm direct fit and 25mm using the supplied tube reducers
  • 8mm tongue thickness
  • 9mm connection hole for automation connection which can be drilled up to 25mm without any negative affect
  • Suitable for any gate automation system

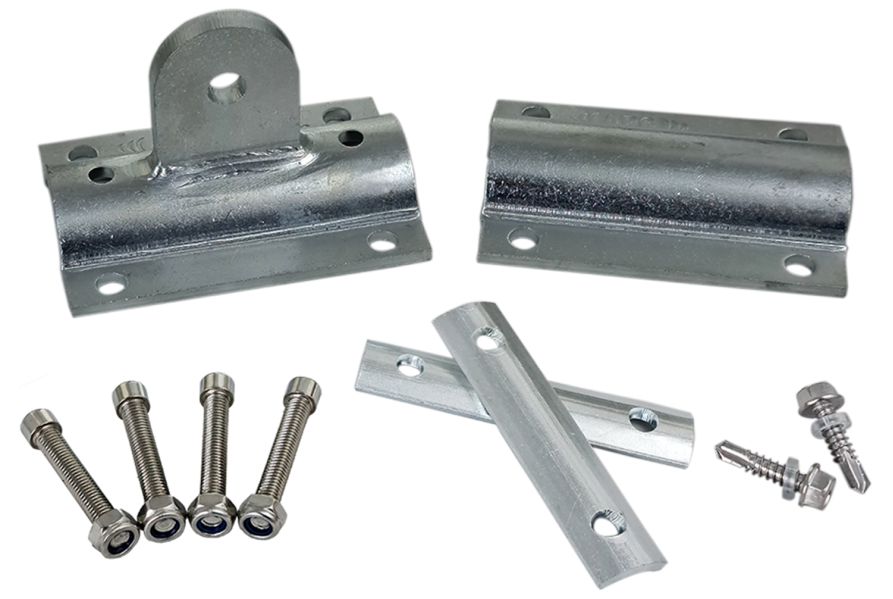

What's Supplied



  • Gate bracket system with tube reducers
  • 4x M8 Stainless steel bolts + 4x lock nuts for gate bracket clamping
  • 2x M6 Zinc plated self-drilling metal screws for extra securing for gate bracket



FAQ



Q: What size gate tube will this system work with?

A: 25mm and 32mm, these are standard and no other sizes are used

Q: Do i need to weld or cut anything?

A: No cutting or welding required at all

Q: What types of gate motors will this work with?

A: Both the linear and articulated type systems

Q: Will the gate bracket move?

A: No, the clamping force is extremely high and for added security there are self drilling screws supplied to fix through the front two pre punched holes on the gate bracket

Q: Will the system rust?

A: Absolutely not, as can be seen in the parts list above the up most care has been taken to carefully select the best hardware to suit our harsh Aussie climate

Q: Can i DIY myself?

A: Most can, it requires nothing more than regular basic tools to fit. In depth clear concise instructions are supplied but most do not read them as its a very simple system to connect together
