Heavy Duty 24V Motor with powerful and quiet operation Sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3.5m maximum length.
Easy to Adjust Top Limit Switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.
| Gear Type | Metal Lead Screw, Mixed Reduction |
|
Motor Voltage
|
24v DC
|
|
Manual override
|
Via override keys supplied
|
|
Working temperature
|
-10° - 50°
|
|
Duty Cycle
|
20%
|
|
Maximum stroke
|
350mm (without limit switches)
|
|
Gates size
|
3.5m max
|
|
Gate weight
|
250kg max
|
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Adjustable Over current adjustments

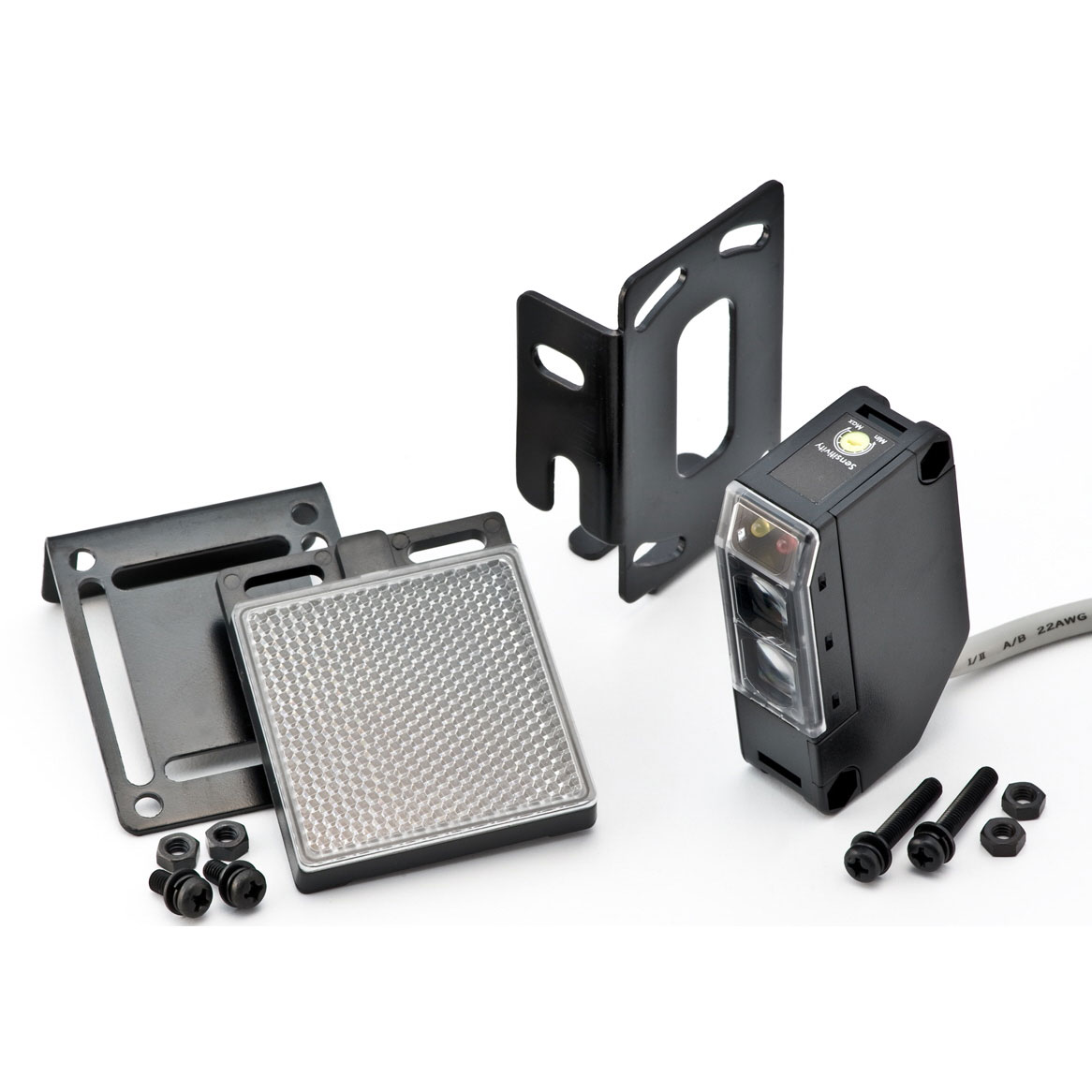

Safety Sensor connection input
Automatic Courtesy Light Output
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output
Any or all of the following may be connected to operate the gate

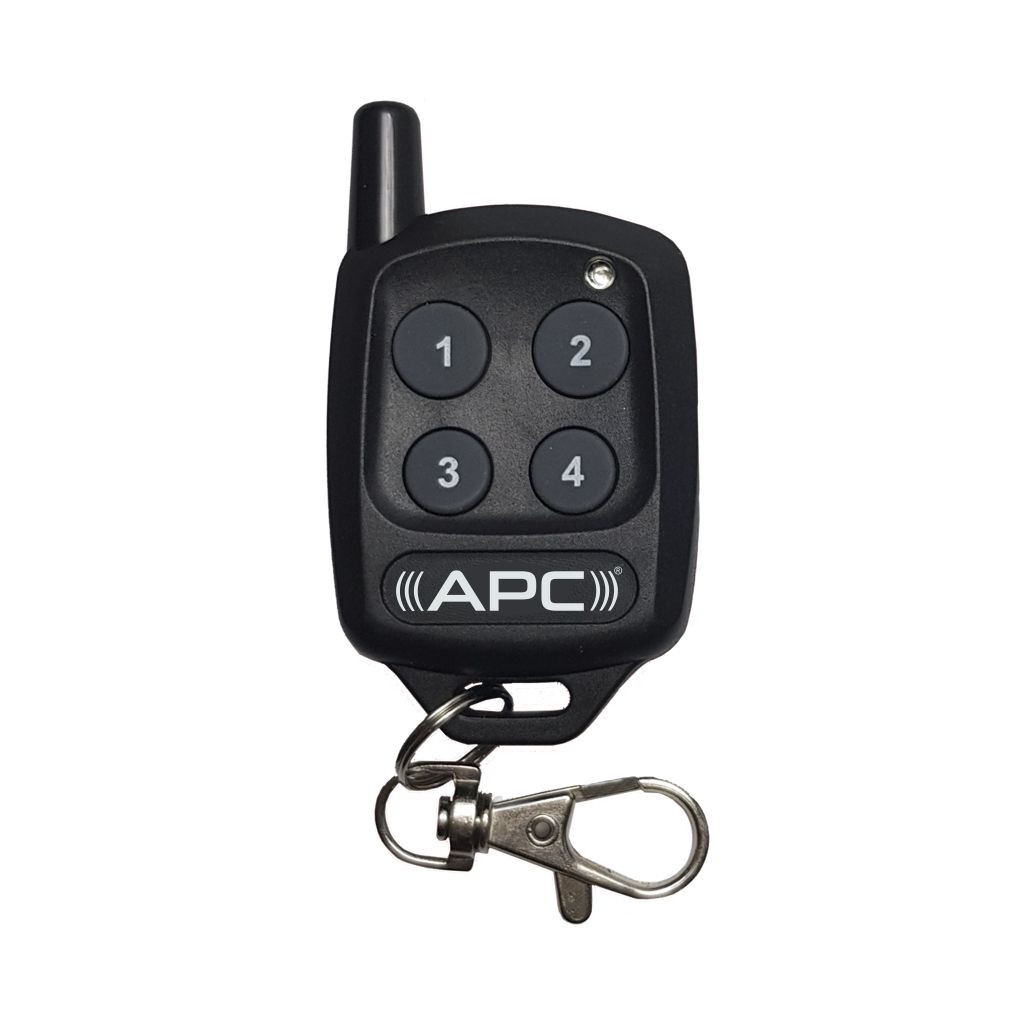

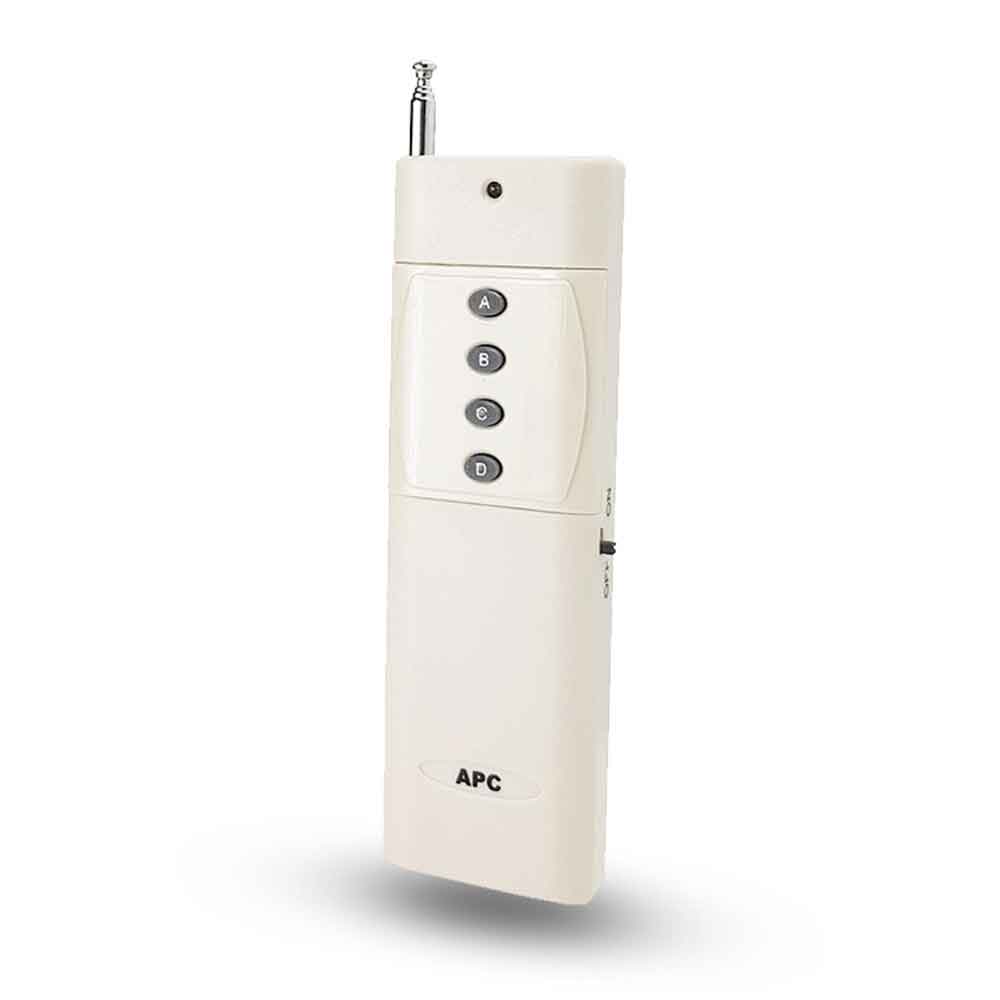

Remote controls

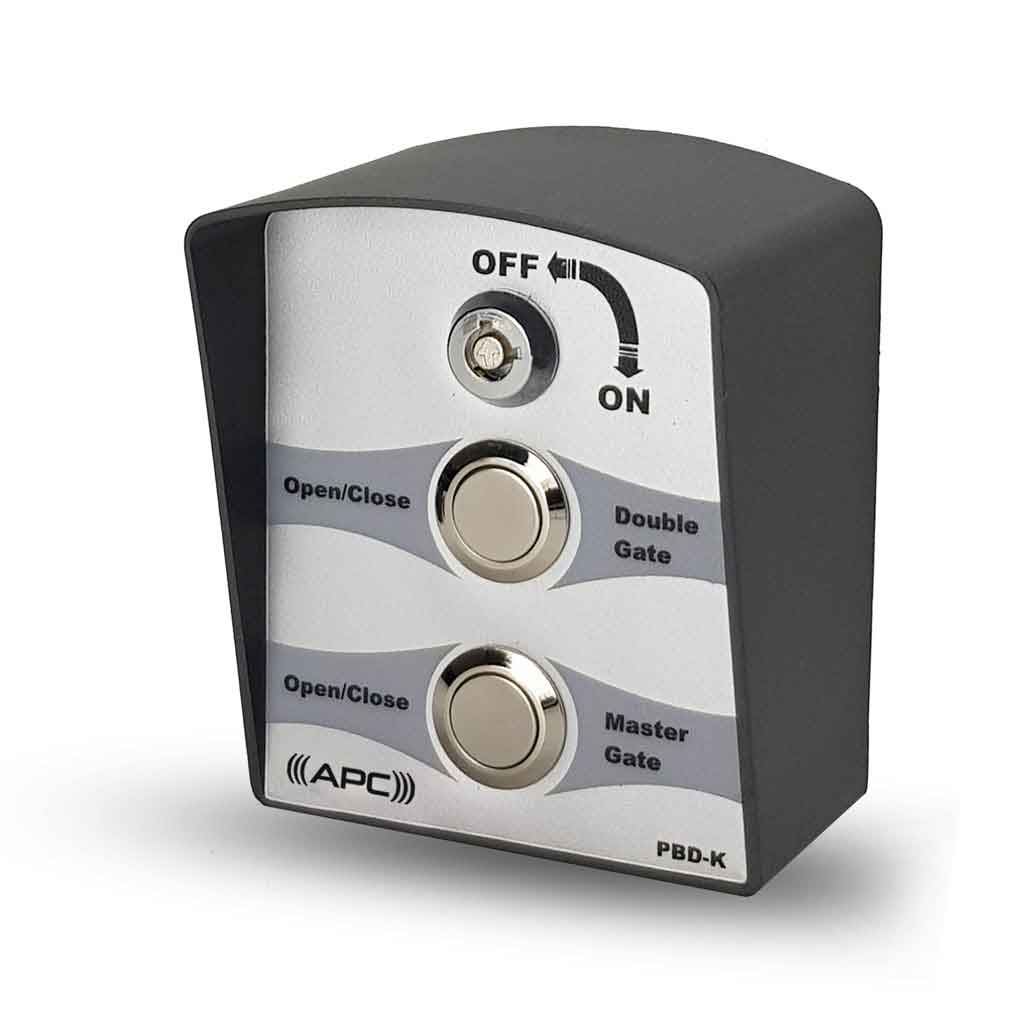

Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)

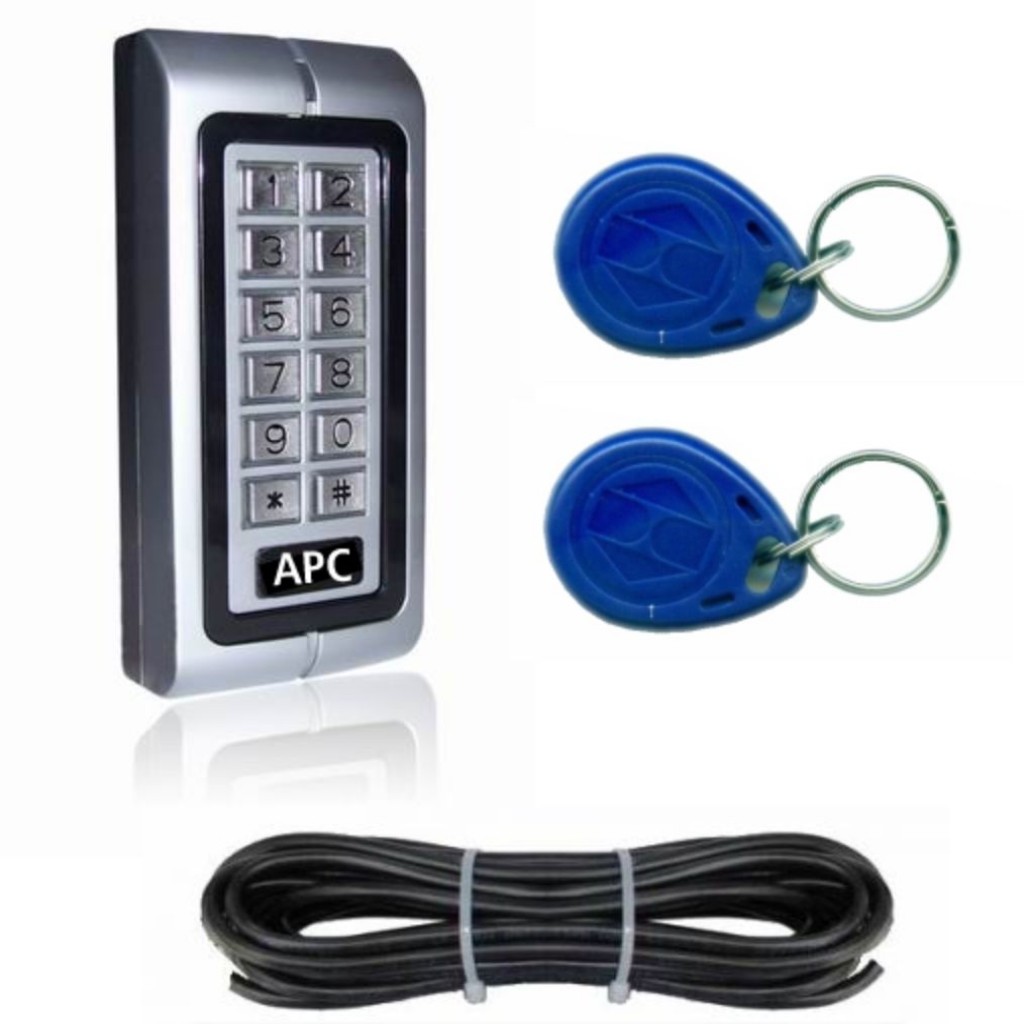

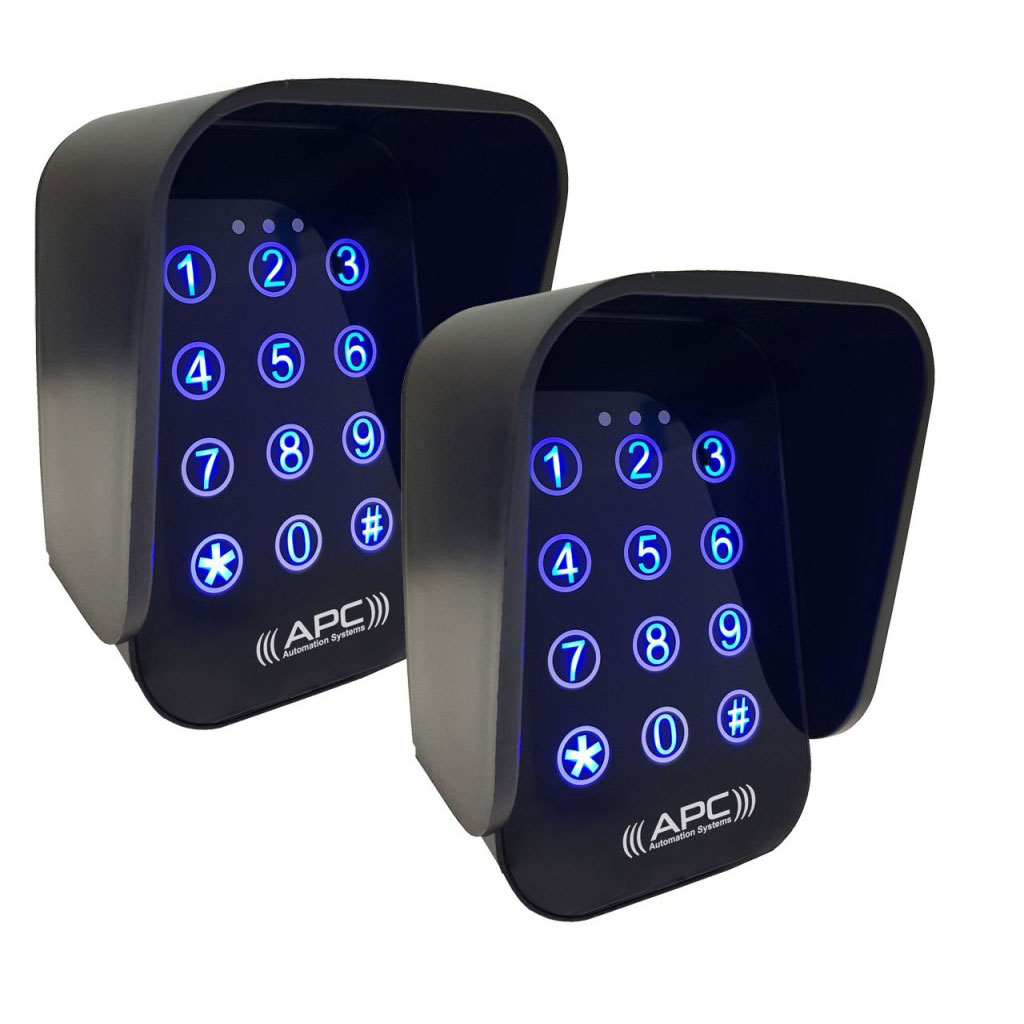

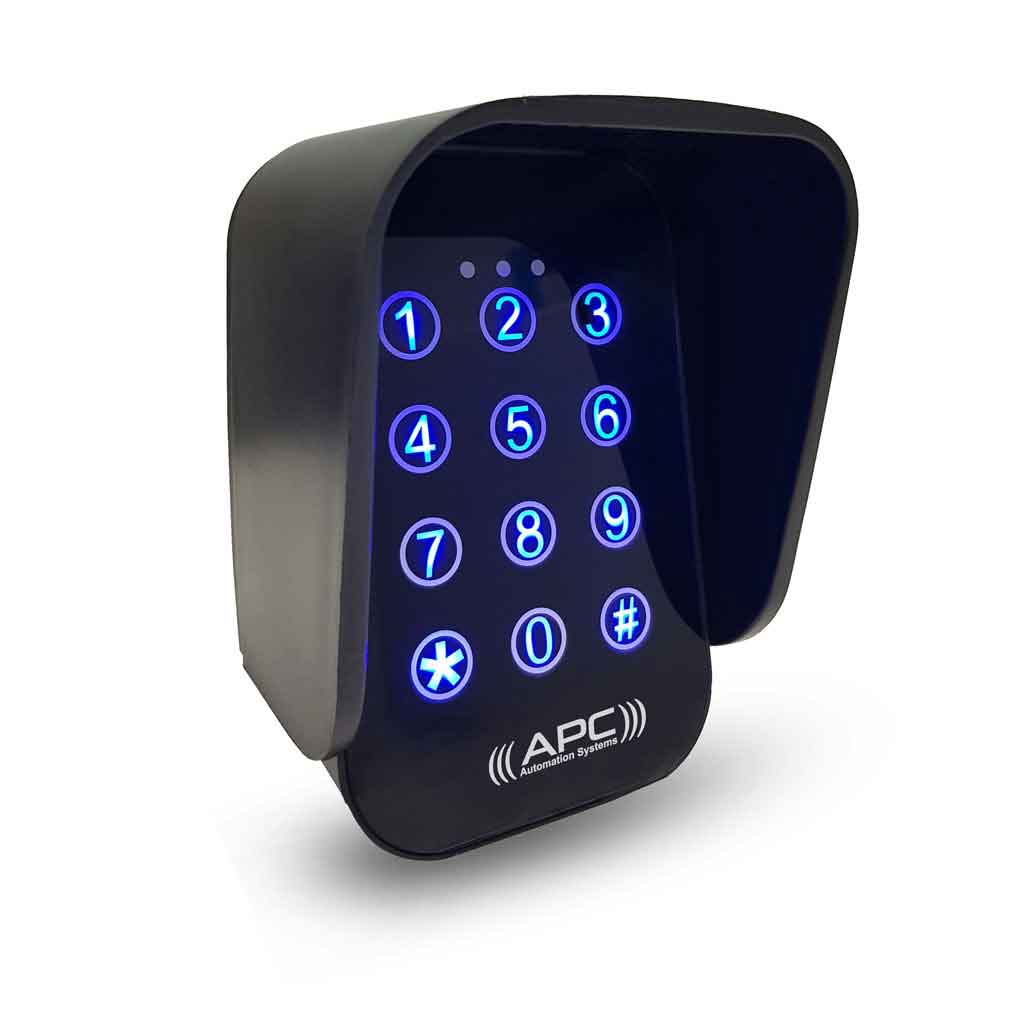

Keypads (Wired and Wireless Options Available)

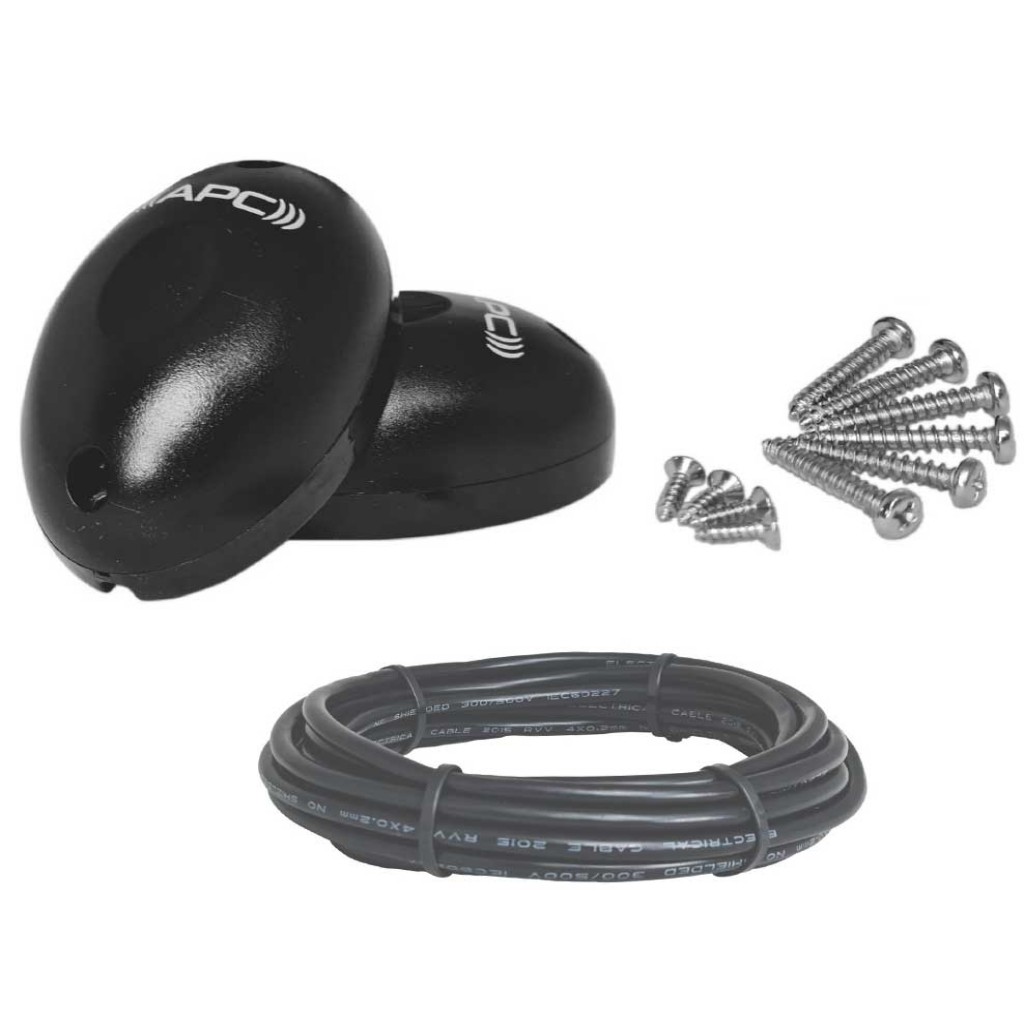

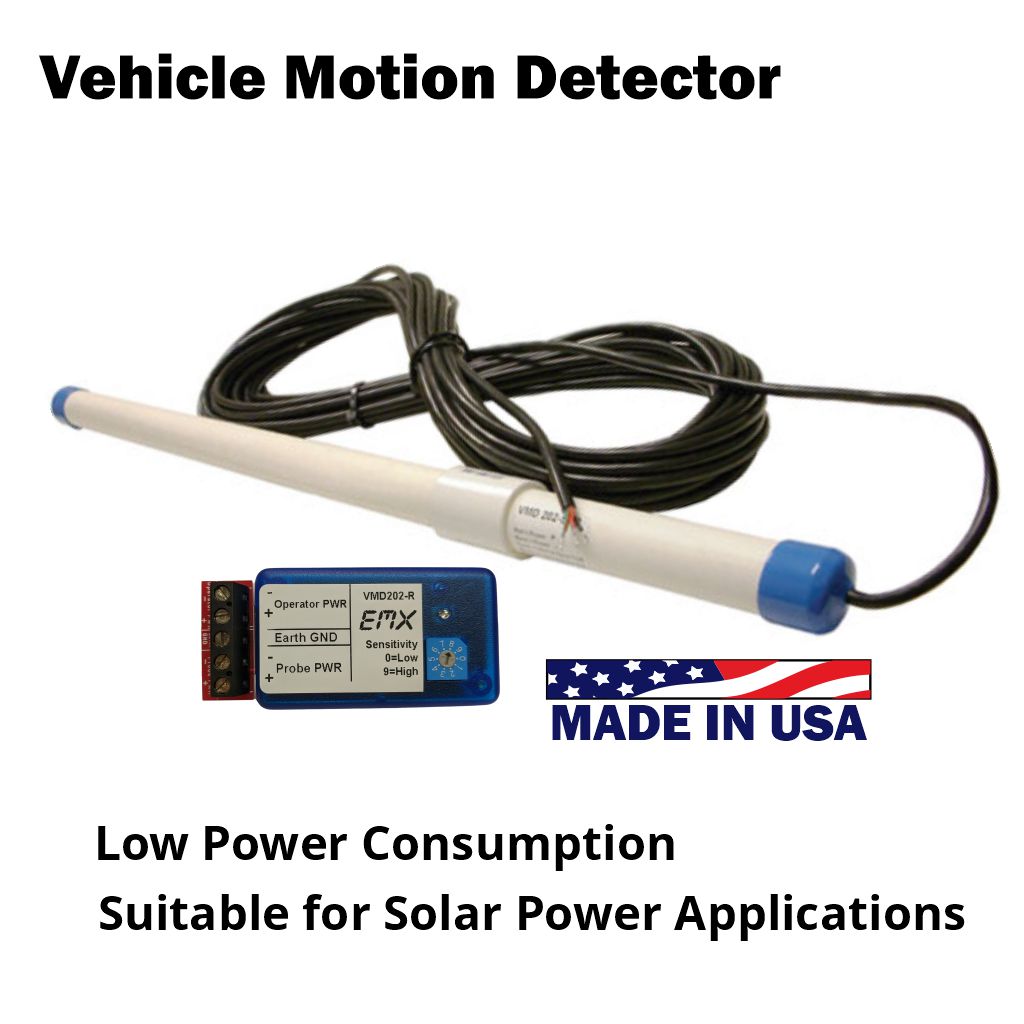

Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.
| Power Input | 240V AC (Pre wired with 1.2m Cable) |
| Transformer | 24V AC |
| Rectification | On Board Bridge Rectifier |
| Motor Output Voltage | 24v DC |
| Battery Backup | 24V |
| Working temperature | -10° - 50° |
| RF | APC Rolling code 433.92mhz |
| Lock Output (Primary) | 12-30V DC (Depending on Configuration) |
| Lock Output (Secondary) | 12V DC |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Over current | 1A to 5A |
The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing and the guest may be standing to its left or right side.
The wedge is a universal mount allowing for both left facing and right facing setups.
| Power | 12-15V DC |
| Relay | NO/NC |
| Exit Button Input | Yes |
| Swipe Tag Type | IC Tag |
| IP Rating | IP65 |

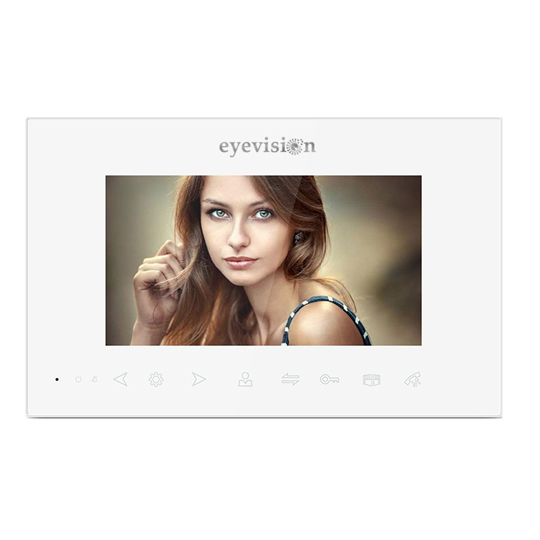

The eyevision Intelli Series intercom is a feature rich state of the art intercom system boasting every feature requested from an intercom syste (and much more...).
Any visitor calls can be recieved by the APP on your smartphone or table along with the monitor at the same time with a large feature set from the APP and also the indoor monitor. No extra modules are required to connect to the internet as the WF 7 slimline indoor monitor has built in Wi-Fi and is able to connect directly to your homes 2.4GHZ Wi-Fi connection.
Two oudoor stations can be connected for front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home allowing for the visitors call to be answered from any station and transfered to a diffrent station if required. Within the home you can selectivly intercom between any of the installed indoor monitors. All monitors connected into the system can view any of the installed CCTV camers (up to TWO can be connected into the system). If the CCTV cameras are interconnected with a seperate alarm sensor the system can have alarm recording events occur which can be saved directly to a micro SD card.
The intelli series can have a common release connected directly to the monitor allowing for simultaneous front gate - front door release making it easier than ever to let a guest in without having to switch between menus or running to the door.
System Capacity & Capabilities
Indoor Monitor Base Features
Special Features (Micro SD Required)
| Screen Size | 7" 1024x600 AHD LCD Display |
| Power | 12-15V DC |
| Wi-Fi | Yes, 2.4GHZ |
| SD Card | Micro SD (Not Supplied) Class 10 up to 32GB |
| CCTV Input | Maximum 2 |
| Alarm Sensor Input | Maximum 2 |
| Outdoor Unit Input | Maximum 2 |
| Indoor Monitors | Maximum 6 |
