Product SKU: BG-NUUR6-SOL-BK

Solar Powered Off Grid Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control Italian Made APC V2 NUUR 6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy, 60W Solar Panel, 17ah Dual Battery, Uno All in One Standalone Solar System, Two Key Chain Remotes

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • On Sale

Solar Powered Off Grid Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control Italian Made APC V2 NUUR 6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy, 60W Solar Panel, 17ah Dual Battery, Uno All in One Standalone Solar System, Two Key Chain Remotes

Product SKU: BG-NUUR6-SOL-BK

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$2,995.00 $3,450.00 APC Automotion Plus Sale

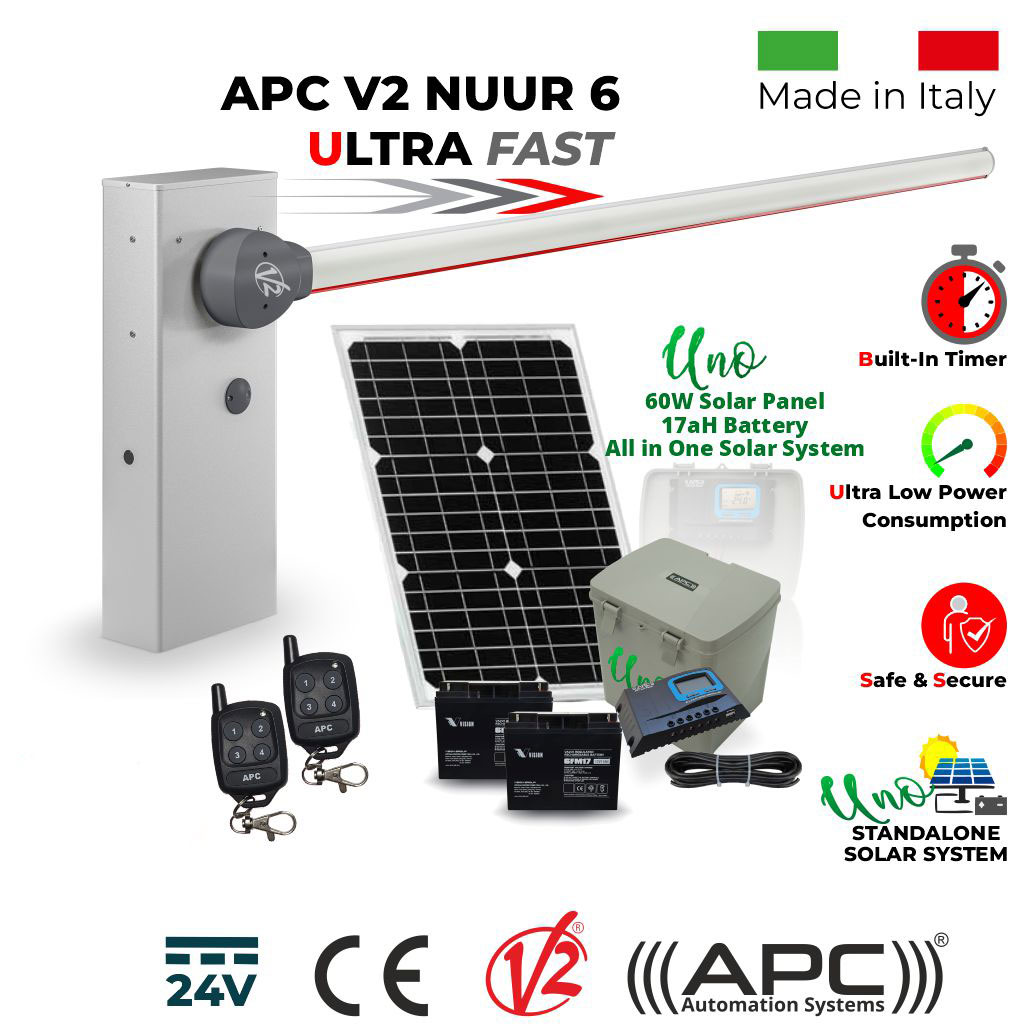

  • Italian-Made Ultra High-Speed 24V Solar Boom Gate (up to 6m arm), Barrier/Boom Gate Operator Can Work With Either Side

  • Kit Includes

    01 APC V2 NUUR 6 Universal Boom Gate Operator Box (Pre-Configured Right Side) Ultra High-Speed 24V DC, Car Parking Access Control / Boom Barrier / Boom Gate / Parking Barrier | Made in Italy (QTY: 1)
    02 6m Boom Gate Arm Consisting of 2 X 3m and a Joiner for APC V2 NUUR 6, Universal Boom Gate (QTY: 2)
    03 Joint for Boom Gate Arms | Italian Made APC V2 NUUR 6, Universal Boom Gate (QTY: 1)
    04 Boom Gate Cover for APC V2 NUUR 6 Universal Barrier/Boom Gate Operator (QTY: 1)
    05 Concrete In Fixing Anchor Plate with Stay Bolts and Screws for APC V2 NUUR 6 Universal Boom Gate Operator (QTY: 1)
    06 APC Four Button Keyring Remote (QTY: 2)
    07 APC Uno Multipurpose Battery Box Large (QTY: 1)
    08 17aH High Capacity Battery (QTY: 2)
    09 2m 2 Core 2mm Non-Shielded Cable (QTY: 1)
    10 APC Sun Power Series 12V/24V 10A PWM Solar Regulator (QTY: 1)
    11 24v 60 Watts Solar Panel (QTY: 1)
    12 Solar Panel Post & Bracket for APC 60 Watt Solar Panel (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

ULTRA FAST 24V DC Powered Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6

Ultra-low power consumption. Suitable for solar-powered systems.

24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate

24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 6 m width

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy



  • Accurate and safe operation with encoder
  • Obstacle detection
  • Self-learning of opening and closing times
  • Slow-down in the limit switch area
  • Balancing spring included
  • White painted aluminium bar (accessory)
  • Digital control unit programmable using three program buttons and display
  • Plug-in adaptor for modular receiver
  • ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
  • Input for photocells with self-test function
  • Input for mechanical safety edges
  • Courtesy light output
  • Holding magnet output
  • Energy Saving function to minimise consumption in standby mode
  • Programmable acceleration and deceleration
  • Operation in case of absence of power using the backup battery
  • Operation with solar power using the ECO-LOGIC system



Motor Overview / Balancing Spring System







Technical Features

  • Power supply (Vac - Hz): 230 V~ 50 Hz
  • Motor power supply (Vac - Hz):  24 Vdc
  • Maximum electric power (W): 240W
  • Opening time (s): 5 Seconds for 6 Meter Boom Arm
  • Working temperature (°C): Between -20° to +55°
  • Duty cycle % - (max. cycles/hour): 80% - (200)



Control Panel





  • Digital control unit programmable using three program buttons and display
  • Plug-in adaptor for receiver
  • ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP



Dimensions



Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy



APC V2 NUUR6 Boom Gate System is Suitable to Use On Either Side.

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy





Easy to Swap Right Side and Left Side Raise Arm Barrier Operator











APC Automation Systems FOUR Button Keyring Remote Control





Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.

APC UNO Off-Grid Stand-Alone Solar Power System

The APC Uno is an articulate all-in-one design allowing for the clean and secure housing of the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). For 33aH batteries, a Master Uno Large Box and Slave Uno Large Box are required; see details below.

Key Features:

  • Direct fitting of APC Sun power Regulator (available separately)
  • Sleek contoured design
  • Cable management entries for a clean installation
  • Subtle grey to suit all installation environments
  • Heavy duty 5mm galvanized 6-hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
  • Easy to access with the tool-free clip lock system
  • It can be secured with a small padlock
  • Four output glands allow for completely weatherproof entry/exit of cables up to 9mm OD each.

Dimensions UNO BOX LARGE

Extra Heavy Duty Single Gate Opener

Uno Box Large Outer Dimensions

Height 281mm (Including cable glands) 255mm Without
Width 263mm
Depth 230mm Including Mounting bracket, 189mm without

Battery Requirments and Configuration

Battery Dimensions (each) Battery Size 12V Configuration 24V Configuration Uno Box Requirments
151x65x99mm BAT-9 (9aH) 1x Battery Required 2x Batteries Required Up to Two Batteries in one Master Uno Box
181x77x167mm BAT-17 (17aH) 1x Battery Required 2x Batteries Required Up to Two Batteries in one Master Uno Box Large
195x130x167mm BAT-33 (33aH) 1x Battery Required 2x Batteries Required One Battery in Master Uno Box Large
(and One Battery in a Slave Uno Box Large for 24V)

Typical Configuration

Extra Heavy Duty Single Gate Opener

Battery Wiring


33aH Configuration

Extra Heavy Duty Single Gate Opener

At a glance

  • 12-24V Compatible
  • LITHIUM Battery Compatible
  • Easy to use LCD Interface
  • Compatible with Most Batteries
  • 32 Bit Micro Controller
  • Extra Large Wiring Terminals
  • 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
  • Metal Heat sink
  • USB Output



In Depth



apc sun power

apc sun power

Automatic Voltage Selection

The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.

Multiple Battery Modes

The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.

Overcharge and Discharging

The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.

Overload and Short Circuit Protection

The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.

Reverse Polarity Protection

In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.

USB Output Terminals

The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.

Heavy Duty Design

Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.

Specifications

System Voltage 12V/24V DC auto
PV Max Input Voltage 55V
Self-consumption 10mA
Max Charging current 10A
Max Discharging current 10A
Battery type Sealed(Default)/Gel/Flood/Lithium
LVD 11.0V ADJ 9V...12V ; x2/24V
LVR 12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage 13.8V ADJ 13V... 15V ; x2/24V
Boost Voltage 14.4V ADJ 13V...17V ;x2/24
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage 16.5V ; x2/24V
Reverse Connection Protection Yes
Load Over Current Protection Yes, each 30s auto restart again
Controller Over Temperature Yes
USB Output 5VDC/1A 2PCS
Charging Type PWM
Charge circuit voltage drop <=0.25V
Discharge circuit voltage drop <=0.1V
Temperature Consumption#  For 12V system:-24mV /°C ; x2/24V
Relative humidity ≤95%, N.C.
Working Temperature -20°C~+55deg;C(Product can work continuously at full load)
LCD temperature range -20°C~+70°C
Waterproof grade IP32
Mounting hole size Φ5mm
Terminals 10mm²/8AWG
Weight 245g
Overall dimension(mm) 190×108×41.5

24V 60 Watts Solar Panel With Solar Panel Post & Bracket | APC Off-Grid Stand Alone Solar Power System

24v 60 Watts Solar Panel With Solar Panel Post & Bracket for 60 Watt Solar Panel APC Off-Grid Stand Alone Solar Power System

24v 60 Watts Solar Panel With Solar Panel Post & Bracket for 60 Watt Solar Panel

APC Off-Grid Stand Alone 24V 60 Watt Solar Panel

24V 60 Watt Solar Panel

The SP-24V-60 is a 60 Watt, 24 Volt solar panel and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.

A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and a Tedlar-Polyester-Tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating the module.

APC Off-Grid Stand-Alone Solar Power System



Open Circuit Voltage 42.48V
Optimum Operating Voltage <36V
Short Circuit Current 1.83A
Optimum Operating Current 1.66A
Dimensions 805 x 535 x 30MM
Cells Mono Crystalline



Solar Panel Post & Bracket for APC 60 Watt Solar Panel APC Off-Grid Stand Alone Solar Power System

This solar panel, post & bracket set suits the APC 60-watt solar panels.


24V 60 Watt Solar Panel



Solar Panel Post & Bracket Packet Contents



24V 60 Watt Solar Panel

- Solar Panel Mounting Post
- Solar Panel Mounting Plate
- Nuts, Bolts and Washers
- Saddle Clamps
- Rubber Pads
- T Brackets
