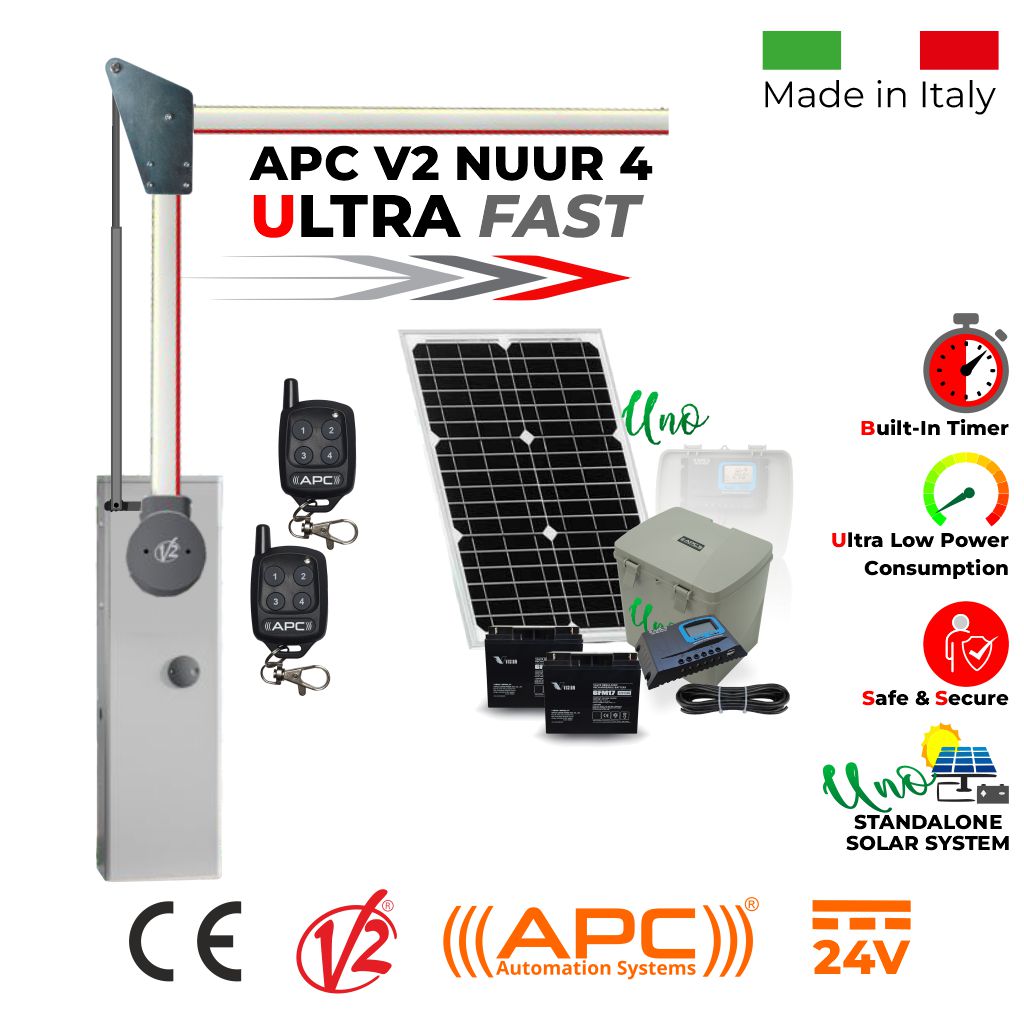

Solar Powered Off Grid 4 Meter Boom Barrier Gate Operator with 90 Degree Articulated Arm, 60W Solar Panel, 17ah Dual Battery, Uno All in One Standalone Solar System, Two Key Chain Remotes. Ultra High-Speed 24V APC V2 NUUR4, Universal Boom Barrier. Car Parking Secure Access Control System, Made in Italy

APC V2 NUUR4 ULTRA FAST 24V Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control

Ultra-low power consumption. Suitable for solar-powered systems.

24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate

24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 4m width

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR4, Universal Boom Gate Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy

• Accurate and safe operation with encoder
• Obstacle detection
• Self-learning of opening and closing times
• Slow-down in the limit switch area
• Balancing spring included
• White painted aluminium bar (accessory)
• Digital control unit programmable using three program buttons and display
• Plug-in adaptor for modular receiver
• ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
• Input for photocells with self-test function
• Input for mechanical safety edges
• Courtesy light output
• Holding magnet output
• Energy Saving function to minimise consumption in standby mode
• Programmable acceleration and deceleration
• Operation in case of absence of power using the backup battery
• Operation with solar power using the ECO-LOGIC system

Motor Overview / Balancing Spring System

Technical Features

• Power supply (Vac - Hz): 230 V~ 50 Hz
• Motor power supply (Vac - Hz):  24 Vdc
• Maximum electric power (W): 300W
• Opening time (s): 3 Seconds for 4 Meter Boom Arm
• Working temperature (°C): Between -20° to +55°
• Duty cycle % - (max. cycles/hour): 80% - (300)

Control Panel

• Digital control unit programmable using three program buttons and display
• Plug-in adaptor for receiver
• ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP

Dimensions

Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy

APC Automation Systems FOUR Button Keyring Remote Control

Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.

APC UNO Off-Grid Stand-Alone Solar Power System

The APC Uno is an articulate all-in-one design allowing for the clean and secure housing of the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). For 33aH batteries, a Master Uno Large Box and Slave Uno Large Box are required; see details below.

Key Features:

• Direct fitting of APC Sun power Regulator (available separately)
• Sleek contoured design
• Cable management entries for a clean installation
• Subtle grey to suit all installation environments
• Heavy duty 5mm galvanized 6-hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
• Easy to access with the tool-free clip lock system
• It can be secured with a small padlock
• Four output glands allow for completely weatherproof entry/exit of cables up to 9mm OD each.

Dimensions UNO BOX LARGE

Uno Box Large Outer Dimensions

Battery Requirments and Configuration

Typical Configuration

Battery Wiring

33aH Configuration

At a glance

• 12-24V Compatible
• LITHIUM Battery Compatible
• Easy to use LCD Interface
• Compatible with Most Batteries
• 32 Bit Micro Controller
• Extra Large Wiring Terminals
• 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
• Metal Heat sink
• USB Output

In Depth

Automatic Voltage Selection

The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.

Multiple Battery Modes

The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.

Overcharge and Discharging

The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.

Overload and Short Circuit Protection

The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.

Reverse Polarity Protection

In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.

USB Output Terminals

The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.

Heavy Duty Design

Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.

Specifications

24V 60 Watts Solar Panel With Solar Panel Post & Bracket | APC Off-Grid Stand Alone Solar Power System

24v 60 Watts Solar Panel With Solar Panel Post & Bracket for 60 Watt Solar Panel APC Off-Grid Stand Alone Solar Power System

APC Off-Grid Stand Alone 24V 60 Watt Solar Panel

The SP-24V-60 is a 60 Watt, 24 Volt solar panel and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.

A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and a Tedlar-Polyester-Tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating the module.

Solar Panel Post & Bracket for APC 60 Watt Solar Panel APC Off-Grid Stand Alone Solar Power System

This solar panel, post & bracket set suits the APC 60-watt solar panels.


Solar Panel Post & Bracket Packet Contents

- Solar Panel Mounting Post
- Solar Panel Mounting Plate
- Nuts, Bolts and Washers
- Saddle Clamps
- Rubber Pads
- T Brackets
