Solar Powered 3.5m Ring Top Gate and Gate Automation & Hardware Combos with Italian Made Heavy Duty Articulated Arm Gate Opener. Complete Solar Single Swing Gate Packages

Product SKU: GTR35-PA-4200-SOL

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info.. Get More Info..

Kit Price:

$2,895.00

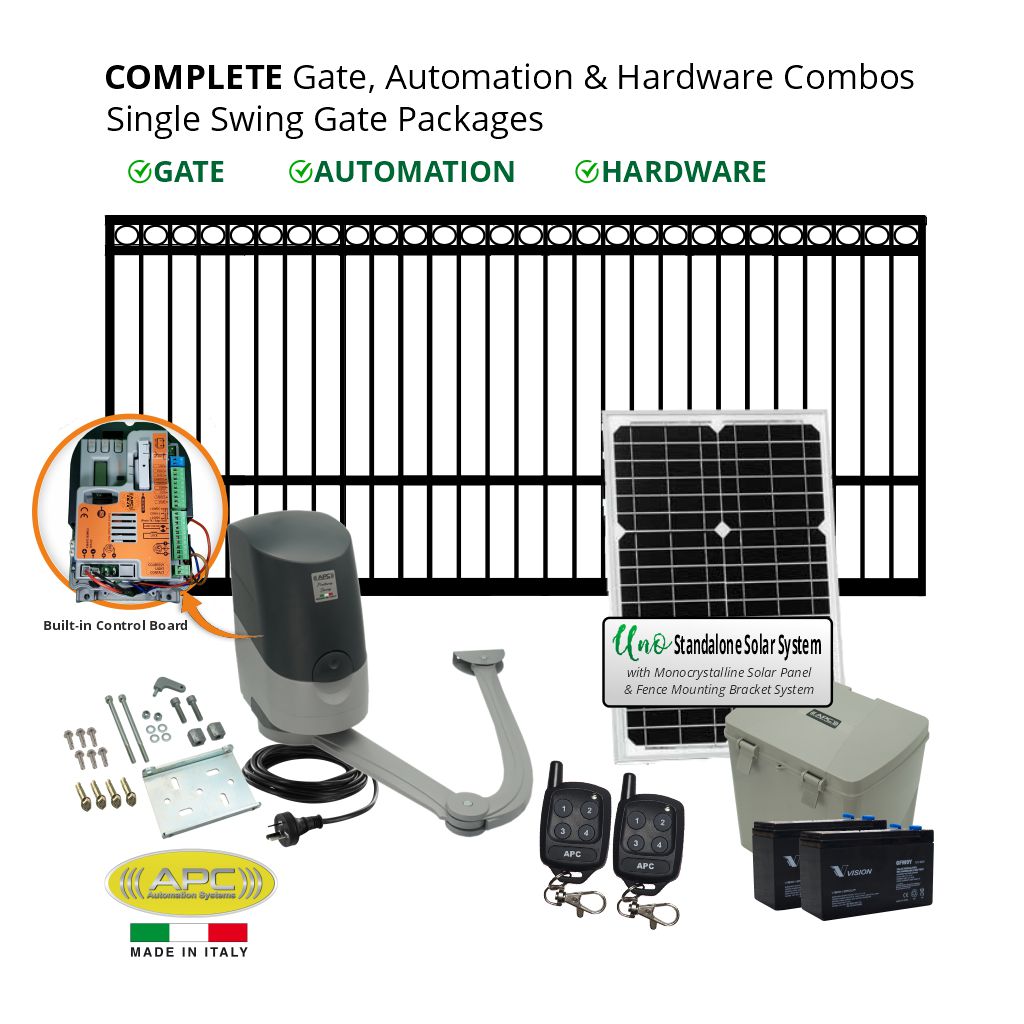

  • Ring Top Desigin Gate with Italian Made Easy to Install Gate Automation and Hardware Combo

  • Kit Includes

    01 3.5m Ring Top Gate(QTY: 1)
    02 APC Proteous 4200 (Master Motor) Articulated Arm with Built-in Control Board and Adjustable Stops(QTY: 1)
    03 APC Proteous 4200 Long Arm(QTY: 1)
    04 APC Uno Multipurpose Battery Box(QTY: 1)
    05 9aH High Capacity Battery(QTY: 2)
    06 APC Sun Power Series 12V/24V 10A PWM Solar Regulator(QTY: 1)
    07 2m 2 Core 2mm Non-Shielded Cable(QTY: 1)
    08 24v 20 Watts Solar Panel(QTY: 1)
    09 Solar Panel Fence Post & Bracket for APC 20 Watt Solar Panels(QTY: 1)
    10 APC Four Button Keyring Remote(QTY: 2)
    11 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order.(QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Classic Ring Design Gate with 19mm Pickets and an additional Horizontal Support Rail




Key Features
  • Classic Ring Design
  • 1500mm Height
  • 19mm Pickets
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

Suitability
  • Sliding Gate Applications
  • Swing Gate Applications
  • Residential Use
  • Commercial Use


Italian Made Extra Heavy Duty Articulated Arm System






Packing a punch the Proteous 4200 system can deliver 760N of thrust to operate gates up to 500kg or 4.2m in length. With a built in adjustable stop for both the open and closed positions making the system is versatile in its stopping arangment.



Adjustable built in stopper


Simple to adjust just install the supplied Open position stopper in the hole at the desired stop point and tighten. Repeat again for the Closed position stopper.


System Capacity





Installation Geometry





Specifications

Thrust 760N
Motor Voltage
24v DC
Manual override
Via override key supplied
Working temperature
-20° - +50°
Duty Cycle
80%
Max. Operating Angle
120°
Gates size
4.2m max
Gate weight
500kg max





Feature Rich and Highly Versatile Control Box



The Proteous PA-4200 Control Unit provides the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completely adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available), and induction loop
Fast and Slow Speeds points are adjustable along with the power
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)



Remote Features





24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)






Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications
Maximum Power 20W/40W/60W
Optimum Operational Voltage 36V
Open Circuit Voltage 43.2V
20W Panel Dimensions 640 x 300 x 25mm
40W Upgrade Panel Dimensions 535 x 515 x 30mm
60W Upgrade Panel Dimensions 805 x 535 x 30mm




APC Uno Standalone Solar System





The APC Uno is an articulate all-in-one design allowing for the clean and secure housing of the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

  • APC Sun power Regulator Built In
  • Sleek contoured design
  • Cable management entries for a clean installation
  • Subtle grey to suit all installation environments
  • Heavy duty 5mm galvanized 6-hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
  • Easy to access with the tool-free clip lock system
  • Can be secured with a small padlock
  • Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Dimensions

Extra Heavy Duty Single Gate Opener

24V 9aH Battery System







Supplied with the automation kit the 24V 9aH battery system will allow for continued use of the gate system wether in day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirments or higher duty there are upgrade options to 17aH and 33aH battery systems.

Specifications

Power Input 24V (Uno Solar System)
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accessories + Running Motors)
Max. Accessories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity
