Brushless 24 Volt DC Automatic Boom Gate
- Model: Brushless Boom Gate 24V-DC
- Performance Time: 1.5~6s
- Boom Type: Straight
- Max Boom Length: 6m

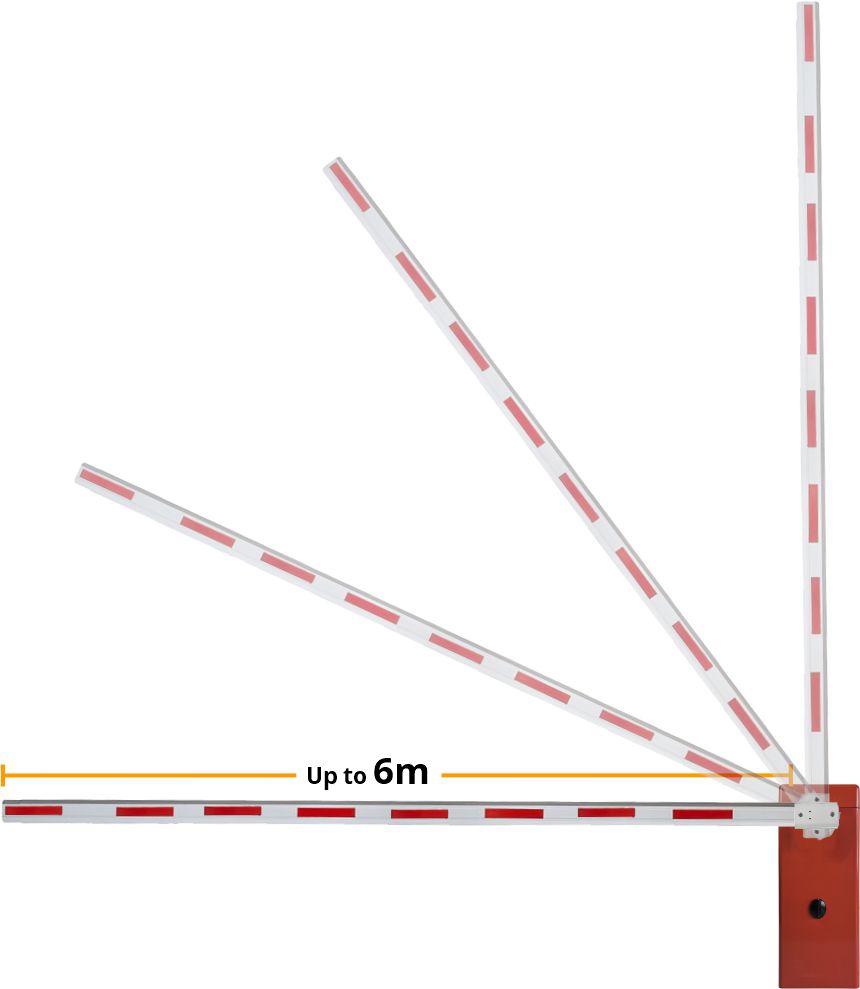

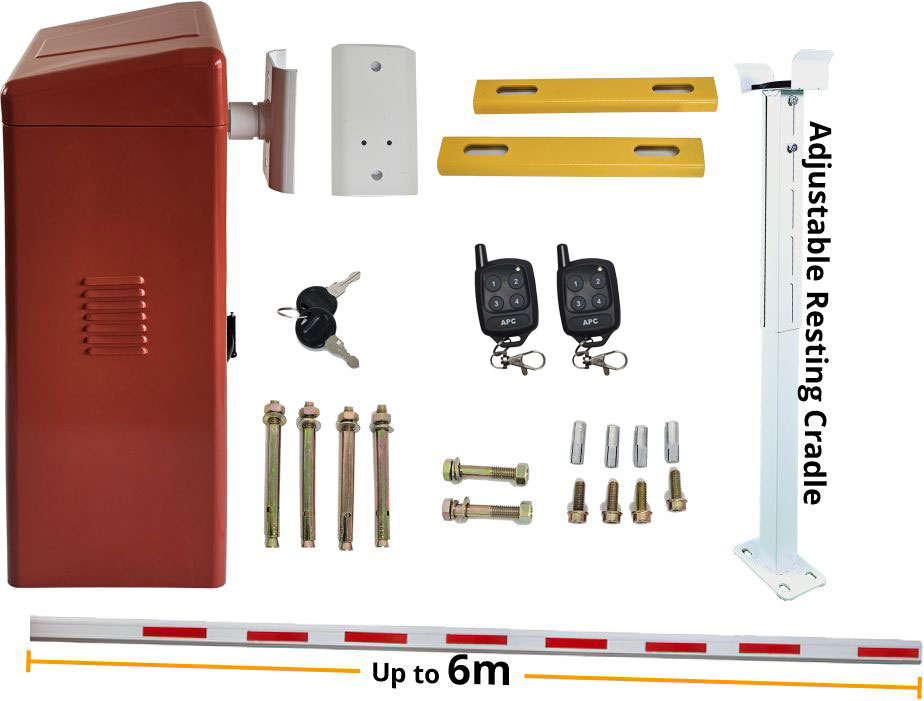

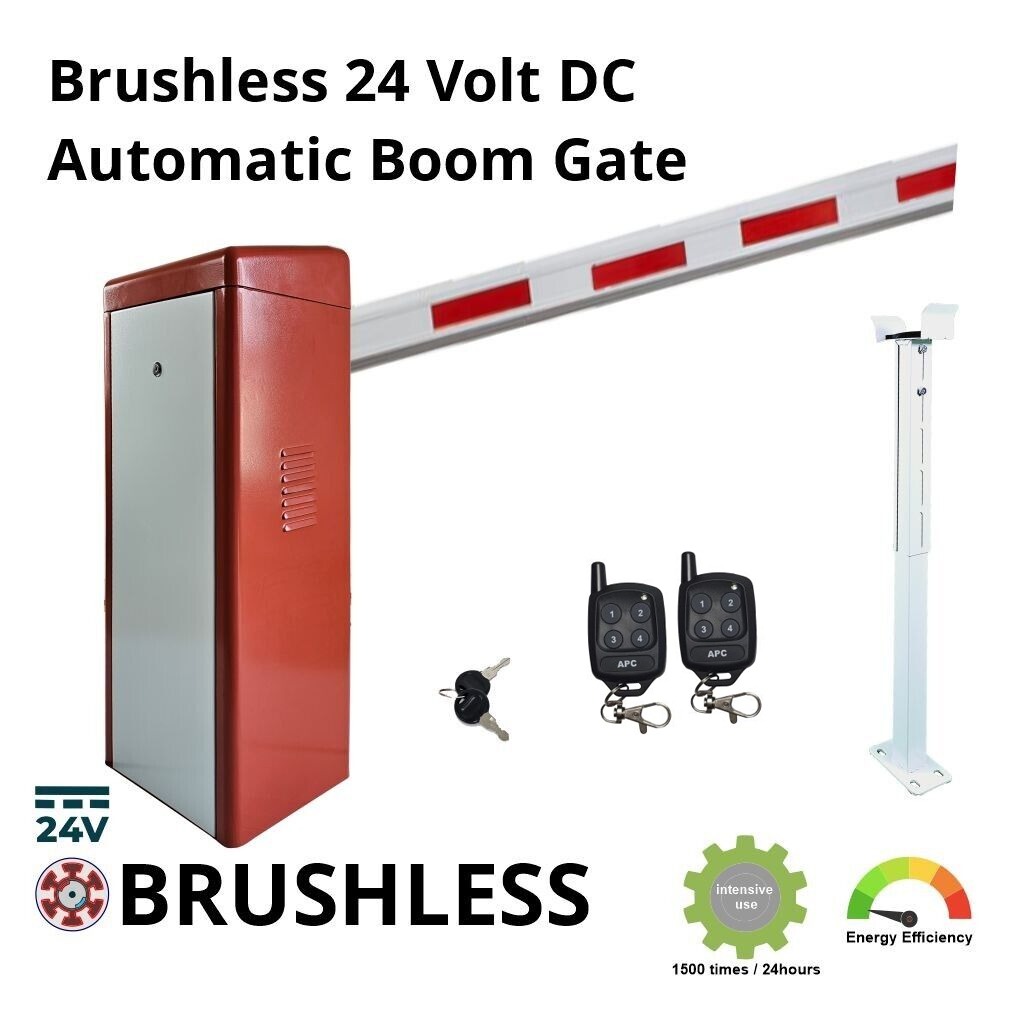

The brushless boom gate complete package includes.
- Brushless Boom Gate
- 6m adjustable Boom gate arm
- Adjustable resting cradle for boom arm
- Remote controls
- Fixing plates, bolts and screws

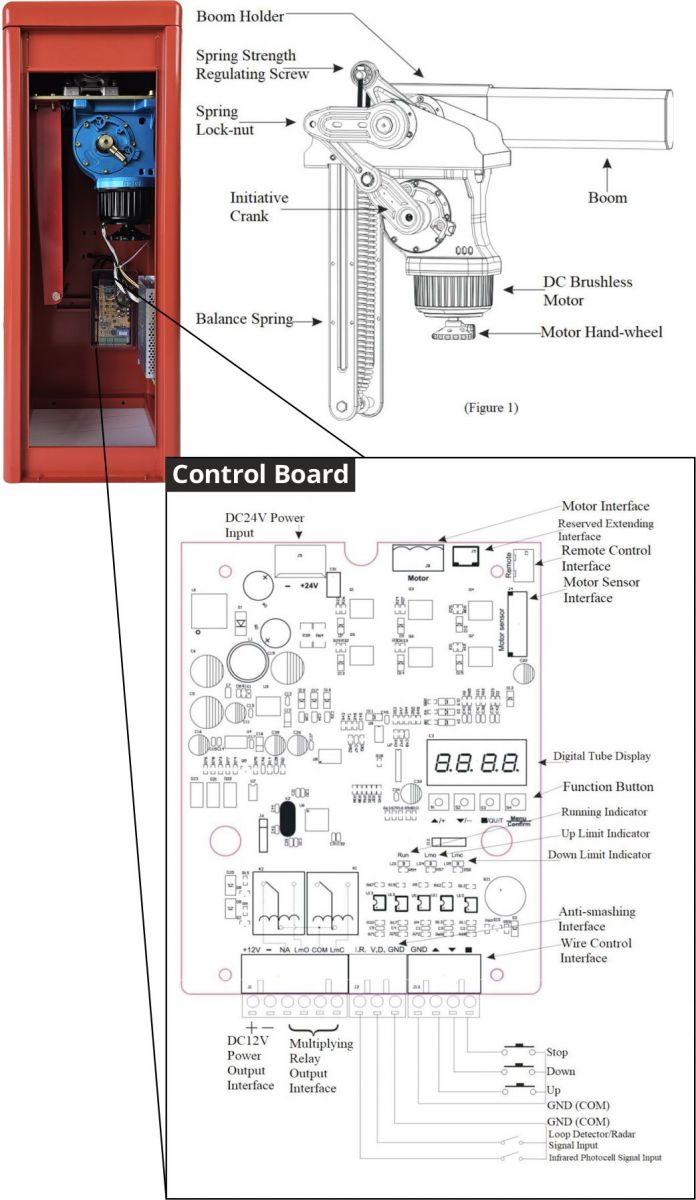

Boom Gate Motor and Control Board Overview
Product Description
- DC Brushless Barrier Gate
- Left-installation and right-installation can be exchanged
- Alarm against abnormal lifting boom
- Support 24-hour continuous operation without heating protection
- Speed will reduce when the boom moves to the limited position
Installation Direction
Definition When placing the order, please confirm "left-installed" or "right-installed".
Figures as below:
Technical Data
Model
|
Brushless Boom Gate (speed 1.5-6s adjustable)
|
Running Speed
|
1.5s
|
4s
|
5s
|
6s
|
Max Boom Length
|
3m
|
4.5m
|
5m
|
6m
|
Boom Type
|
Straight
|
Input Voltage
|
AC 220V±10%, AC110V±10%,50/60HZ
|
Frequency
|
50/60HZ
|
Motor Voltage
|
DC24V
|
Enclosure Rating
|
Ip54
|
MTBF
|
2500000 times
|
Traffic Flow Application
|
1500 times / 24hours
|
Working Motor Power
|
-35°C~+85°C
|
Max Motor Power
|
200W
|
Max Motor Speed
|
24r/min
|
Main Functions and Features
- Driven by a DC brushless motor, equipped with a movable connecting rod transmission mechanism and balance spring, stable and reliable operation. Motor life cycle up to 2,500,000 times or more, and spring life cycle up to 500,000 times.
- Built-in delay auto-closing and reverse on an obstacle in case of resistance.
- Support infrared photocell, loop detector, external radar, and built-in DC12V power output.
- Standard fitting with 433MHZ learning code remote control, convenient and quick to add configuration.
- Support remote control, open and interference-free environment, the maximum distance is 50 meters.
- When powered off, the barrier gate can still work by adding two external batteries. And battery charging module is optional. When powered on, the battery will automatically charge.

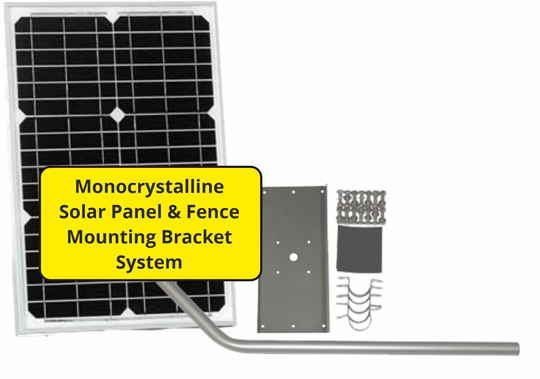

24V 60 Watt Solar Panel (Upgradable to 120W or 180W)
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Important Note:Additional panels can be added in the upgrade options to enable the best charging rates of 120W (two panels) and 180W (three panels), this would be recommended for any of the lower states in Australia (due to winter weather conditions) or anytime the system would be used greater than 20 times per day to ensure the system never reaches a low capacity.
Specifications |
Maximuim Power |
60W |
Optimum Operational Voltage |
36V |
Open Circuit Voltage |
43.2V |
60W Panel Dimensions |
805 x 535 x 30mm |

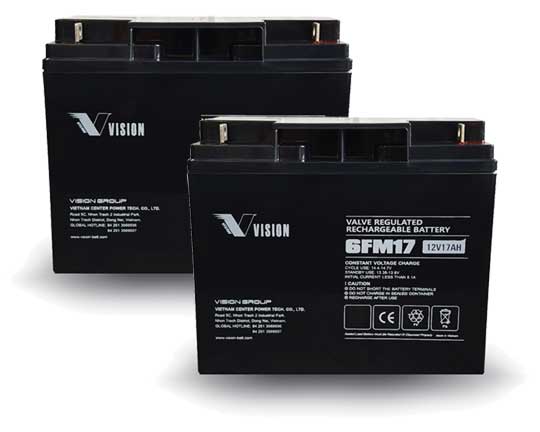

24V 17aH Battery System
Supplied with the automation kit the 24V 17aH battery system will allow for continued use of the gate system wether in day or night. The system can operate for up to one week of regular usage of 30 cycles per day without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirments or higher duty there are upgrade options to 33aH battery systems available.
APC Automation Systems FOUR Button Keyring Remote Control
Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.
