Product SKU: APC-T800TL-L24-DC-7WF-D298KP-SM
Free Shipping
Kit Price:
$2,135.00
$2,759.00

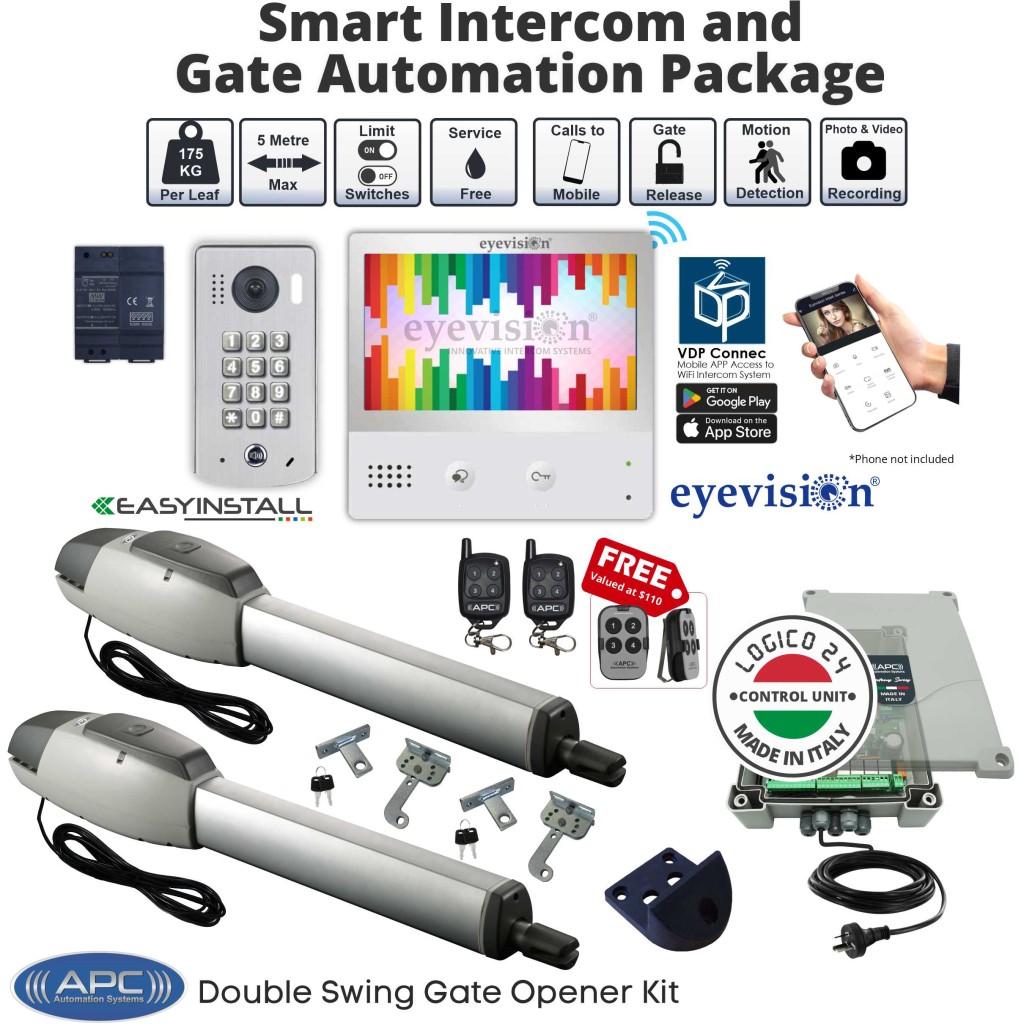

Heavy Duty 24V Motor with powerful and quiet operation Sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in a emergency situation. The system can handle light and heavy gates up to 175kg maximum weight each or up to 2.5m maximum length each.
Easy to Adjust Top Limit Switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.
| Gear Type | Metal Lead Screw, Mixed Reduction |
|
Motor Voltage
|
24v DC
|
|
Manual override
|
Via override keys supplied
|
|
Working temperature
|
-10° - 50°
|
|
Duty Cycle
|
20%
|
|
Maximum stroke
|
350mm (without limit switches)
|
|
Gates size
|
2.5m max each
|
|
Gate weight
|
175kg max each
|
The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
| Transformer | 24V AC |
| Rectification | In Box Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 250 Watts (Accesories + Running Motors) |
| Max. Accesories Load | 7W |
| Control Board Duty Cycle | 80% |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
7 " touch screen wi-fi monitor, compatible with all the Eyevision 2 wire home or apartment intercom systems
|
|
|
|
|
2 Wire Technology |
|
|
Internal Intercom |
|
|
Ringtones |
|
|
Touch screen |
|
|
Additional Monitors Connection |
 |
Wi-Fi Feature for Smartphone APP |
- Wi-Fi Feature for Smartphone APP (No e-Mail registration needed)
- Ultra thin with a total depth of 22mm.
- True color 7" Digital TFT screen.
- Touch screen operation with easy-to-use menus.
- Touch sensor buttons for quick access.
- Graphic menu display.
- Multi monitors connections with the use of EV-DBC4 distributors
Power supply: DC 20~28V
Power consumption: Standby 0.25W; Working 5W
Communication: Hands-free
Screen: 7 Inch Digital Colour TFT
Display Resolutions: 800*3(R, G, B) x 480 pixels
Video signal: 1Vp-p, 75Ω, CCIR standard
Wiring: 2 wires, non-polarity
Dimension: 161(H) × 174(W) × 22(D)mm
Eyevision® 2 Wire Surface Mount Intercom Keypad Door Station with 170° Wide Angle Fish Eye 2.0 MP Camera |
|
|
Keypad door station with built-in 170° Wide Angle Fish Eye Camera, Stunning modern appearance, Surface Mount, Slim design, Weatherproof, Aluminium face plate Door Station With Full SSS Materials Design and two-channel operation (second lock via add-on relay). When coupled with the Eyevision® 2 Wire monitor, this wide camera angle door station will display the full 170° view only and cannot pan-tilt-zoom however it will automatically zoom in and out when the doorbell is pressed. When this door station is coupled with the Eyevision® 2 Wire monitor, the user will be able to utilise the full features of the Pan-tilt-zoom function. This function allows the user to navigate up, down, left or right, as well as zoom in, in order to move to the desired position on the monitor. |
|
 |
Features:
|
Door Station Specifications |
|
|
Power Supply: DC 24V Power Consumption: Standby 15mA; Working status 105mA Camera: Colour CMOS, 2.0 Megapixel Unlocking time: 1~99s Lock Power supply: 12V dc, 280mA (Internal Power); Number of relay circuits: 2 (the second lock needs an external device to support) Mounting: Surface mounting (EV-D298KP-SM) Working temperature: -15 ºC ~ +55ºC Dimension: 182(H)×93(W)×44(D)mm (EV-D298KP-SM) |
|
