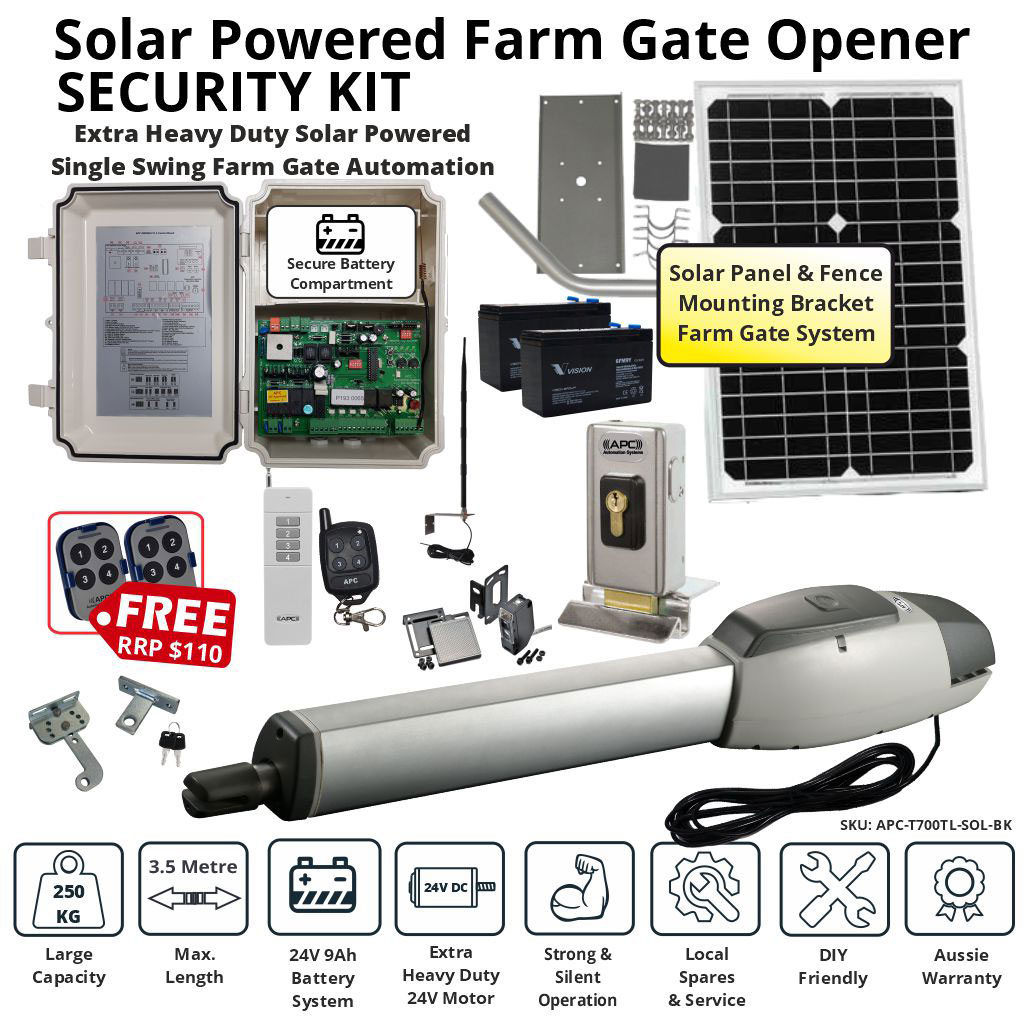

Extra Heavy Duty Telescopic Linear Actuator with Open and Close Limit Switches
Heavy Duty 24V Motor with powerful and quiet operation Sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3.5m maximum length.
Easy to Adjust Top Limit Switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.
Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.
||Metal Lead Screw, Mixed Reduction
Via override keys supplied
-10° - 50°
350mm (without limit switches)
Weatherproof Control Box
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output
Any or all of the following may be connected to operate the gate
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
|Optimum Operational Voltage
|Open Circuit Voltage
|20W Panel Dimensions
||640 x 300 x 25mm
|40W Upgrade Panel Dimensions
||535 x 515 x 30mm
|60W Upgrade Panel Dimensions
||805 x 535 x 30mm
24V 9aH Battery System
Supplied with the automation kit, the 24V Battery System* (2 x 12V 9Ah Batteries) will allow for continued use of the gate system, whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged, it will continue to float charge to keep the batteries topped up and ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.
*Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life
||20W 24V Solar Panel (Upgradable)
||Built In On Board Regulator
|Motor Output Voltage
||24V 9aH (Upgradable)
||-10° - 50°
||APC Rolling code 433.92mhz
|Lock Output (Primary)
|Lock Output (Secondary)
||0V Momentary Pulse
||1A to 5A
Long Distance Remote
The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.
APC Booster 433mhz Antenna
The APC booster antenna is suitable for gate automation systems, garage doors, receivers and any other devices using the 433mhz or 433.92mhz radio frequency band.
As a general rule of thumb on a properly function system you can expect to see results of doubling the range of the transmitter.
The antenna can also help in resolving issues where the transmitter range is decreased due to installation methods such a receiver being behind a metal fence, brick pillar , metal box and numerous other range decreasing factors
- APC-RC4S Four Button Keyring remote, up to 80m operating distance
- APC-RC4-SV Four Button Sun Visor Remote (six colour choices), up to 100m operating distance
- APC-RC450S Long Distance Remote, up to 800m operating distance
- APC-KP2W Two Channel Wireless Keypad APC-KP2W, up to 40m operating distance
- APC-PBS-KW Single Wireless Button with Isolation Key, up to 10m operating distance
- APC-PBD-KW Double Wireless Button with Isolation Key, up to 10m operating distance
- APC-PBS-KW (2nd Generation) Single Wireless Button with Isolation Key, up to 100m operating distance
- APC-PBD-KW (2nd Generation) Double Wireless Button with Isolation Key, up to 100m operating distance
- Suits all 433MHz and 433.92MHz motors
- Can potentially double the specified operating range
- 5m RG58 Pre-wired Coaxial Cable
- Stainless Steel Mounting Bracket
- Long Range 6.5dbi
Automatic Electric Lock
The 24V electric gate lock is a completly automatic solution to lock the gate once reaching the closed position and automatically unlock as soon as the command is given for the gates to operate whether by remote or any other accessory.
The electric gate lock will connect horizontally to the gate on the furthest side away from the hinge. When closing it will engage into its armature plate on the adjacent post. The armature plate is a blank canvas and can be welded or screwed to the post. The electric lock itself is wired back to the control board by the supplied 6 metre cable
APC-RR-11 Retro Reflective Sensor
The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.
- Up to 11 Metres Infrared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment & Misalignment led to assist in the installation process
- Resin filled for the ultimate weatherproofing
