Extra Heavy Duty AC Boom Operator Package (upto 6m Arm Length)

Product SKU: BG-AC-TK

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info.. Get More Info..

Kit Price:

$1,845.00

  • Or in 4 payment of $461.25 with afterpay info
  • Decoder Technolgy, High Efficeny, High Duty Cyle

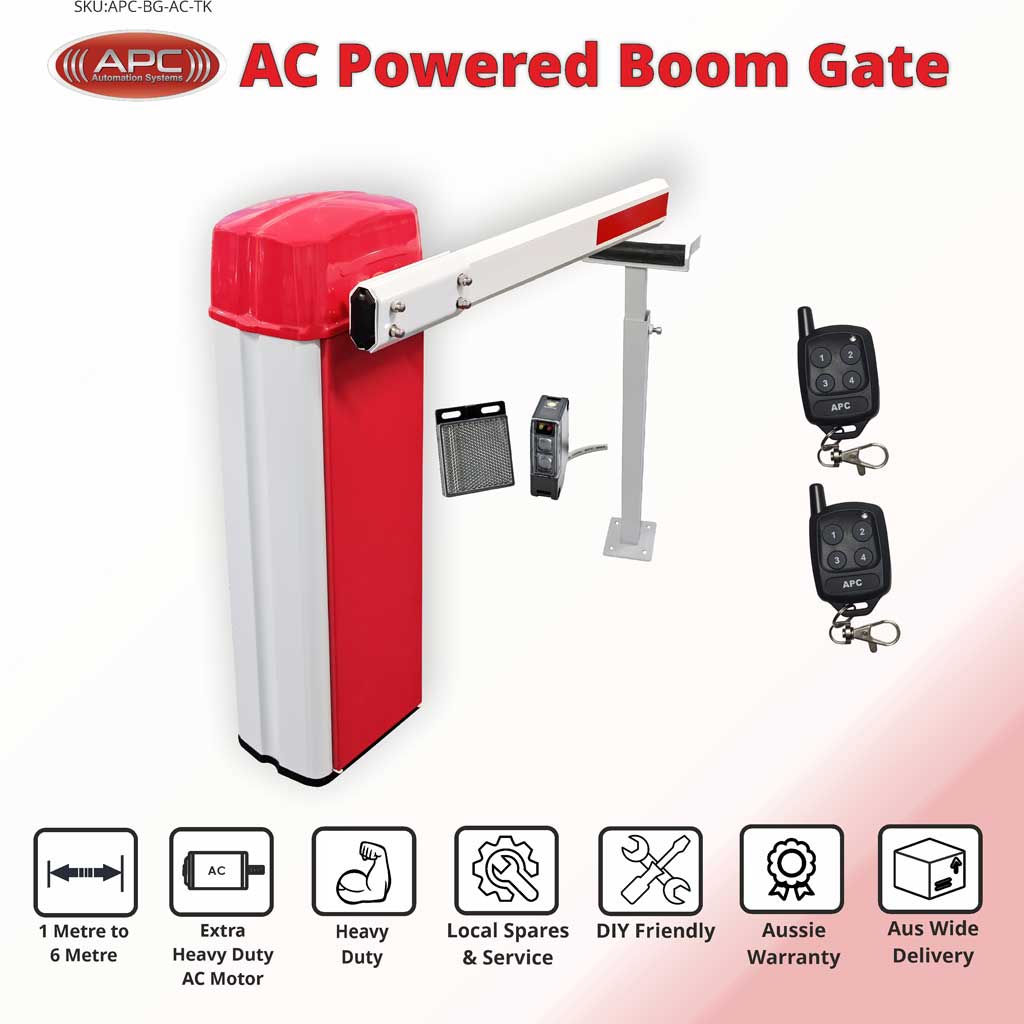

  • Kit Includes

    01 Right Side Operator including Arm (1m to 6m adjustable) & Resting Cradle(QTY: 1)
    02 APC Four Button Keyring Remote(QTY: 2)
    03 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor(QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

High Efficency AC powered Boom Gate








AC Powered Boom Operating System for security and traffic control management designed for entry and exit points at industrial complexes, body corporate managed complexes, factories, schools, car parks, caravan parks and more. The aluminum boom arm is lightweight and adjustable in size from 1m up to 6m in length. It is also supplied with pre installed reflective tape to help for visibility at night time.

The body itself is constructed from robust steel and finished in a smooth red powdercoat. The system is available in two diffrent orientations, a left side and a right side system depending on the best suited for the site and cabling structure.



AC Motor and Over ride System








The 120 Watt AC motor is very quiet and fast on opening and closing (~6 seconds per direction), with precise limit encoder settings to ensure accurate positioning during every cycle.

Incase of a power outtage the system is equiped with a built in overrride to operate the boom gate into either the open and close position.





Balancing Spring System







Included and pre-installed within the operator are TWO tensioning balancing springs to assist in ensuring a smooth jutter free closing movment. Tensions can be increased/decreased by adjusting preload if necessary or removing one of the springs when a shorter length arm is being used.



Control Panel





The internal control panel is fitted with on board push button switches for UP, DOWN and emergency STOP to assist with the installation process.

The control panel is completely pre-wired to the motor with an onboard internal power transformer and is pre-wired to a 10Amp power plug (the control panel is ready to plug into a power point), if required the control panel can also be hadrwired to the mains power via an isolator.







System inputs, Outputs and Features


Automatic Close





  • ON/OFF (Max time. 120s)

Accessories Voltage Output

  • 12V DC

Light Output

  • Relay Supports AC/DC up to 230V light support (N/O and N/C Circuits)

Compatible Safety Devices (N/C Circuit Latching)

  • APC-PE2000 Photocell
  • APC-RR11 Reflective Sensor
  • Induction Loop

Auxillary Inputs for Keypads, Buttons, Induction loops, Intercom integration etc.

  • Open (N/O Circuit Momentary)
  • Stop (N/C Circuit)
  • Close (N/O Circuit)
  • Push OPEN-STOP-CLOSE shared input (N/O Circuit)


Status Relays

  • Open N/O and N/C
  • Open N/O and N/C

Counter Mode When multiple input signals are detected the boom gate will not close until the same amount of signals have passed through.


Please choose one of the installation options based on your cabling structure







Left Side Option





Right Side Option







Resting Cradle



An adjustable resting cradle is supplied with the boom operator to help prevent damage caused by vandalism, the operator can be used without this item however its purpose is to help prevent the arm being pulled down or rested on whilst the operator is in the closed position. It also helps in the installation process as it allows for a simple closeby installation of the reflector from the reflective sensor package (if used).



APC Automation Systems FOUR Button Keyring Remote Control





Four-button remote control transmitter used for:
  • Button 1 will Open the boom gate
  • Button 2 is for the STOP command
  • Button 3 will close the boom gate
  • Button 4 is Vacant and can be used to connect to other systems using the APC Reciever


APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing

Your Customised Kit Includes:

No Changes.

        Have Questions?Talk to the Experts(03) 9532 0804

        Dispatched in: Within One
        Business Day

        • Kit Quantity:
          • 1
