Product SKU: APC-PT-9000-DC-EV-WF7(WH)-KP21(BK)

Double Swing Gates Automation and Intercom Combo with Extra Heavy Duty Italian-Made Proteous PT-9000 Telescopic Linear Actuator Double Swing Gate Opener and Smart Video Intercom Gate Access Management System.

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Gate Automation and WiFi Intercom Combo Smart Gate Automation System

    YEAR END SALE

    TOP DEALS

Double Swing Gates Automation and Intercom Combo with Extra Heavy Duty Italian-Made Proteous PT-9000 Telescopic Linear Actuator Double Swing Gate Opener and Smart Video Intercom Gate Access Management System.

Product SKU: APC-PT-9000-DC-EV-WF7(WH)-KP21(BK)

  • Out Of Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,199.00 $2,684.00 APC Automotion Plus Sale

  • Electric Gate Opener 24V System, 5 Meter/300KG Each, 500mm Stroke

  • Kit Includes

    01 APC Proteous 5000 Super Duty Telescopic Linear Actuator (QTY: 2)
    02 Cable for Proteous Swing Gate Opener Motor ( 2 Core 2mm Non-Shielded Cable 3 or 11m ) (QTY: 2)
    03 APC Logico 24V Feature Rich Control Box Kit with Internal Transformer and Power Lead (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 3)
    05 APC Wired Double Push Button Switch with Key Issolation (QTY: 1)
    06 5m 4 Core Non Shielded Cable (QTY: 1)
    07 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    08 10m 4 Core Non Shielded Cable (QTY: 1)
    09 APC Power Convertor 16-28V AC/DC In to 12V DC Output (QTY: 1)
    10 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    11 Eyevision Intelli Keypad & IC Card Outdoor Station (2x IC Cards & Power Adapter Supplied) Intercom System (QTY: 1)
    12 Eyevision Intelli 7" Smart 4 Wire indoor Intercom Monitor with Wi-Fi feature for smartphone APP (includes power adapter) (QTY: 1)
    13 Rain Cover for Eyevision Intelli Intercom System Outdoor Station (QTY: 1)
    14 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Out Of Stock

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Extra Heavy Duty Telescopic Linear Actuator






Heavy Duty 24V Motor with powerful and quiet operation Sleek Italian design with a compact and neat appearance Easy to use manual override via the supplied allen keys in a emergency situation. The system can handle light and heavy gates up to 300kg maximum weight each or up to 5m maximum length each.



Emergency Override


Simple to use manual override in case of an emergency. Simply insert the supplied allen key and turn to unlock the motor.


Actuator Overview



Extra Heavy Duty Single Gate Opener



System Capacity

Extra Heavy Duty Single Gate Opener

Installation Geometry





Specifications

Thrust 1800N
Motor Voltage
24v DC
Manual override
Via override allen key supplied
Working temperature
-20° - +50°
Duty Cycle
90%
Maximum stroke
500mm
Gates size
5m max Each Gate
Gate weight
300kg max Each Gate

Feature Rich and Highly Versatile Control Box



The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Specifications

Transformer 24V AC
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accesories + Running Motors)
Max. Accesories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity

APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •



Wired Double Push Button with Isolation Key





The wired double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.

It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number for either the full gate operation or pedestrian function.



65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.



65mm Rubber Gate Stop Dimensions

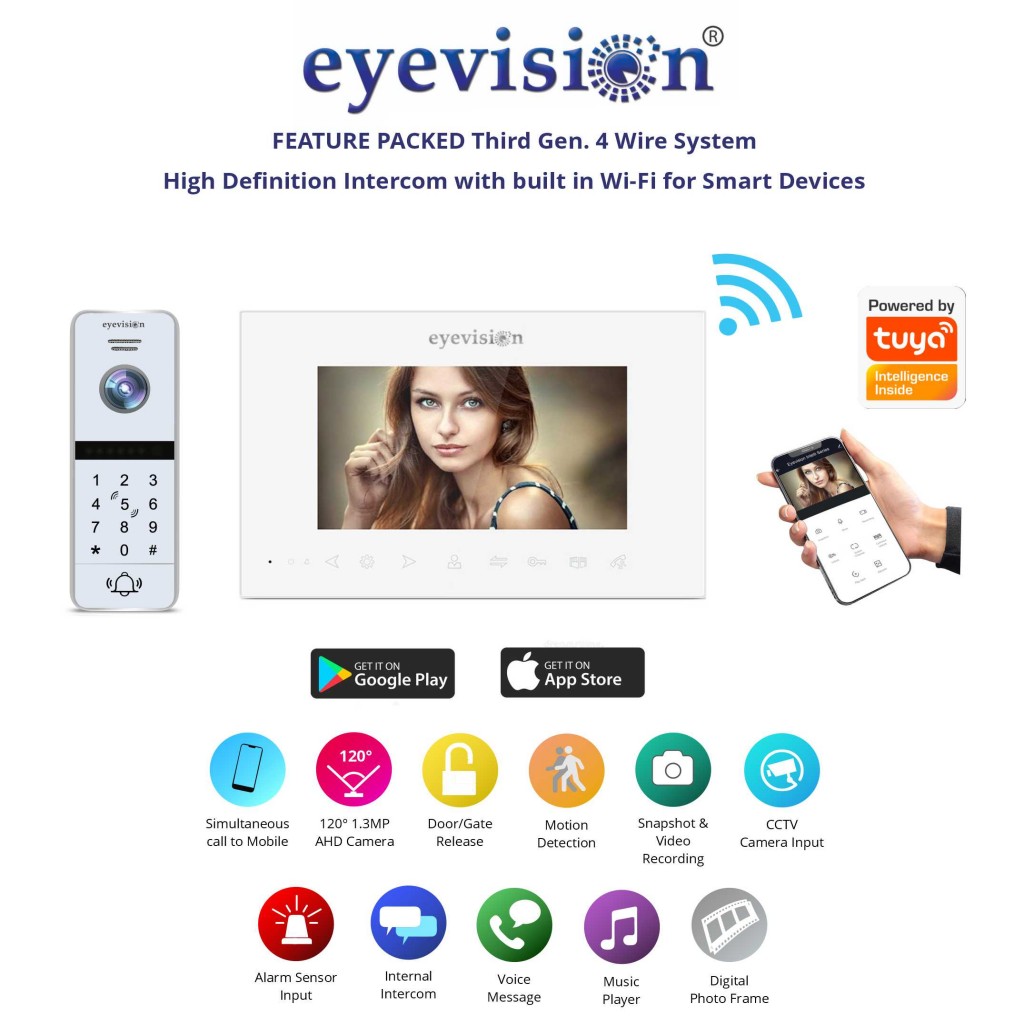

Eyevision Intelli Series Intercom Systems



The eyevision Intelli Series intercom is a feature rich state of the art intercom system boasting every feature requested from an intercom syste (and much more...).

Any visitor calls can be recieved by the APP on your smartphone or table along with the monitor at the same time with a large feature set from the APP and also the indoor monitor. No extra modules are required to connect to the internet as the WF 7 slimline indoor monitor has built in Wi-Fi and is able to connect directly to your homes 2.4GHZ Wi-Fi connection.

Two oudoor stations can be connected for front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home allowing for the visitors call to be answered from any station and transfered to a diffrent station if required. Within the home you can selectivly intercom between any of the installed indoor monitors. All monitors connected into the system can view any of the installed CCTV camers (up to TWO can be connected into the system). If the CCTV cameras are interconnected with a seperate alarm sensor the system can have alarm recording events occur which can be saved directly to a micro SD card.

The intelli series can have a common release connected directly to the monitor allowing for simultaneous front gate - front door release making it easier than ever to let a guest in without having to switch between menus or running to the door.



System Capacity & Capabilities
  • Supports up to TWO Outdoor Stations each with its own electric striker/gate release feature
  • Supports up to SIX indoor Monitors
  • Common independent electric striker/automatic gate release feature
  • Supports up to Two CCTV Cameras (CVI,TVI,AHD or CVBS up to 1.3MP)
  • Supports Motion Detection for Outdoor Stations (uses its own built in sensor)
  • Supports Motion Detection/Alarm Function for CCTV using external PIR or Reed Switches
  • Supports live video stream to a DVR



Indoor Monitor Base Features
  • Built-in WiFi to connect to your home internet connection
  • Tempered Glass with Touch Sensitive Buttons
  • Simple easy to use user Interface
  • Free to use Tuya Smart APP for all modern mobile phones and tablets
  • 11 Languages to choose from
  • Ultra Slim 18mm Depth
  • 7" TFT LCD Monitor 1024x600 HD Resolution
  • Built in mute switch
  • Intercom calls direct to Smart phone and Monitor Simultaneously
  • Intercom internal call and Call transfer
  • Calender screen (time and date) option before entering the main menu
  • Anytime REALTIME monitoring of any connected outdoor station/cctv camera
  • Set scheduled ring volumes for Morning, Afternoon, Evening and Night
  • Can Enable/Disable Rigtone at the outdoor station



Special Features (Micro SD Required)
  • Automatic recording for Motion Detection and Alarm events
  • Digital Photo Frame on Standby
  • MP3 Player
  • Away Voice Message (Voicemail System)
  • Custom ringtones



Tuya App for Direct to Phone



Indoor Monitor Technical Specifications

Screen Size 7" 1024x600 AHD LCD Display
Power 12-15V DC
Wi-Fi Yes, 2.4GHZ
SD Card Micro SD (Not Supplied) Class 10 up to 32GB
CCTV Input Maximum 2
Alarm Sensor Input Maximum 2
Outdoor Unit Input Maximum 2
Indoor Monitors Maximum 6



Outdoor Station Features


  • Ultra narrow 45mm Width fits onto any post, pier or fence
  • 1.3MP AHD Camers
  • 120° Lense
  • 45° Wedge Bracket for best mounting direction
  • Built in Keypad with common PIN CODE system
  • Built in IC Tag/Card Reader
  • Up to 100 Users when using IC Tags (allows for individual User ID's and PIN Codes
  • Lockout feature after too many incorrect PIN/IC tag uses
  • Supports Exit Buttons
  • Supports Fail Secure and Fail Safe Electric Strikers
  • Supports Automatic Gate Release



45° Angle Wedge



The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing and the guest may be standing to its left or right side.

The wedge is a universal mount allowing for both left facing and right facing setups.

Outdoor Station Technical Specifications

Power 12-15V DC
Relay NO/NC
Exit Button Input Yes
Swipe Tag Type IC Tag
IP Rating IP65



Wiring Diagram for a basic installation



Wiring Diagram for an expanded system



Cabling & Distances
