Product Information

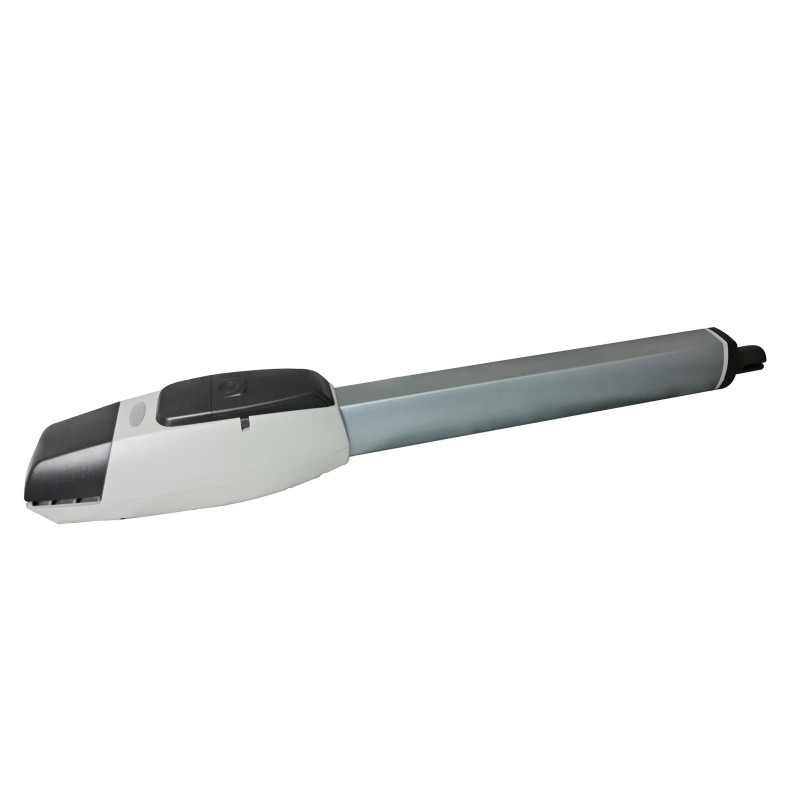

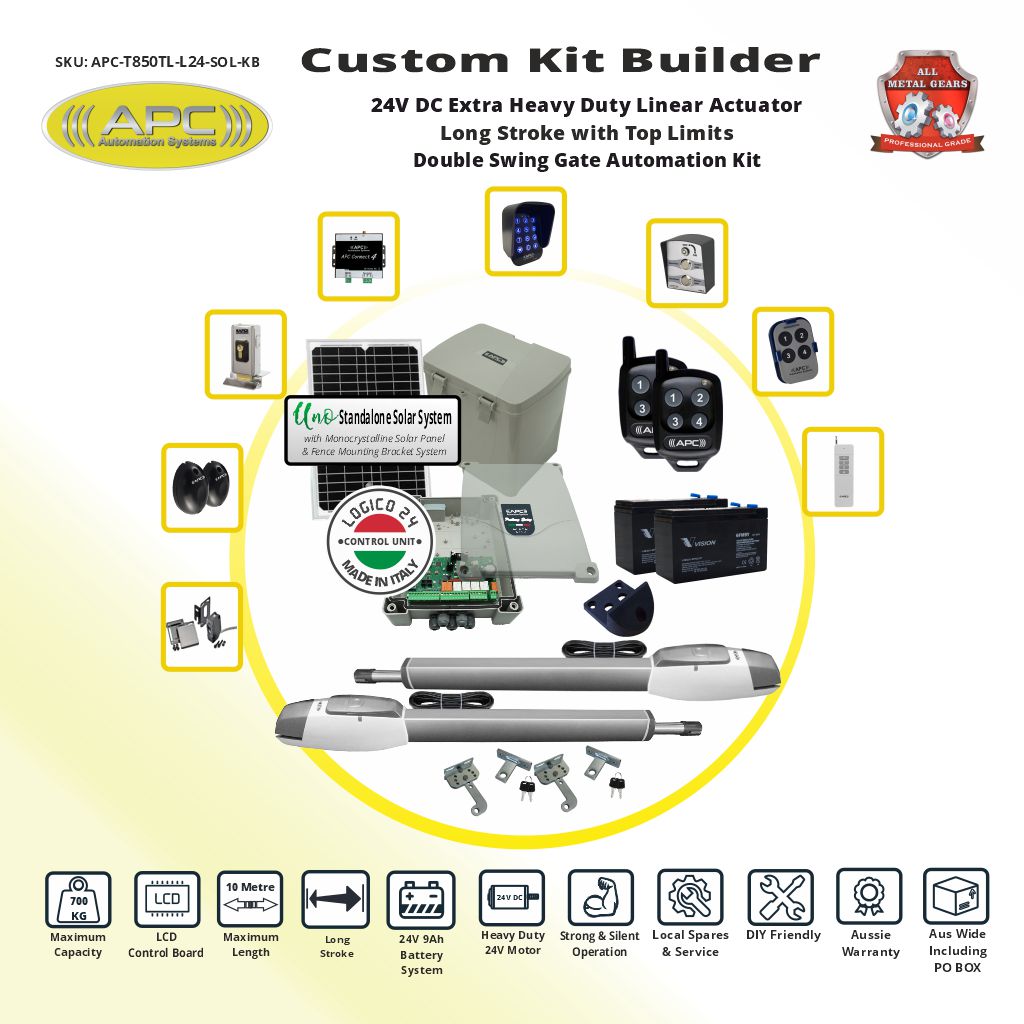

All Metal Gears Extra Heavy Duty Telescopic Linear Actuator with Top Limit Switches
Extra Heavy Duty 24V Motor with powerful and quiet operation. Robust all-metal internal gears, sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in an emergency situation. The system can handle light and heavy gates up to 350kg maximum weight for each gate leaf or up to 5m maximum length of each gate leaf.
Top Limit Switches ensure the precise setting of the open and closed positions along with a less strenuous life for the actuator.

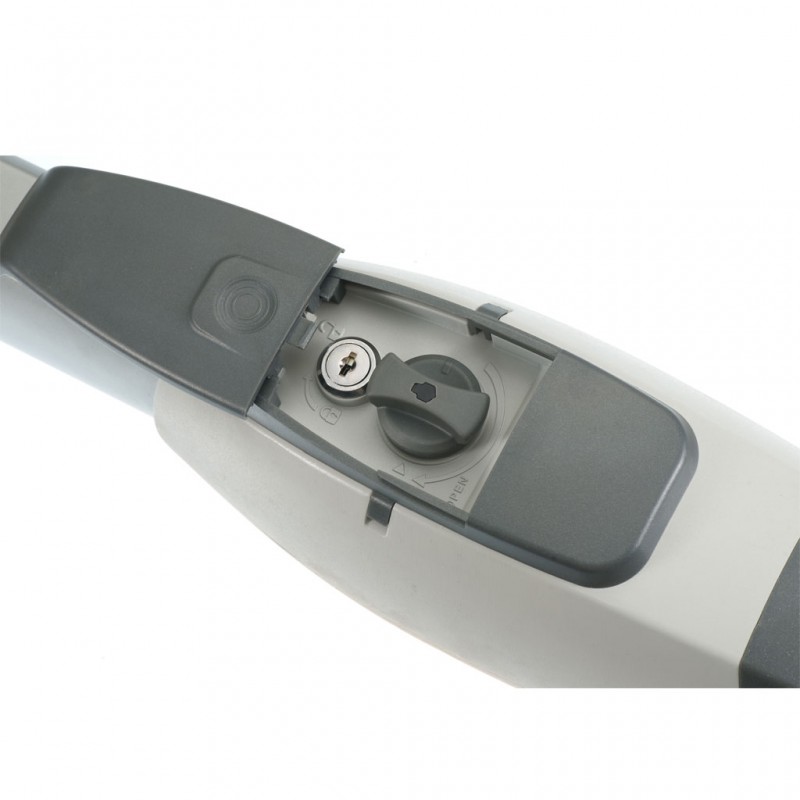

Emergency Override
Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.
Actuator Dimensions

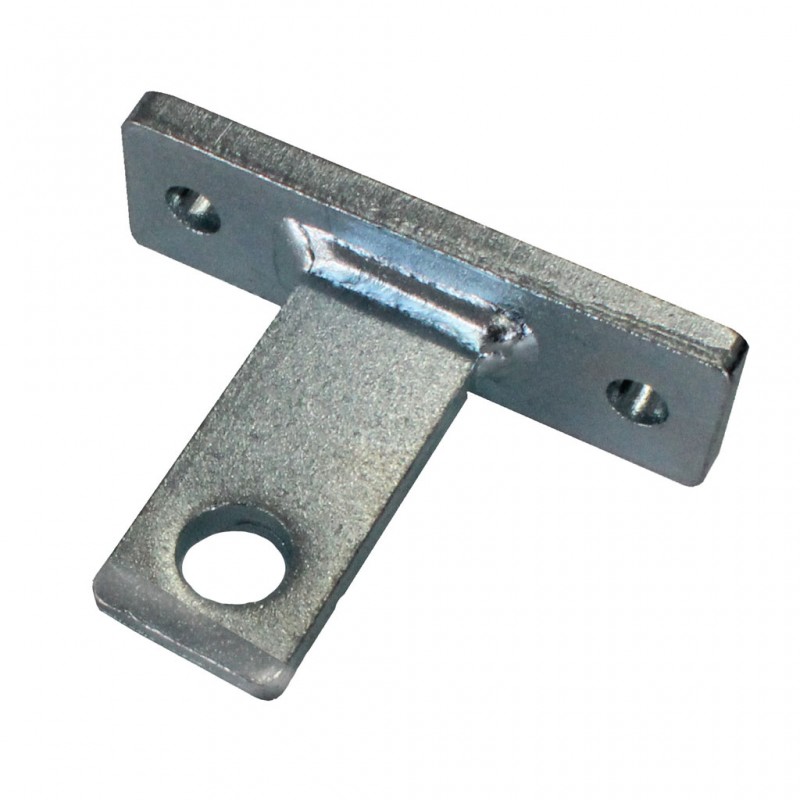

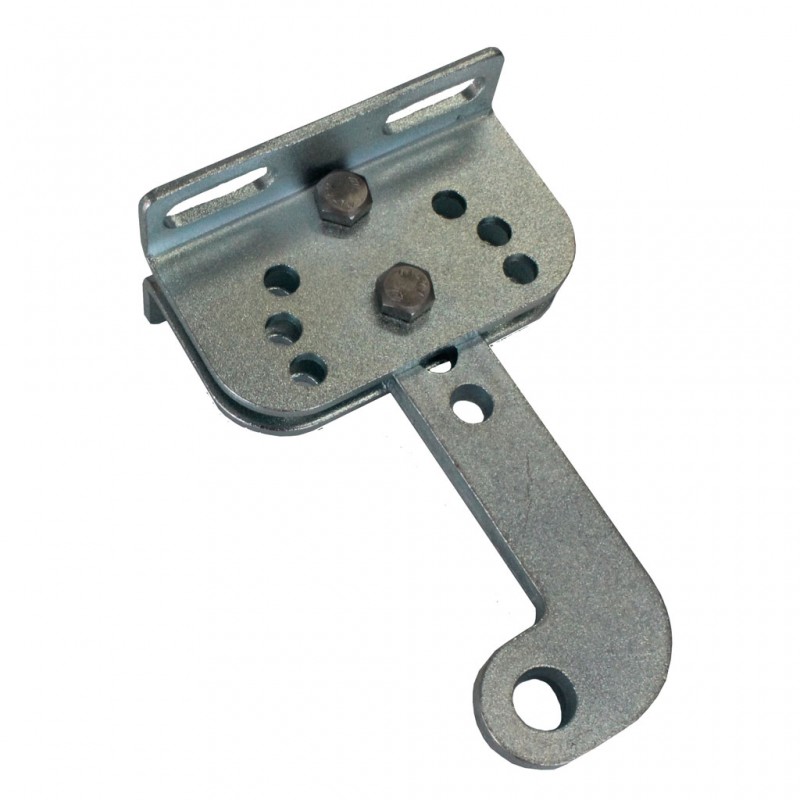

Installation Geometry
Specifications
Gear Type
Metal Lead Screw, All metal gears
Motor Voltage
24v DC
Manual override
Via override keys supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
540mm (without limit switches)
Gates size
5m maximum gate size (Per Leaf)
Gate weight
350kg maximum gate weight (Per Leaf)
Feature Rich and Highly Versatile Control Box
The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
System Features
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes) Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials) Automatic learning of gate travel limits Completly adjustable slowdown points Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop Fast and Slow Speeds points are adjustable along with there power Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options) Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes Party Mode System to keep gates opened when configured for use with the automatic close feature Five underside cable entry with glands All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Special Features
Energy Saving Mode (5mA Standby Current) Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light) Soft Start/Soft Stop (Ramping feature) with adjustable cut in points Direct electric lock connection Induction Loop Compatible for auto opening or as a safety device Supports programmable timers
Safety Features
Adjustable Over current adjustments Supports encoder motors and limit switch motors Safety Sensor connection input configurable for open and/or closing Supports Safety Edges Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface
Control Board Overview
Accessories Compatibility and Controlling Options
Constant DC Accessories Output Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation Remote controls Induction Loops Weekly Timers Entry and Exit push button with isolation key switches (Wired and Wireless Options Available) Keypads (Wired and Wireless Options Available) Exit/entry sensors Intercom system with dry contact output Automatic switching timer WiFi Control System (App Based Control) GSM Control Systems (Mobile Call/SMS based Control)
Remote Features

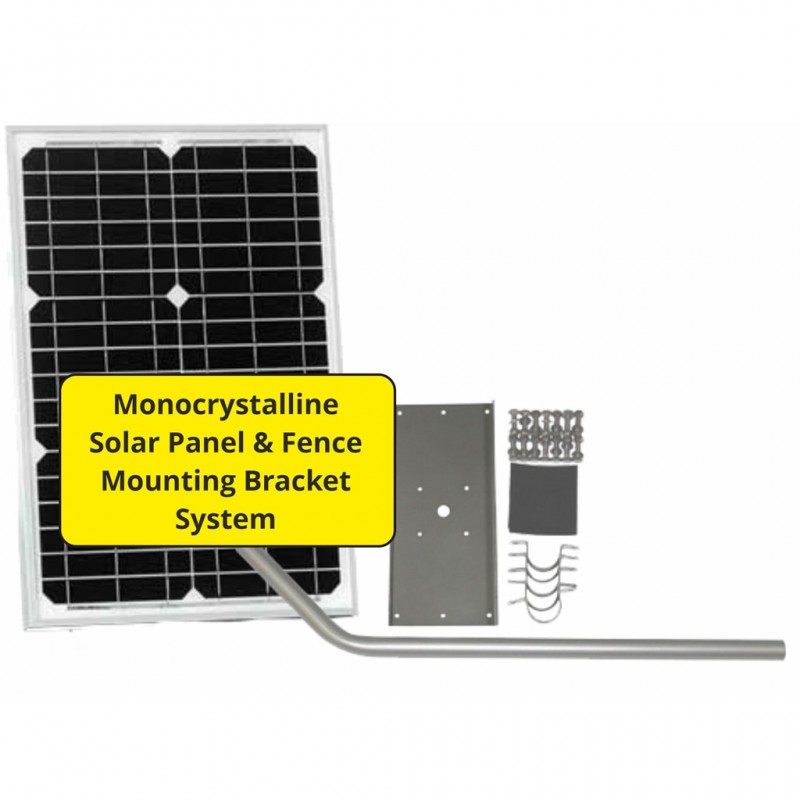

24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications
Maximuim Power
20W/40W/60W
Optimum Operational Voltage
36V
Open Circuit Voltage
43.2V
20W Panel Dimensions
640 x 300 x 25mm
40W Upgrade Panel Dimensions
535 x 515 x 30mm
60W Upgrade Panel Dimensions
805 x 535 x 30mm
APC Uno Standalone Solar System
The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). In the case of 33aH batteries a Master Uno Large Box and Slave Uno Large Box are required, see details below.
Key Features:
Direct fitting of APC Sun power Regulator (available separately)
Easy to access with the tool free clip lock system
Can be secured with a small padlock
Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each
Dimensions (UNO BOX and UNO BOX LARGE)
UNO BOX
Uno Box Outer Dimensions
Height
205mm (Including cable glands) 180mm Without
Width
180mm
Depth
249mm Including Mounting bracket, 210mm without
UNO BOX LARGE
Uno Box Large Outer Dimensions
Height
281mm (Including cable glands) 255mm Without
Width
263mm
Depth
230mm Including Mounting bracket, 189mm without
Battery Requirments and Configuration
Battery Dimensions (each)
Battery Size
12V Configuration
24V Configuration
Uno Box Requirments
151x65x99mm
BAT-9 (9aH)
1x Battery Required
2x Batteries Required
Up to Two Batteries in one Master Uno Box
181x77x167mm
BAT-17 (17aH)
1x Battery Required
2x Batteries Required
Up to Two Batteries in one Master Uno Box Large
195x130x167mm
BAT-33 (33aH)
1x Battery Required
2x Batteries Required
One Battery in Master Uno Box Large
(and One Battery in Slave Uno Box Large for 24V)
Typical Configuration
Battery Wiring
33aH Configuration
At a glance
12-24V Compatible
LITHIUM Battery Compatible
Easy to use LCD Interface
Compatible with Most Batteries
32 Bit Micro Controller
Extra Large Wiring Terminals
12 Stages of Protection including short circuit, temperature, over and undercharge etc.
Metal Heat sink
USB Output
In Depth
Automatic Voltage Selection
The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.
Multiple Battery Modes
The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.
Overcharge and Discharging
The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.
Overload and Short Circuit Protection
The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.
Reverse Polarity Protection
In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.
USB Output Terminals
The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.
Heavy Duty Design
Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.
Specifications
System Voltage
12V/24V DC auto
PV Max Input Voltage
55V
Self-consumption
10mA
Max Charging current
10A
Max Discharging current
10A
Battery type
Sealed(Default)/Gel/Flood/Lithium
LVD
11.0V ADJ 9V...12V ; x2/24V
LVR
12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage
13.8V ADJ 13V... 15V ; x2/24V
Boost Voltage
14.4V ADJ 13V...17V ;x2/24
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage
16.5V ; x2/24V
Reverse Connection Protection
Yes
Load Over Current Protection
Yes, each 30s auto restart again
Controller Over Temperature
Yes
USB Output
5VDC/1A 2PCS
Charging Type
PWM
Charge circuit voltage drop
<=0.25V
Discharge circuit voltage drop
<=0.1V
Temperature Consumption#
For 12V system:-24mV /°C ; x2/24V
Relative humidity
≤95%, N.C.
Working Temperature
-20°C~+55deg;C(Product can work continuously at full load)
LCD temperature range
-20°C~+70°C
Waterproof grade
IP32
Mounting hole size
Φ5mm
Terminals
10mm²/8AWG
Weight
245g
Overall dimension(mm)
190×108×41.5
24V 9aH Battery System
Supplied with the automation kit, the 24V Battery System* (2 x 12V 9Ah Batteries) will allow for continued use of the gate system, whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged, it will continue to float charge to keep the batteries topped up and ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.
*Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life
Specifications
Transformer
24V (Uno Solar System)
Motor Output Voltage
24v DC
Max Operating Power
300 Watts
Maximum Gate Length
10 Metres
Maximum Gate Weight
500 KG
Speed
28 cm/s
Working temperature
-20° - 50°
RF
APC Rolling code 433.92mhz
Motor Duty Cycle
90%
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
24V DC
Operator Inbuilt Safety
Over current + Encoder Sensitivity
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
