Build Your Own Kit with T700TL Heavy Duty Linear Actuator With Adjustable Limit Switches, Single Swing Gate Opener

Product SKU: APC-T700TL-DC-KB

  • In Stock

Get More Info..

Kit Price:

$869.00

  • Or in 4 payment of $217.25 with afterpay info
  • Single Swing Gate Opener Automatic Driveway Electric Gate 24V System, 3.5 Meter, 250KG, 350mm Stroke, Top Limit Switches

  • Kit Includes

    01 APC-T700TL Top Limit Actuator Kit (QTY: 1)
    02 APC Weatherproof Control Box with Built in Battery Compartment and 1.2m Power Cord (Ready to Plug In) (QTY: 1)

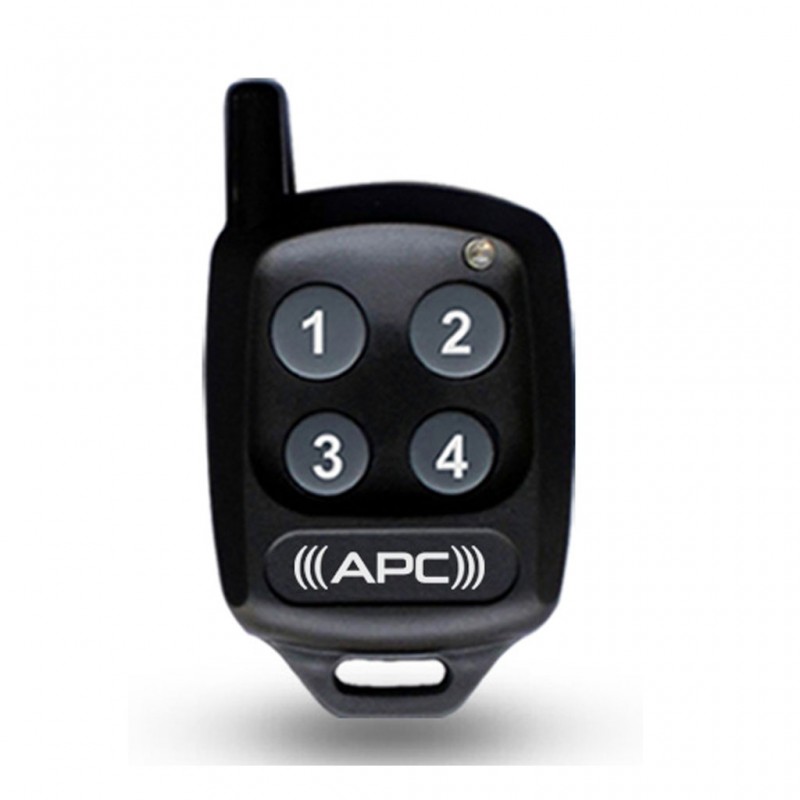

    03 APC Four Button Keyring Remote (QTY: 2)
    04 5aH Battery Backup (QTY: 2)
    05 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

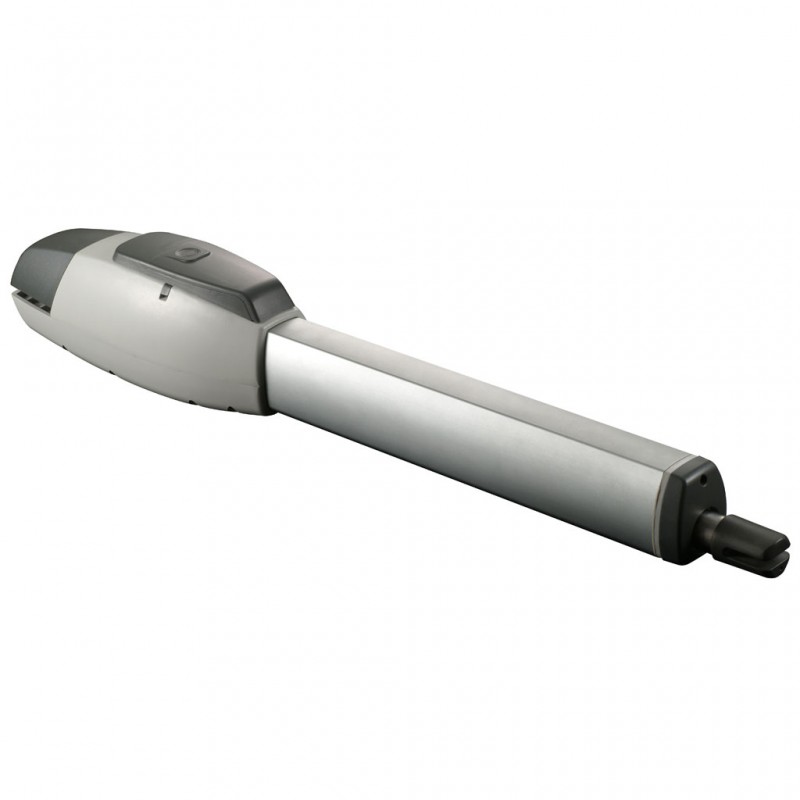

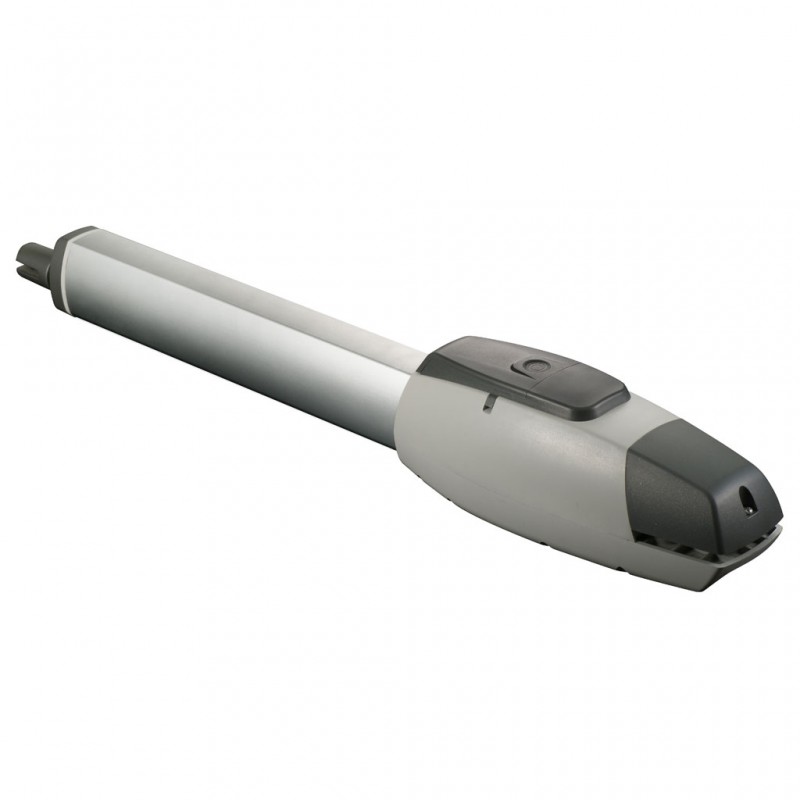

Extra Heavy Duty Telescopic Linear Actuator with Open and Close Limit Switches






Heavy Duty 24V Motor with powerful and quiet operation Sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3.5m maximum length.

Easy to Adjust Top Limit Switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.

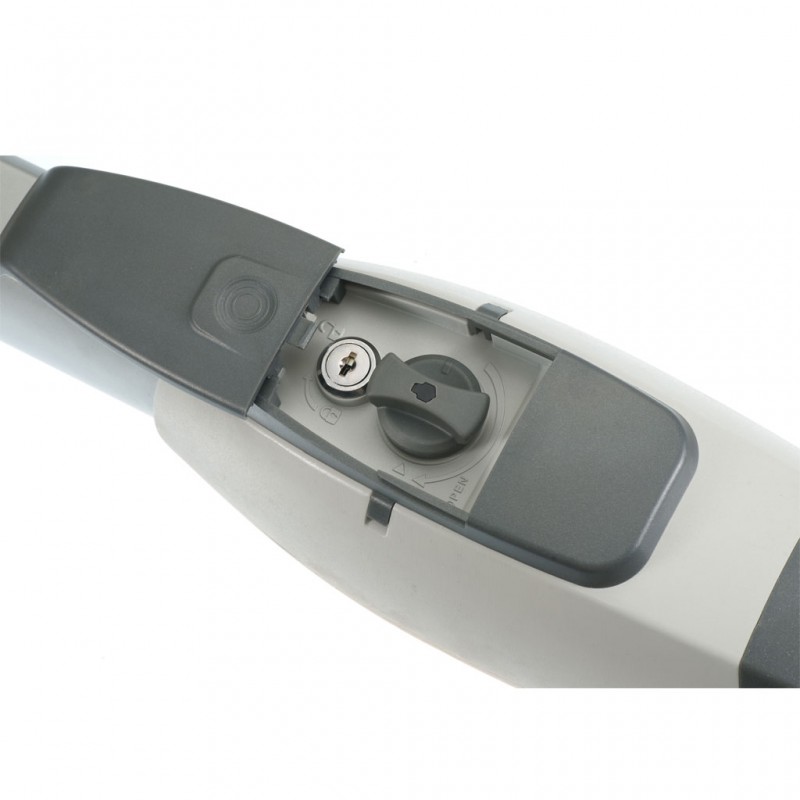

Emergency Override


Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.


Actuator Overview



Extra Heavy Duty Single Gate Opener



Installation Geometry



Specifications

Gear Type Metal Lead Screw, Mixed Reduction
Motor Voltage
24v DC
Manual override
Via override keys supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
350mm (without limit switches)
Gates size
3.5m max
Gate weight
250kg max

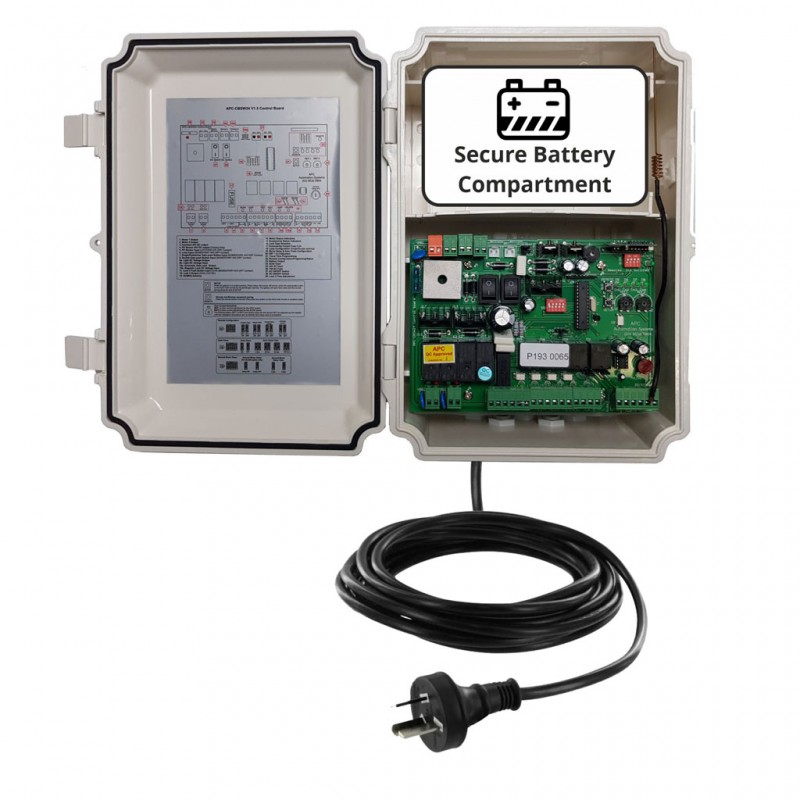

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point



System Features

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output



Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.



Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output



Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Battery Back Up





Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.

Remote Features

Specifications



Power Input 240V AC (Pre wired with 1.2m Cable)
Transformer 24V AC
Rectification On Board Bridge Rectifier
Motor Output Voltage 24v DC
Battery Backup 24V
Working temperature -10° - 50°
RF APC Rolling code 433.92mhz
Lock Output (Primary) 12-30V DC (Depending on Configuration)
Lock Output (Secondary) 12V DC
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Over current 1A to 5A
