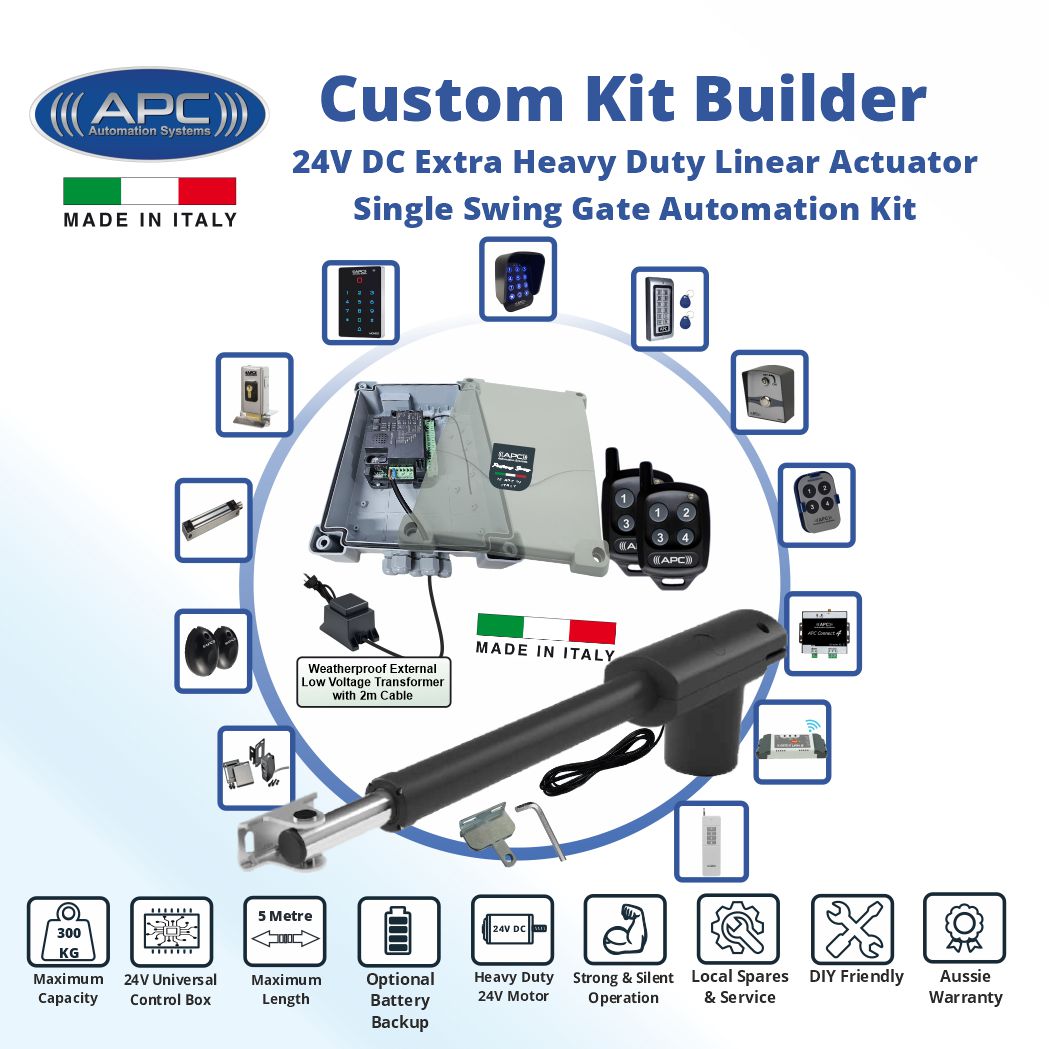

Italian Made Extra Heavy Duty Telescopic Linear Actuator
Heavy Duty 24V Motor with powerful and quiet operation Sleek Italian design with a compact and neat appearance Easy to use manual override via the supplied allen keys in a emergency situation. The system can handle light and heavy gates up to 300kg maximum weight or up to 5m maximum length.
Emergency Override
Simple to use manual override in case of an emergency. Simply insert the supplied allen key and turn to unlock the motor.

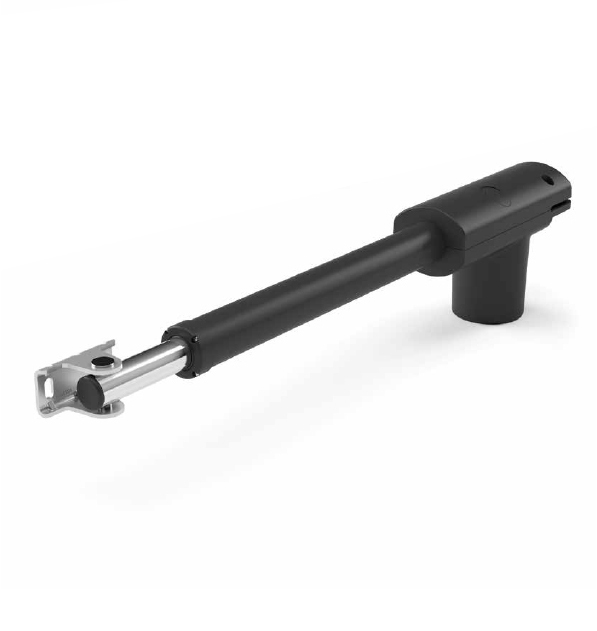

Actuator Overview
System Capacity
Installation Geometry
Specifications
| Thrust |
1800N |
|
Motor Voltage
|
24v DC
|
|
Manual override
|
Via override allen key supplied
|
|
Working temperature
|
-20° - +50°
|
|
Duty Cycle
|
90%
|
|
Maximum stroke
|
500mm
|
|
Gates size
|
5m max
|
|
Gate weight
|
300kg max
|
24V Universal Control Box | APC SIMPLY24
.jpg)
The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).
System Features
- Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
- Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
- 80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
- Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
- Customizable auxiliary output for the electric or magnetic lock.
- Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
- Compatible with Induction Loop and Vehicle Motion Detector.
- Power trimmer to regulate motor power.
- Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
- Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
- Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.
Special Features
- Energy Saving Mode.
- Optional battery backup system
- Flexibility in programming each channel of the remote
- Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
- Customizable auxiliary output for electrical or magnetic lock
- Induction Loop Compatible for auto opening or as a safety device.
- Supports programmable timers.
Safety Features
- Adjustable Over current adjustments
- Safety Sensor connection input configurable for opening and/or closing
- Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Control Board Overview
Accessories Compatibility and Controlling Options
- Constant DC Accessories Output
- Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
- Remote controls
- Induction Loops
- Weekly Timers
- Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
- Keypads (Wired and Wireless Options Available)
- Exit/entry sensors
- Intercom system with dry contact output
- Automatic switching timer
- WiFi Control System (App-Based Control)
- GSM Control Systems (Mobile Call/SMS-based Control)
Gate Automation Remote Control Features
Ready to clip onto your keyring | Gate Opener Remote Control
APC Four Button Keyring Remote Control for Gate Automation System
- Featuring High-Security rolling codes transmitting a unique code chosen at random
- Slim Design
- Keyring Clip-on System
- Completely Backwards Compatible with all legacy APC Control Boards
External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 2-meter cable.
Specifications
Mains power supply: 230 Vac +/- 10%, 50-60 Hz
Motor power supply: 24 V DC 280 W and 10 A peak motor
Warning light power supply: 24V max 15W
Gate pilot lamp power supply: 24 Vdc max 10 W
Accessories power supply (photocells &): 24 Vdc max 10 W
Radio receiver frequency: 433.920 MHz
Storable remote controls: 170
Radio antenna input: Rg58
Operating temperature: -20°C / +50°C
