Product SKU: APC-6000-LV-SI24-KB

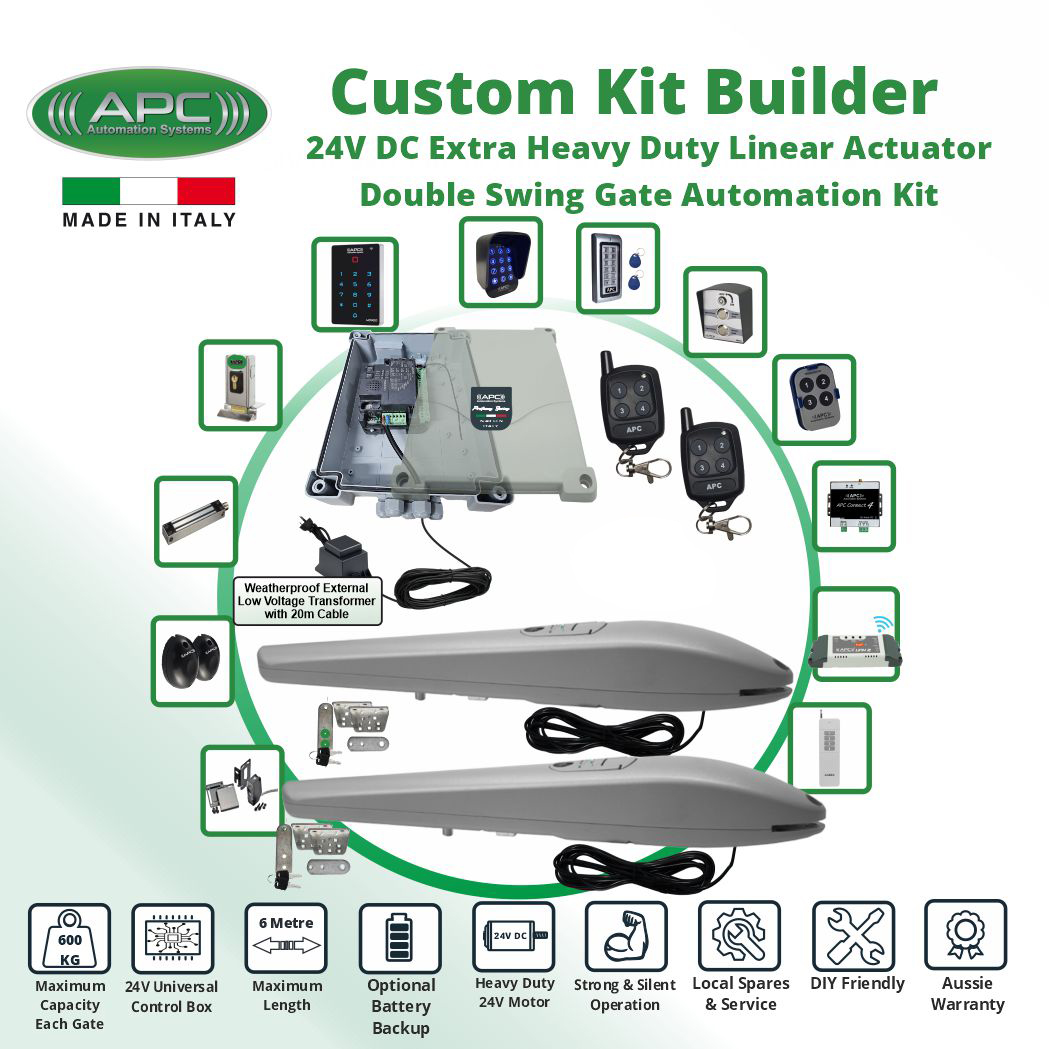

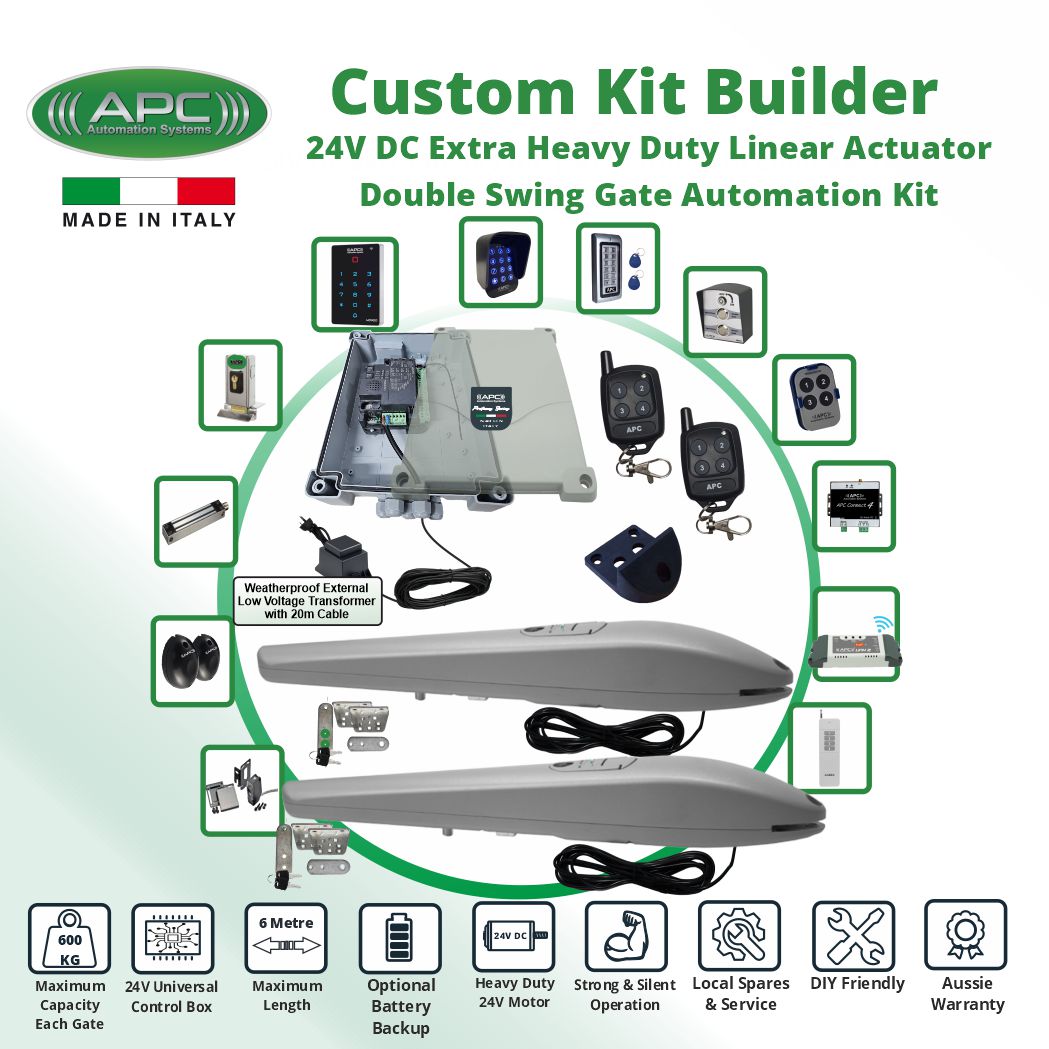

Build Your Own Gate Automation Kit with Italian-Made APC PS-6000 Heavy Duty Linear Actuators, APC Double Swing Driveway Gates Opener System

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Double Swing Gate Opener, Automatic Motorized Remote Controls Gate, Gate Automation System DIY Kit

Build Your Own Gate Automation Kit with Italian-Made APC PS-6000 Heavy Duty Linear Actuators, APC Double Swing Driveway Gates Opener System

Product SKU: APC-6000-LV-SI24-KB

  • In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,890.00

  • Or in 4 payment of $472.50 with afterpay info
  • APC Electric Gate Automation 24V System. Max 3m or 600kg for Each Gate. Adjustable Built-In Stop. Driveway Gate Opener

  • Kit Includes

    01 APC Proteous 3000 Linear Actuator with Built in Adjustable Stop. Italian Made Swing Gate Opener Motor (QTY: 2)
    02 Cable for Proteous Swing Gate Opener Motor ( 2 Core 2mm Non-Shielded Cable 6 or 11m ) (QTY: 2)
    03 APC Simply 24V Universal Control Box (QTY: 1)
    04 Weatherproof External 24V Transformer with 20m Low Voltage Cable (QTY: 1)
    05 APC Four Button Keyring Remote (QTY: 2)
    06 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    07 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Extra Heavy Duty Linear Actuator APC PS-6000






Packing a punch the APC Proteous 6000 system can deliver 2000N of thrust to operate gates up to 600kg for each gate leaf or 3m in length for each gate leaf. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.



Adjustable built-in stopper


Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.


Actuator Overview



Extra Heavy Duty Single Gate Opener



System Capacity For Each Gate Leaf

Extra Heavy Duty Single Gate Opener

Installation Geometry





Specifications

Thrust 2000N
Motor Voltage
24v DC
Manual override
Via override key supplied
Working temperature
-20° - +50°
Duty Cycle
90%
Maximum stroke
360mm (without stoppers -30mm for each stopper)
Gates size
3m max for each gate leaf
Gate weight
600kg max for each gate leaf

24V Universal Control Box | APC SIMPLY24



The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).



System Features

  • Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
  • Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
  • 80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
  • Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
  • Customizable auxiliary output for the electric or magnetic lock.
  • Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
  • Compatible with Induction Loop and Vehicle Motion Detector.
  • Power trimmer to regulate motor power.
  • Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
  • Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
  • Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.



Special Features

  • Energy Saving Mode.
  • Optional battery backup system
  • Flexibility in programming each channel of the remote
  • Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
  • Customizable auxiliary output for electrical or magnetic lock
  • Induction Loop Compatible for auto opening or as a safety device.
  • Supports programmable timers.



Safety Features

  • Adjustable Over current adjustments
  • Safety Sensor connection input configurable for opening and/or closing
  • Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times



Control Board Overview



Gate Automation Remote Control Features

Ready to clip onto your keyring | Gate Opener Remote Control

APC Four Button Keyring Remote Control for Gate Automation System

APC Four Button Keyring Remote Control for Gate Automation System

  • Featuring High-Security rolling codes transmitting a unique code chosen at random
  • Slim Design
  • Keyring Clip-on System
  • Completely Backwards Compatible with all legacy APC Control Boards



External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.





Specifications

Mains power supply: 230 Vac +/- 10%, 50-60 Hz

Motor power supply: 24 V DC 280 W and 10 A peak motor

Warning light power supply: 24V max 15W

Gate pilot lamp power supply: 24 Vdc max 10 W

Accessories power supply (photocells &): 24 Vdc max 10 W

Radio receiver frequency: 433.920 MHz

Storable remote controls: 170

Radio antenna input: Rg58

Operating temperature: -20°C / +50°C

65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.



65mm Rubber Gate Stop Dimensions
