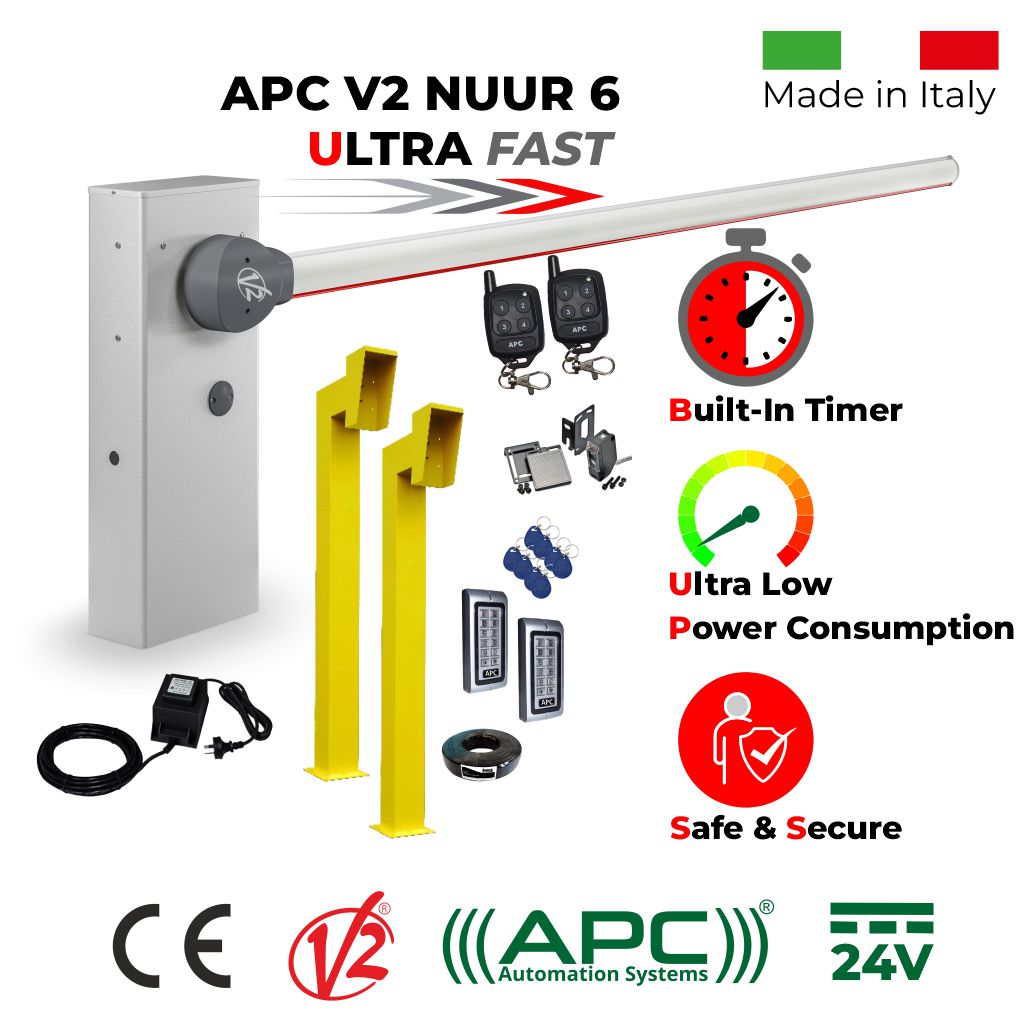

ULTRA FAST 24V DC Powered Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6
Ultra-low power consumption. Suitable for solar-powered systems.
24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate
24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 6 m width
Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy
- Accurate and safe operation with encoder
- Obstacle detection
- Self-learning of opening and closing times
- Slow-down in the limit switch area
- Balancing spring included
- White painted aluminium bar (accessory)
- Digital control unit programmable using three program buttons and display
- Plug-in adaptor for modular receiver
- ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
- Input for photocells with self-test function
- Input for mechanical safety edges
- Courtesy light output
- Holding magnet output
- Energy Saving function to minimise consumption in standby mode
- Programmable acceleration and deceleration

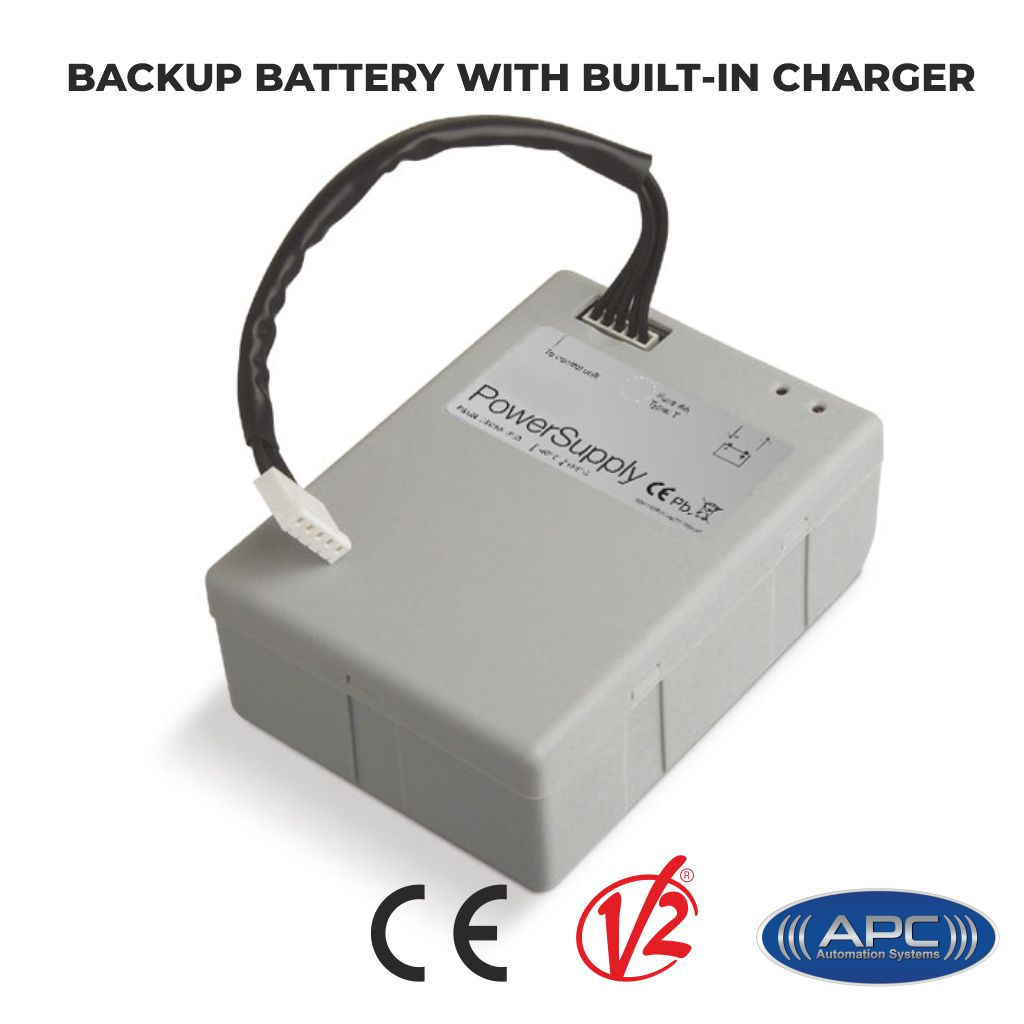

- Operation in case of absence of power using the backup battery
- Operation with solar power using the ECO-LOGIC system
Motor Overview / Balancing Spring System
Technical Features
- Power supply (Vac - Hz): 230 V~ 50 Hz
- Motor power supply (Vac - Hz): 24 Vdc
- Maximum electric power (W): 240W
- Opening time (s): 5 Seconds for 6 Meter Boom Arm
- Working temperature (°C): Between -20° to +55°
- Duty cycle % - (max. cycles/hour): 80% - (200)
Control Panel
- Digital control unit programmable using three program buttons and display
- Plug-in adaptor for receiver
- ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
Dimensions
Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy
APC V2 NUUR6 Boom Gate System is Suitable to Use On Either Side.
Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy
Easy to Swap Right Side and Left Side Raise Arm Barrier Operator
{/file}
APC-KP1C Wired keypad with built in card reader
The APC-KP1C keypad is a waterproof low voltage keypad which is wired back to the control board using the supplied cable roll. It is of alloy construction and extremly robust. It can be seen day or night thanks to its backlit keys. Two EM swipe cards are also supplied suitable for any temporary or permanent user that need to gain access into the property without a pin code.
Key Features:
- Built-in EM card reader.
- Robust cast alloy construction
- Resin filled for ultimate weatherproofing
- Blue backlit keys
- Anti-tamper feature
- IP65 Waterproof rated and suited for outdoor and indoor environments.
- Up to 2000 users for pin code and EM card.
Technical Specifications
Dimension
| Features |
Description |
| Appearance |
Metal case, anti-explosion and anti-tamper |
| Waterproof |
IP 65 |
| Dimension |
135×58×26mm |
| Input voltage |
DC: 12-24V AC: 12-18V |
| Capacity(max) |
2000 Users |
| PIN |
4-8 digits.
Not related to the card. |
| Master card |
Add/Delete User |
| As reader |
Support Wiegand 26bits, PIN Wiegand output, is a virtual number. |
| Connect external reader |
Can connect any EM/HID/IC readers with Wiegand 26 output |
| Connect high-power alarm. |
External current of the alarm ≥3A |
Heavy Duty Safety Yellow Pedestal for Access Control
Dimensions:
- Tube Dimensions: 100mmx100mmx1.6mm
- Rain Cover: 200mm High x 100mm Wide
- Base Plate: 150mmx150mmx5mm
APC-RR-11 Retro Reflective Sensor
The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.
- Up to 11 Metres Infrared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment & Misalignment led to assist in the installation process
- Resin filled for the ultimate weatherproofing
APC Automation Systems FOUR Button Keyring Remote Control
Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.
External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
Specifications
Mains power supply: 230 Vac +/- 10%, 50-60 Hz
Motor power supply: 24 V DC 280 W and 10 A peak motor
Warning light power supply: 24V max 15W
Gate pilot lamp power supply: 24 Vdc max 10 W
Accessories power supply (photocells &): 24 Vdc max 10 W
Radio receiver frequency: 433.920 MHz
Storable remote controls: 170
Radio antenna input: Rg58
Operating temperature: -20°C / +50°C
