Product SKU: APC-P500-DC-BK

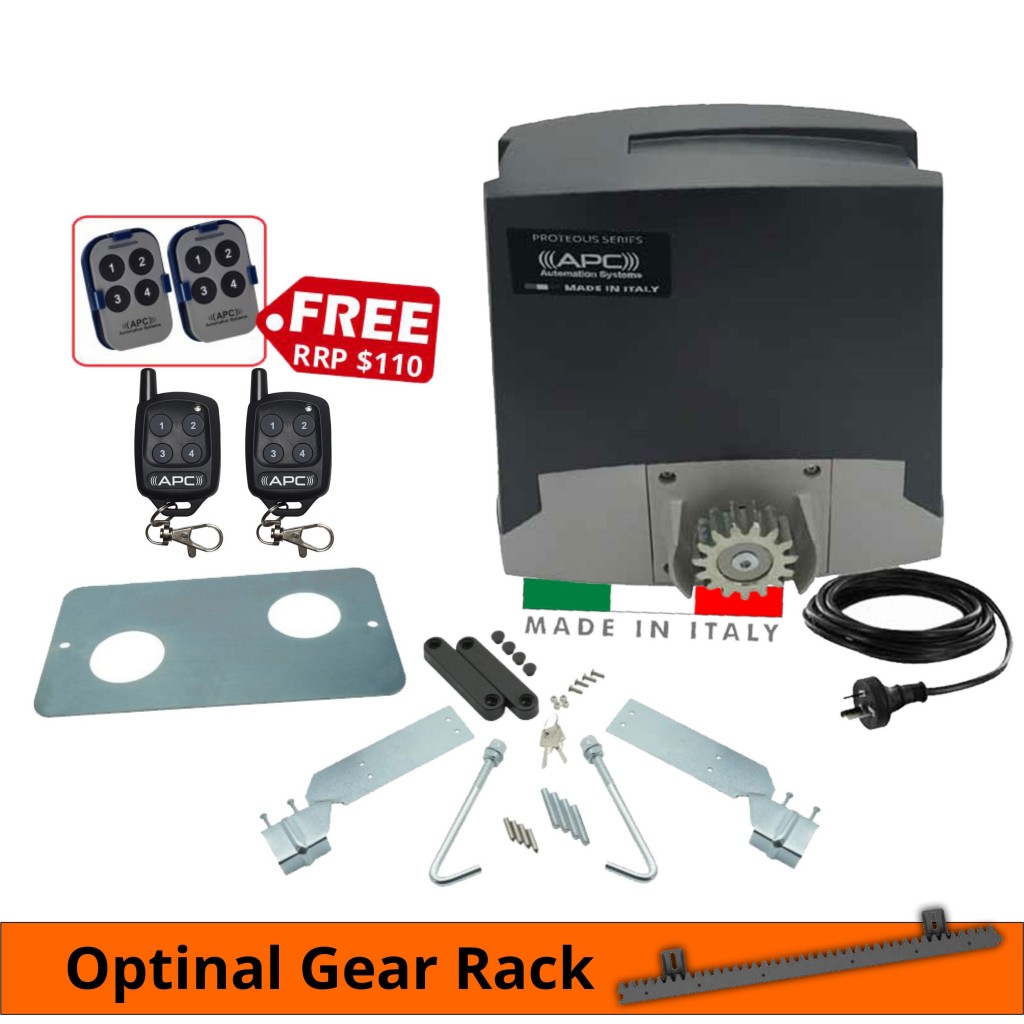

The Sliding Gate Opener APC Proteous 500 boasts a cutting-edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high-duty cycle system. There is no function or feature that this system cannot perform. See the full details below.
90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra-long 10-metre sliding gate capacity
Only 150mm Narrow Depth
Automatic learning of sliding gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount, which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable.
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic gate close feature
Underside cable entry with grommets
Simple to set up left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt levelling adjustment system (30mm in any or all directions)
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Built-in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for sliding gate opening and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (APP-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)
Transformer | 24V AC |
Rectification | In Housing Rectifier |
Motor Output Voltage | 24v DC |
Max Operating Power | 300 Watts |
Maximum Gate Length | 10 Metres |
Maximum Gate Weight | 500 KG |
Speed | 28 cm/s |
Working temperature | -20° - 50° |
RF | APC Rolling code 433.92mhz |
Motor Duty Cycle | 90% |
Auxiliary Inputs | 0V Momentary Pulse |
Accessories Voltage | 34V DC |
Operator Inbuilt Safety | Over current + Encoder Sensitivity |
An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the Proteous system.
