Product SKU: GTR40-PA-4200-DC

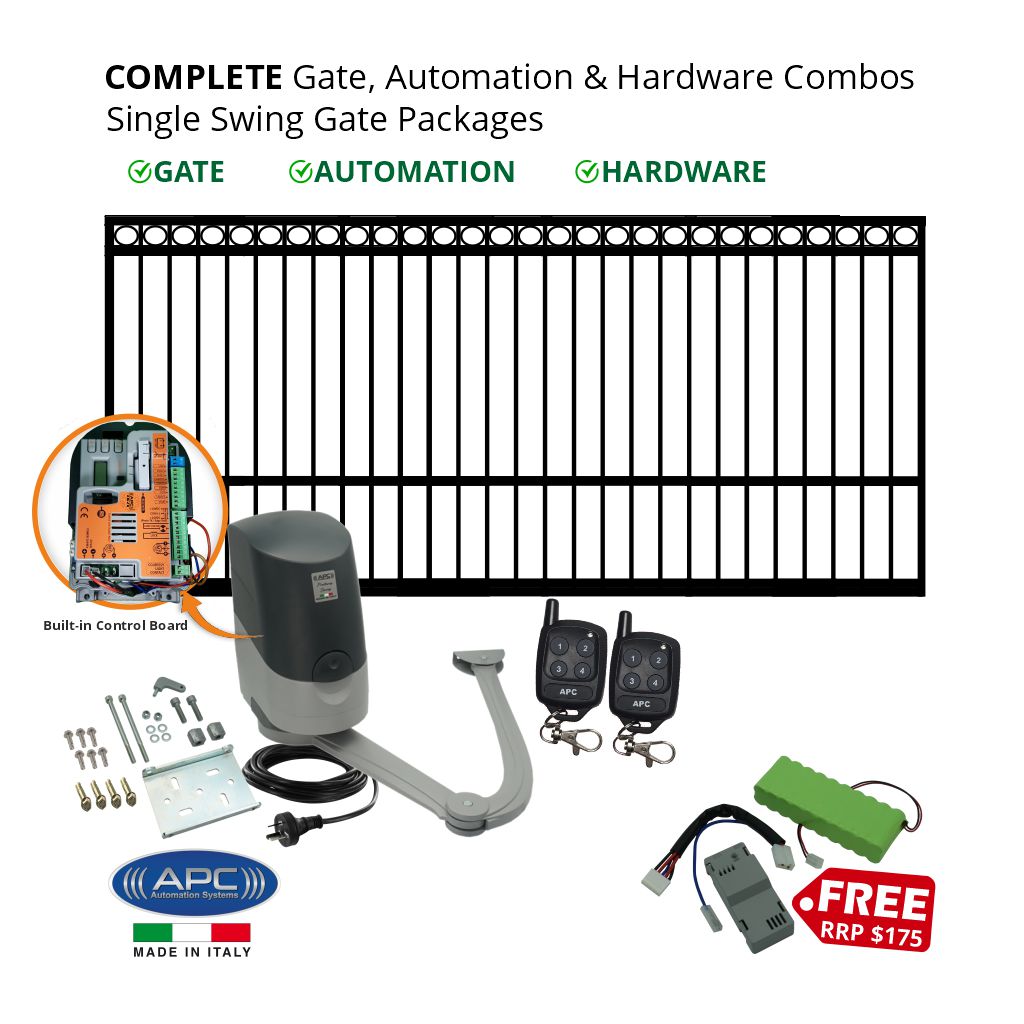

4m Ring Top Gate, Automation & Hardware Combos with Italian Made Heavy Duty Articulated Gate Opener System. Complete Single Swing Electric Gate Packages

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

4m Ring Top Gate, Automation & Hardware Combos with Italian Made Heavy Duty Articulated Gate Opener System. Complete Single Swing Electric Gate Packages

Product SKU: GTR40-PA-4200-DC

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$2,595.00

  • Classic Design Ring Top Gate, Satin Black Powdercoating, Robust 80x40 - 40x40 Steel + 19mm Pickets

  • Kit Includes

    01 4m Ring Top Gate (QTY: 1)
    02 APC Proteous 4200 (Master Motor) Articulated Arm with Built-in Control Board and Adjustable Stops (QTY: 1)
    03 APC Proteous 4200 Long Arm (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 2)
    05 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer) (QTY: 1)
    06 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
    07 FREE Battery Backup System (Promotion) for Proteous P450, P500 Sliding Gate Opener and PA-4200/8400 Swing Gate Opener LV and DC Electric Gate Automation Kit Order. (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Classic Ring Design Gate with 19mm Pickets and an additional Horizontal Support Rail




Key Features
  • Classic Ring Design
  • 1500mm Height
  • 19mm Pickets
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

Suitability
  • Sliding Gate Applications
  • Swing Gate Applications
  • Residential Use
  • Commercial Use

Italian Made Extra Heavy Duty Articulated Arm System






Packing a punch the Proteous 4200 system can deliver 760N of thrust to operate gates up to 500kg or 4.2m in length. With a built in adjustable stop for both the open and closed positions making the system is versatile in its stopping arangment.



Adjustable built in stopper


Simple to adjust just install the supplied Open position stopper in the hole at the desired stop point and tighten. Repeat again for the Closed position stopper.


System Capacity





Installation Geometry





Specifications

Thrust 760N
Motor Voltage
24v DC
Manual override
Via override key supplied
Working temperature
-20° - +50°
Duty Cycle
80%
Max. Operating Angle
120°
Gates size
4.2m max
Gate weight
500kg max





Feature Rich and Highly Versatile Control Box



The Proteous PA-4200 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Specifications

Transformer 24V AC
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accesories + Running Motors)
Max. Accesories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity







Optional Battery Back Up

An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the proteous system.

Compartment with Battery Pack and Charger Installed



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,595.00
