Product SKU: BG-NUUR4-90D-DC-ACK

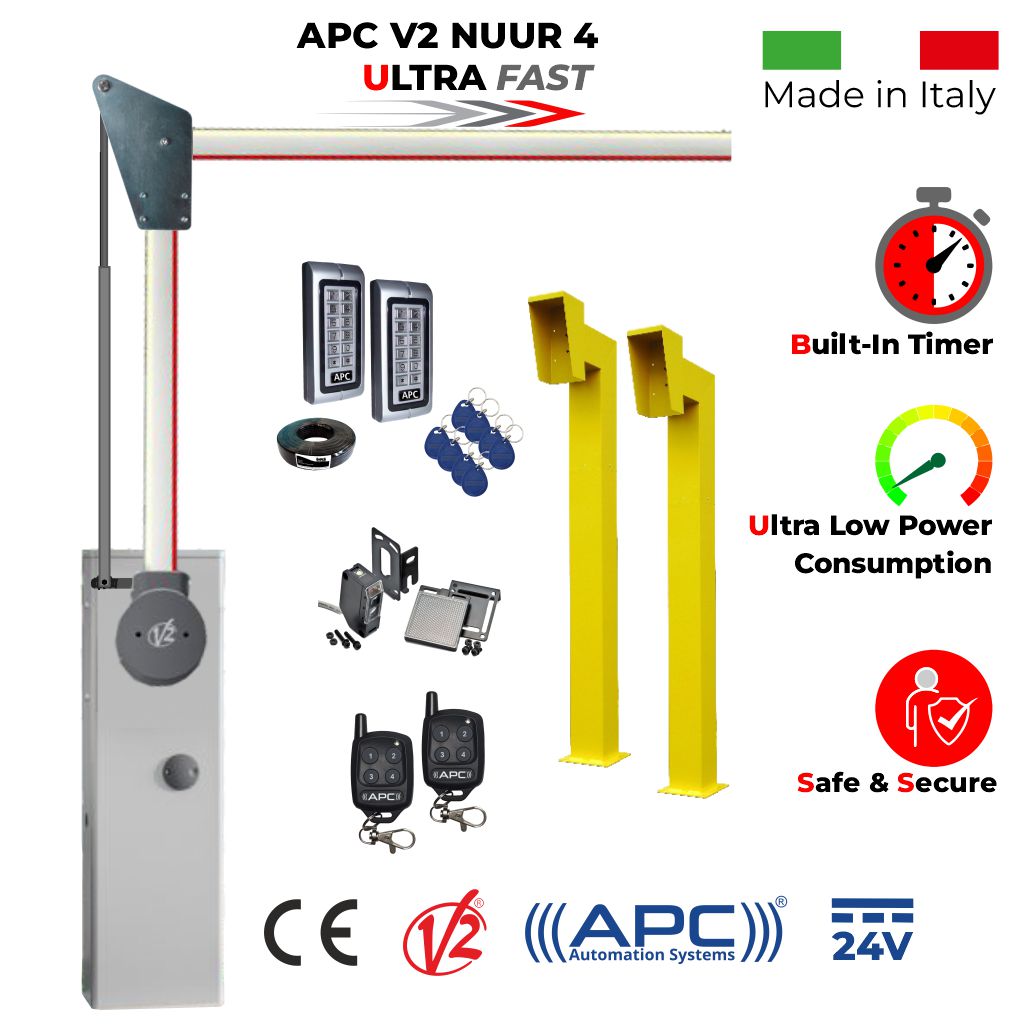

4 Meter Boom Barrier Access Control Kit with APC V2 NUUR 4 Boom, 90 Degree Articulated Arm, Two Remote Controls, Gooseneck Pedestals and Keypads with EM Card Reader. Ultra High-Speed 24V DC APC V2 NUUR4, Universal Boom Barrier. Car Parking Secure Access Control System, Made in Italy

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

90° FOLDING BOOM ARM

  • On Sale

4 Meter Boom Barrier Access Control Kit with APC V2 NUUR 4 Boom, 90 Degree Articulated Arm, Two Remote Controls, Gooseneck Pedestals and Keypads with EM Card Reader. Ultra High-Speed 24V DC APC V2 NUUR4, Universal Boom Barrier. Car Parking Secure Access Control System, Made in Italy

Product SKU: BG-NUUR4-90D-DC-ACK

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$3,435.00 $3,939.00 APC Automotion Plus Sale

  • Italian-Made Ultra-High-Speed 24V DC Barrier/Boom Gate Operator With 90-degree Folding Boom Arm, Can Work on Either Side

  • Kit Includes

    01 APC V2 NUUR4 Universal Boom Gate Operator Box (Pre-Configured Right Side) Ultra High-Speed 24V DC, Car Parking Access Control / Boom Barrier / Boom Gate / Parking Barrier | Made in Italy (QTY: 1)
    02 4m Boom Gate Arm for APC V2 NUUR4 Universal Boom Gate (QTY: 1)
    03 Boom Gate 90-Degree Articulated Arm For APC NUUR 4 Italian Made Universal Boom Gate (QTY: 1)
    04 Boom Gate Cover for APC V2 NUUR Universal Barrier/Boom Gate Operator (QTY: 1)
    05 Concrete In Fixing Anchor Plate with Stay Bolts and Screws for APC V2 NUUR Universal Boom Gate Operator (QTY: 1)
    06 APC Four Button Keyring Remote (QTY: 2)
    07 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    08 APC Slimline Vandal Resistant Keypad with EM card Reader (QTY: 2)
    09 EM Swipe Tag (QTY: 14)
    10 5m 4 Core Non Shielded Cable (QTY: 2)
    11 1150mm High Yellow Gooseneck Pedestal with Bolt Down Base (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

APC V2 NUUR4 ULTRA FAST 24V Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control

Ultra-low power consumption. Suitable for solar-powered systems.

24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate

24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 4m width

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR4, Universal Boom Gate Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy



  • Accurate and safe operation with encoder
  • Obstacle detection
  • Self-learning of opening and closing times
  • Slow-down in the limit switch area
  • Balancing spring included
  • White painted aluminium bar (accessory)
  • Digital control unit programmable using three program buttons and display
  • Plug-in adaptor for modular receiver
  • ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
  • Input for photocells with self-test function
  • Input for mechanical safety edges
  • Courtesy light output
  • Holding magnet output
  • Energy Saving function to minimise consumption in standby mode
  • Programmable acceleration and deceleration
  • Operation in case of absence of power using the backup battery
  • Operation with solar power using the ECO-LOGIC system



Motor Overview / Balancing Spring System







Technical Features

  • Power supply (Vac - Hz): 230 V~ 50 Hz
  • Motor power supply (Vac - Hz):  24 Vdc
  • Maximum electric power (W): 300W
  • Opening time (s): 3 Seconds for 4 Meter Boom Arm
  • Working temperature (°C): Between -20° to +55°
  • Duty cycle % - (max. cycles/hour): 80% - (300)



Control Panel





  • Digital control unit programmable using three program buttons and display
  • Plug-in adaptor for receiver
  • ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP



Dimensions



Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy



APC V2 NUUR4 Boom Gate System is Suitable to Use On Either Side.

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR4, Universal Boom Gate Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy





Easy to Swap Right Side and Left Side Raise Arm Barrier Operator











APC-KP1C Wired keypad with built in card reader



The APC-KP1C keypad is a waterproof low voltage keypad which is wired back to the control board using the supplied cable roll. It is of alloy construction and extremly robust. It can be seen day or night thanks to its backlit keys. Two EM swipe cards are also supplied suitable for any temporary or permanent user that need to gain access into the property without a pin code.

Key Features:

  • Built-in EM card reader.
  • Robust cast alloy construction
  • Resin filled for ultimate weatherproofing
  • Blue backlit keys
  • Anti-tamper feature
  • IP65 Waterproof rated and suited for outdoor and indoor environments.
  • Up to 2000 users for pin code and EM card.



Technical Specifications

Dimension

Features  Description
Appearance Metal case, anti-explosion and anti-tamper
Waterproof IP 65
Dimension 135×58×26mm
Input voltage DC: 12-24V AC: 12-18V
Capacity(max) 2000 Users
PIN 4-8 digits.
Not related to the card.
Master card Add/Delete User
As reader Support Wiegand 26bits, PIN Wiegand output, is a virtual number.
Connect external reader Can connect any EM/HID/IC readers with Wiegand 26 output
Connect high-power alarm. External current of the alarm ≥3A





Heavy Duty Safety Yellow Pedestal for Access Control


Heavy Duty Pedestal, Keypad Stand & Intercom Stand





Dimensions:

  • Height: 1150mm

  • Tube Dimensions: 100mmx100mmx1.6mm

  • Rain Cover: 200mm High x 100mm Wide

  • Base Plate: 150mmx150mmx5mm

APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing

APC Automation Systems FOUR Button Keyring Remote Control





Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.
