Product SKU: APC-T575L-DC-WF-RM

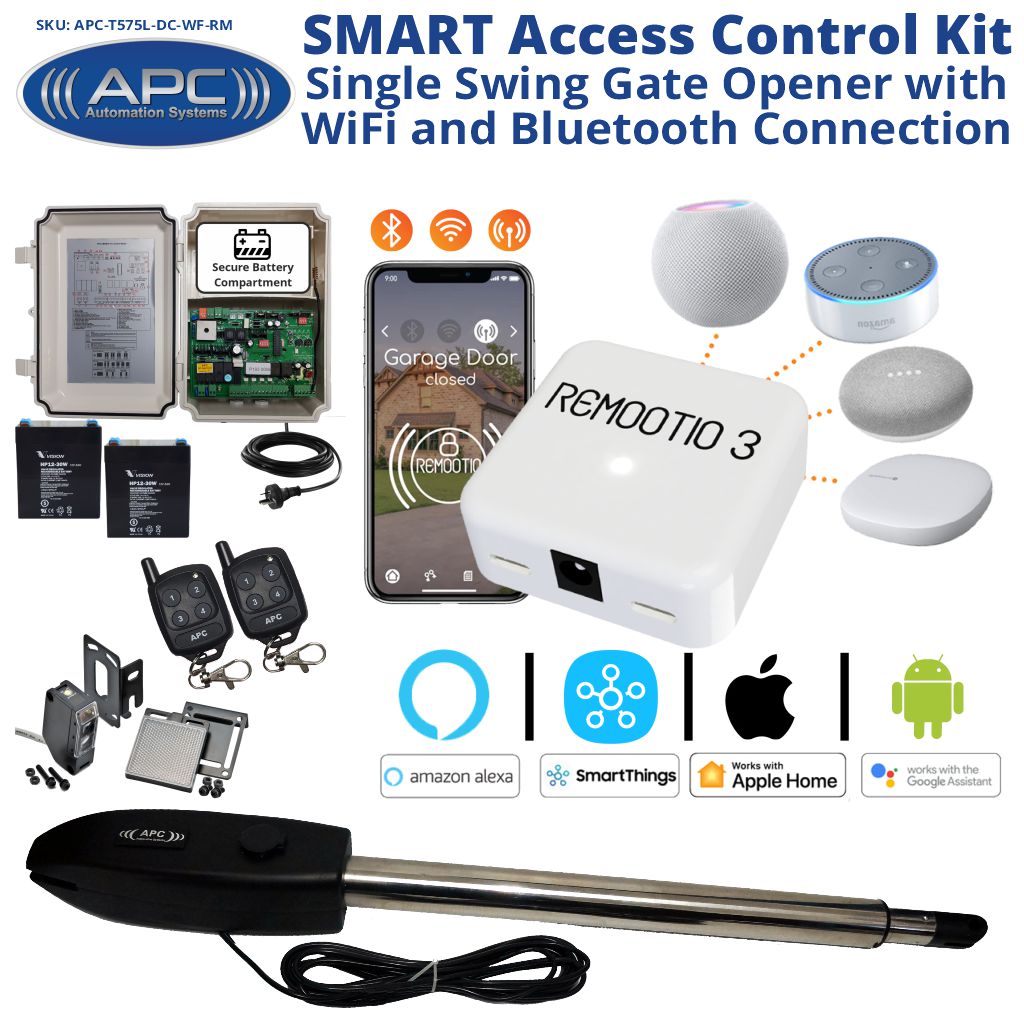

Smart Access Control Swing Gate Automation Kit. APC Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator Single Gate Opener with Remootio3 Smart Gate Access Control Connecting WiFi, Bluetooth and Control Gate with Smartphone APP

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Driveway Gate Opener, Single Swing Gate Automation Kit, Single Swing Gate Opener with Remootio 3 Smart Gate Access Control with Smartphone APP

    On Sale

Smart Access Control Swing Gate Automation Kit. APC Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator Single Gate Opener with Remootio3 Smart Gate Access Control Connecting WiFi, Bluetooth and Control Gate with Smartphone APP

Product SKU: APC-T575L-DC-WF-RM

  • In Stock

Get More Info..

Kit Price:

$799.00 $1,141.00 APC Automotion Plus Sale

  • Or in 4 payment of $199.75 with afterpay info
  • WiFi Connection Smart App Control Sliding Gate Opener 24V System, 3 Meter, 250KG, 350mm Stroke, Metal Gears

  • Kit Includes

    01 APC-T575L Actuator Kit (QTY: 1)
    02 APC Weatherproof Control Box with Built in Battery Compartment and 1.2m Power Cord (Ready to Plug In) (QTY: 1)
    03 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 2)
    05 Remootio 3 Smart Gate Access Control Connecting WiFi, Bluetooth and Control Door/Garage/Gate with Smartphone APP| Remootio - Make your gates and garage doors smart! (QTY: 1)
    06 5aH Battery Backup (QTY: 2)
    07 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator



Heavy Duty 24V Motor with powerful and quiet operation comprised of a cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance Easy to use manual override using the supplied butterfly key in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3m maximum length.

Emergency Clutch Override

Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.

All Metal Gears

Powerful and whisper quiet 24V motor and all metal gears

Actuator Dimensions

Extra Heavy Duty Single Gate Opener

Specifications



Gear Type Metal Lead Screw, All Metal Gears
Motor Voltage
24v DC
Manual override
Via override butterfly key supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
350mm
Gates size
3m max
Gate weight
250kg max





Installation Geometry



Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point



System Features

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output



Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.



Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output



Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Battery Back Up





Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.

Remote Features

Specifications



Power Input 240V AC (Pre wired with 1.2m Cable)
Transformer 24V AC
Rectification On Board Bridge Rectifier
Motor Output Voltage 24v DC
Battery Backup 24V
Working temperature -10° - 50°
RF APC Rolling code 433.92mhz
Lock Output (Primary) 12-30V DC (Depending on Configuration)
Lock Output (Secondary) 12V DC
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Over current 1A to 5A


APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing

Remootio - Make your gates and garage doors smart!

This Remootio 3 package includes:

  • Remootio 3 device (Bluetooth and Wi-Fi enabled device for controlling and monitoring gates and garage doors)
  • Sensor (for detecting if your gate is open or closed)
  • Power adapter (5V) (for powering Remootio 3 from a wall socket).
  • Power cable for the 5V power adapter
  • Double-sided tapes
  • Cable for connecting Remootio to your gate or garage door
  • Installation manual

Key features:

  • Remootio 3 has two output relays which makes it compatible with gate/garage door openers that have separate trigger inputs for opening and closing
  • Remootio 3 works with a 5V power supply (standard USB charger)
  • Remootio 3 also works from 5-32V DC and 12-24V AC voltages, so it can be powered from the control board of most gate openers, making installation very easy
  • Remootio 3 has two accessory input terminals (e.g. sensor and doorbell button)





Works with:

Electric Gate Icon  Most electric gates
Garage Door Opener Icon  Most garage door openers
Electric Strike  Most electric strikes

Please use the compatibility checker to make sure that Remootio 3 is compatible with your gate or garage door opener.

Connection methods:

Bluetooth  Bluetooth (also works when there is no Wi-Fi / Internet access)
Wi-Fi icon  Wi-Fi (local network)
Internet Access  Internet (via Wi-Fi)


Smart Home Integrations:

Amazon Alexa  Apple Home
Amazon Alexa  Amazon Alexa
Google Assistant Google Home  Google Assistant
Samsung SmartThings  Samsung SmartThings


Control via:

Smartphone icon  iOS and Android Smartphones
Apple Watch  Apple Watch
Open API  Open API


Features :

256 bit end to end encryption  256-bit end-to-end encryption
Alerts and Notifications  Alerts & notifications
Automatic Opening  Automatic opening
Status sensor  Open / Close status sensor
Virtual keys and easy key sharing  20 virtual keys & easy key sharing
Automations - scheduling  Automations
Customizable App  Customizable app
Logging - History  Logging (history)
Firmware updates  Firmware updates


Easy installation:

Wiring diagrams available for most gates and garage doors  Wiring diagrams available for most electric gate and garage door openers
Small size - fits almost anywhere  Small dimensions - fits almost anywhere
Wide operating voltage range  Wide operating voltage range: 5-32VDC & 12-24VAC
2x output relays  2x output relays
