Product SKU: APC-SG802-AC-WF-RO

Smart Access Control Sliding Gate Automation Kit. APC Typhoon 800 Residential Grade 800KG AC Sliding Gate Opener with Remootio 3 Smart Gate Access Control Using Wi-Fi, Bluetooth. Control Gate with Smartphone APP and Geo Location.

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Smart Access Control Sliding Gate Automation Kit. APC Typhoon 800 Residential Grade 800KG AC Sliding Gate Opener with Remootio3 Smart Gate Access Control Connecting WiFi, Bluetooth and Control Gate with Smartphone APP

    YEAR END SALE

    TOP DEALS

Smart Access Control Sliding Gate Automation Kit. APC Typhoon 800 Residential Grade 800KG AC Sliding Gate Opener with Remootio 3 Smart Gate Access Control Using Wi-Fi, Bluetooth. Control Gate with Smartphone APP and Geo Location.

Product SKU: APC-SG802-AC-WF-RO

  • In Stock

Get More Info..

Kit Price:

$825.00 $882.00 APC Automotion Plus Sale

  • Or in 4 payment of $206.25 with afterpay info
  • WiFi Connection Smart App Control Sliding Gate Opener Kit Upto 800kg and 6m capacity, Spring Limit

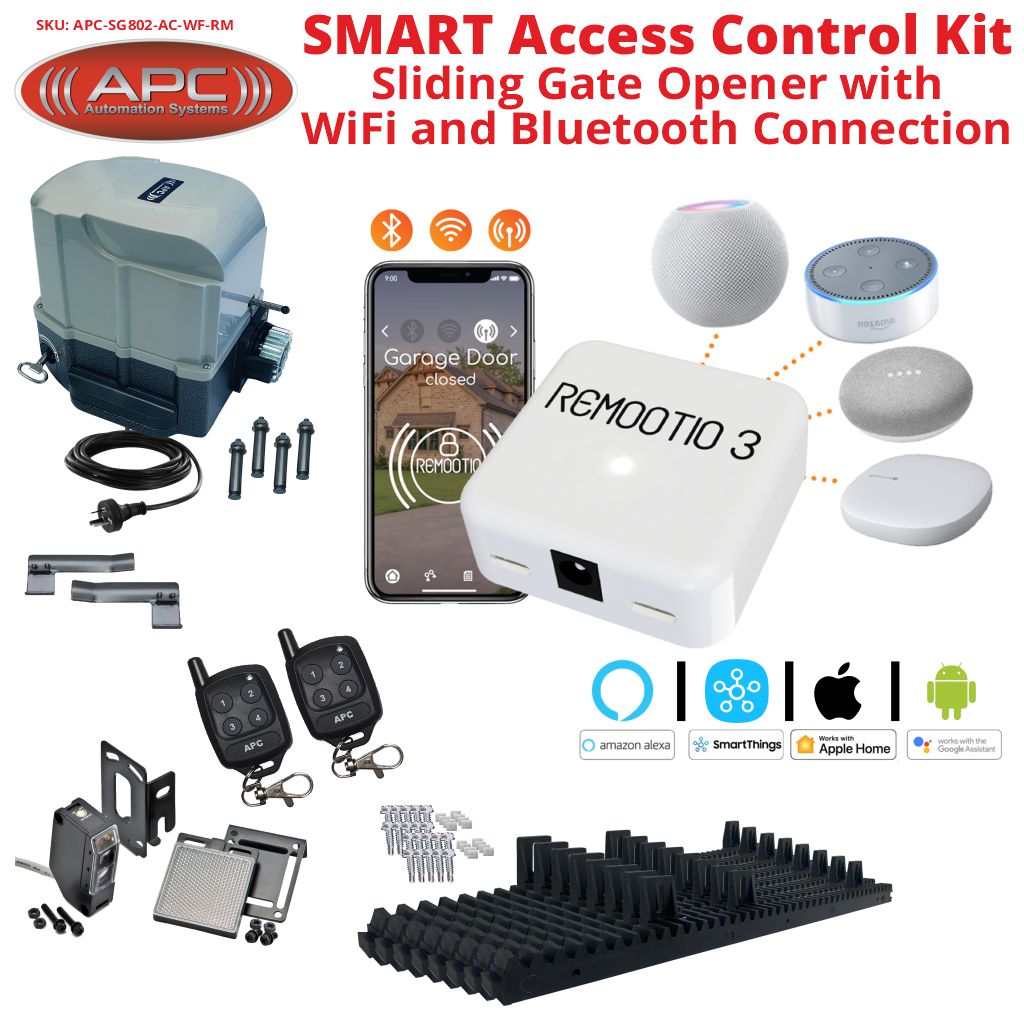

  • Kit Includes

    01 APC Typhoon SG802 AC 800KG Sliding Gate Motor with Power Cord (Built in Control Board) (QTY: 1)
    02 APC Four Button Keyring Remote (QTY: 2)
    03 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    04 Remootio 3 Smart Gate Access Control Connecting WiFi, Bluetooth and Control Door/Garage/Gate with Smartphone APP| Remootio - Make your gates and garage doors smart! (QTY: 1)
    05 Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli (QTY: 4)
    06 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Typhoon 800 AC Sliding Gate Automation System with Soft Start & Soft Stop Feature

Strong & Durable





With its Soft Start/Soft Stop feature the APC Typhoon 800 brings the gate up to operating speed and down to a stop gently significantly increasing the motors operating life whilst decreasing the jolting movement incurred when the feature is not available.This feature can also simply be turned off if not required.

The 450W Internal motor allows for an 800kg capacity making it the ideal candidate for the majority of gate installations.

Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of  remotes. Perfect for a simpler of no wiring needed installation.




All In One Motor Design





Ultra compact, sleek design and with some clever re-arrangement the APC Typhoon 800 is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in a ultra durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway

With separate open and close inputs as well as an shared open/close input the APC Typhoon 800 will support just about any wired accessory and  can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.

Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.



Manual Override System





Rest easy knowing that even if the power is out the gate can still be operated by using the secure key override, once overridden the gate can be easily opened and closed by hand, once re-engaged the gate is locked in and 100% secure.



Metal Pinion & Cast Casing






Only the best parts are used to ensure an incredibly strong build quality from the robust cast alloy casing all the way to the one piece solid steel pinion gear no corners have been cut.

Motor and Base Plate Dimensions Including Pinion Height

Suitability

  • Sliding gate not exceeding 800kg maximum (Telescopic Gates Supported up to 200KG PER gate)
  • Sliding gate not exceeding 6m width maximum (Telescopic Gates Supported up to 2m PER gate)
  • A power point is required at the gate (or can be hardwired by an electrician)
  • Level ground installations or minor gradients



Specifications



Rated Power 450W
Power supply 220V-240V
Maximum Weight of Gate 800kg (Telescopic Gates 200KG PER Gate)
Maximum Width of Gate 6m (Telescopic Gates 2m PER Gate)
The working temperature of the motor -5° ~ +65° C
Open (Close) speed 12m/min
Maximum Pull 22Nm
Voltage output 18V DC, Only devices with a parameter of 12-24V DC operating range can be connected to the system
Light output 240V Light, 30 Watts or Less
Accessories input Open Only
Close Only
Open/Halt/Close



FAQ



Can I operate this sliding gate motor manually?
YES
The motor is fitted with a manual override and supplied with a key to manually disengage the motor
Can I use this system to operate a large gate?
YES
This system can handle a sliding gate up to 6m wide and 800kg in weight.
Are the motor & control panel all in one?
YES
Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact
Can I use push buttons to operate this system?
YES
Both wireless & wired push-button switches can be used to open/close the gate motor
Can I use keypads to operate this system?
YES
Both wireless & wired keypads can be used to open/close the gate motor
Can I connect a safety sensor to this system?
YES
Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate
Can I connect an intercom system to this gate system?
YES
A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone
Can I operate this gate system from a remote location?
YES
A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location.
Does this gate system automatically close?
YES
When the automatic close timer is enabled and photoelectric safety sensors are installed, the gate will automatically close
Can I connect a light to the system?
YES
The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.

How to Choose the Best Sliding Gate Opener (Australia)? | APC Gate Automation (Melbourne/Australia)

The best-sliding gate motors in Australia are often determined by factors such as reliability, durability, speed, access control, and customization options. Some top APC Sliding Gate Opener models to consider include:

APC Typhoon sliding gate motor with 240V power is strong, durable, and high-quality, suitable for residential and commercial sliding gates.

One of the best-sliding gate motors, the APC Typhoon 450W Internal motor, allows for an 800kg capacity, making it the ideal candidate for the majority of gate installations for domestic/industrial driveway gates.

If you are looking for the best sliding gate motors in Australia, several models should be considered. Some popular options include the Italian-made APC Proteous Sliding Gate Motor 24V DC series and APC Typhoon Sliding Gate Motor 240V AC series. These motors are known for their reliability, smooth operation, and advanced access control, safety features such as safety sensors, WiFi smartphone APP integration and much more. When choosing the best sliding gate motor, it's important to consider factors such as gate size, weight, power options (Grid Power 240V, External Transformer Low Voltage 24V and Solar Off-Grid)and intensive use.

You can get a free consultation from our help-desk professional to ensure the motor is the best compatible with your specific gate setup and requirements. Please call our highly experienced technicians for help finding the best-sliding gate opener to suit your requirements.

APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing

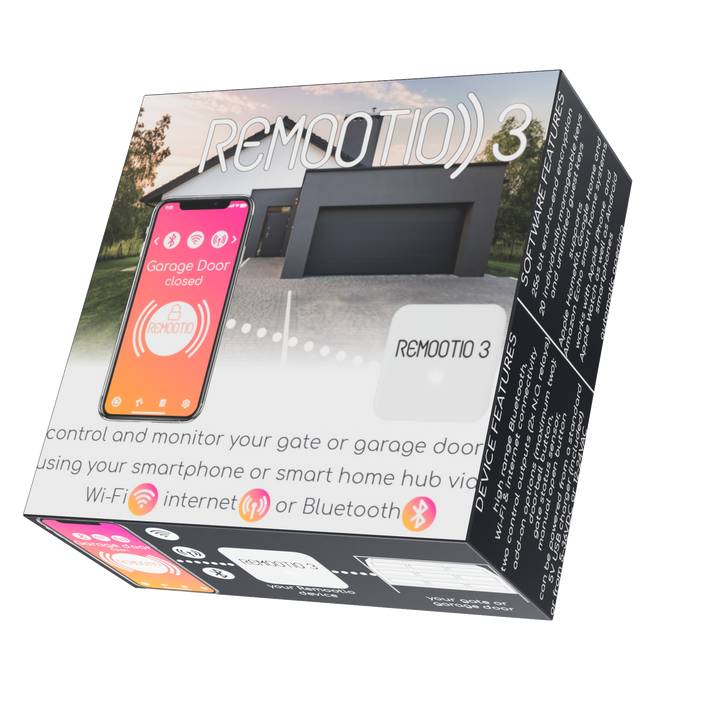

Remootio - Make your gates and garage doors smart!

This Remootio 3 package includes:

  • Remootio 3 device (Bluetooth and Wi-Fi enabled device for controlling and monitoring gates and garage doors)
  • Sensor (for detecting if your gate is open or closed)
  • Power adapter (5V) (for powering Remootio 3 from a wall socket).
  • Power cable for the 5V power adapter
  • Double-sided tapes
  • Cable for connecting Remootio to your gate or garage door
  • Installation manual

Key features:

  • Remootio 3 has two output relays which makes it compatible with gate/garage door openers that have separate trigger inputs for opening and closing
  • Remootio 3 works with a 5V power supply (standard USB charger)
  • Remootio 3 also works from 5-32V DC and 12-24V AC voltages, so it can be powered from the control board of most gate openers, making installation very easy
  • Remootio 3 has two accessory input terminals (e.g. sensor and doorbell button)





Works with:

Electric Gate Icon  Most electric gates
Garage Door Opener Icon  Most garage door openers
Electric Strike  Most electric strikes

Please use the compatibility checker to make sure that Remootio 3 is compatible with your gate or garage door opener.

Connection methods:

Bluetooth  Bluetooth (also works when there is no Wi-Fi / Internet access)
Wi-Fi icon  Wi-Fi (local network)
Internet Access  Internet (via Wi-Fi)


Smart Home Integrations:

Amazon Alexa  Apple Home
Amazon Alexa  Amazon Alexa
Google Assistant Google Home  Google Assistant
Samsung SmartThings  Samsung SmartThings


Control via:

Smartphone icon  iOS and Android Smartphones
Apple Watch  Apple Watch
Open API  Open API


Features :

256 bit end to end encryption  256-bit end-to-end encryption
Alerts and Notifications  Alerts & notifications
Automatic Opening  Automatic opening
Status sensor  Open / Close status sensor
Virtual keys and easy key sharing  20 virtual keys & easy key sharing
Automations - scheduling  Automations
Customizable App  Customizable app
Logging - History  Logging (history)
Firmware updates  Firmware updates


Easy installation:

Wiring diagrams available for most gates and garage doors  Wiring diagrams available for most electric gate and garage door openers
Small size - fits almost anywhere  Small dimensions - fits almost anywhere
Wide operating voltage range  Wide operating voltage range: 5-32VDC & 12-24VAC
2x output relays  2x output relays

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.







Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.


Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)





Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $825.00
