Product SKU: GTR20x2-T850TL

Ring Top Gates (2x 2m) + Extra Heavy Duty Linear Actuator Gate Automation Kit, Gate and Gate Opener Combo

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Gate and Gate Automation Package

Ring Top Gates (2x 2m) + Extra Heavy Duty Linear Actuator Gate Automation Kit, Gate and Gate Opener Combo

Product SKU: GTR20x2-T850TL

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$2,795.00

  • Classic Design Ring Top Gate, Satin Black Powdercoating, Robust 80x40 - 40x40 Steel + 19mm Pickets

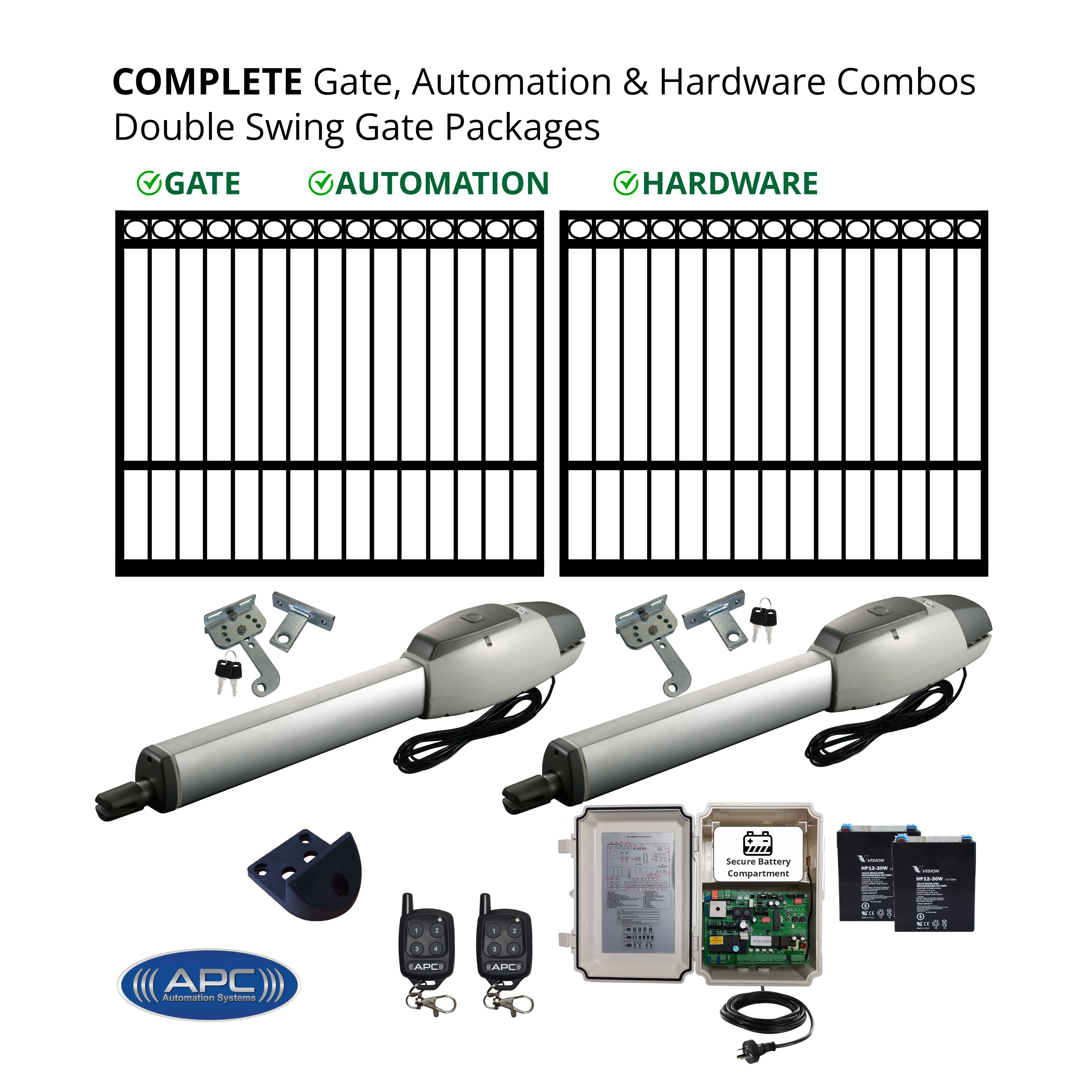

  • Kit Includes

    01 2m Ring Top Gate (QTY: 2)
    02 APC-T750TL Top Limit Actuator Kit, Extra Heavy Duty 24V DC Powered Gate Motor| Swing Gate Automation (QTY: 2)
    03 APC Weatherproof Control Box with Built in Battery Compartment and 1.2m Power Cord (Ready to Plug In) (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 2)
    05 5aH Battery Backup (QTY: 2)
    06 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    07 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer) (QTY: 1)
    08 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Classic Ring Design Gate with 19mm Pickets and an additional Horizontal Support Rail




Key Features
  • Classic Ring Design
  • 1500mm Height
  • 19mm Pickets
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

Suitability
  • Double Swing Gate Applications
  • Residential Use
  • Commercial Use


All Metal Gears Extra Heavy Duty Telescopic Linear Actuator with Top Limit Switches

Extra Heavy Duty 24V Motor with powerful and quiet operation. Robust all-metal internal gears, sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in an emergency situation. The system can handle light and heavy gates up to 350kg maximum weight for each gate leaf or up to 5m maximum length of each gate leaf.

Top Limit Switches ensure the precise setting of the open and closed positions along with a less strenuous life for the actuator.



Emergency Override


Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.


Actuator Dimensions



Extra Heavy Duty Single Gate Opener



Installation Geometry



Specifications

Gear Type Metal Lead Screw, All metal gears
Motor Voltage
24v DC
Manual override
Via override keys supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
540mm (without limit switches)
Gates size
5m maximum gate size (Per Leaf)
Gate weight
350kg maximum gate weight (Per Leaf)

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point



System Features

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button
Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output



Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.



Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output



Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Battery Back Up





Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.

Remote Features

Specifications



Power Input 240V AC (Pre wired with 1.2m Cable)
Transformer 24V AC
Rectification On Board Bridge Rectifier
Motor Output Voltage 24v DC
Battery Backup 24V
Working temperature -10° - 50°
RF APC Rolling code 433.92mhz
Lock Output (Primary) 12-30V DC (Depending on Configuration)
Lock Output (Secondary) 12V DC
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Over current 1A to 5A

65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.



65mm Rubber Gate Stop Dimensions





Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,795.00
