Product SKU: GTR15x2-T675L
In Stock
Freight Delivery

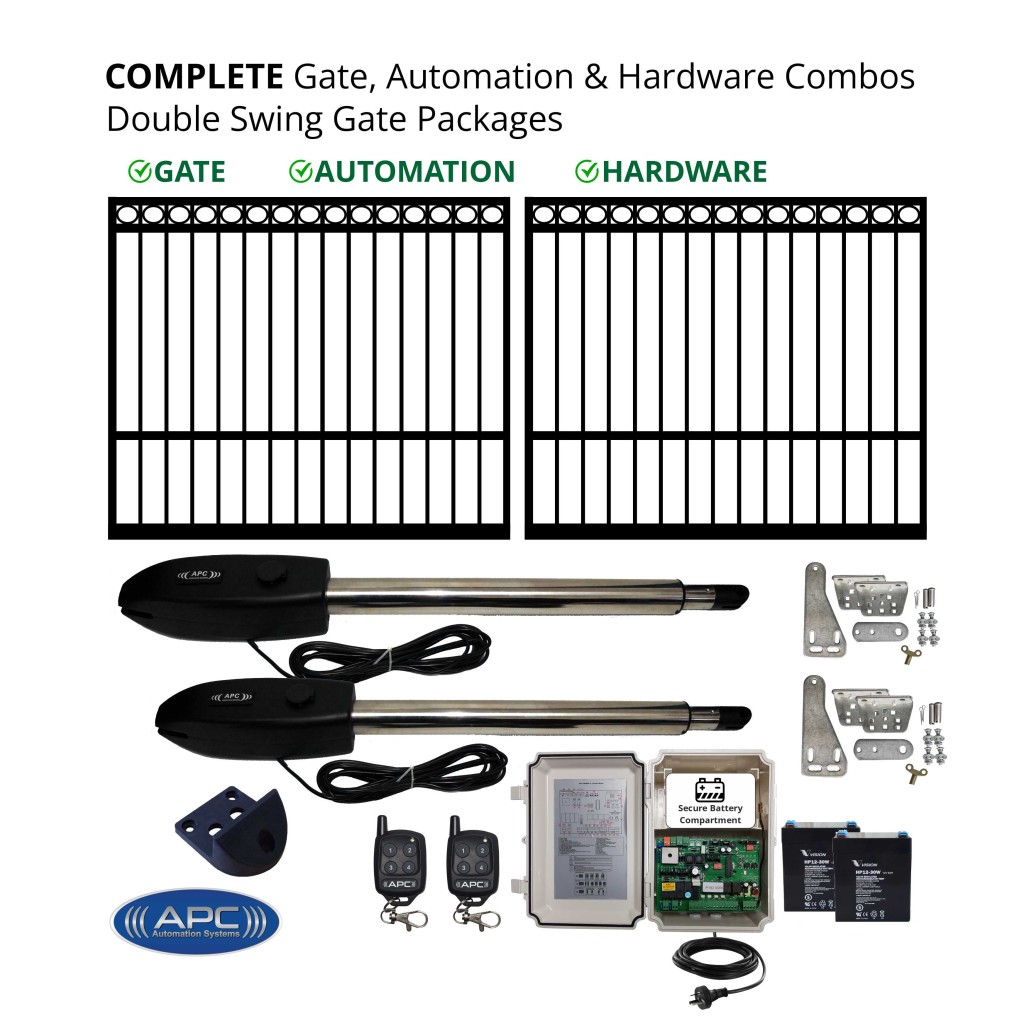

Heavy Duty 24V Motor with powerful and quiet operation comprised of a cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance Easy to use manual override using the supplied butterfly key in a emergency situation. The system can handle light and heavy gates up to 200kg maximum weight each or up to 2m maximum length each. Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually. Powerful and whisper quiet 24V motor and all metal gears The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below: Any or all of the following may be connected to operate the gate Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use. Classic Ring Design Gate with 19mm Pickets and an additional Horizontal Support Rail
Key Features
Suitability

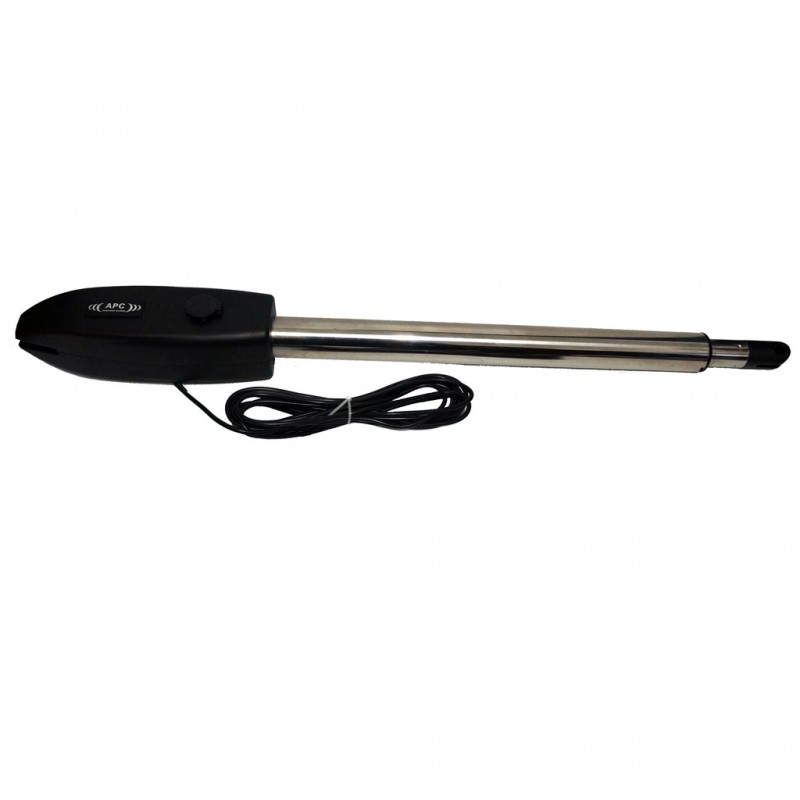

Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator
Emergency Clutch Override

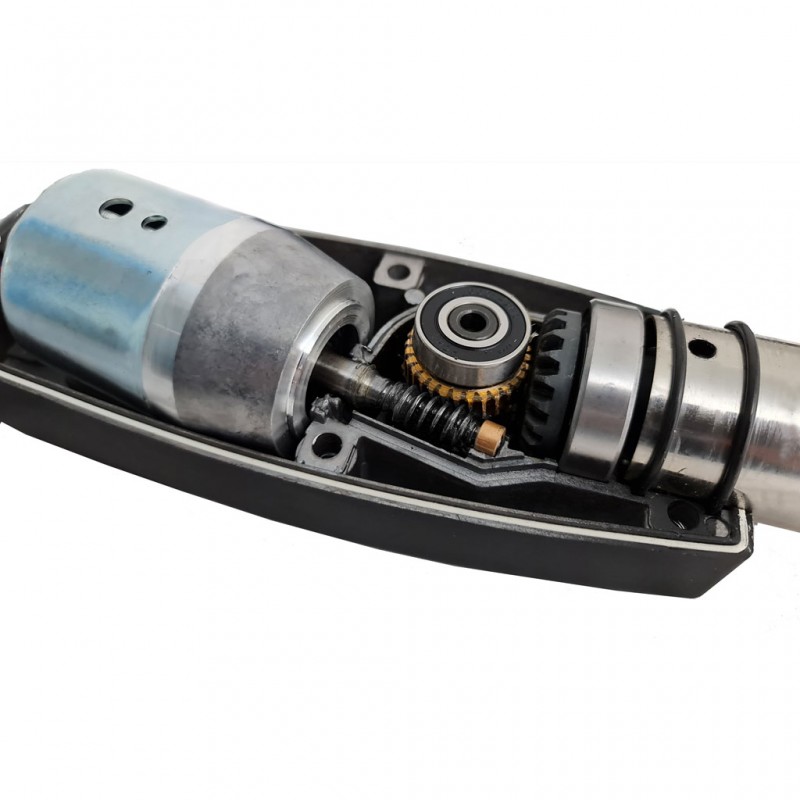

All Metal Gears
Actuator Dimensions
Specifications
Gear Type
Metal Lead Screw, All Metal Gears
Motor Voltage
24v DC
Manual override
Via override butterfly key supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
350mm
Gates size
2m max each
Gate weight
200kg max each
Installation Geometry
Weatherproof Control Box
Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power pointSystem Features
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button
Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Safety Features
Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light OutputSpecial Features
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.Accessories Compatibility
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock OutputControlling Options
Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)Battery Back Up
Remote Features
Specifications
Power Input
240V AC (Pre wired with 1.2m Cable)
Transformer
24V AC
Rectification
On Board Bridge Rectifier
Motor Output Voltage
24v DC
Battery Backup
24V
Working temperature
-10° - 50°
RF
APC Rolling code 433.92mhz
Lock Output (Primary)
12-30V DC (Depending on Configuration)
Lock Output (Secondary)
12V DC
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
24V DC
Over current
1A to 5A
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
65mm Rubber Gate Stop Dimensions
