High Speed Articulated Arm Farm Gate System, Limit Switches , All Metal Gears with Forward/Side Mount Kit

Extra Heavy Duty High-Speed Articulated Arm System

Reliability, Durability & Weatherproof

Designed in Australia the system is engineered and built to withstand the test of time, the Extra Heavy Duty unit is built only with the best and most reliable components giving it the capacity of 4.5m of gate or 300kg of weight. Furthermore it is completely weatherproof and concealed to suit all weather conditions.

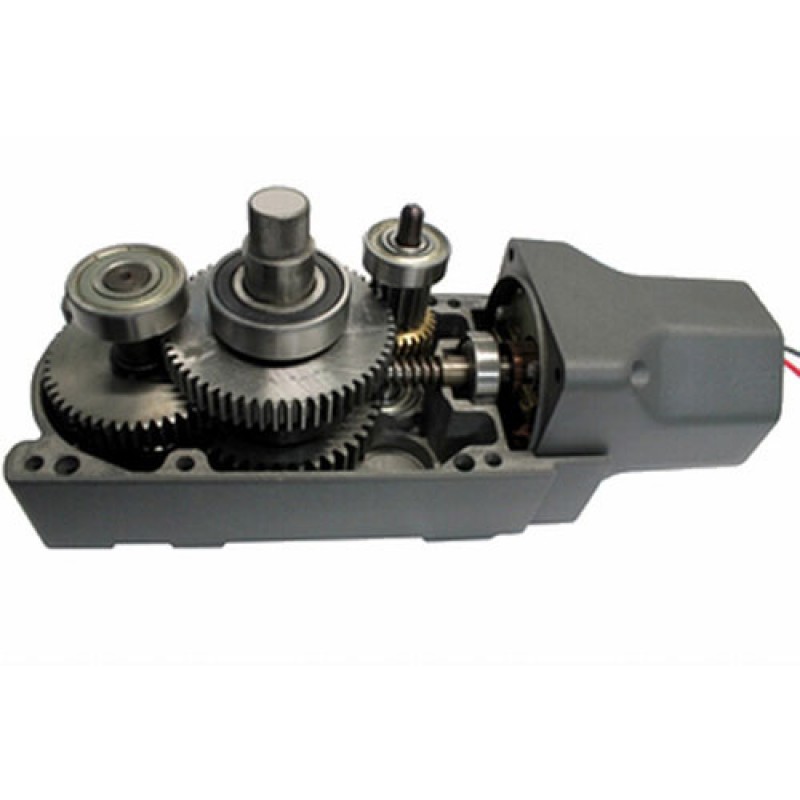

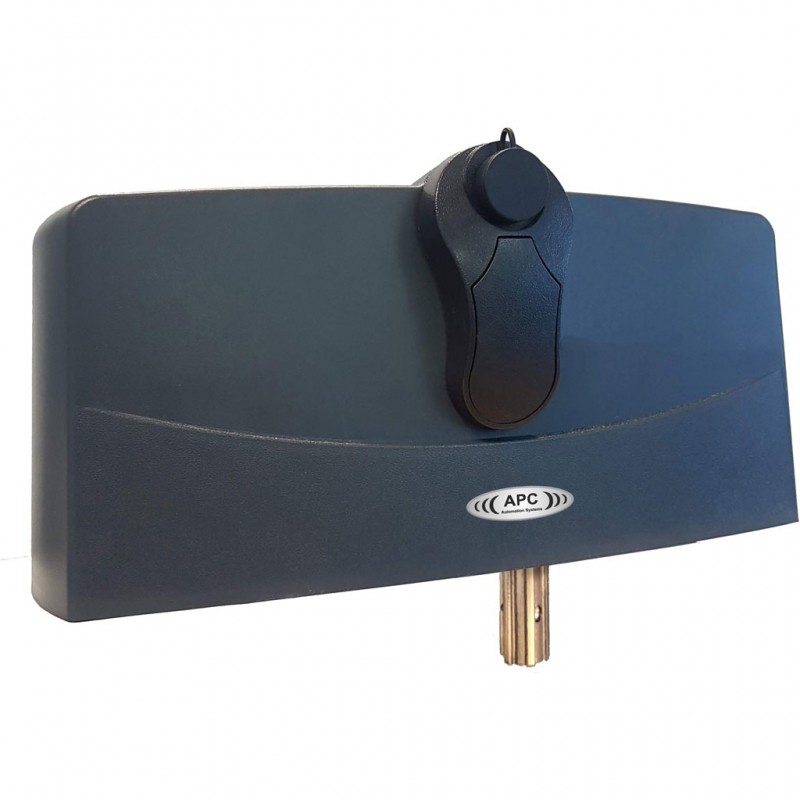

All Metal Gear Box (NO PLASTIC OR NYLON)

Six strong steel gears with one copper transfer gear along with six sealed bearings (two per gear stack) making it one of the most robust and smooth gear motors out there.



Limit Switches and Manual Override

Built in double-sided manual override shaft creating a universal motor for left or right side installations. Supplied with two lockout keys for security and an easy to use fixed on lever.

360° Adjustable limit cams to ensure a precise cut off for the open and closed positions and furthermore increase the motors life.

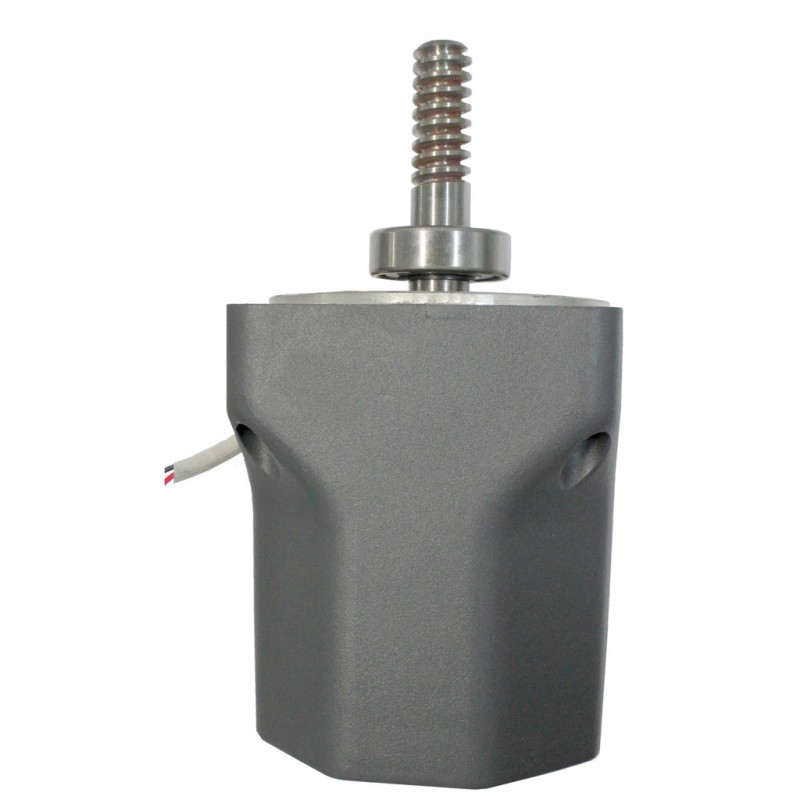

24V Extra Heavy Duty DC Motor

Strong DC motor with thick 15mm Output Shaft centered on a bearing at each end to ensure perfect alignment through all directions of operation.

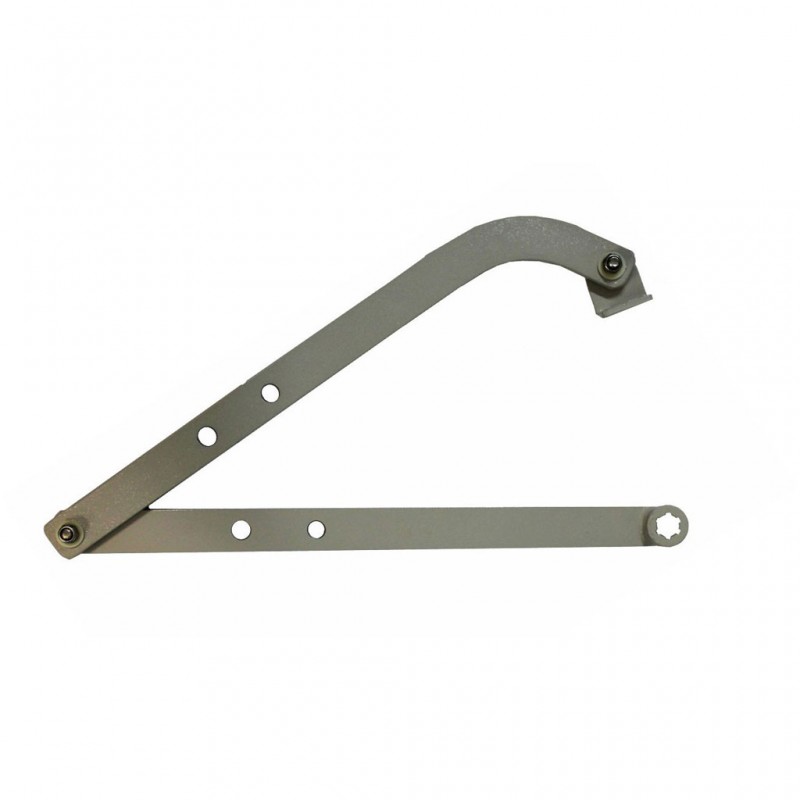

Adjustable Long Span Powder coated Steel Arms

Over engineered 10mm thick steel arms are powder coated and customisable in length. The Primary and Secondary Arms which can span up to 1100mm towards the centre of the gate or be cut back to suit low clearance installations. Ball bush flexible joints allow for gates to continue to operate whilst gates are out of level and even operate tilting/rising gates up to 20°.

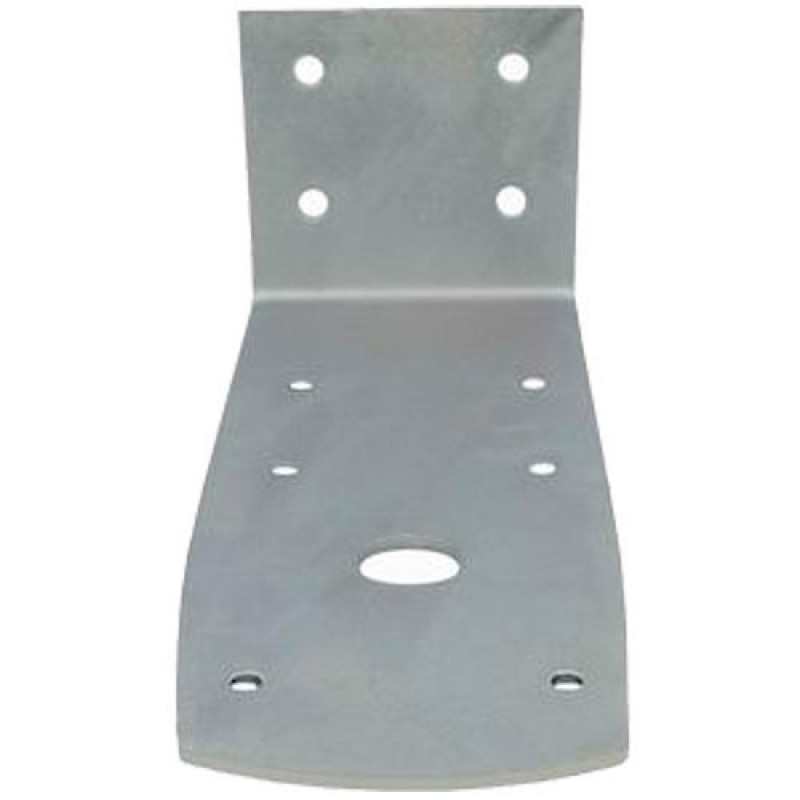

Forward Mount Bracket

Powder Coated Forward Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 150mm in width but being a solid steel bracket additional mounting holes can be drilled to suit narrower posts (100mm).

Motor Dimensions

Installation Dimensions

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security



System Features

Standalone Solar System
High Capacity Battery System
Built In Solar Regulator
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output



Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.

Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output

Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

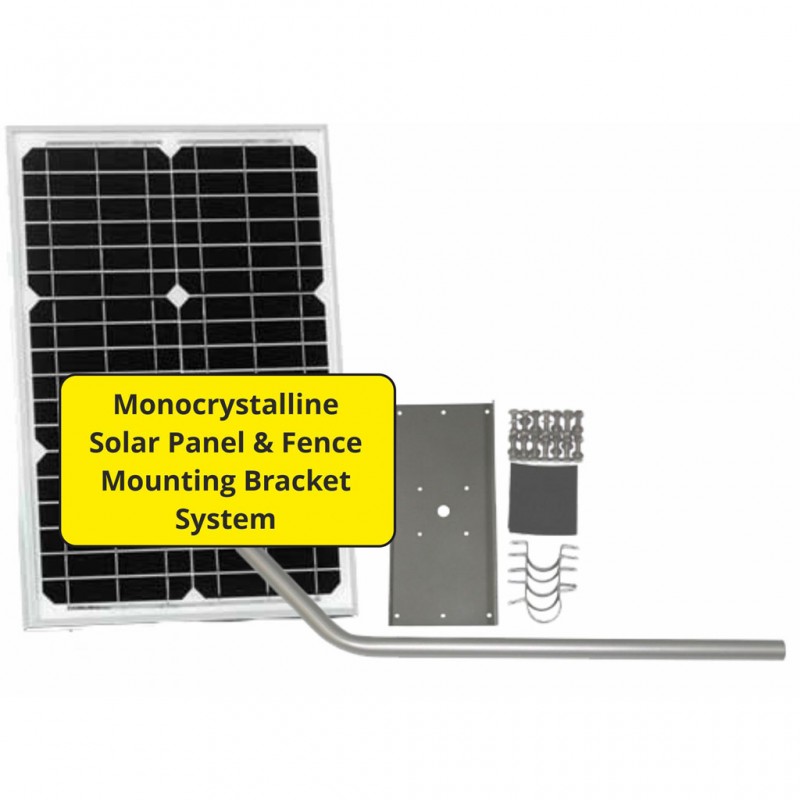

24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)

Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.

24V 9aH Battery System

Supplied with the automation kit, the 24V Battery System* (2 x 12V  9Ah Batteries) will allow for continued use of the gate system, whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged, it will continue to float charge to keep the batteries topped up and ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.

 *Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life

Remote Features

Specifications

APC 4G Network Reciever (4G/VoLTE Compatible) GSM Controller, GSM Switch
4G/VoLTE Compatible GSM Remote Control Single Relay for Automatic Gate Opener Systems



APC Connect 4 V | 4G/VoLTE Compatible GSM Controller, GSM Switch

The APC Connect 4 V will allow all programmed users to ring the device from anywhere, at any time, with the ability to toggle the connected device to operate. If desired, the unit can also be set to public mode so that any telephone number to call can toggle the operation.

The administrator/installer can easily adjust the method of operation and toggle from the system features by sending simple SMS commands from their mobile phone.



(4G/VoLTE GSM Controller, GSM Switch) How does it work:

1. An active SIM card must be installed on the device. Using the sim card in this device will not incur more than the cost of keeping it active if you turn off alerts, but the sim card needs to be active and able to receive incoming calls).
2. The device is then wired to the relevant system that needs to be operated, and up to 200 users can be programmed through quick SMS commands.
3. When any of these programmed numbers ring the device, it will ring once, reject the call, and proceed to open/close the system. The device can be dialled from anywhere at any time by any programmed user.



Prerequisites:

An active SIM card with good to excellent mobile coverage in the area where Connect 4 V will be installed is required. The SIM card cannot be a data SIM and must have an active telephone number.

The SIM card's voicemail feature must be disabled. The service provider (Telstra, Optus, Vodafone, Aldi, etc.) can do this for you.

A voltage Supply to power the device. It has a high compatibility of 9-24V DC (Any APC Gate Automation System can power this GSM unit)

Note: If your system cannot supply the required voltage, three solutions are available at an extra cost.

a) A power adapter 24VDC (PP-24) or 12VDC (PP-12) can be supplied.

• 24V Adapter. Click here for more information
• 12V Adapter. Click here for more information

b) A power convertor (APC-PC12) to transform a voltage source in AC/DC 16-28V to a 12V DC output.

• Power Converter: Click here for more information.

Features: (4G/VoLTE Network GSM Controller, GSM Switch)

• 4G Access Control Device, which is VoLTE-capable
• OPEN/CLOSE or turn ON/OFF access control systems, automatic gate systems, machines, and more.
• Ring the system from anywhere in the world.
• PRIVATE MODE: Caller ID is used for verification, but unknown numbers are ignored.
• PUBLIC MODE: Any call or SMS can operate the system
• Up to 200 authorized phone numbers can be configured simultaneously.
• SMS confirmation to an authorized phone number or master user when the system is triggered to OPEN/CLOSE or turn ON/OFF.
• Easy to configure the device by SMS.

Specifications

Quick Reference Diagrams of 4G/VoLTE Network GSM Controller, GSM Switch

What is 4G/VoLTE?

Voice over LTE (VoLTE) is an LTE high-speed wireless communication standard for voice calls and SMS using mobile phones and data terminals.

Voice over LTE (VoLTE) lets you make clearer phone calls over 4G (LTE) networks. Mobile network operators are beginning to shut down their 3G networks, so VoLTE will be needed to keep your mobile network access control device operating.

What is Required for Devices To Be 4G/VoLTE Compatible?

To use VoLTE, you will need a 4G device that is VoLTE-capable and compatible with the required technology and bands.

The APC Connect4 V 4G access control device is VoLTE-capable and can operate in the following bands/frequencies:

Band: B1/B2/B3/B4/B5/B7/B8/B28/B40
Frequency: 850/900/1800/1900MHZ (4G/VoLTE Compatible)

Package Contents

• 1 x APC-Connect 4 V (4G/VoLTE Compatible)
• 1 x Antenna
• 1 x Installation Manual

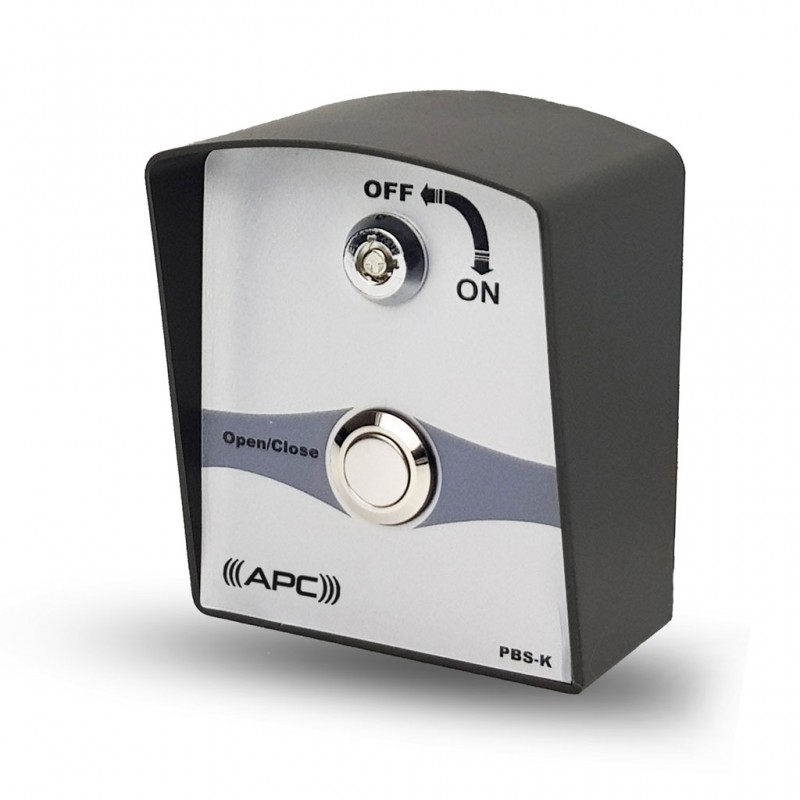

Wireless Push Button with Isolation Key

The wireless push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number.

The push button can be used for over 50 metres in operating distance.

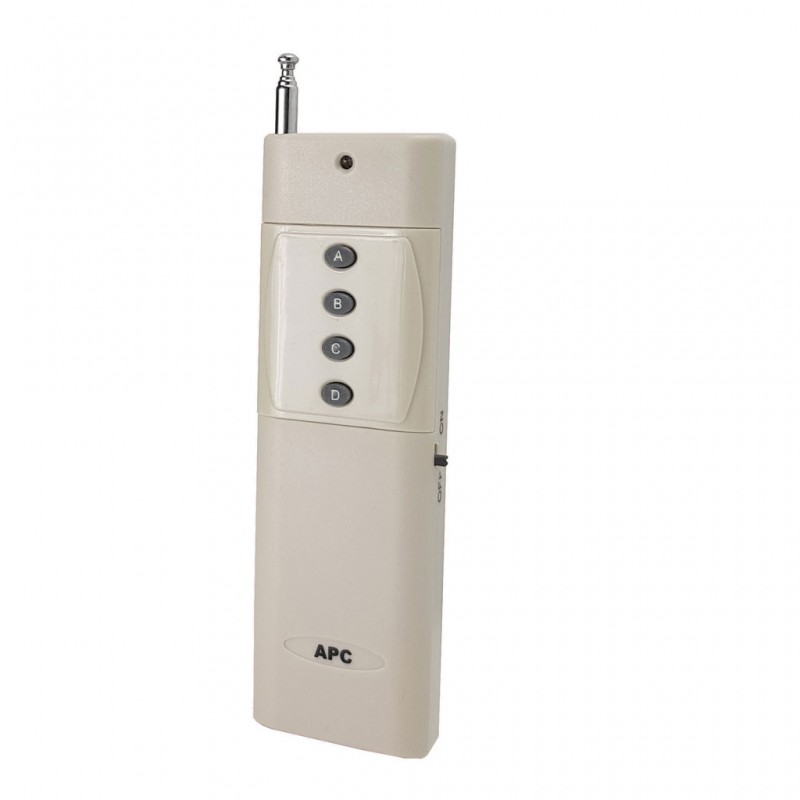

Long Distance Remote

The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.

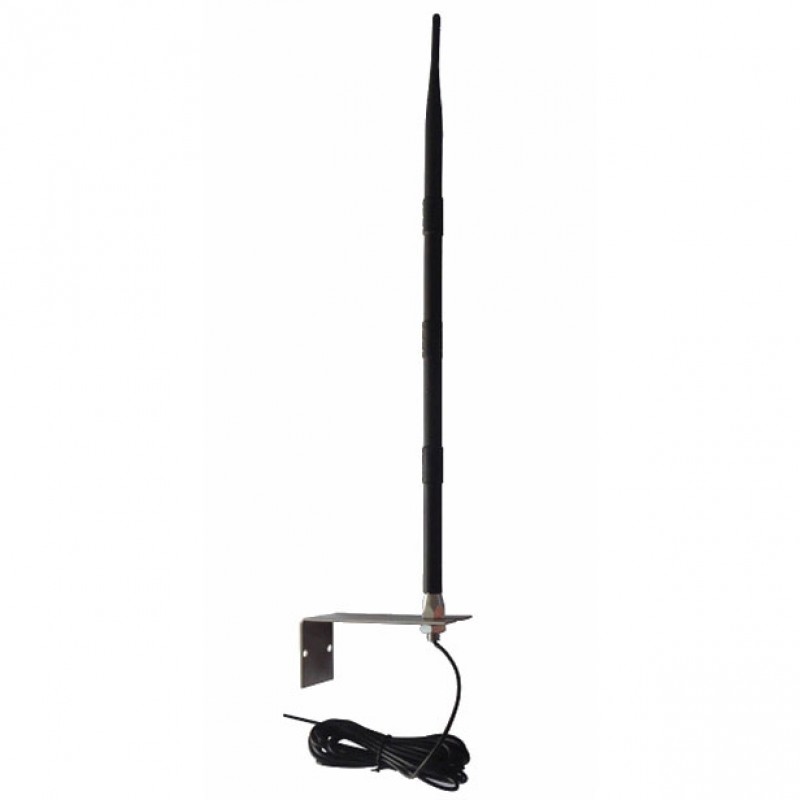

APC Booster 433mhz Antenna



The APC booster antenna is suitable for gate automation systems, garage doors, receivers and any other devices using the 433mhz or 433.92mhz radio frequency band.

As a general rule of thumb on a properly function system you can expect to see results of doubling the range of the transmitter.

The antenna can also help in resolving issues where the transmitter range is decreased due to installation methods such a receiver being behind a metal fence, brick pillar , metal box and numerous other range decreasing factors

Compatible devices

• APC-RC4S Four Button Keyring remote, up to 80m operating distance
• APC-RC4-SV Four Button Sun Visor Remote (six colour choices), up to 100m operating distance
• APC-RC450S Long Distance Remote, up to 800m operating distance
• APC-KP2W Two Channel Wireless Keypad APC-KP2W, up to 40m operating distance
• APC-PBS-KW Single Wireless Button with Isolation Key, up to 10m operating distance
• APC-PBD-KW Double Wireless Button with Isolation Key, up to 10m operating distance
• APC-PBS-KW (2nd Generation) Single Wireless Button with Isolation Key, up to 100m operating distance
• APC-PBD-KW (2nd Generation) Double Wireless Button with Isolation Key, up to 100m operating distance

Specifications

• Suits all 433MHz and 433.92MHz motors
• Can potentially double the specified operating range
• 5m RG58 Pre-wired Coaxial Cable
• Stainless Steel Mounting Bracket
• Long Range 6.5dbi

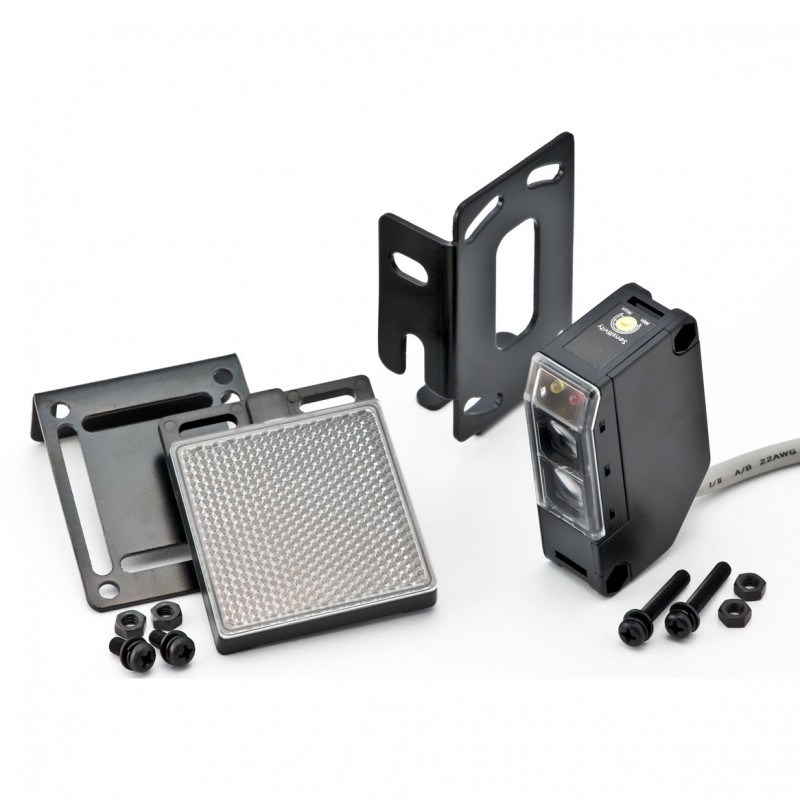

APC-RR-11 Retro Reflective Sensor

The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.


• Up to 11 Metres Infrared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment & Misalignment led to assist in the installation process


• Resin filled for the ultimate weatherproofing
