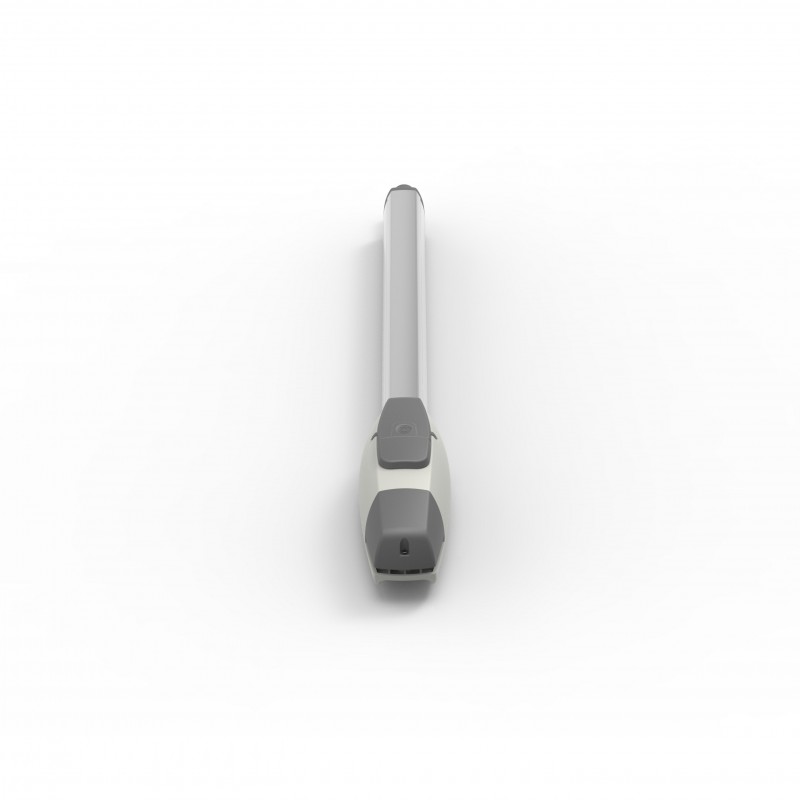

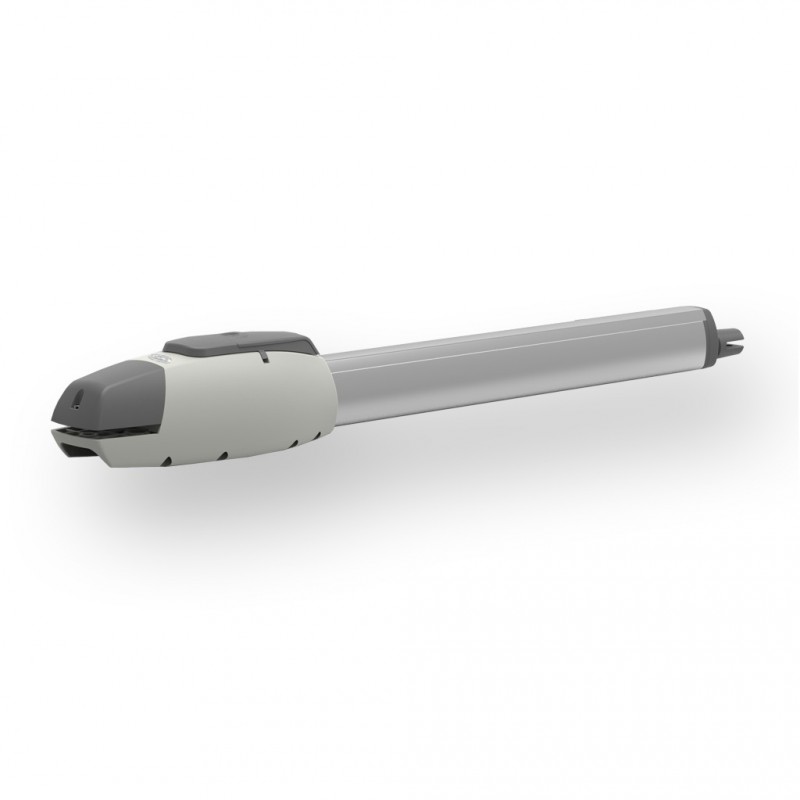

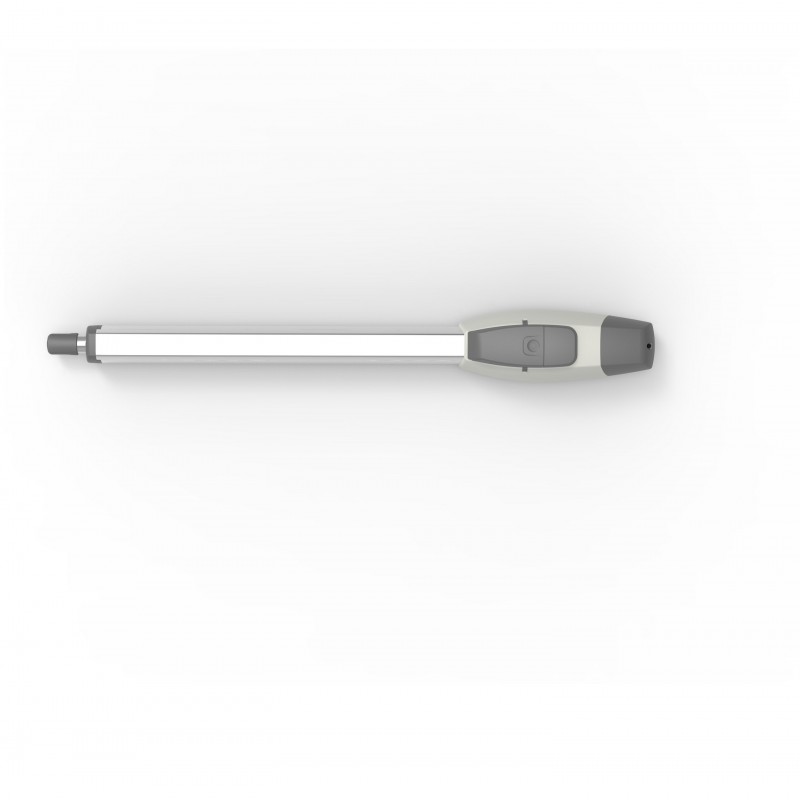

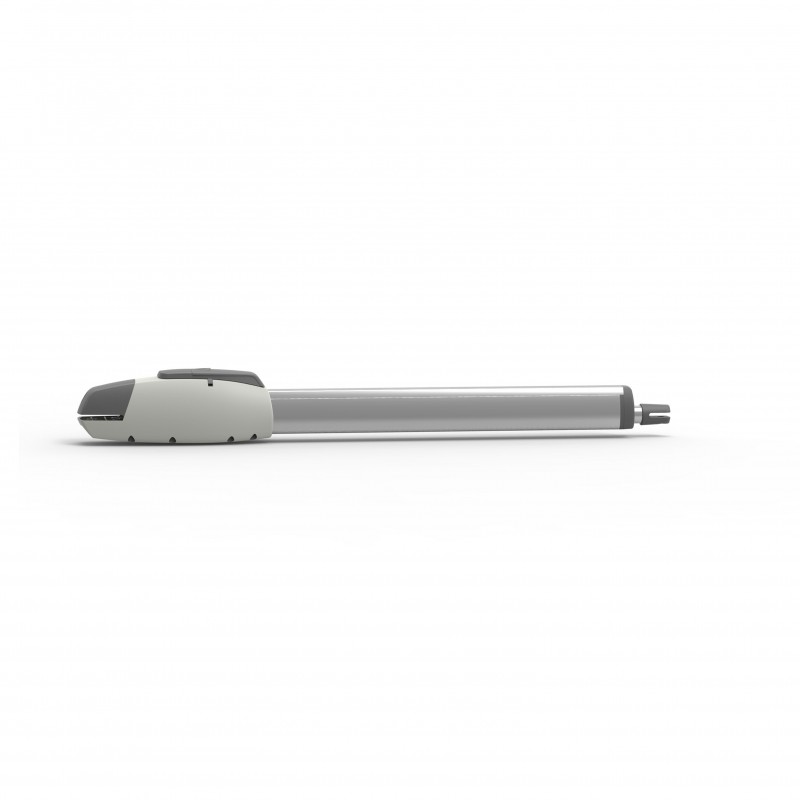

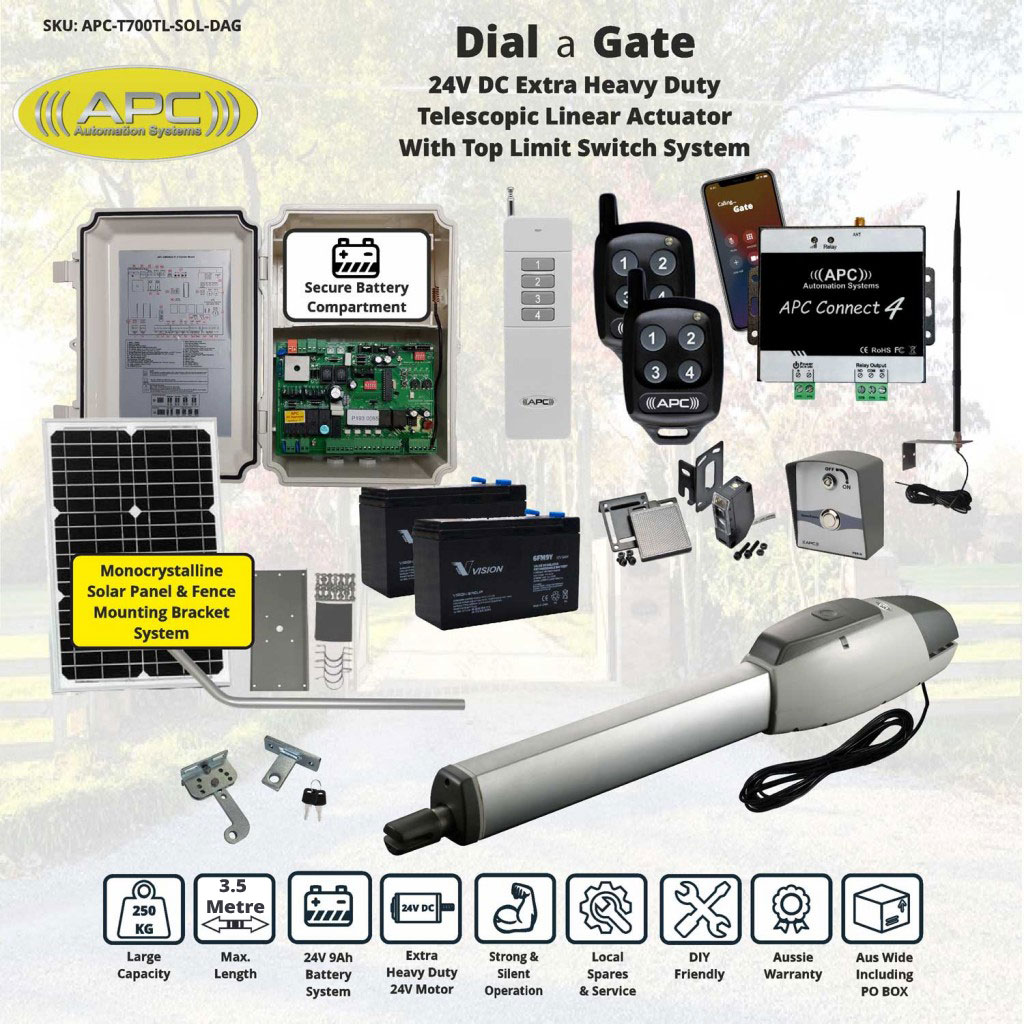

Extra Heavy Duty Telescopic Linear Actuator with Open and Close Limit Switches
Heavy Duty 24V Motor with powerful and quiet operation Sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3.5m maximum length.

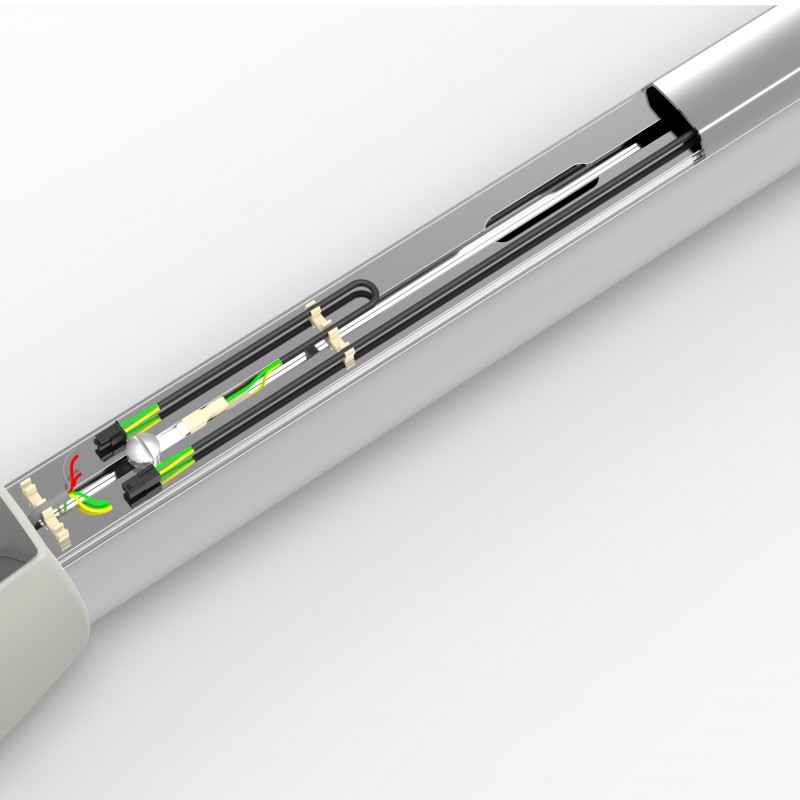

Easy to Adjust Top Limit Switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.
Emergency Override
Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.
Actuator Overview

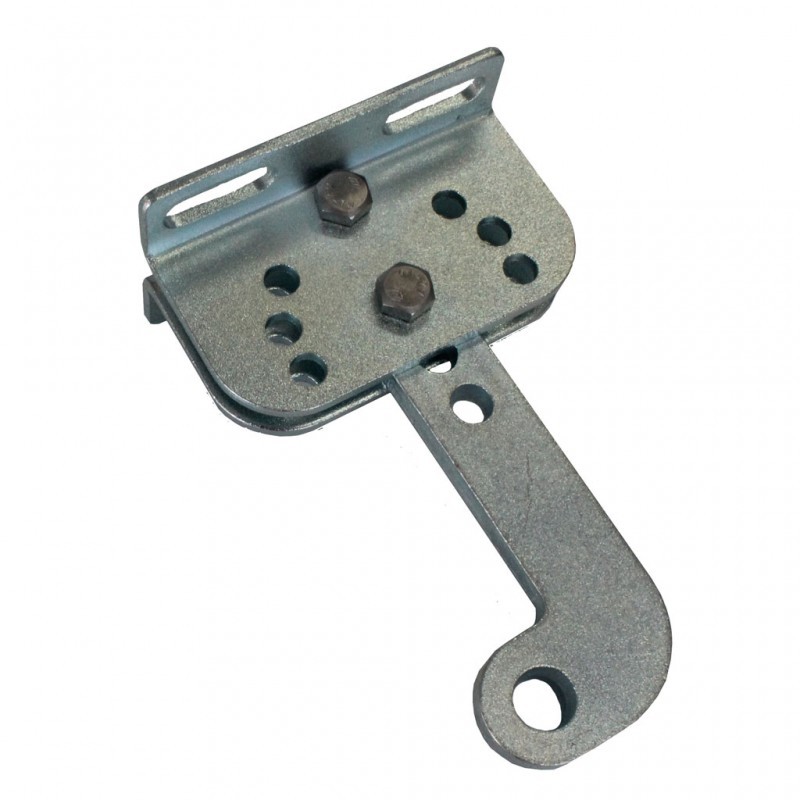

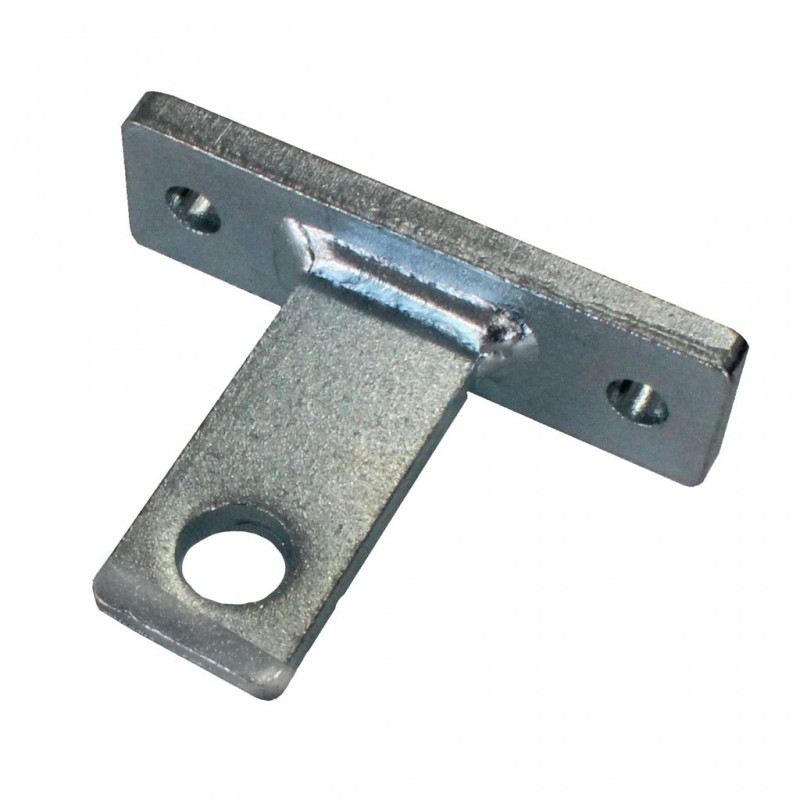

Installation Geometry
Specifications
Gear Type |
Metal Lead Screw, Mixed Reduction |
Motor Voltage
|
24v DC
|
Manual override
|
Via override keys supplied
|
Working temperature
|
-10° - 50°
|
Duty Cycle
|
20%
|
Maximum stroke
|
350mm (without limit switches)
|
Gates size
|
3.5m max
|
Gate weight
|
250kg max
|
Weatherproof Control Box
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Special Features
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Accessories Compatibility
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output
Controlling Options
Any or all of the following may be connected to operate the gate
Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications |
Maximuim Power |
20W/40W/60W |
Optimum Operational Voltage |
36V |
Open Circuit Voltage |
43.2V |
20W Panel Dimensions |
640 x 300 x 25mm |
40W Upgrade Panel Dimensions |
535 x 515 x 30mm |
60W Upgrade Panel Dimensions |
805 x 535 x 30mm |
24V 9aH Battery System
Supplied with the automation kit, the 24V Battery System* (2 x 12V 9Ah Batteries) will allow for continued use of the gate system, whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged, it will continue to float charge to keep the batteries topped up and ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.
*Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life
Remote Features
Specifications
Power Input |
20W 24V Solar Panel (Upgradable) |
Regulator |
Built In On Board Regulator |
Motor Output Voltage |
24v DC |
Battery System |
24V 9aH (Upgradable) |
Working temperature |
-10° - 50° |
RF |
APC Rolling code 433.92mhz |
Lock Output (Primary) |
24V DC |
Lock Output (Secondary) |
12V DC |
Auxiliary Inputs |
0V Momentary Pulse |
Accessories Voltage |
24V DC |
Over current |
1A to 5A |
APC Connect 4
The APC Connect 4 will allow all programmed users to ring the device from anywhere, at anytime with the ability to toggle the connected device to operate. If desired the unit can also be set to a public mode so that any telephone number to call in can toggle the operation.
The administrator/installer can easily adjust the method of operation and toggle from the systems features by sending simple SMS commands from there mobile phone.
How does it work:
- An active sim card needs to be installed in the device. Using the sim card in this device will not incur more than the cost of keeping it active anything if you turn off alerts but the sim card needs to be active and able to receive incoming calls).
- The device is then wired to the relevant system that needs to be operated and up to 200 users can be programmed through the use of quick SMS commands.
- When any of these programmed numbers ring the device, it will ring once, reject the call and proceed to opening/closing the system. The device can be dialed from anywhere at any time by any of the programmed users.
Prerequisites:
An active Sim Card with good to excellent mobile coverage in the are the Connect 4 will be installed. The Sim Card cannot be a data Sim and must have an active telephone number.
Voicemail feature of the Sim Card must be disabled, The service provider (Telstra, Optus, Vodafone, Aldi etc.) can do this for you.
Features:
- Ring the system from anywhere in the world.
- PRIVATE MODE: Caller ID used for verification - unknown numbers are ignored.
- PUBLIC MODE: Any call or SMS in can operate the system
- Up to 200 authorized phone numbers can be configured at a time.
- SMS confirmation to an authorized phone number or master user when the system is triggered to OPEN/CLOSE or turn ON/OFF.
- Easy to configure the device by SMS.
Quick Reference Diagrams
Wireless Push Button with Isolation Key
The wireless push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number.
The push button can be used for over 50 metres in operating distance.
Long Distance Remote
The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.
APC Booster 433mhz Antenna
The APC booster antenna is suitable for gate automation systems, garage doors, receivers and any other devices using the 433mhz or 433.92mhz radio frequency band.
As a general rule of thumb on a properly function system you can expect to see results of doubling the range of the transmitter.
The antenna can also help in resolving issues where the transmitter range is decreased due to installation methods such a receiver being behind a metal fence, brick pillar , metal box and numerous other range decreasing factors
Compatible devices
- APC-RC4S Four Button Keyring remote, up to 80m operating distance
- APC-RC4-SV Four Button Sun Visor Remote (six colour choices), up to 100m operating distance
- APC-RC450S Long Distance Remote, up to 800m operating distance
- APC-KP2W Two Channel Wireless Keypad APC-KP2W, up to 40m operating distance
- APC-PBS-KW Single Wireless Button with Isolation Key, up to 10m operating distance
- APC-PBD-KW Double Wireless Button with Isolation Key, up to 10m operating distance
- APC-PBS-KW (2nd Generation) Single Wireless Button with Isolation Key, up to 100m operating distance
- APC-PBD-KW (2nd Generation) Double Wireless Button with Isolation Key, up to 100m operating distance
Specifications
- Suits all 433MHz and 433.92MHz motors
- Can potentially double the specified operating range
- 5m RG58 Pre-wired Coaxial Cable
- Stainless Steel Mounting Bracket
- Long Range 6.5dbi
APC-RR-11 Retro Reflective Sensor
The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.
- Up to 11 Metres Infrared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment & Misalignment led to assist in the installation process
- Resin filled for the ultimate weatherproofing
