Product SKU: GFR35x2-T850TL
In Stock
Freight Delivery
Kit Price:
$3,443.00

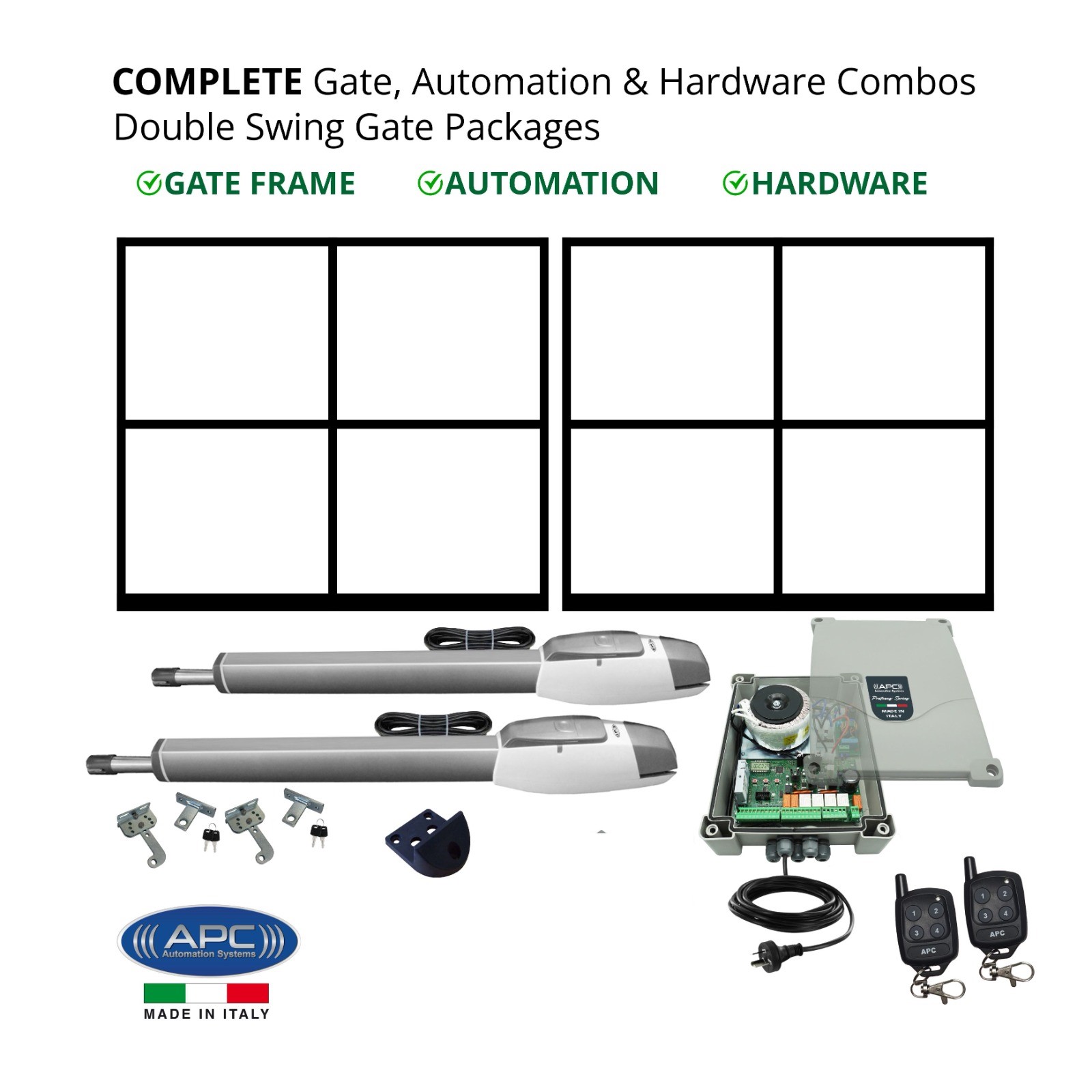

Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials
Extra Heavy Duty 24V Motor with powerful and quiet operation. Robust all-metal internal gears, sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in an emergency situation. The system can handle light and heavy gates up to 350kg maximum weight for each gate leaf or up to 5m maximum length of each gate leaf. Top Limit Switches ensure the precise setting of the open and closed positions along with a less strenuous life for the actuator.
All Metal Gears Extra Heavy Duty Telescopic Linear Actuator with Top Limit Switches
Emergency Override
Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.Actuator Dimensions
Installation Geometry
Specifications
Gear Type
Metal Lead Screw, All metal gears
Motor Voltage
24v DC
Manual override
Via override keys supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
540mm (without limit switches)
Gates size
5m maximum gate size (Per Leaf)
Gate weight
350kg maximum gate weight (Per Leaf)
The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
| Transformer | 24V AC |
| Rectification | In Box Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 250 Watts (Accesories + Running Motors) |
| Max. Accesories Load | 7W |
| Control Board Duty Cycle | 80% |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
65mm Rubber Gate Stop Dimensions
