Product Information

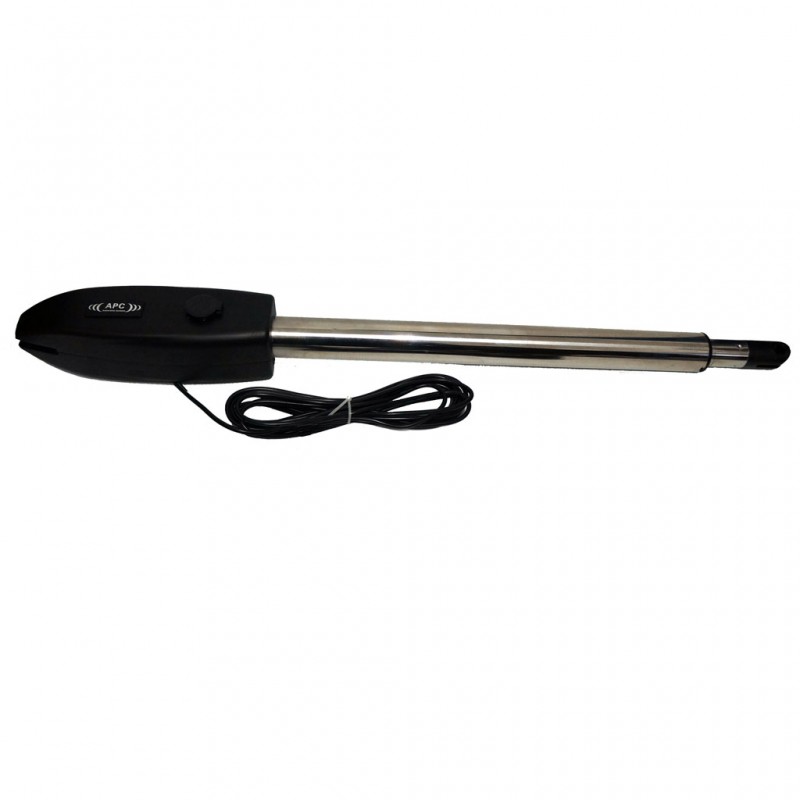

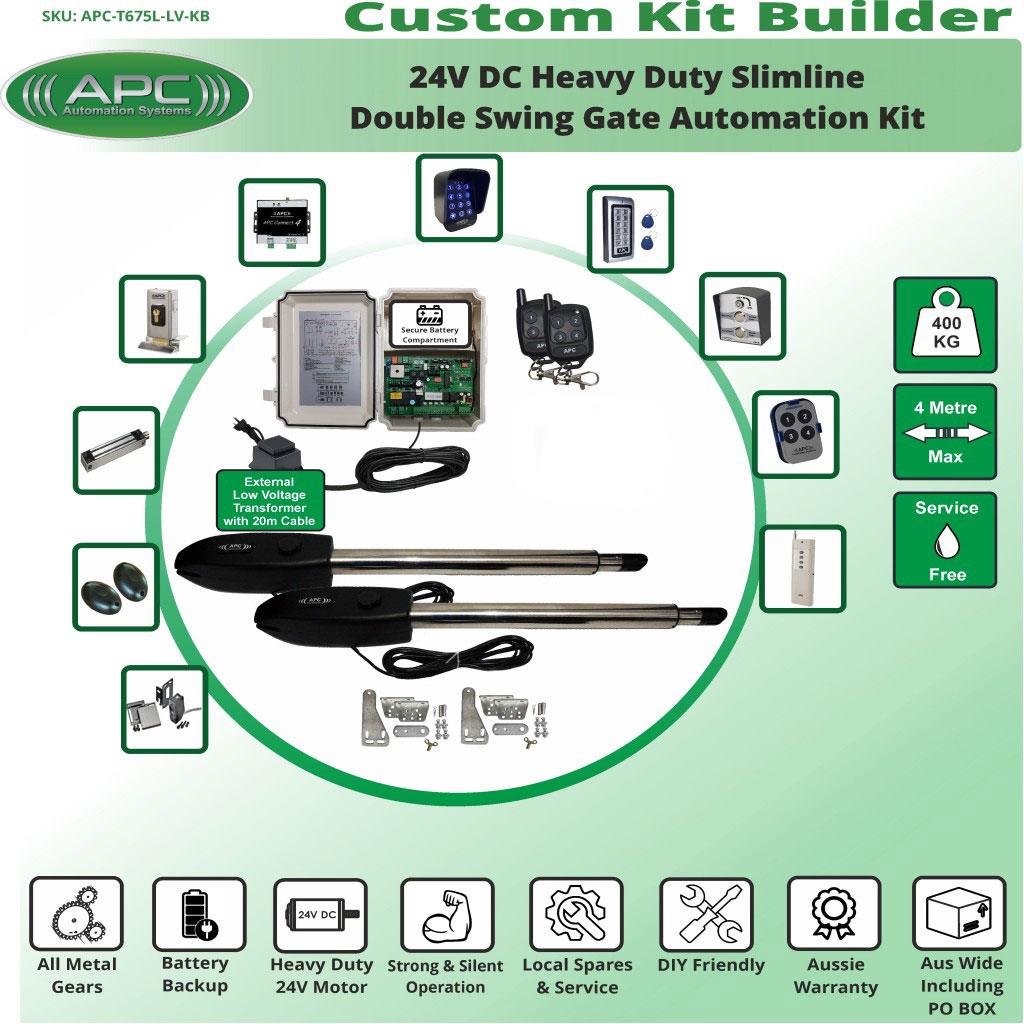

Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator
Heavy Duty 24V Motor with powerful and quiet operation comprised of a cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance Easy to use manual override using the supplied butterfly key in a emergency situation. The system can handle light and heavy gates up to 200kg maximum weight each or up to 2m maximum length each.

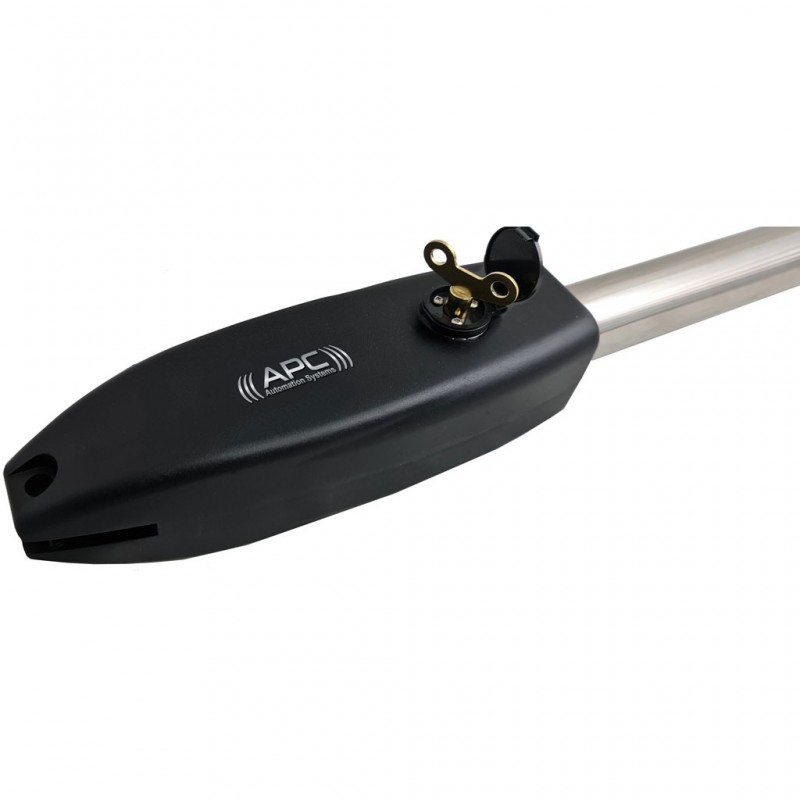

Emergency Clutch Override
Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.

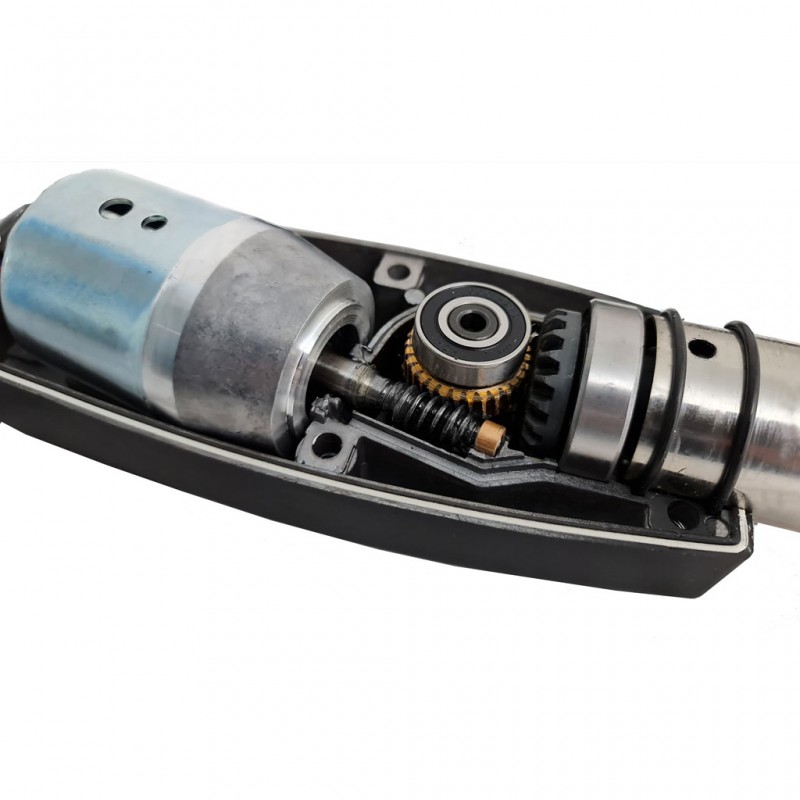

All Metal Gears
Powerful and whisper quiet 24V motor and all metal gears
Actuator Dimensions
Specifications
Gear Type
Metal Lead Screw, All Metal Gears
Motor Voltage
24v DC
Manual override
Via override butterfly key supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
350mm
Gates size
2m max each
Gate weight
200kg max each

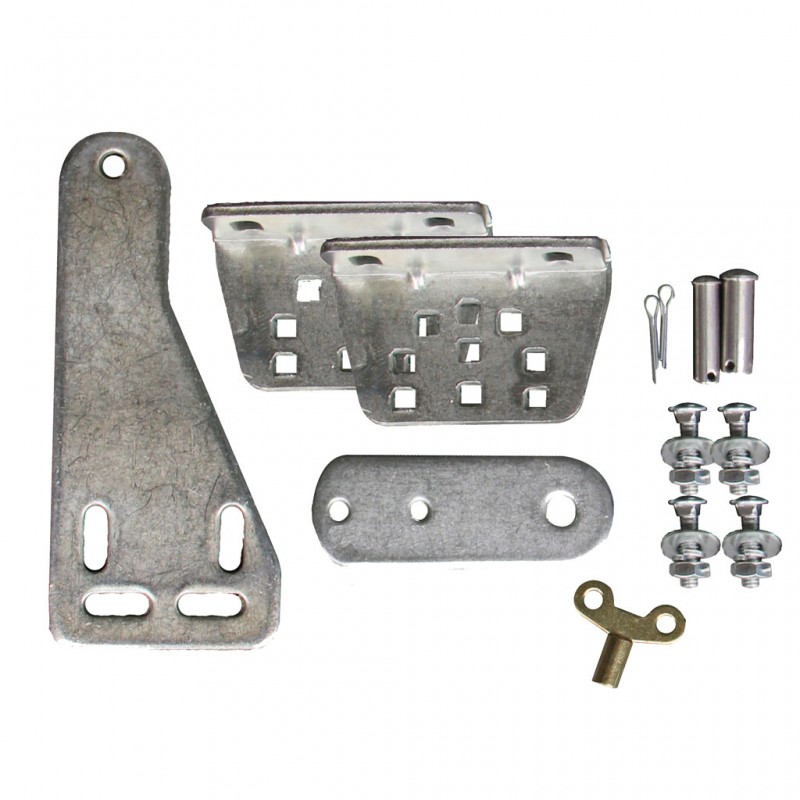

Installation Geometry
Weatherproof Control Box
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Fully weatherproof with a seal Pre Connected Weatherproof Glands for Wiring Connections Hinged door with a padlock slot for added security
System Features
Low Voltage Transformer with a 20m Cable (extendable up to 80m)
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates Automatic Feature Learning will learn all features of the remote with a simple pairing process Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property Adjustable Automatic Close time up to 3 minutes Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Safety Features
Adjustable Over current adjustments Safety Sensor connection input Automatic Courtesy Light Output
Special Features
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses. Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Accessories Compatibility
Constant 24V DC Accessories Output Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required) Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing Automatic Electric & Magnetic Lock Output
Controlling Options
Any or all of the following may be connected to operate the gate
Remote controls Entry and Exit push button with isolation key switches (Wired and Wireless Options Available) Keypads (Wired and Wireless Options Available) Exit/entry sensors Intercom system with dry contact output Automatic switching timer WiFi Control System (App Based Control) GSM Control Systems (Mobile Call/SMS based Control)

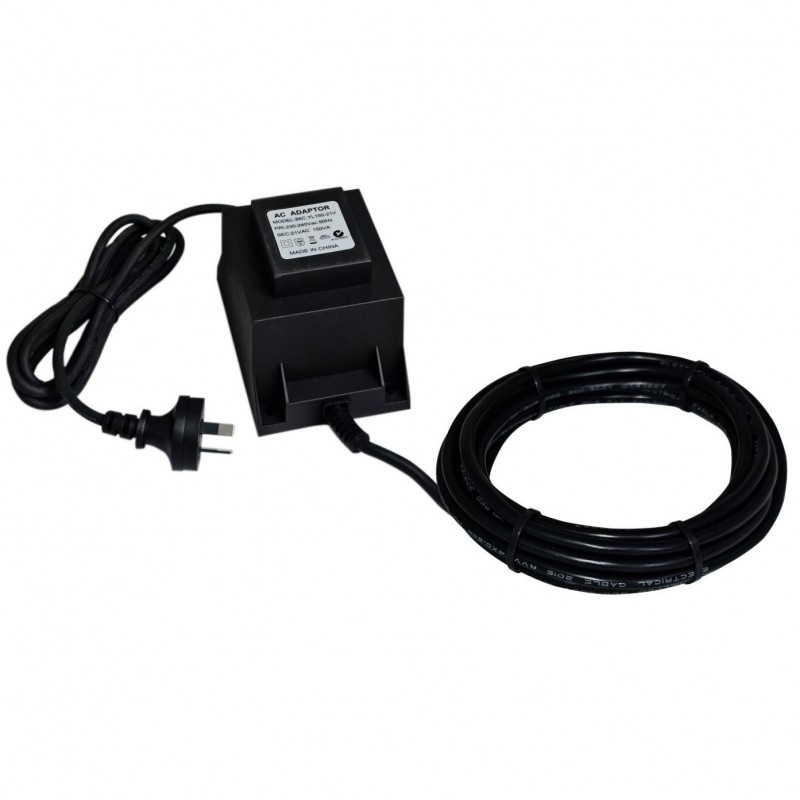

External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
Remote Features
Specifications
Power Input
24V AC (240V to 24V Transformer Pre wired with 20m Cable)
Transformer
24V AC
Rectification
On Board Bridge Rectifier
Motor Output Voltage
24v DC
Working temperature
-10° - 50°
RF
APC Rolling code 433.92mhz
Lock Output (Primary)
12-30V DC (Depending on Configuration)
Lock Output (Secondary)
12V DC
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
24V DC
Over current
1A to 5A
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
