Build Your Own Kit with T575L Linear Actuator Single Swing Gate Opener

Product SKU: APC-T575L-LV-KB

  • In Stock

Get More Info..

Kit Price:

$595.00

  • Or in 4 payment of $148.75 with afterpay info
  • Single Swing Gate Opener Electric Automatic Motorized Gate System, Driveway Gate Opener for Single Swing Gates

  • Kit Includes

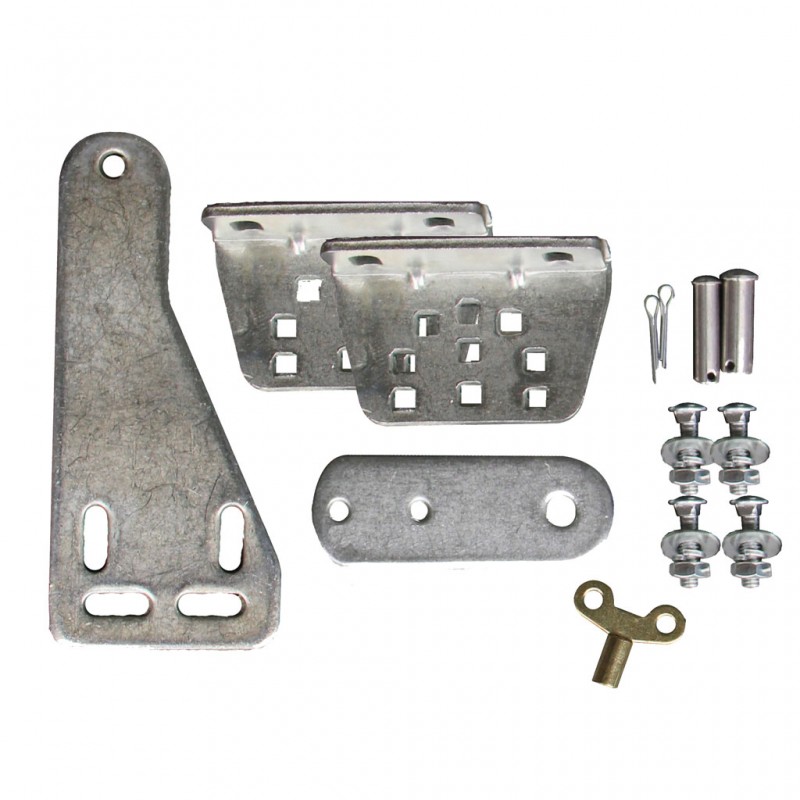

    01 APC-T575L Actuator Kit (QTY: 1)
    02 APC Weatherproof Control Box with Built in Battery Compartment (QTY: 1)
    03 APC Four Button Keyring Remote (QTY: 2)
    04 Weatherproof External 24V Transformer with 20m Low Voltage Cable | Suitable for outdoor use. (QTY: 1)
    05 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

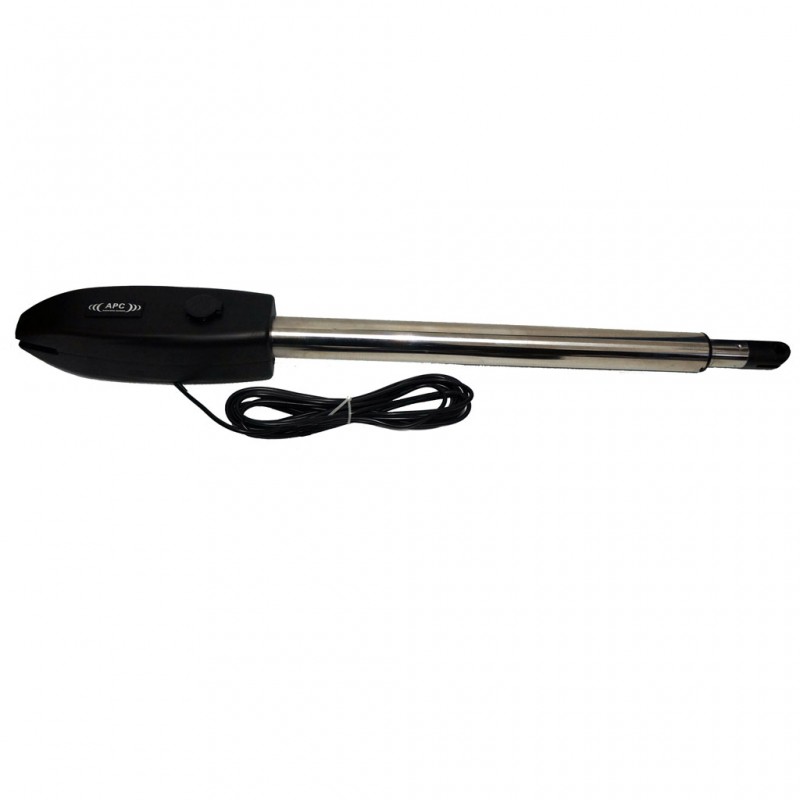

Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator



Heavy Duty 24V Motor with powerful and quiet operation comprised of a cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance Easy to use manual override using the supplied butterfly key in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3m maximum length.

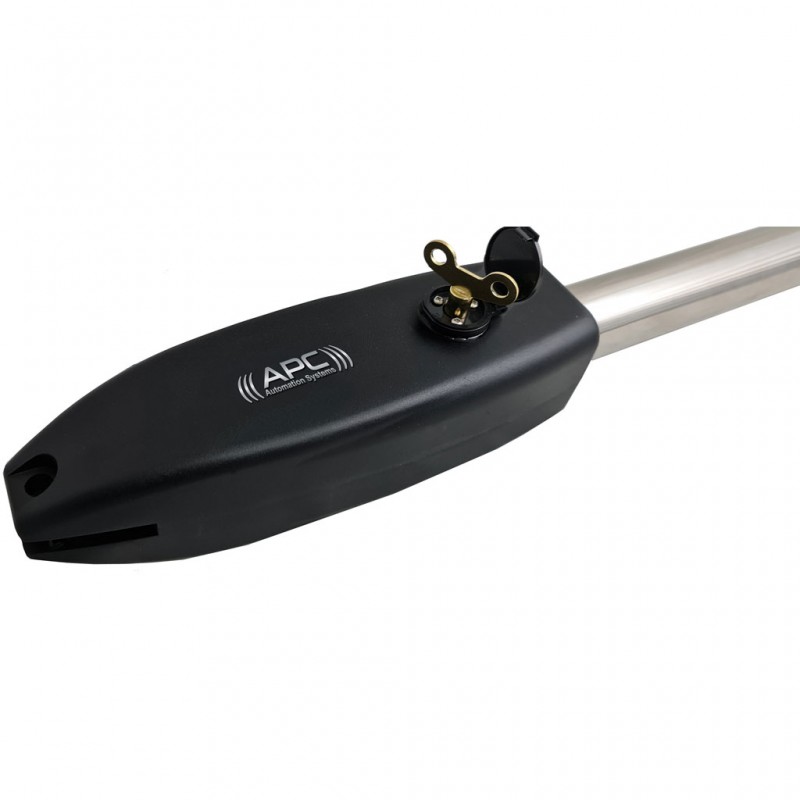

Emergency Clutch Override

Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.

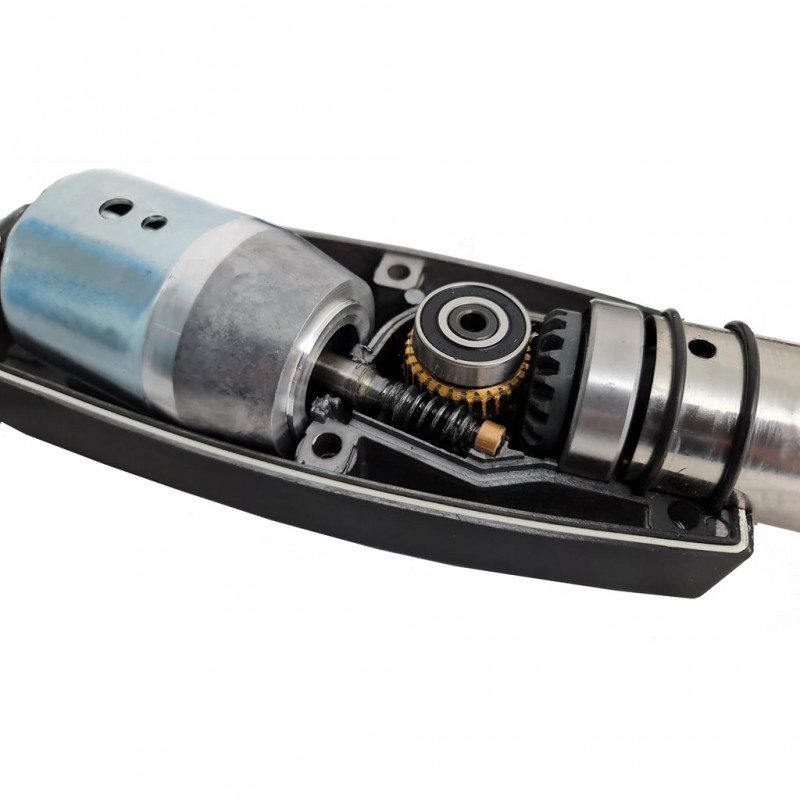

All Metal Gears

Powerful and whisper quiet 24V motor and all metal gears

Actuator Dimensions

Extra Heavy Duty Single Gate Opener

Specifications



Gear Type Metal Lead Screw, All Metal Gears
Motor Voltage
24v DC
Manual override
Via override butterfly key supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
350mm
Gates size
3m max
Gate weight
250kg max





Installation Geometry

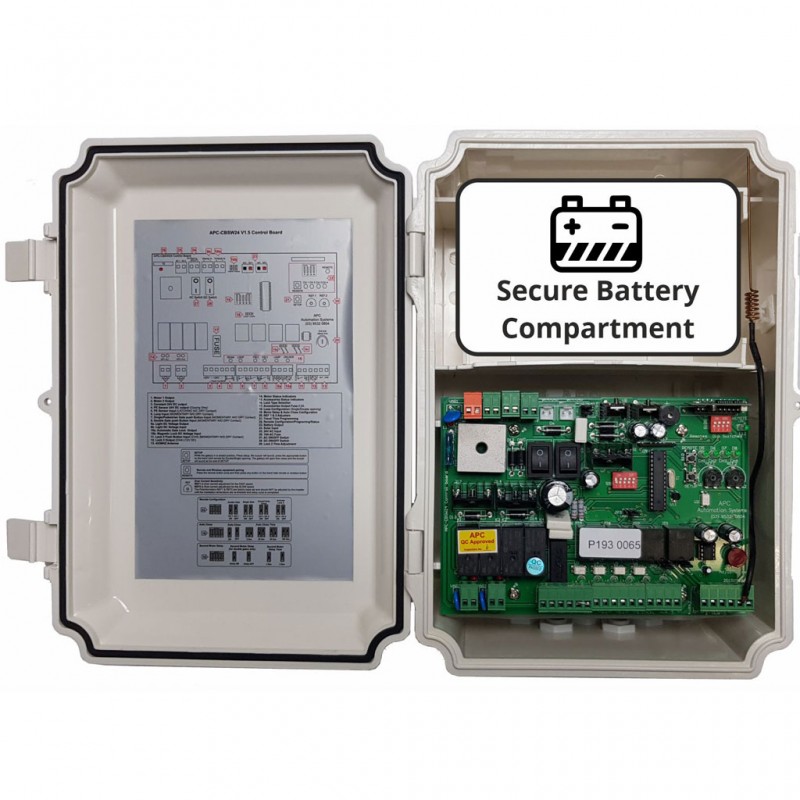

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:



Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security



System Features

Low Voltage Transformer with a 20m Cable (extendable up to 80m)

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes




Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output





Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.



Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output



Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

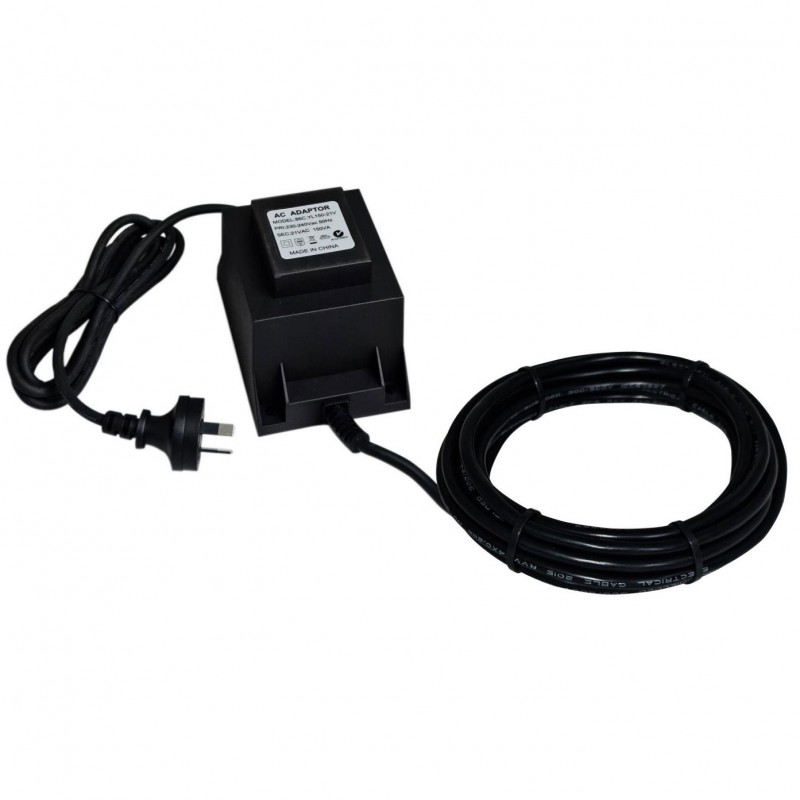

External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.

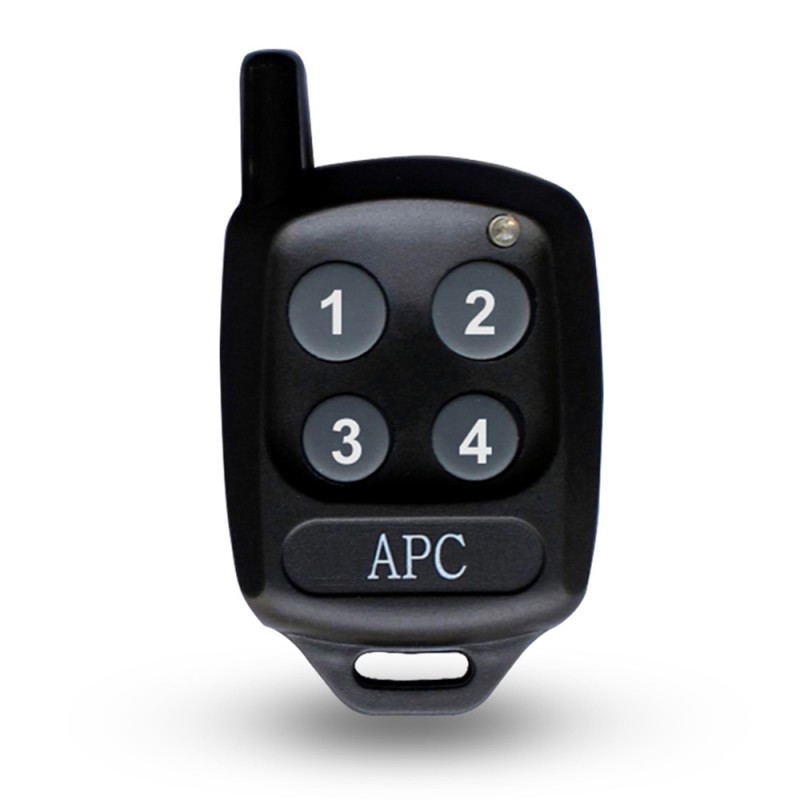

Remote Features

Specifications



Power Input 24V AC (240V to 24V Transformer Pre wired with 20m Cable)
Transformer 24V AC
Rectification On Board Bridge Rectifier
Motor Output Voltage 24v DC
Working temperature -10° - 50°
RF APC Rolling code 433.92mhz
Lock Output (Primary) 12-30V DC (Depending on Configuration)
Lock Output (Secondary) 12V DC
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Over current 1A to 5A
