Product SKU: APC-T825L-DC-KB

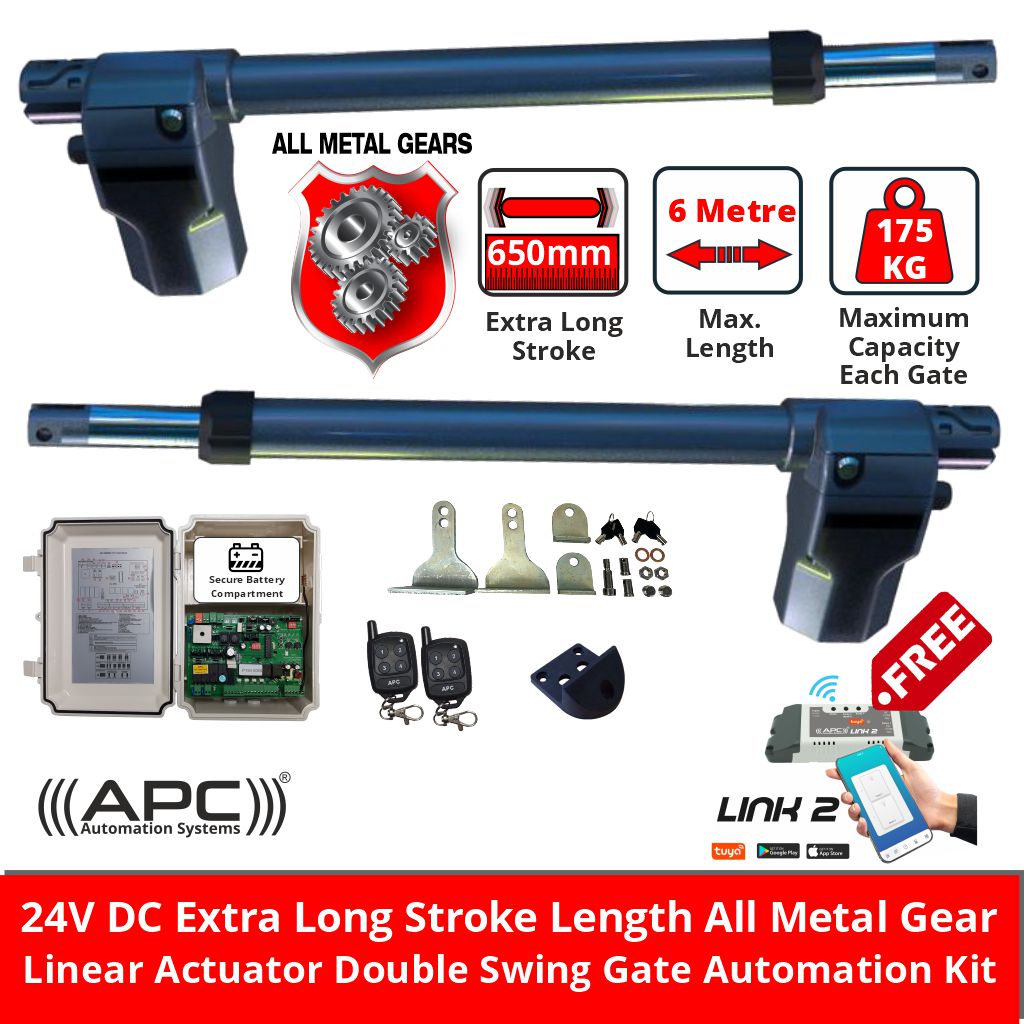

APC-T825L Double Swing Gate Opener. 24V DC Extra Long Stroke Length All Metal Gear Linear Actuator Electric Swing Gate Automation with Remote Controls and Free Link 2 WiFi Switch - DUAL Relay WiFi Remote Switch, Smart Access Control via IOS and Android Mobile APP

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • YEAR END SALE

    TOP DEALS

APC-T825L Double Swing Gate Opener. 24V DC Extra Long Stroke Length All Metal Gear Linear Actuator Electric Swing Gate Automation with Remote Controls and Free Link 2 WiFi Switch - DUAL Relay WiFi Remote Switch, Smart Access Control via IOS and Android Mobile APP

Product SKU: APC-T825L-DC-KB

  • In Stock

Get More Info..

Kit Price:

$955.00 $1,055.00 APC Automotion Plus Sale

  • Or in 4 payment of $238.75 with afterpay info
  • Electric Motor Gate Opener 24V System, 3 Meter/175KG Per Gate, 650mm Stroke, All Metal Gear

  • Kit Includes

    01 APC-T725L Left Side Swing Gate Motor | 24V DC Extra Long Stroke Length All Metal Gear Linear Actuator Electric Swing Gate Automation (QTY: 1)
    02 APC-T725L Right Side Swing Gate Motor | 24V DC Extra Long Stroke Length All Metal Gear Linear Actuator Electric Swing Gate Automation (QTY: 1)
    03 APC Weatherproof Control Box with Built in Battery Compartment and 1.2m Power Cord (Ready to Plug In) (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 2)
    05 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    06 FREE WiFi Switch [Link 2] with Selected Gate Opener Kits - DUAL Relay Wifi Remote Smart Switch - IOS and Android APP Control (QTY: 1)
    07 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Heavy Duty 24V Extra Long Stroke (Left & Right) Telescopic Linear Actuator | Swing Gate Automation



Heavy Duty 24V Swing Gate Left or Right  Automation with All Metalic gears, powerful and quiet operation. Easy to use manual override using the supplied key in an emergency. The system can handle light and heavy gates up to 175kg maximum weight or 3m maximum length (for each gate).



Emergency Clutch Override

Easy manual override in case of an emergency using the supplied key, slot in and turn clockwise to operate the gates manually.

Actuator Dimensions

Specifications



Motor Voltage
 24v DC
Manual override
 Via override key supplied
Working temperature
 -10° ~50°
Maximum stroke
 650mm
Gates size
 3m max (for each gate)
Gate weight
 175kg max (for each gate)
Absorbed power  70W
Current  5.2A
Motor speed  1800RPM
Thrust  1800N





Installation Geometry

Pull to Open Installation

Before beginning installation, identify the left/right side motor. The manual override for the gate motor determines this.

The manual override should not be facing the gate to allow easy accessibility.



Push to Open Installation

Before beginning installation, identify the left/right side motor. This is determined by the manual override for the gate motor.

The manual override should not be facing the gate to allow easy accessibility.





Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point



System Features

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button
Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output



Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.



Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output



Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Specifications



Power Input 240V AC (Pre wired with 1.2m Cable)
Transformer 24V AC
Rectification On Board Bridge Rectifier
Motor Output Voltage 24v DC
Working temperature -10° - 50°
RF APC Rolling code 433.92mhz
Lock Output (Primary) 12-30V DC (Depending on Configuration)
Lock Output (Secondary) 12V DC
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Over current 1A to 5A

65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.



65mm Rubber Gate Stop Dimensions
