Product SKU: APC-STARK12-DC-KB

Build Your Own Italian Made Super Duty STARK12 Double Gate Automation Kit. 12M/1500Kg Capacity Double Swing Gate Opener Suitable For Commercial, Industrial, Residential Use

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Build Your Own Italian Made Super Duty STARK12 Double Gate Automation Kit. 12M/1500Kg Capacity Double Swing Gate Opener Suitable For Commercial, Industrial, Residential Use

Build Your Own Italian Made Super Duty STARK12 Double Gate Automation Kit. 12M/1500Kg Capacity Double Swing Gate Opener Suitable For Commercial, Industrial, Residential Use

Product SKU: APC-STARK12-DC-KB

  • In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,959.00

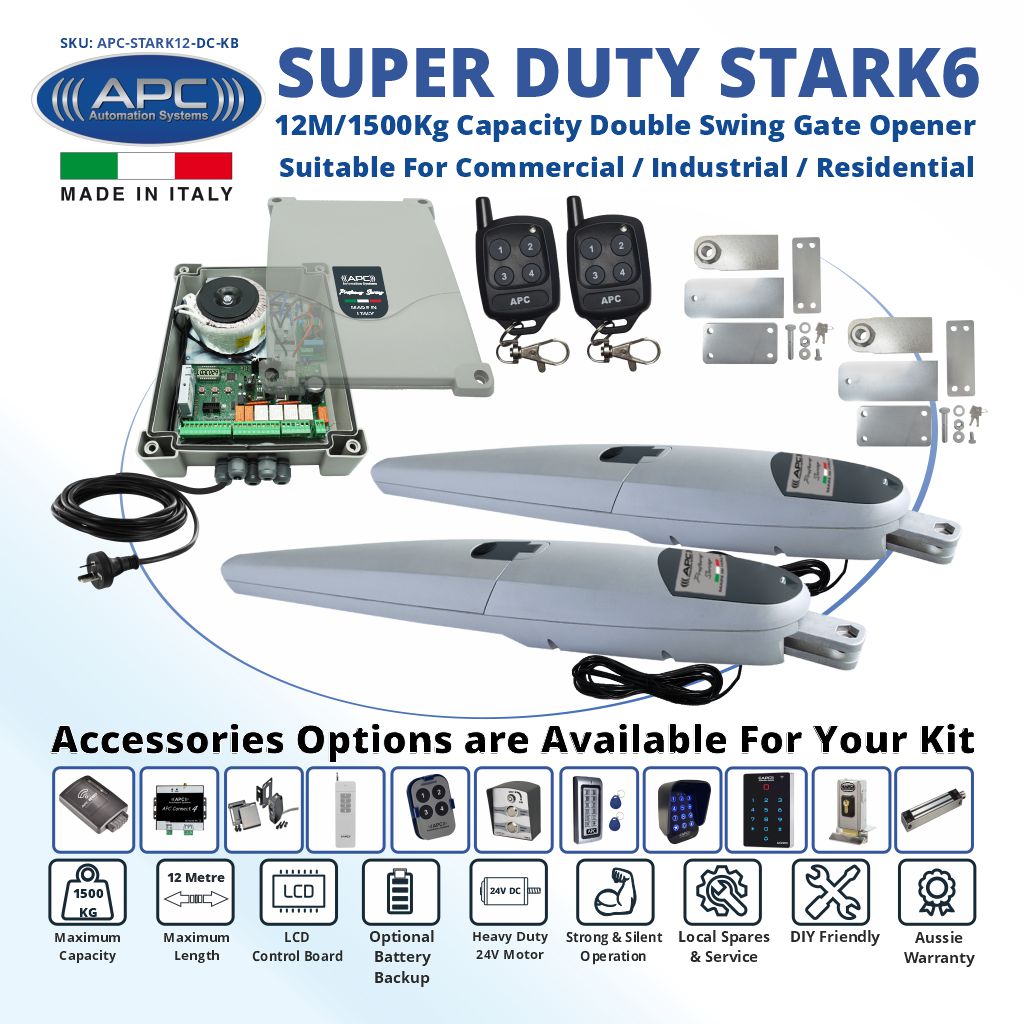

  • Super Duty STARK12 Italian Made Double Gate Automation Kit. 12M/1500Kg Capacity Double Driveway Gate Opener

  • Kit Includes

    01 Super Duty STARK6 Gate Automation Motor with Built in Adjustable Stops. Italian Made Swing Gate Opener Motor (QTY: 2)
    02 Cable for STARK6 / STARK12 Swing Gate Opener Motor ( 2 Core 2mm Non-Shielded Cable 6 or 15m ) (QTY: 2)
    03 APC Logico 24V Feature Rich Control Box Kit with Internal Transformer and Power Lead (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 2)
    05 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Super Duty STARK6 Gate Opener, Industrial Strength Gate Automation Kit
Suitable To Large Gates Up To 12 Metres (6m for each gate leaf)






Packing a punch the APC-STARK12 double gate system can deliver 2400N of thrust to operate gates up to 1500Kg or 12m in length (750kg or 6m in length for each gate leaf). Italian made gate motor with two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.



Adjustable built in stopper (Italian Made STARK12 Double Gate Opener)


Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.


Actuator Overview (Italian Made STARK12 Double Gate Automation Motors)







Italian Made Super Duty STARK12 Double Gate Automation System Capacity For Each Gate Leaf



Italian Made STARK6 Electric Gate Motor Installation Geometry



STARK6 Gate Motors Installation With The Flexible Fixing Bracket

STARK6 is supplied with fastening plates and brackets for the gate and the wall/post. The brackets must be welded to the fastening plates. The wall/post brackets may be cut to the desired length, adjusting distances A and E. This provides flexibility for the opening angle of the gate.

NOTE - The bracket supplied with the gate opener kit is 180 mm long



Italian Made STARK12 Double Gate Automation, Gate Opener Motors Specifications

Thrust 2400N
Motor Voltage
24v DC
Manual override
Via override key supplied
Working temperature
-20° - +55°
Duty Cycle
80%
Maximum stroke
540 mm
Gates size
6m max for each gate leaf
Gate weight
750kg max for each gate leaf

Feature Rich and Highly Versatile Control Box



The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Specifications

Transformer 24V AC
Rectification In Box Rectifier
Motor Output Voltage 24v DC
Max Operating Power 250 Watts (Accesories + Running Motors)
Max. Accesories Load 7W
Control Board Duty Cycle 80%
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,959.00
