Product SKU: APC-STARK6-SOL-KB
In Stock
Product SKU: APC-STARK6-SOL-KB
Kit Price:
$2,045.00

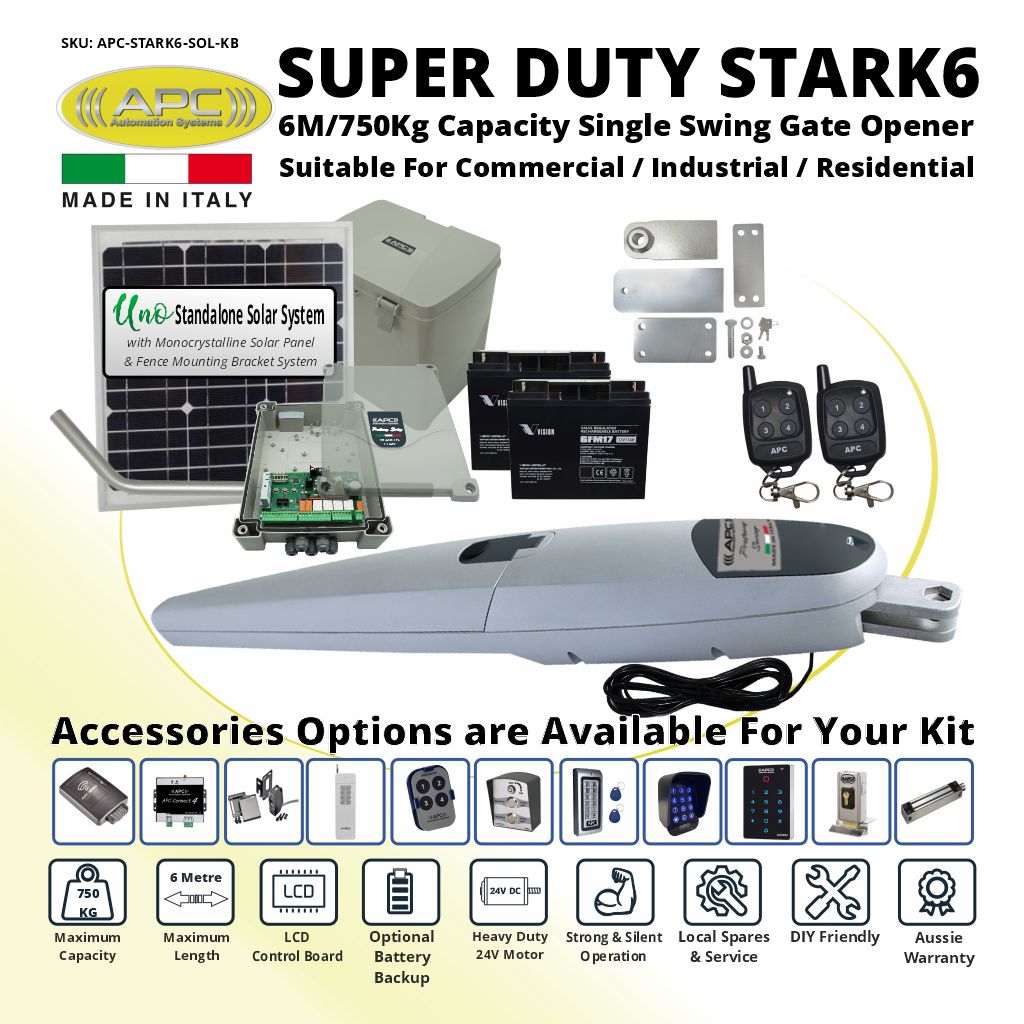

Italian Made Super Duty STARK6 Gate Automation Kit. 6M/750Kg Capacity Solar Driveway Gate Opener for Single Swing Gates
Packing a punch the APC-STARK6 system can deliver 2400N of thrust to operate gates up to 750kg or 6m in length. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.
STARK6 is supplied with fastening plates and brackets for the gate and the wall/post. The brackets must be welded to the fastening plates. The wall/post brackets may be cut to the desired length, adjusting distances A and E. This provides flexibility for the opening angle of the gate.
NOTE - The bracket supplied with the gate opener kit is 180 mm long
Thrust | 2400N |
Motor Voltage
|
24v DC
|
Manual override
|
Via override key supplied
|
Working temperature
|
-20° - +55°
|
Duty Cycle
|
80%
|
Maximum stroke
|
540 mm
|
Gates size
|
6m max
|
Gate weight
|
750kg max
|
The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Energy Saving Mode (5mA Standby Current)
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Specifications | |

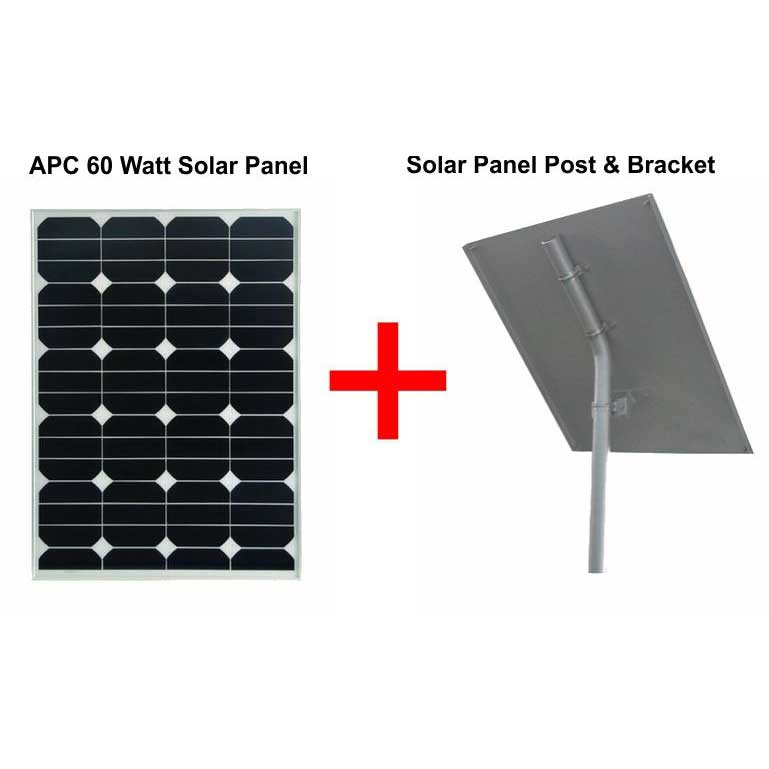

Maximuim Power | 20W/40W/60W |
Optimum Operational Voltage | 36V |
Open Circuit Voltage | 43.2V |
20W Panel Dimensions | 640 x 300 x 25mm |
40W Upgrade Panel Dimensions | 535 x 515 x 30mm |
60W Upgrade Panel Dimensions | 805 x 535 x 30mm |

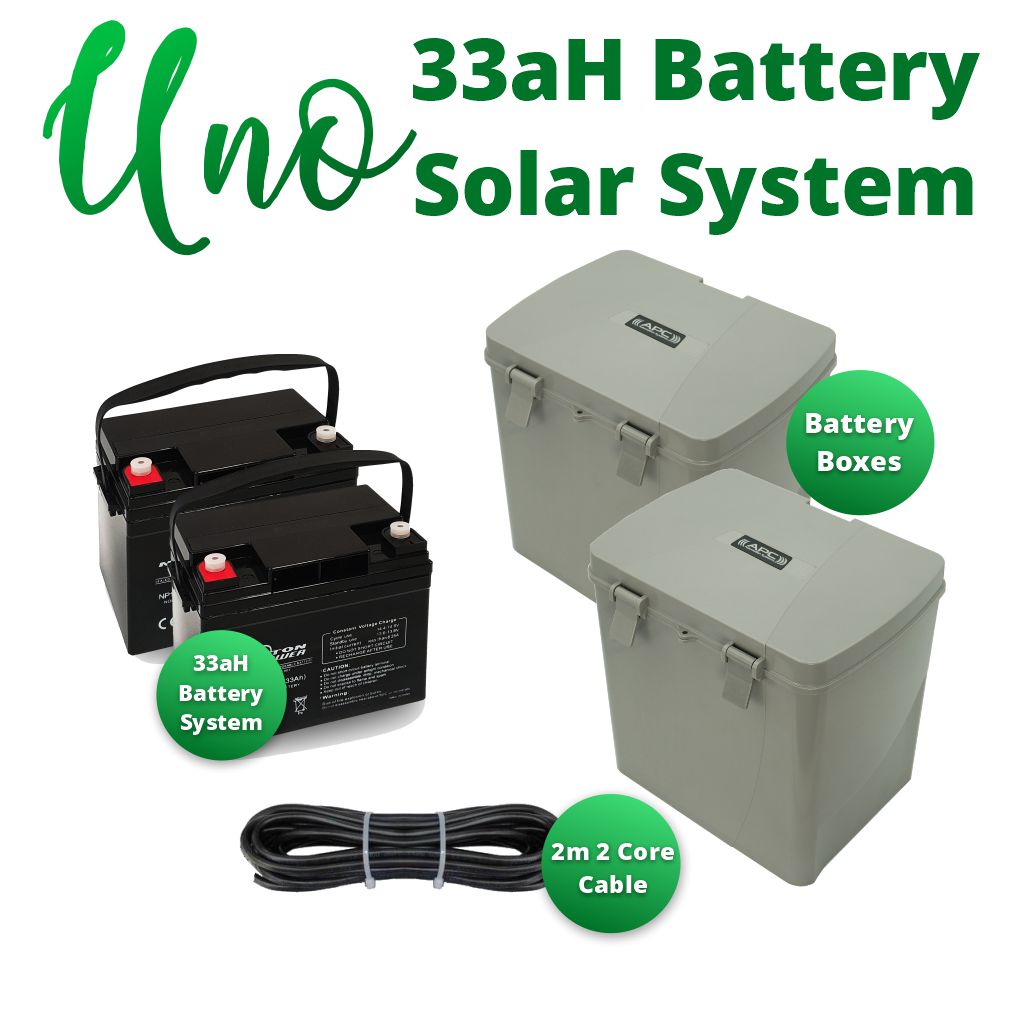

The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). In the case of 33aH batteries a Master Uno Large Box and Slave Uno Large Box are required, see details below.
Key Features:
Height | 205mm (Including cable glands) 180mm Without |
Width | 180mm |
Depth | 249mm Including Mounting bracket, 210mm without |
Height | 281mm (Including cable glands) 255mm Without |
Width | 263mm |
Depth | 230mm Including Mounting bracket, 189mm without |
Battery Dimensions (each) | Battery Size | 12V Configuration | 24V Configuration | Uno Box Requirments |
151x65x99mm | BAT-9 (9aH) | 1x Battery Required | 2x Batteries Required | Up to Two Batteries in one Master Uno Box |
181x77x167mm | BAT-17 (17aH) | 1x Battery Required | 2x Batteries Required | Up to Two Batteries in one Master Uno Box Large |
195x130x167mm | BAT-33 (33aH) | 1x Battery Required | 2x Batteries Required | One Battery in Master Uno Box Large (and One Battery in Slave Uno Box Large for 24V) |
The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.
The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.
The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.
The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.
In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.
The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.
Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.
System Voltage | 12V/24V DC auto |
PV Max Input Voltage | 55V |
Self-consumption | 10mA |
Max Charging current | 10A |
Max Discharging current | 10A |
Battery type | Sealed(Default)/Gel/Flood/Lithium |
LVD | 11.0V ADJ 9V...12V ; x2/24V |
LVR | 12.6V ADJ 11V...13.5V ;x2/24V |
Float Voltage | 13.8V ADJ 13V... 15V ; x2/24V |
Boost Voltage | 14.4V ADJ 13V...17V ;x2/24 |
battery voltage less than 12.6v auto boost 2hours | |
Battery Over Voltage | 16.5V ; x2/24V |
Reverse Connection Protection | Yes |
Load Over Current Protection | Yes, each 30s auto restart again |
Controller Over Temperature | Yes |
USB Output | 5VDC/1A 2PCS |
Charging Type | PWM |
Charge circuit voltage drop | <=0.25V |
Discharge circuit voltage drop | <=0.1V |
Temperature Consumption# | For 12V system:-24mV /°C ; x2/24V |
Relative humidity | ≤95%, N.C. |
Working Temperature | -20°C~+55deg;C(Product can work continuously at full load) |
LCD temperature range | -20°C~+70°C |
Waterproof grade | IP32 |
Mounting hole size | Φ5mm |
Terminals | 10mm²/8AWG |
Weight | 245g |
Overall dimension(mm) | 190×108×41.5 |
*Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life
Transformer | 24V (Uno Solar System) |
Motor Output Voltage | 24v DC |
Max Operating Power | 300 Watts |
Maximum Gate Length | 10 Metres |
Maximum Gate Weight | 500 KG |
Speed | 28 cm/s |
Working temperature | -20° - 50° |
RF | APC Rolling code 433.92mhz |
Motor Duty Cycle | 90% |
Auxiliary Inputs | 0V Momentary Pulse |
Accessories Voltage | 24V DC |
Operator Inbuilt Safety | Over current + Encoder Sensitivity |
