Product SKU: APC-P500-SOL-SYNCRO
In Stock
Product SKU: APC-P500-SOL-SYNCRO
Kit Price:
$2,299.00

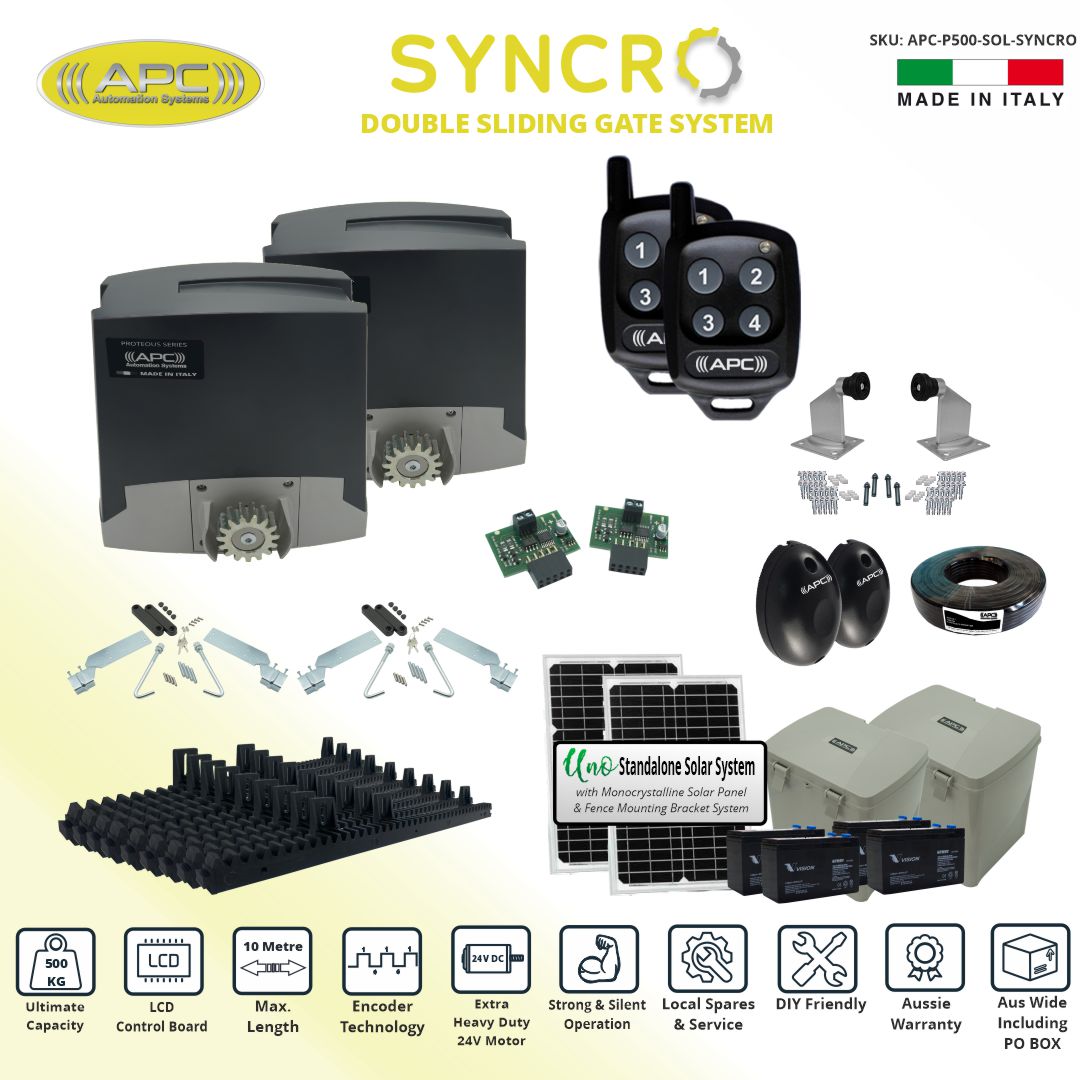

Italian Made Sliding Gate Opener (Proteous), 500 KG / 10 Metre Maximum Capacity Automatic Gate
The Proteous 500 boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below. The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). In the case of 33aH batteries a Master Uno Large Box and Slave Uno Large Box are required, see details below. Key Features: The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V. The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries. The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off. The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds. In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection. The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc. Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal. *Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery lifeHeavy Duty Feature Rich 24V Italian Sliding Gate Motor Overview
At a glance
System Features
Capacity
90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra long 10 metre gate capacity
Only 150mm Narrow Depth
Everything and more as standard..
Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)
Special Features
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Safety Features
Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface
Control Board Overview
Accessories Compatibility and Controlling Options
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Remote Features
Dimensions
Installation Options
Concrete in Base Plate
Surface Mounted Raised Base Plate (Add-On Item)
Four point Tilt Leveling
24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications
Maximuim Power
20W/40W/60W
Optimum Operational Voltage
36V
Open Circuit Voltage
43.2V
20W Panel Dimensions
640 x 300 x 25mm
40W Upgrade Panel Dimensions
535 x 515 x 30mm
60W Upgrade Panel Dimensions
805 x 535 x 30mm
APC Uno Standalone Solar System
Dimensions (UNO BOX and UNO BOX LARGE)
UNO BOX
Uno Box Outer Dimensions
Height
205mm (Including cable glands) 180mm Without
Width
180mm
Depth
249mm Including Mounting bracket, 210mm without
UNO BOX LARGE
Uno Box Large Outer Dimensions
Height
281mm (Including cable glands) 255mm Without
Width
263mm
Depth
230mm Including Mounting bracket, 189mm without
Battery Requirments and Configuration
Battery Dimensions (each)
Battery Size
12V Configuration
24V Configuration
Uno Box Requirments
151x65x99mm
BAT-9 (9aH)
1x Battery Required
2x Batteries Required
Up to Two Batteries in one Master Uno Box
181x77x167mm
BAT-17 (17aH)
1x Battery Required
2x Batteries Required
Up to Two Batteries in one Master Uno Box Large
195x130x167mm
BAT-33 (33aH)
1x Battery Required
2x Batteries Required
One Battery in Master Uno Box Large
(and One Battery in Slave Uno Box Large for 24V)Typical Configuration
Battery Wiring
33aH Configuration
At a glance
In Depth
Automatic Voltage Selection
Multiple Battery Modes
Overcharge and Discharging
Overload and Short Circuit Protection
Reverse Polarity Protection
USB Output Terminals
Heavy Duty Design
Specifications
System Voltage
12V/24V DC auto
PV Max Input Voltage
55V
Self-consumption
10mA
Max Charging current
10A
Max Discharging current
10A
Battery type
Sealed(Default)/Gel/Flood/Lithium
LVD
11.0V ADJ 9V...12V ; x2/24V
LVR
12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage
13.8V ADJ 13V... 15V ; x2/24V
Boost Voltage
14.4V ADJ 13V...17V ;x2/24
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage
16.5V ; x2/24V
Reverse Connection Protection
Yes
Load Over Current Protection
Yes, each 30s auto restart again
Controller Over Temperature
Yes
USB Output
5VDC/1A 2PCS
Charging Type
PWM
Charge circuit voltage drop
<=0.25V
Discharge circuit voltage drop
<=0.1V
Temperature Consumption#
For 12V system:-24mV /°C ; x2/24V
Relative humidity
≤95%, N.C.
Working Temperature
-20°C~+55deg;C(Product can work continuously at full load)
LCD temperature range
-20°C~+70°C
Waterproof grade
IP32
Mounting hole size
Φ5mm
Terminals
10mm²/8AWG
Weight
245g
Overall dimension(mm)
190×108×41.5
24V 9aH Battery System
Specifications
Transformer
24V (Uno Solar System)
Motor Output Voltage
24v DC
Max Operating Power
300 Watts
Maximum Gate Length
10 Metres
Maximum Gate Weight
500 KG
Speed
28 cm/s
Working temperature
-20° - 50°
RF
APC Rolling code 433.92mhz
Motor Duty Cycle
90%
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
24V DC
Operator Inbuilt Safety
Over current + Encoder Sensitivity
The Syncro modules are connected as a pair, one into each sliding motor of a bi-parting installation. They are interconnected to one another using twisted pairs. This enables a synchronised simultaneous operation of the sliding gates using only one set of accessories connected to either of the two units.
Your (Kit and Add-On) Price:
$2,299.00
