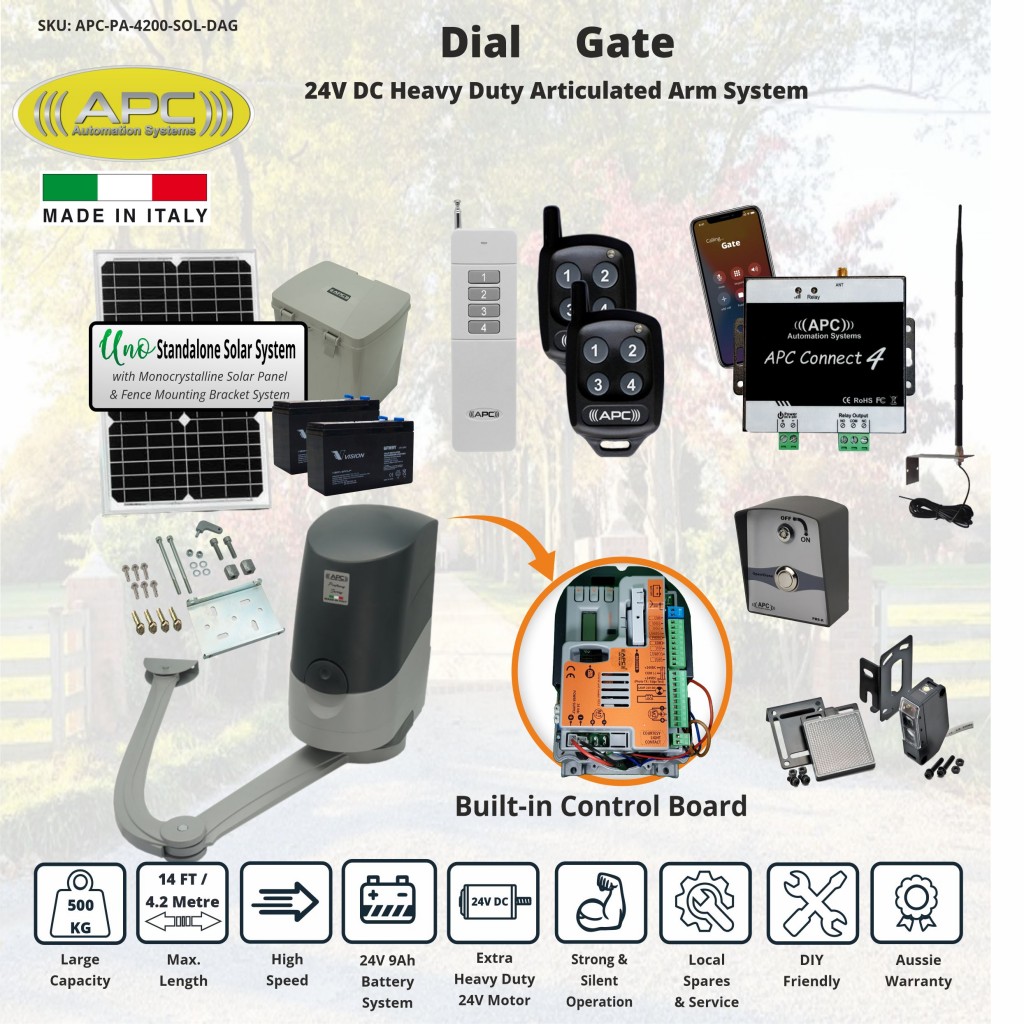

Articulated Arm Farm Gate System, Built in Adjustable Stops. Solar Electric Farm Gate Opener

Italian Made Extra Heavy Duty Articulated Arm System



Packing a punch the Proteous 4200 system can deliver 760N of thrust to operate gates up to 500kg or 4.2m in length. With a built in adjustable stop for both the open and closed positions making the system is versatile in its stopping arangment.

Adjustable built in stopper

Simple to adjust just install the supplied Open position stopper in the hole at the desired stop point and tighten. Repeat again for the Closed position stopper.



System Capacity





Installation Geometry





Specifications

Thrust	760N
Motor Voltage	24v DC
Manual override	Via override key supplied
Working temperature	-20° - +50°
Duty Cycle	80%
Max. Operating Angle	120°
Gates size	4.2m max
Gate weight	500kg max

Feature Rich and Highly Versatile Control Box



The Proteous PA-4200 Control Unit provides the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completely adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available), and induction loop
Fast and Slow Speeds points are adjustable along with the power
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview

Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)

Remote Features

24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)

Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.

APC Uno Standalone Solar System



The APC Uno is an articulate all-in-one design allowing for the clean and secure housing of the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

• APC Sun power Regulator Built In
• Sleek contoured design
• Cable management entries for a clean installation
• Subtle grey to suit all installation environments
• Heavy duty 5mm galvanized 6-hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
• Easy to access with the tool-free clip lock system
• Can be secured with a small padlock
• Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Dimensions

24V 9aH Battery System



Supplied with the automation kit the 24V 9aH battery system will allow for continued use of the gate system wether in day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirments or higher duty there are upgrade options to 17aH and 33aH battery systems.

Specifications



APC Connect 4 V | 4G/VoLTE Compatible

The APC Connect 4 V will allow all programmed users to ring the device from anywhere, at any time, with the ability to toggle the connected device to operate. If desired, the unit can also be set to public mode so that any telephone number to call can toggle the operation.

The administrator/installer can easily adjust the method of operation and toggle from the system features by sending simple SMS commands from their mobile phone.



How does it work:

1. An active SIM card must be installed on the device. Using the sim card in this device will not incur more than the cost of keeping it active if you turn off alerts, but the sim card needs to be active and able to receive incoming calls).
2. The device is then wired to the relevant system that needs to be operated, and up to 200 users can be programmed through quick SMS commands.
3. When any of these programmed numbers ring the device, it will ring once, reject the call, and proceed to open/close the system. The device can be dialled from anywhere at any time by any programmed user.



Prerequisites:

An active SIM card with good to excellent mobile coverage in the area where Connect 4 V will be installed is required. The SIM card cannot be a data SIM and must have an active telephone number.

The SIM card's voicemail feature must be disabled. The service provider (Telstra, Optus, Vodafone, Aldi, etc.) can do this for you.

A voltage Supply to power the device. It has a high compatibility of 9-24V DC (Any APC Gate Automation System can power this GSM unit)

Note: If your system cannot supply the required voltage, three solutions are available at an extra cost.

a) A power adapter 24VDC (PP-24) or 12VDC (PP-12) can be supplied.

• 24V Adapter, Click here for more information
• 12V Adapter, Click here for more information

b) A power convertor (APC-PC12) to transform a voltage source in AC/DC 16-28V to a 12V DC output.

• Power Converter, Click here for more information

Features:

• 4G Access Control Device, which is VoLTE-capable
• OPEN/CLOSE or turn ON/OFF access control systems, automatic gate systems, machines, and more.
• Ring the system from anywhere in the world.
• PRIVATE MODE: Caller ID used for verification - unknown numbers are ignored.
• PUBLIC MODE: Any call or SMS can operate the system
• Up to 200 authorized phone numbers can be configured simultaneously.
• SMS confirmation to an authorized phone number or master user when the system is triggered to OPEN/CLOSE or turn ON/OFF.
• Easy to configure the device by SMS.

Specifications

Quick Reference Diagrams

What is 4G/VoLTE?

Voice over LTE (VoLTE) is an LTE high-speed wireless communication standard for voice calls and SMS using mobile phones and data terminals.

Voice over LTE (VoLTE) lets you make clearer phone calls over 4G (LTE) networks. Mobile network operators are beginning to shut down their 3G networks, so VoLTE will be needed to keep your mobile network access control device operating.

What is Required for Devices To Be 4G/VoLTE Compatible?

To use VoLTE, you will need a 4G device that is VoLTE-capable and compatible with the required technology and bands.

The APC Connect4 V 4G access control device is VoLTE-capable and can operate in the following bands/frequencies:

Band: B1/B2/B3/B4/B5/B7/B8/B28/B40
Frequency: 850/900/1800/1900MHZ (4G/VoLTE Compatible)

Package Contents

• 1 x APC-Connect 4 V (4G/VoLTE Compatible)
• 1 x Antenna
• 1 x Installation Manual

Wireless Push Button with Isolation Key

The wireless push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number.

The push button can be used for over 50 metres in operating distance.

Long Distance Remote

The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.

APC Booster 433mhz Antenna



The APC booster antenna is suitable for gate automation systems, garage doors, receivers and any other devices using the 433mhz or 433.92mhz radio frequency band.

As a general rule of thumb on a properly function system you can expect to see results of doubling the range of the transmitter.

The antenna can also help in resolving issues where the transmitter range is decreased due to installation methods such a receiver being behind a metal fence, brick pillar , metal box and numerous other range decreasing factors

Compatible devices

• APC-RC4S Four Button Keyring remote, up to 80m operating distance
• APC-RC4-SV Four Button Sun Visor Remote (six colour choices), up to 100m operating distance
• APC-RC450S Long Distance Remote, up to 800m operating distance
• APC-KP2W Two Channel Wireless Keypad APC-KP2W, up to 40m operating distance
• APC-PBS-KW Single Wireless Button with Isolation Key, up to 10m operating distance
• APC-PBD-KW Double Wireless Button with Isolation Key, up to 10m operating distance
• APC-PBS-KW (2nd Generation) Single Wireless Button with Isolation Key, up to 100m operating distance
• APC-PBD-KW (2nd Generation) Double Wireless Button with Isolation Key, up to 100m operating distance

Specifications

• Suits all 433MHz and 433.92MHz motors
• Can potentially double the specified operating range
• 5m RG58 Pre-wired Coaxial Cable
• Stainless Steel Mounting Bracket
• Long Range 6.5dbi

APC-RR-11 Retro Reflective Sensor

The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.


• Up to 11 Metres Infrared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment & Misalignment led to assist in the installation process


• Resin filled for the ultimate weatherproofing
