Product SKU: APC-PT-5000-LV-SI24-TK

APC Single Swing Driveway Gate Automation 24V Low Voltage System with Extra Heavy Duty Italian Made Proteous PT-5000 Telescopic Linear Actuator, Remote Control Gate Opener

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • APC Single Swing Driveway Gate Automation 24V Low Voltage System with Extra Heavy Duty Italian Made Proteous PT-5000 Telescopic Linear Actuator, Remote Control Gate Opener

    On Sale

APC Single Swing Driveway Gate Automation 24V Low Voltage System with Extra Heavy Duty Italian Made Proteous PT-5000 Telescopic Linear Actuator, Remote Control Gate Opener

Product SKU: APC-PT-5000-LV-SI24-TK

  • In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,275.00 $1,354.00 APC Automotion Plus Sale

  • Or in 4 payment of $318.75 with afterpay info

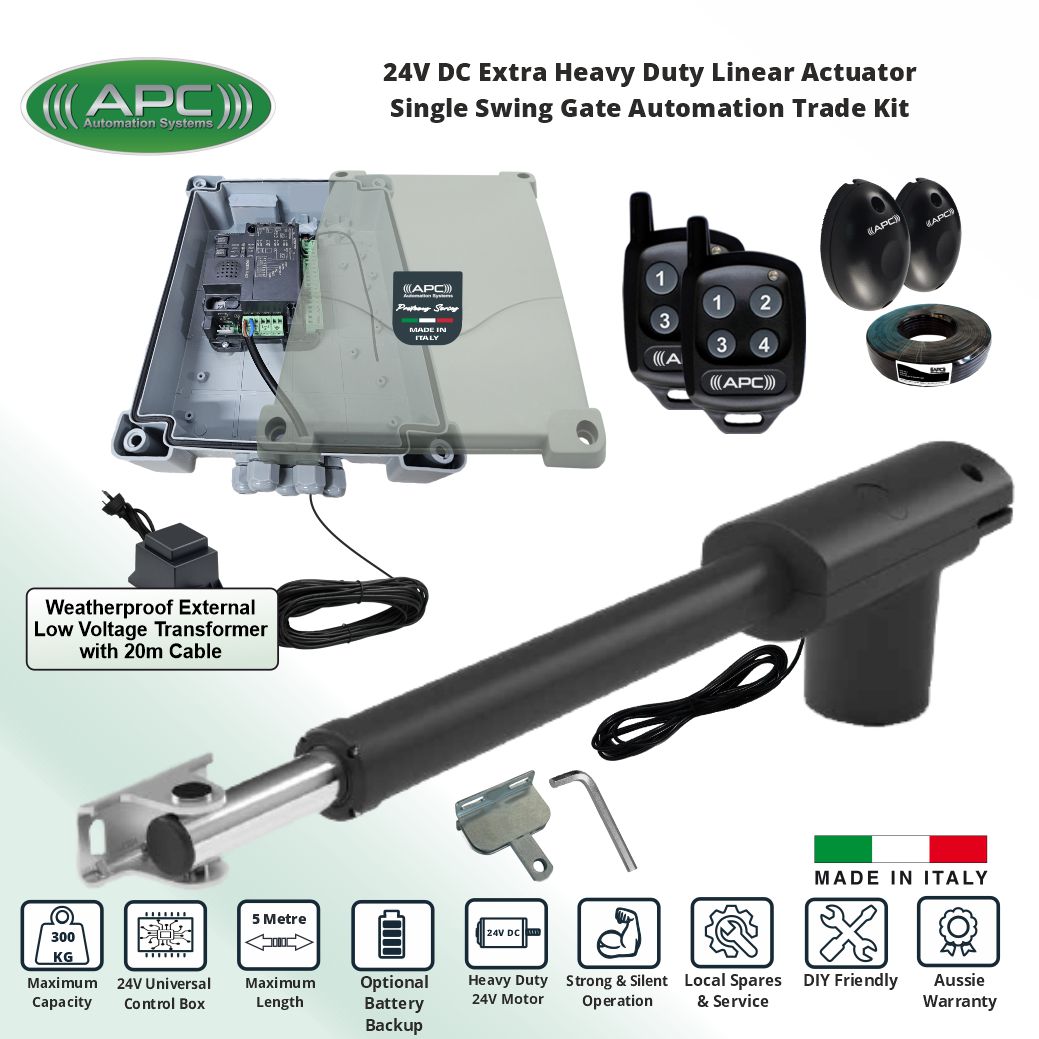

  • Single Swing Driveway Gate Opener 24V LV System, 5 Meter, 300KG, 500mm Stroke, Italian-Made APC Gate Automation System

  • Kit Includes

    01 APC Proteous 5000 Super Duty Telescopic Linear Actuator (QTY: 1)
    02 Cable for Proteous Swing Gate Opener Motor ( 2 Core 2mm Non-Shielded Cable 6 or 11m ) (QTY: 1)
    03 APC Simply 24V Universal Control Box (QTY: 1)
    04 Weatherproof External 24V Transformer with 20m Low Voltage Cable | Suitable for outdoor use. (QTY: 1)
    05 APC Four Button Keyring Remote (QTY: 2)
    06 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    07 10m 4 Core Non Shielded Cable (QTY: 1)
    08 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Extra Heavy Duty Telescopic Linear Actuator






Heavy Duty 24V Motor with powerful and quiet operation Sleek Italian design with a compact and neat appearance Easy to use manual override via the supplied allen keys in a emergency situation. The system can handle light and heavy gates up to 300kg maximum weight or up to 5m maximum length.



Emergency Override


Simple to use manual override in case of an emergency. Simply insert the supplied allen key and turn to unlock the motor.


Actuator Overview



Extra Heavy Duty Single Gate Opener



System Capacity

Extra Heavy Duty Single Gate Opener

Installation Geometry





Specifications

Thrust 1800N
Motor Voltage
24v DC
Manual override
Via override allen key supplied
Working temperature
-20° - +50°
Duty Cycle
90%
Maximum stroke
500mm
Gates size
5m max
Gate weight
300kg max

24V Universal Control Box | APC SIMPLY24



The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).



System Features

  • Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
  • Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
  • 80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
  • Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
  • Customizable auxiliary output for the electric or magnetic lock.
  • Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
  • Compatible with Induction Loop and Vehicle Motion Detector.
  • Power trimmer to regulate motor power.
  • Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
  • Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
  • Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.



Special Features

  • Energy Saving Mode.
  • Optional battery backup system
  • Flexibility in programming each channel of the remote
  • Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
  • Customizable auxiliary output for electrical or magnetic lock
  • Induction Loop Compatible for auto opening or as a safety device.
  • Supports programmable timers.



Safety Features

  • Adjustable Over current adjustments
  • Safety Sensor connection input configurable for opening and/or closing
  • Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times



Control Board Overview



Gate Automation Remote Control Features

Ready to clip onto your keyring | Gate Opener Remote Control

APC Four Button Keyring Remote Control for Gate Automation System

APC Four Button Keyring Remote Control for Gate Automation System

  • Featuring High-Security rolling codes transmitting a unique code chosen at random
  • Slim Design
  • Keyring Clip-on System
  • Completely Backwards Compatible with all legacy APC Control Boards



External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.





Specifications

Mains power supply: 230 Vac +/- 10%, 50-60 Hz

Motor power supply: 24 V DC 280 W and 10 A peak motor

Warning light power supply: 24V max 15W

Gate pilot lamp power supply: 24 Vdc max 10 W

Accessories power supply (photocells &): 24 Vdc max 10 W

Radio receiver frequency: 433.920 MHz

Storable remote controls: 170

Radio antenna input: Rg58

Operating temperature: -20°C / +50°C

APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


    •
