Product SKU: APC-SG1600-AC-WF-e

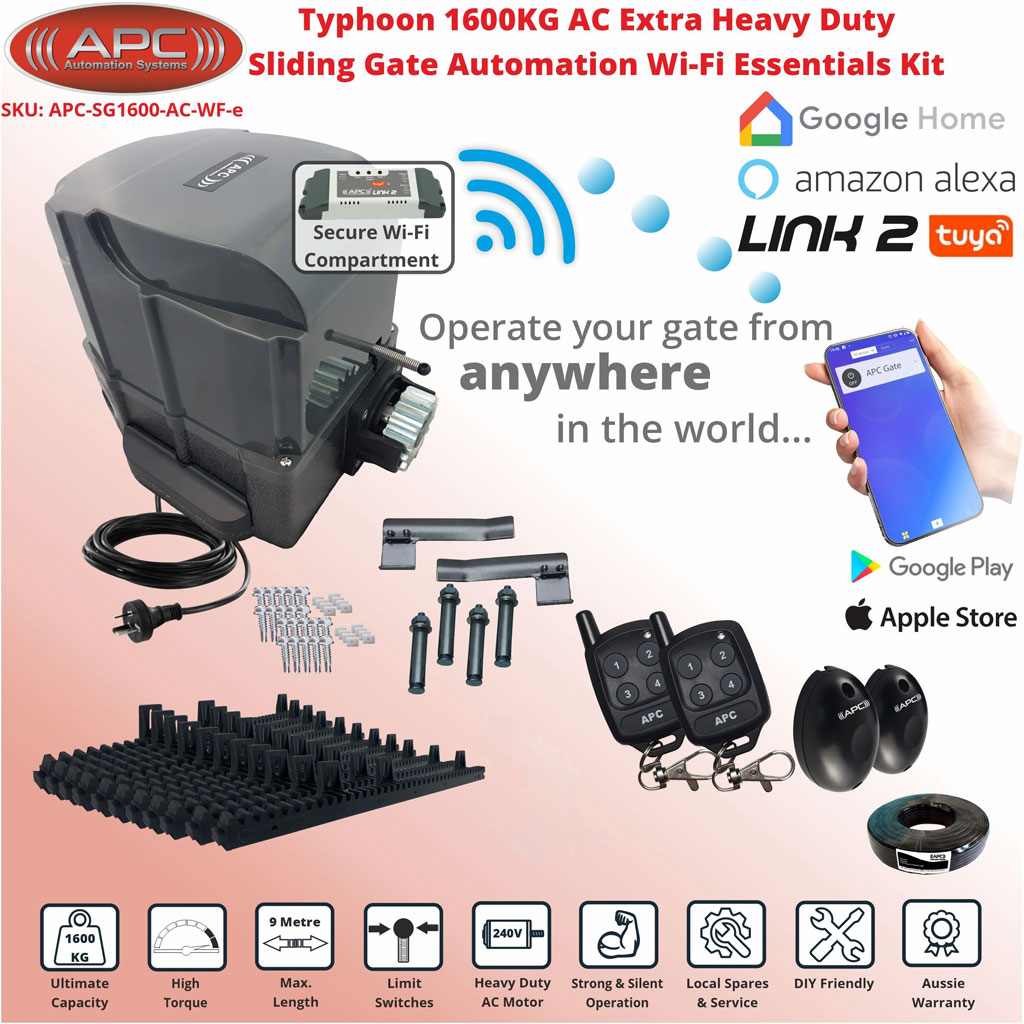

APC Electric Gate Automation Wi-Fi System Extra Heavy Duty Typhoon 1600 (1.6 Tonne), Automatic Sliding Gate Openers, Automated Gate AC Powered DIY WiFi Kit With Spring Limits

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Sliding Electric Gate Automation System With Spring Limits - Sliding Gate Opener

    On Sale

APC Electric Gate Automation Wi-Fi System Extra Heavy Duty Typhoon 1600 (1.6 Tonne), Automatic Sliding Gate Openers, Automated Gate AC Powered DIY WiFi Kit With Spring Limits

Product SKU: APC-SG1600-AC-WF-e

  • In Stock

Get More Info..

Kit Price:

$775.00 $1,073.00 APC Automotion Plus Sale

  • Or in 4 payment of $193.75 with afterpay info
  • Wifi Sliding Gate Opener Kit Upto 1600kg and 9m capacity, Spring Limit

  • Kit Includes

    01 APC Typhoon SG1600 AC 1600KG Sliding Gate Motor with Power Cord (Built in Control Board) (QTY: 1)
    02 APC Four Button Keyring Remote (QTY: 2)
    03 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    04 10m 4 Core Non Shielded Cable (QTY: 1)
    05 APC Link 2 WiFi Switch - DUAL Relay Wifi Remote Smart Switch Gate Garage Door Openers IOS and Android APP Control (QTY: 1)
    06 Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli (QTY: 4)
    07 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Typhoon 1600 High Torque AC Sliding Gate Automation System

Strong & Durable

The Typhoon 1600 650W Internal motor allows for an 1600kg capacity making it the ideal candidate for the larger gate installations including incline/decline situations.

Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of  remotes. Perfect for a simpler of no wiring needed installation.




All In One Motor Design



Ultra-compact, sleek design and with some clever re-arrangement the APC Typhoon 1600 is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in an ultra-durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway

With separate open and close inputs as well as a shared open/close input the APC Typhon 1600 will support just about any wired accessory and  can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.

Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.



Manual Override System





Rest easy knowing that even if the power is out the gate can still be operated by using the secure key override, once overridden the gate can be easily opened and closed by hand, once re-engaged the gate is locked in and 100% secure.



Metal Pinion & Cast Casing






Only the best parts are used to ensure an incredibly strong build quality from the robust cast alloy casing all the way to the one-piece solid steel pinion gear no corners have been cut.

Motor and Base Plate Dimensions Including Pinion Height

Suitability

  • Sliding gate not exceeding 1600kg maximum (Telescopic Gates Supported up to 350KG PER gate)
  • Sliding gate not exceeding 9m width maximum (Telescopic Gates Supported up to 4m PER gate)
  • A power point is required at the gate (or can be hardwired by an electrician)
  • Level ground installations or minor gradients



Specifications



Rated Power 650W
Power supply 220V-240V
Maximum Weight of Gate 1600kg (Telescopic Gates 350KG PER Gate)
Maximum Width of Gate 9m (Telescopic Gates 4m PER Gate)
The working temperature of the motor -5° ~ +65° C
Open (Close) speed 12m/min
Maximum Pull 38Nm
Voltage output 18V DC, Only devices with a parameter of 12-24V DC operating range can be connected to the system
Light output 240V Light, 30 Watts or Less
Accessories input Open Only
Close Only
Open/Halt/Close



FAQ



Can I operate this sliding gate motor manually?
YES
The motor is fitted with a manual override and supplied with a key to manually disengage the motor
Can I use this system to operate a large gate?
YES
This system can handle a sliding gate up to 6m wide and 800kg in weight.
Are the motor & control panel all in one?
YES
Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact
Can I use push buttons to operate this system?
YES
Both wireless & wired push-button switches can be used to open/close the gate motor
Can I use keypads to operate this system?
YES
Both wireless & wired keypads can be used to open/close the gate motor
Can I connect a safety sensor to this system?
YES
Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate
Can I connect an intercom system to this gate system?
YES
A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone
Can I operate this gate system from a remote location?
YES
A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location.
Does this gate system automatically close?
YES
When the automatic close timer is enabled, and photoelectric safety sensors are installed the gate will automatically close
Can I connect a light to the system?
YES
The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.

Remote Features

APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •



WiFi Control Switch
















  • 7-32V AC & DC Compatible
  • Operatable ANYWHERE in the world using Apple devices (iOS) and Android Devices using Tuya APP
  • Works with Amazon Alexa, Google Assistant, Smart Things
  • One Master User (Administrator) and unlimited regular users
  • Allows for manual operation and/or scheduled operation of the system
  • Ultra Low power consumption of 20mA
  • Requires good WiFi connection at its installed location




(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.







Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.


Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)





Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $775.00
