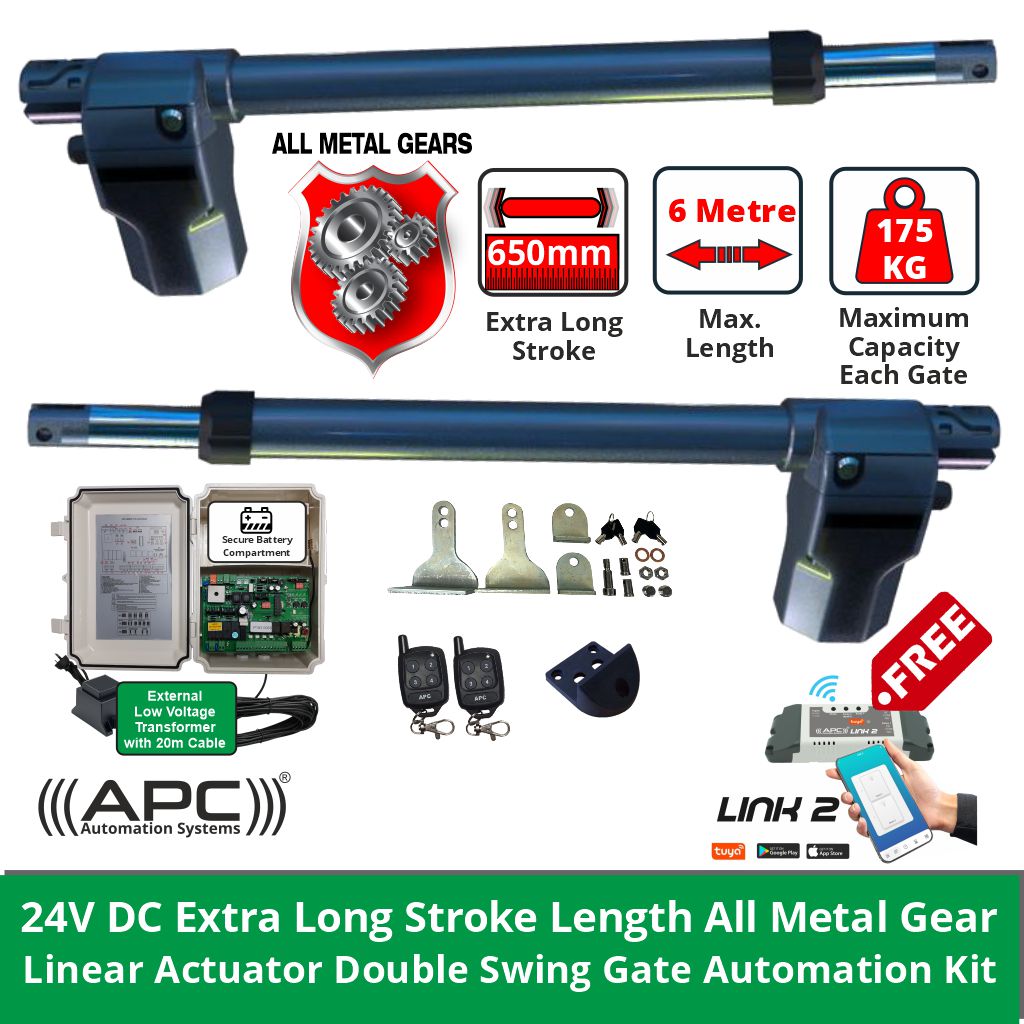

Heavy Duty 24V Extra Long Stroke (Left & Right) Telescopic Linear Actuator | Swing Gate Automation
Heavy Duty 24V Swing Gate Left or Right Automation with All Metalic gears, powerful and quiet operation. Easy to use manual override using the supplied key in an emergency. The system can handle light and heavy gates up to 175kg maximum weight or 3m maximum length (for each gate).
Emergency Clutch Override
Easy manual override in case of an emergency using the supplied key, slot in and turn clockwise to operate the gates manually.
Actuator Dimensions
Specifications
Motor Voltage
|
24v DC
|
Manual override
|
Via override key supplied
|
Working temperature
|
-10° ~50° |
Maximum stroke
|
650mm
|
|
3m max (for each gate)
|
Gate weight
|
175kg max (for each gate)
|
Absorbed power |
70W |
Current |
5.2A |
Motor speed |
1800RPM |
Thrust |
1800N |
Installation Geometry
Pull to Open Installation
Before beginning installation, identify the left/right side motor. The manual override for the gate motor determines this.
The manual override should not be facing the gate to allow easy accessibility.
Push to Open Installation
Before beginning installation, identify the left/right side motor. This is determined by the manual override for the gate motor.
The manual override should not be facing the gate to allow easy accessibility.
Weatherproof Control Box
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
System Features
Low Voltage Transformer with a 20m Cable (extendable up to 80m)
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button
Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Safety Features
Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output
Special Features
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Accessories Compatibility
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output
Controlling Options
Any or all of the following may be connected to operate the gate
Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
Remote Features
Specifications
Power Input |
24V AC (240V to 24V Transformer Pre wired with 20m Cable) |
Transformer |
24V AC |
Rectification |
On Board Bridge Rectifier |
Motor Output Voltage |
24v DC |
Working temperature |
-10° - 50° |
RF |
APC Rolling code 433.92mhz |
Lock Output (Primary) |
12-30V DC (Depending on Configuration) |
Lock Output (Secondary) |
12V DC |
Auxiliary Inputs |
0V Momentary Pulse |
Accessories Voltage |
24V DC |
Over current |
1A to 5A |
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
65mm Rubber Gate Stop Dimensions
