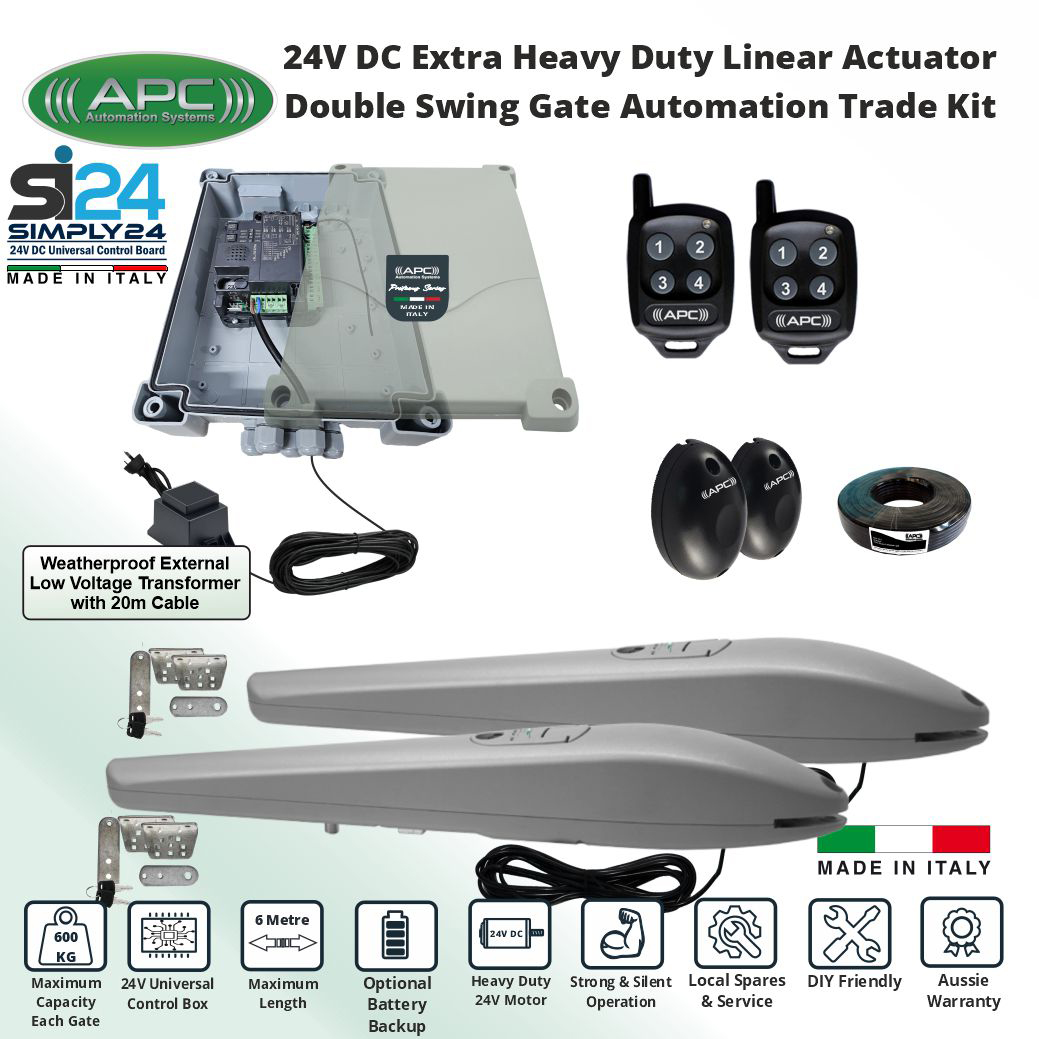

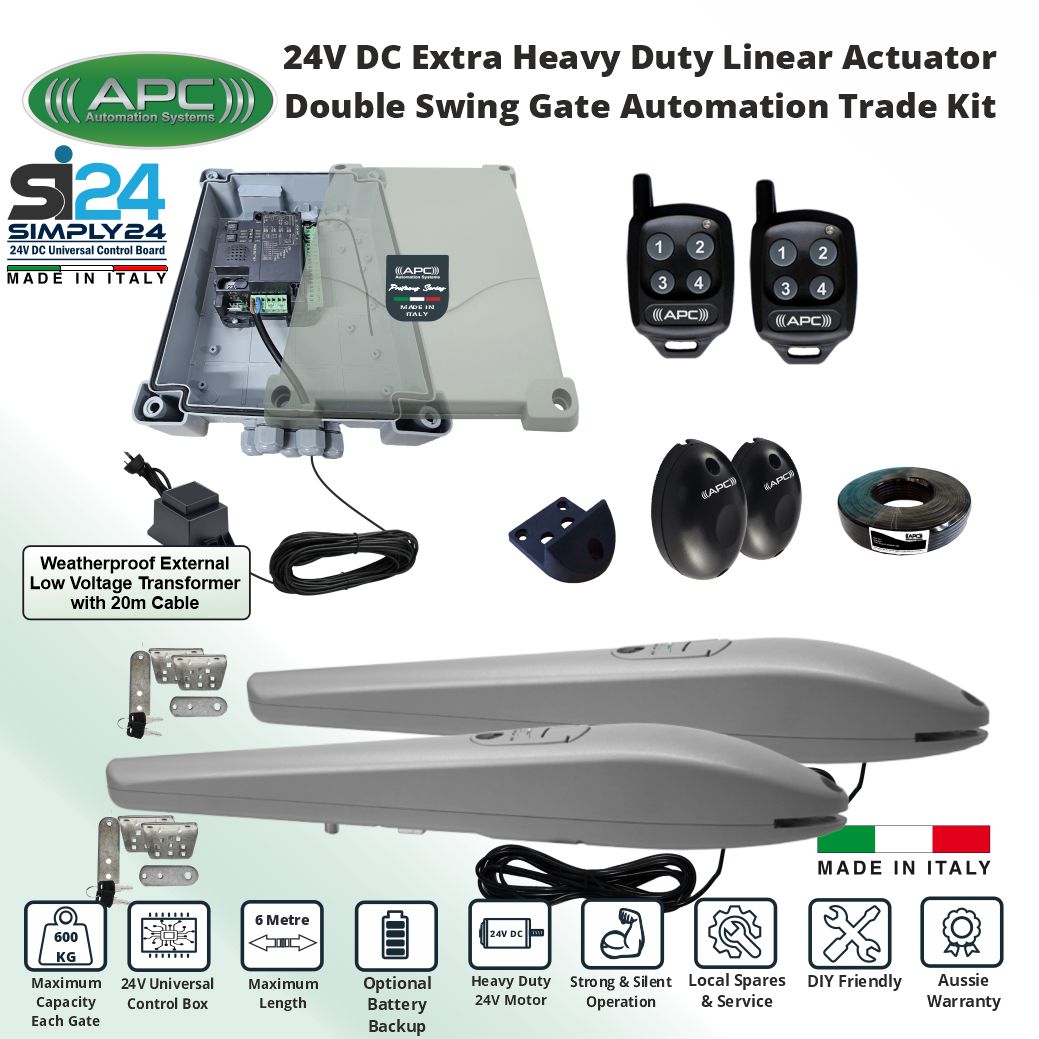

Italian Made Extra Heavy Duty Linear Actuator APC PS-6000
Packing a punch the APC Proteous 6000 system can deliver 2000N of thrust to operate gates up to 600kg for each gate leaf or 3m in length for each gate leaf. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.
Adjustable built-in stopper
Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.
Actuator Overview
System Capacity For Each Gate Leaf
Installation Geometry
Specifications
Thrust |
2000N |
Motor Voltage
|
24v DC
|
Manual override
|
Via override key supplied
|
Working temperature
|
-20° - +50°
|
Duty Cycle
|
90%
|
Maximum stroke
|
360mm (without stoppers -30mm for each stopper)
|
Gates size
|
3m max for each gate leaf
|
Gate weight
|
600kg max for each gate leaf
|
24V Universal Control Box | APC SIMPLY24
The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).
System Features
- Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
- Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
- 80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
- Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
- Customizable auxiliary output for the electric or magnetic lock.
- Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
- Compatible with Induction Loop and Vehicle Motion Detector.
- Power trimmer to regulate motor power.
- Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
- Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
- Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.
Special Features
- Energy Saving Mode.
- Optional battery backup system
- Flexibility in programming each channel of the remote
- Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
- Customizable auxiliary output for electrical or magnetic lock
- Induction Loop Compatible for auto opening or as a safety device.
- Supports programmable timers.
Safety Features
- Adjustable Over current adjustments
- Safety Sensor connection input configurable for opening and/or closing
- Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Control Board Overview
Gate Automation Remote Control Features
Ready to clip onto your keyring | Gate Opener Remote Control
APC Four Button Keyring Remote Control for Gate Automation System
- Featuring High-Security rolling codes transmitting a unique code chosen at random
- Slim Design
- Keyring Clip-on System
- Completely Backwards Compatible with all legacy APC Control Boards
External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
Specifications
Mains power supply: 230 Vac +/- 10%, 50-60 Hz
Motor power supply: 24 V DC 280 W and 10 A peak motor
Warning light power supply: 24V max 15W
Gate pilot lamp power supply: 24 Vdc max 10 W
Accessories power supply (photocells &): 24 Vdc max 10 W
Radio receiver frequency: 433.920 MHz
Storable remote controls: 170
Radio antenna input: Rg58
Operating temperature: -20°C / +50°C
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
- Up to 15 Metres Infared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment led to assist in the installation process
- Weather sealed with the supplied cover seals
- Easy screw down wiring termination
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
65mm Rubber Gate Stop Dimensions
