AC Sliding Gate Automation System
Easy Installation All in one Motor and Control Panel for Sliding Gate
Suitable for sliding gates up to 3000kg
Strong & Durable

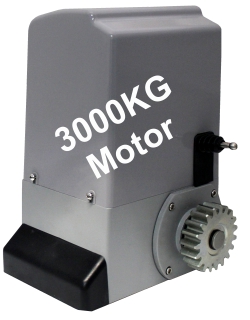

Strong & Durable Sliding gate motor with 3000KG capacity
All In One Motor

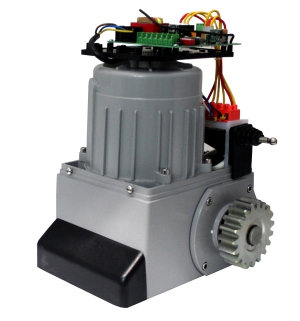

All in one motor with built in control board and limit switches

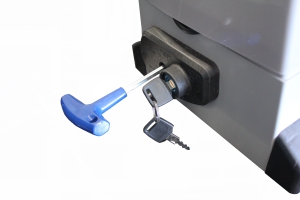

Built in manual override for emergencies
Metal Pinnion & Gears (NO PLASTIC OR NYLON)
Strong Metal Cut Pinnion ensuring the highest durability

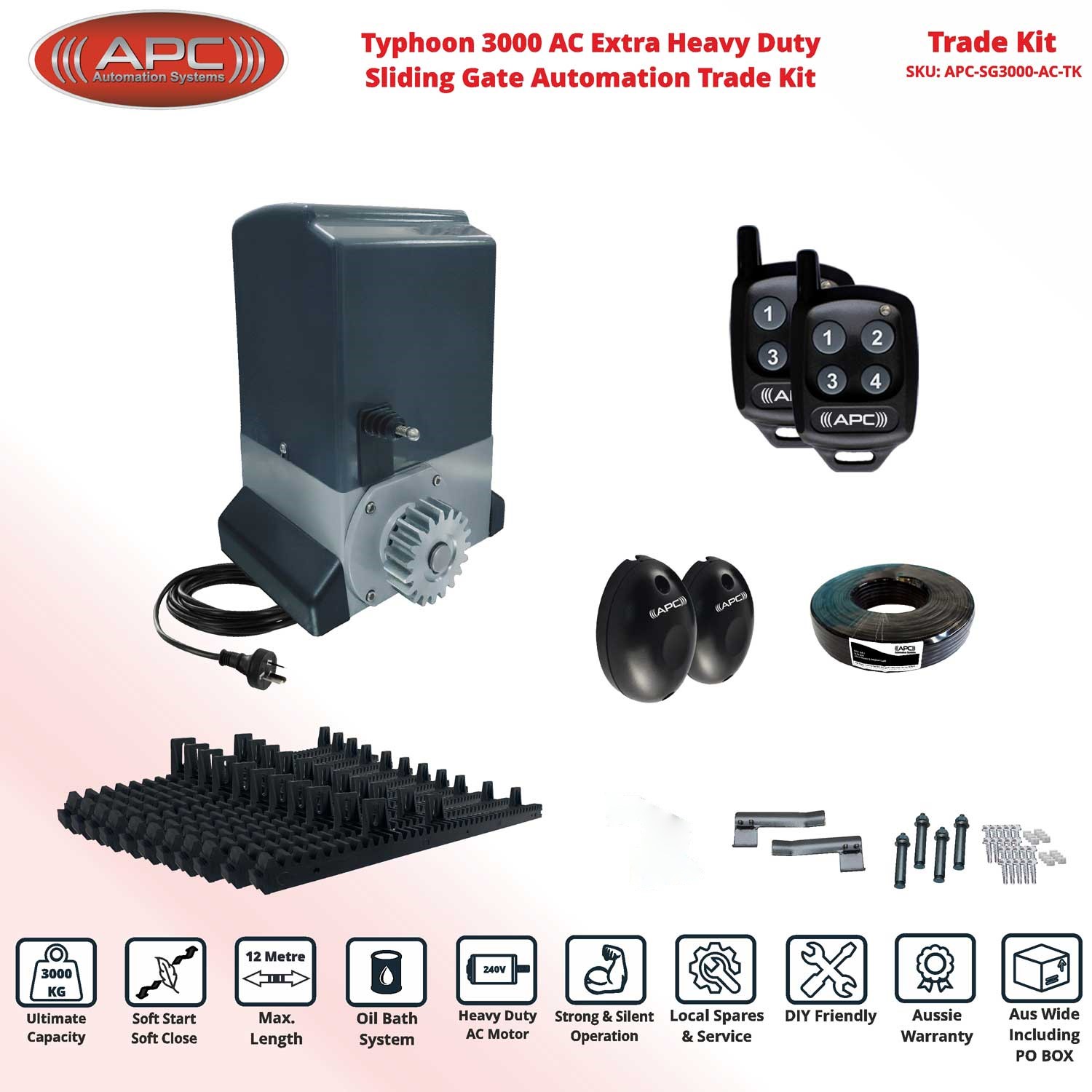

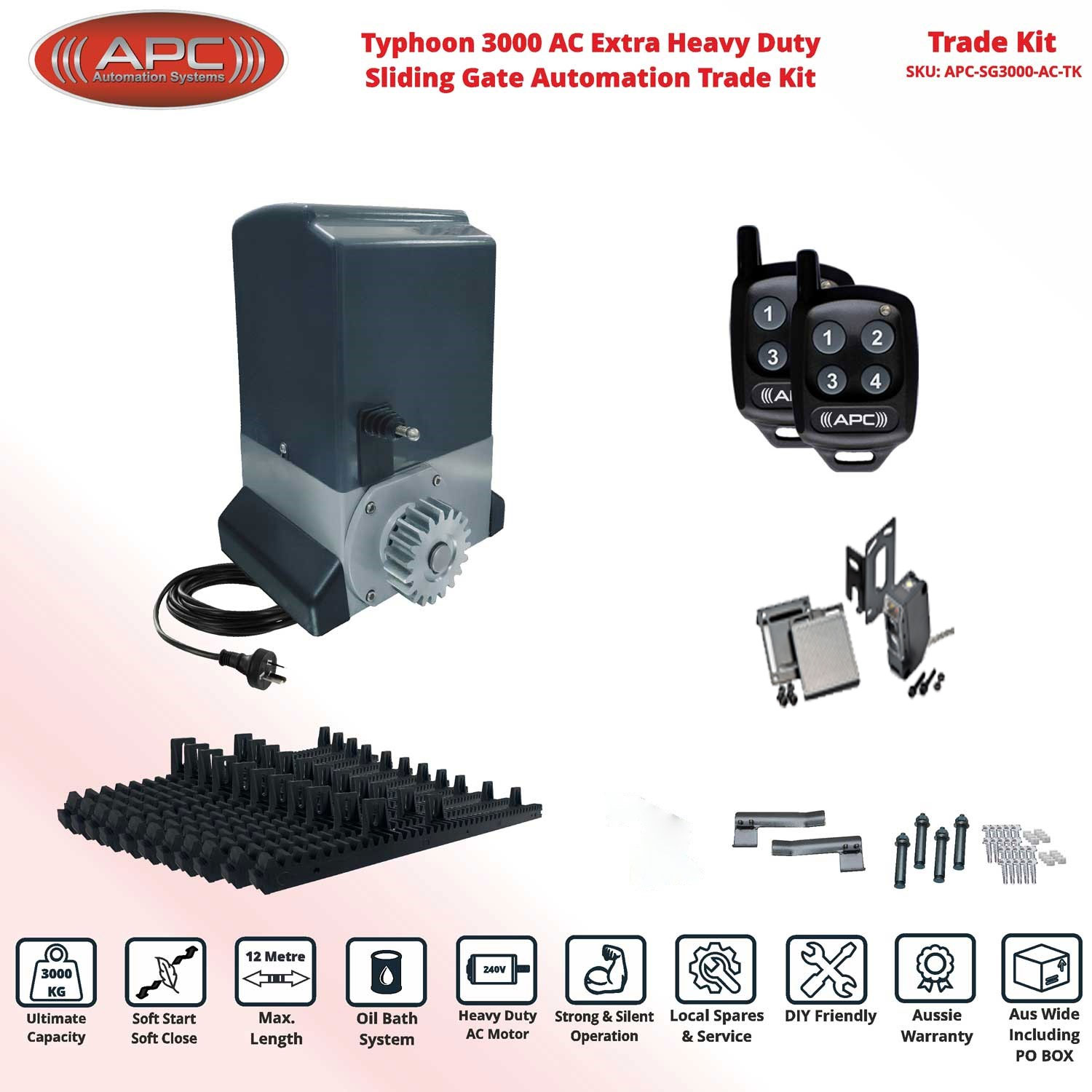

This all in one AC powered sliding gate motor kit is designed to operate sliding gates up to 3000kg in weight. It is an all in one motor and control panel, making it simple to install and extremely compact and neat.
- Manual Override
- All Metal Gears
- Metal Gear Drive
- All in one internal Motor and Control Panel
(any or all of the following may be connected to operate the gate)
- Remote Controls (2 supplied - more available upon request)
- Wireless or Wired Entry push button switch (Available as an optional accessory)
- Wireless or Wired Exit push button switch (Available as an optional accessory)
- Wireless or Wired Keypads (Available as an optional accessory)
- Safety Photoelectric Sensors (supplied - more available upon request)
- Intercom system with dry contact output (Available as an optional accessory)
- GSM receiver with seperate power supply (Available as an optional accessory)
- Wi-Fi receiver with seperate power supply (Available as an optional accessory)
- Loop Detector (Available as an optional accessory)
Rolling code 433.92MHZ.
The remotes supplied have 4 buttons, 1 and 2 can be used for the gates. Buttons 3 and 4 can be used for the party mode and second lock or alternatively they can be programmed to a compatible second gate opener or a garage door(s). A compatible 2 channel reciever is available to interface to any garage doors. Please see remotes and recievers in our store to find this add on reciever for the garage door.
Photo electric sensor function:
If PE sensors are installed:
- The gate will not close while the beam is obstructed.
- The gate will stop and re-open if an object obstructs the beam.
The sensors are wired back to the control panel using the supplied cables.
Detection technology: Infrared
Range: 15m max.
Power: 12-24V AC/DC
Input: RX 15mA, TX 30mA
Operating temperature: -20 to 70 degrees
Relay output: 1Amp max 30V
Dimension: 49.2 x 76 21mm
Heavy duty galvanised metal gate stop with rubber end.
"U" Guide and stop for sliding gates
The "U" Guide is installed at the closing end of the sliding gate.
520mm Lengths Nylon Coated Gear Rack
This GR-52-V3 gear rack is nylon coated and re-inforced with a steel rod. The gear rack is supplied in 520mm interlocking lengths with a male and female end.
More gear rack is available for purchase for larger sliding gates.
Please Note: This nylon gear rack can be upgraded to steel gear rack at an additional cost.
This automatic sliding gate opener is suitable for:
→ Sliding gate not exceeding 3000kg maximum
→ Gates where there is AC power available at the gate
→ Medium & Large Size Heavy Gates
|Power supply||220V±10% 50Hz|
|Maximum Weight of Gate||3000kg|
|Working temperature of motor||-25°? +55°|
|Open (Close) speed||12m/min|
|Voltage output||Only devices with a parameter of 12-24V DC operating range can be connected to the system|
|Light output||240V Light, 30 Watts or Less|
|Accessories input||Open Only
|Can I operate this sliding gate motor manually?||
|The motor is fitted with a manual override and supplied with a key to manually disengage the motor|
|Can I use this system to operate a large gate?||
|This motor can handle a sliding gate up to 3000kg's in weight|
|Are the motor & control panel all in one?||
|Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact|
|Can I use push buttons to operate this system?||
|Both wireless & wired push button switches can be used to open/close the gate motor|
|Can I use keypads to operate this system?||
|Both wireless & wired keypads can be used to open/close the gate motor|
|Can I connect a safety sensor to this system?||
|Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate|
|Can I connect an intercom system to this gate system?||
|A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smart phone|
|Can I operate this gate system from a remote location?||
|A GSM Receiever or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location. Please note, to connect these accessories to the system a seperate power pack must be used.|
|Does this gate system automatically close?||
|When the automatic close timer is enabled and photoelectric safety sensors are installed the gate will automatically close|
|Can I connect a light to the system?||
|The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.|
|Can I lock my gate if I go away?||
|This system has a LOCK-OUT feature where the user can press button number 4 on any of the programmed remote controls to disable all wireless/wired accessories until button 3 is pressed on the remote to enable the system.|
