Product SKU: APC-SG3000-AC-SK

AC Commercial Grade High Duty Tornado 3000KG (3 Tonne) Sliding Gate System With Spring Limits

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$1,360.80 $1,512.00

  • Upto 3000kg and 12m capacity, Oil Bath System, Spring Limit

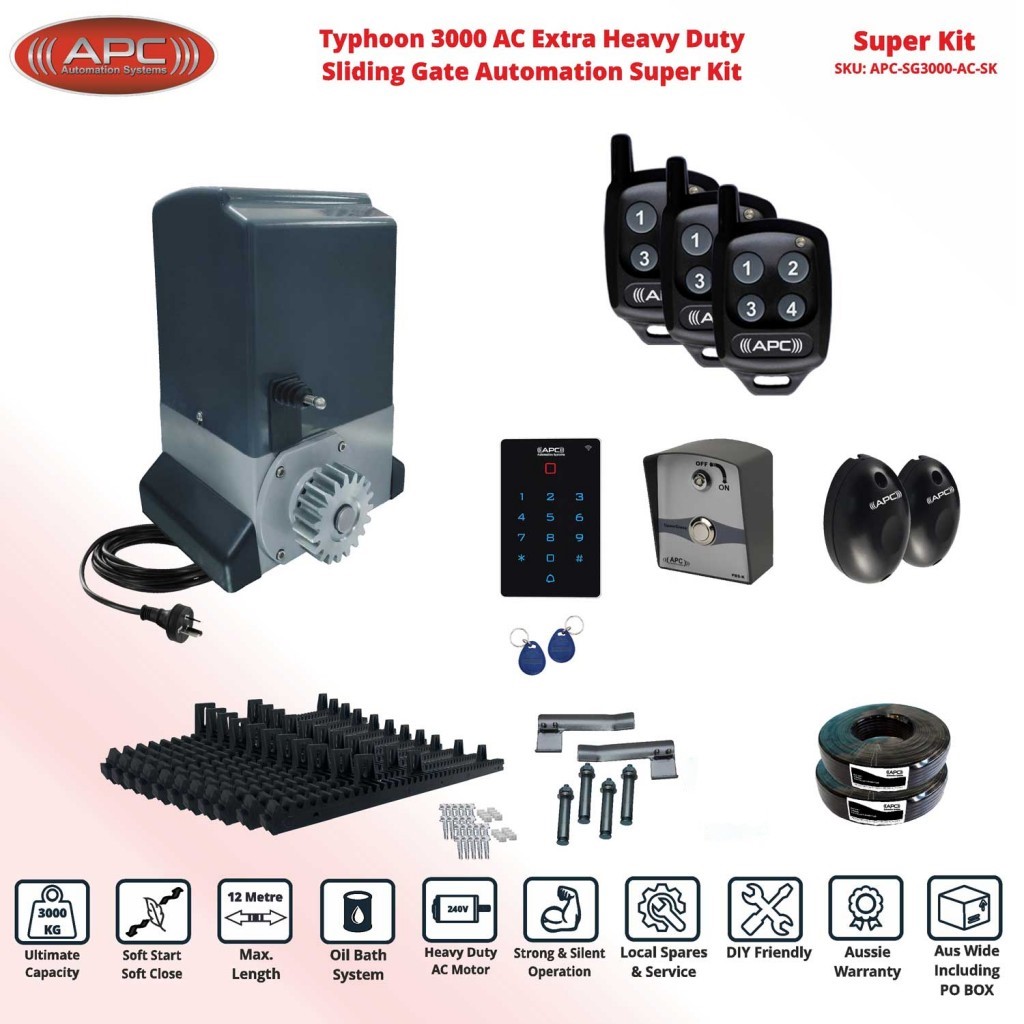

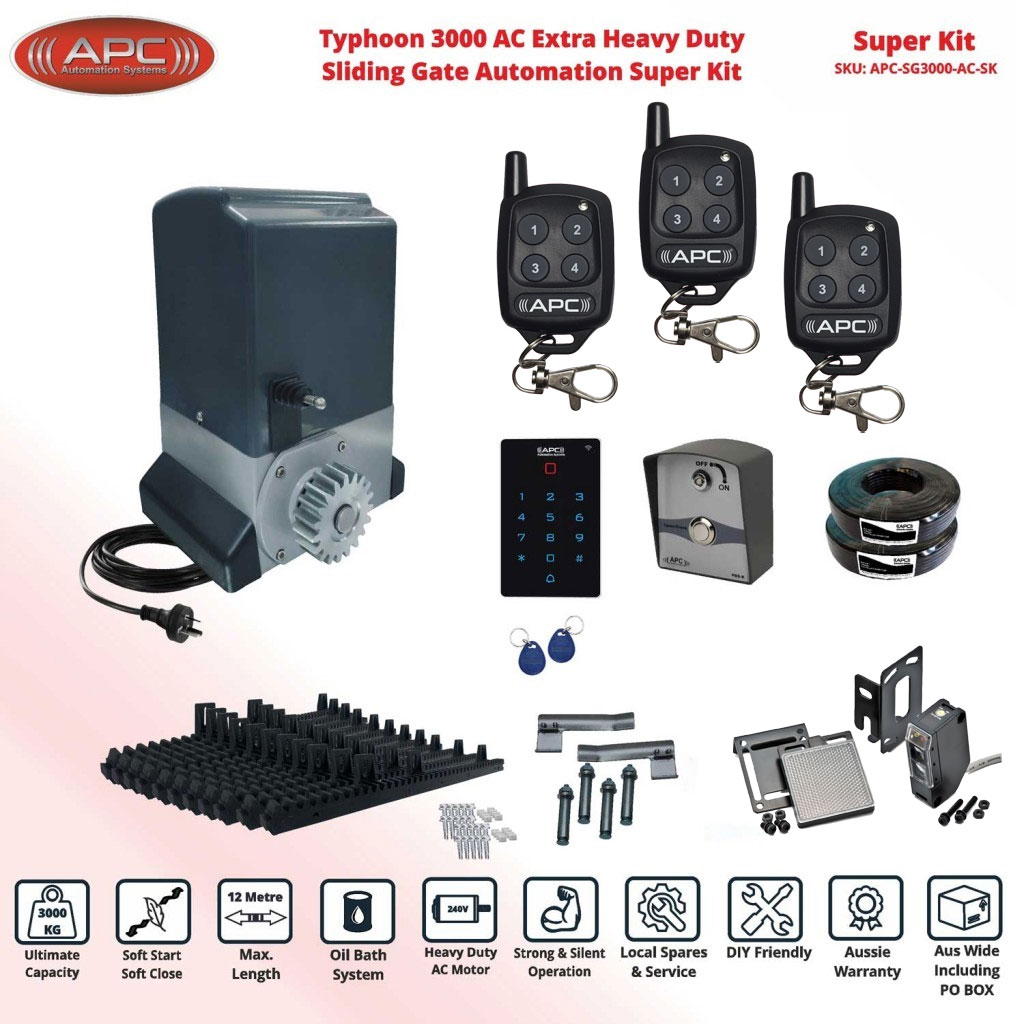

  • Kit Includes

    01 APC SG3000AC 3000KG Sliding Gate Motor with Power Cord (Built in Control Board)(QTY: 1)
    02 APC Four Button Keyring Remote(QTY: 3)
    03 115mm High Bolt Down Anodized Gate Stop(QTY: 1)
    04 V4 520mm Nylon Rack(QTY: 10)
    05 APC Slimline Vandal Resistant Keypad with EM card Reader(QTY: 1)
    06 Em Swipe Tag(QTY: 2)
    07 10m 4 Core Non Shielded Cable(QTY: 2)
    08 APC Wired Single Push Button Switch with Key Issolation(QTY: 1)
    09 5m 2 Core Non Shielded Cable(QTY: 1)
    10 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Reflector Detector(QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Extra Heavy Duty
AC Sliding Gate Automation System
Easy Installation All in one Motor and Control Panel for Sliding Gate
Suitable for sliding gates up to 3000kg
Strong & Durable
Strong & Durable Sliding gate motor with 3000KG capacity
All In One Motor
All in one motor with built in control board and limit switches
Manual Override
Built in manual override for emergencies
Metal Pinnion & Gears (NO PLASTIC OR NYLON)
Strong Metal Cut Pinnion ensuring the highest durability

This all in one AC powered sliding gate motor kit is designed to operate sliding gates up to 3000kg in weight. It is an all in one motor and control panel, making it simple to install and extremely compact and neat.

? Manual Override
? All Metal Gears
? Metal Gear Drive
? All in one internal Motor and Control Panel

Controlling Options:

(any or all of the following may be connected to operate the gate)

- Remote Controls (3 supplied - more available upon request)
- Wireless or Wired Entry push button switch (Available as an optional accessory)
- Wireless or Wired Exit push button switch (Wired Push Button Supplied - more available upon request or can be upgraded to wireless at an extra cost)
- Wireless or Wired Keypads (Wired Keypad Supplied - more available upon request or can be upgraded to wireless at no extra cost)
- Safety Photoelectric Sensors (supplied - more available upon request)
- Intercom system with dry contact output (Available as an optional accessory)
- GSM receiver with seperate power supply (Available as an optional accessory)
- Wi-Fi receiver with seperate power supply (Available as an optional accessory)
- Loop Detector (Available as an optional accessory)

Motor Dimensions
Remote Controls
Rolling code 433.92MHZ.
Rolling code 433.92MHZ.
The remotes supplied have 4 buttons, 1 and 2 can be used for the gates. Buttons 3 and 4 can be used for the party mode and second lock or alternatively they can be programmed to a compatible second gate opener or a garage door(s). A compatible 2 channel reciever is available to interface to any garage doors. Please see remotes and recievers in our store to find this add on reciever for the garage door.
Safety Sensors
Photo electric sensor function:
If PE sensors are installed:
- The gate will not close while the beam is obstructed.
- The gate will stop and re-open if an object obstructs the beam.
The sensors are wired back to the control panel using the supplied cables.
Detection technology: Infrared
Range: 15m max.
Frequency: 1.92Khz
Power: 12-24V AC/DC
Input: RX 15mA, TX 30mA
Operating temperature: -20 to 70 degrees
Relay output: 1Amp max 30V
Dimension: 49.2 x 76 21mm
Entry Keypad
The Entry keypad with card reader can be used for the convenience of operating the gates from outside of the property.
It is ideal for the service person, meter readers, trusted visitors, children returning from school and when the owner returns from a walk.


-Operating Voltage 12-24V DC/ 12-18V AC
Standalone Single Relay Keypad
-Block Enrolment for Quick installer setup
Up to 2000 Users
- Sealed and Waterproof keypad (Conforms to IP68 Standards)
- Built In Card Reader
- Built In Buzzer
-Normally open and normally closed contacts
- Adjustable latching time
- Adjustable alarm time
- Keypad Lockout option
- Exit Button Input
- Alarm Output
- 4-8 Digit pin code
- Metal Casing
- Blue Backlight
- Anti-Tamper
- Door Open Too Long Detection (DOTL)
- Wiegand input/output (26 BIT)

Exit Push Button Switch
Low Voltage Single Push Button Switch with isolation key switch for operating automatic gates or garage opening systems. This switch can be wired to operate any device requiring momentary switching (switch is closed while pressed and open when not pressed).
Gate Stop
Gate Stop

Heavy duty galvanised metal gate stop with rubber end.
"U" Guide
"U" Guide and stop for sliding gates

The "U" Guide is installed at the closing end of the sliding gate.
GR-52 Interlocking 520mm Lengths Nylon Coated Gear Rack
520mm Lengths Nylon Coated Gear Rack

This GR-52 gear rack is nylon coated and re-inforced with a steel rod. The gear rack is supplied in 520mm interlocking lengths with a male and female end.
More gear rack is available for purchase for larger sliding gates.
Please Note: This nylon gear rack can be upgraded to steel gear rack at an additional cost.
This automatic sliding gate opener is suitable for:
→ Sliding gate not exceeding 3000kg maximum
→ Gates where there is AC power available at the gate
→ Medium & Large Size Heavy Gates
Rated Power 1200W
Power supply 220V±10% 50Hz
Maximum Weight of Gate 3000kg
Working temperature of motor -25°? +55°
Open (Close) speed 12m/min
Maximum Pull 65Nm
Working Humidity ≤85%
Voltage output Only devices with a parameter of 12-24V DC operating range can be connected to the system
Light output 240V Light, 30 Watts or Less
Accessories input Open Only
Close Only
Here are the Commonly FAQ asked about this product
Can I operate this sliding gate motor manually?
The motor is fitted with a manual override and supplied with a key to manually disengage the motor
Can I use this system to operate a large gate?
This motor can handle a sliding gate up to 3000kg's in weight
Are the motor & control panel all in one?
Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact
Can I use push buttons to operate this system?
Both wireless & wired push button switches can be used to open/close the gate motor
Can I use keypads to operate this system?
Both wireless & wired keypads can be used to open/close the gate motor
Can I connect a safety sensor to this system?
Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate
Can I connect an intercom system to this gate system?
A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smart phone
Can I operate this gate system from a remote location?
A GSM Receiever or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location. Please note, to connect these accessories to the system a seperate power pack must be used.
Does this gate system automatically close?
When the automatic close timer is enabled and photoelectric safety sensors are installed the gate will automatically close
Can I connect a light to the system?
The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.
Can I lock my gate if I go away?
This system has a LOCK-OUT feature where the user can press button number 4 on any of the programmed remote controls to disable all wireless/wired accessories until button 3 is pressed on the remote to enable the system.

Remember, You are welcome to ask more questions! You can always rely on Automotionplus for quality products and great service, we are only a phone call away or please visit our showroom.
