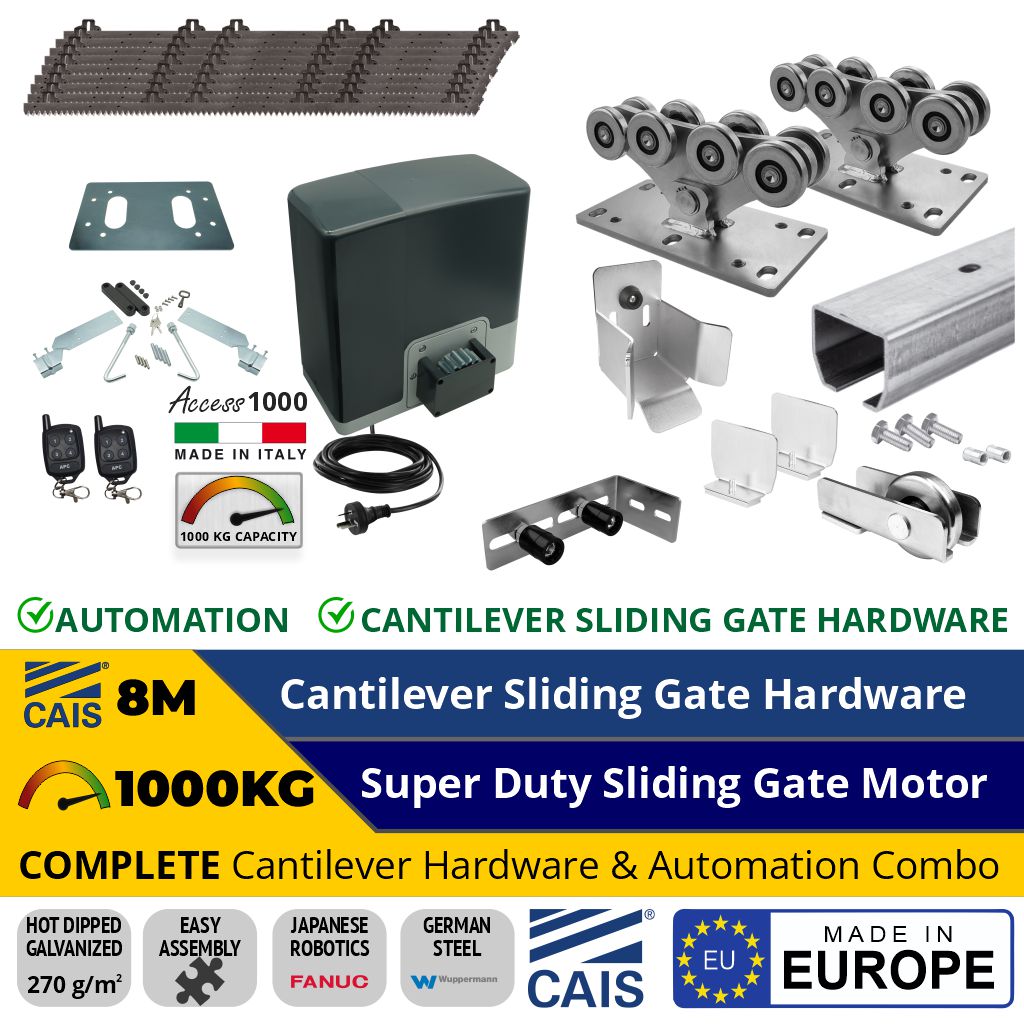

8M Complete Cantilever Gate Hardware and Super Duty Sliding Gate Automation Combo Package. Hot Dip Galvanised German Steel Cantilever Sliding Gate Hardware (Made in Europe by CAIS) and 1000KG Super Duty Italian Made Sliding Gate Automation
Product SKU: P1000-E-BOX-8
In Stock
Freight Delivery
This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
8M Complete Cantilever Gate Hardware and Super Duty Sliding Gate Automation Combo Package. Hot Dip Galvanised German Steel Cantilever Sliding Gate Hardware (Made in Europe by CAIS) and 1000KG Super Duty Italian Made Sliding Gate Automation
Free Shipping
Kit Price:
$4,295.00$5,295.00
8m Cantilever Sliding Gate Hardware and 1000KG Capacity Super Duty Italian Made Sliding Gate Automation
Kit Includes
01 Proteous 1000, Italian Made Strong Sliding Gate Motor(QTY: 1)
02 APC Four Button Keyring Remote(QTY: 2)
03 1020mm Fixings Facing Up Steel Reinforced Nylon Gear Rack for Domestic and Commercial Sliding and Cantilever Gates. Made in Italy by Stagnoli(QTY: 9)
04 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer)(QTY: 1)
05 Eight-Wheeled Carriage for Large Cantilever Gates Up To 8m / 700 kg Max Gate Weight. (CAIS SPEED ME)(QTY: 2)
06 2.85m "C" Profile Guide For Cantilever Gate, 5mm Thickness, Hot Dipped Galvanised German Steel (CAIS STAGE MZ 2.85)(QTY: 4)
07 Bolts and Rivet Nuts for Cantilever Gate Guide Track Easy Assembly (CAIS)(QTY: 32)
08 69.5mm Guide Support Wheel for Cantilever Gate System, Cantilever End Wheel For Cantilever Sliding Gate Systems (CAIS RUN M)(QTY: 1)
09 End Cap for C Guide Track, Cantilever Sliding Gates Hardware. (CAIS PILOT MN)(QTY: 2)
10 157mm End Stop for Cantilever Sliding Gates (CAIS LAST M)(QTY: 1)
11 End Stop Bracket for Small, Medium, and Large Cantilever Sliding Gates (CAIS PARK CSM)(QTY: 1)
12 51mm Upper Rollers and Bracket Set. CAIS Sliding Gate Guide Roller and Bracket Assembly Kit German Steel Made in EU(QTY: 1)
13 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order.(QTY: 2)
Add-On Items (Discounted when purchased along with this Kit)
Product Information
Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways. Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.
CANTILEVER GATE SPACE REQUIREMENTS
A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.
THE INSTALLATION STEPS
The installations do not require complicated steps and materials, so the working time is not too long. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.
CANTILEVER CONSTRUCTION SITE PREPARATION
SPACE
Single cantilever gates move in one direction, often directly parallel to an existing fence line. This efficient use of space makes a cantilever gate an ideal choice when designing a property’s perimeter fence and security system.
THE "ALL-IN-ONE" CANTILEVER SLIDING GATE HARDWARE
We have to ensure that all the gate hardware that you need to assemble the cantilever sliding gate is included.
See what the "ALL IN ONE" box includes:
Eight Wheel Carriages
Heavy Duty C Profile Guide Track (3.5mm German Steel) For Cantilever Gate
C Profile Guide End Cap With Screw
C Profile Guide Guide Support Wheel for Cantilever Gate System
U Guide Stop With Rubber for Cantilever Gate Closing Position
U Stop Bracket with Installation Bolts and Screws for Cantilever Gate System
Upper Rollers and Bracket Set for Cantilever Sliding Gate
Bolts and Rivet Nuts for Cantilever Gate Guide Track Easy Assembly
Installation Instructions
Eight-Wheeled Carriage For Cantilever Gate
Carriage for cantilever gates with up to 8 meters clear opening & 700 kg max gate weight.
Heavy Duty Steel Cantilever Sliding Gate Eight-Wheeled Carriage
Enhanced design and superior products from Europe using high-quality German steel.
Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory.
The steel is sourced from the leading German company Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.
"C" Profile Guide For Cantilever Gate, 5mm Thickness, Hot Deeped Galvanized German Steel
"C" Profile Guide For Cantilever Sliding Gate, 5mm Hot Deepped Thickness, Galvanized German Steel
Steel "C" Profile Guide For Cantilever Sliding Gate
Enhanced design and superior products from Europe using high-quality German steel.
Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory
Holes at the track's top allow it to be easily bolted to an aluminium gate.
The steel is sourced from the leading German company Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.
Bolts and Rivet Nuts Pack for "C" Profile Guide Cantilever Sliding Gate
Bolts and Rivet Nuts are Included in each Cantilever "C" Profile Guide
Bolts and Rivet Nuts for Cantilever Sliding Gate Guide Track
Slotted Hole Punched Every 400mm in "C" Profile Guide Track
Bolts and Rivet Nuts Pack
Easy Assembly
No Welding Required
Medium Guide Support Wheel For Cantilever Sliding Gates
The end wheel guides the gate onto the end cup and helps support the gate while it rests.
End Wheel For Cantilever Sliding Gate Systems
Cantilever Gate Hardware Medium Guide Support Wheel
CAIS PILOT MN | End Cap for Cantilever C Gude Track
The end cap is an addition to the gate to cap off the cantilevered track.
End Cap For Cantilever Sliding Gate
Cantilever Gate Hardware Medium End Cap
157mm End Stop for Cantilever Sliding Gates
The end stop supports the gate when fully open and closed.
End Stop For Cantilever Sliding Gate
Cantilever Gate Hardware Medium End Stop
End Stop Bracket for Cantilever Sliding Gates
The end stop bracket supports the gate when it is fully open and fully closed.
End Stop Bracket For Cantilever Sliding Gate
Cantilever Gate Hardware End Stop Bracket
Small Upper Rollers and Bracket Set for Cantilever Sliding Gates
High Qualy Two Roller Guide Plate
Cantilever Sliding Gate Upper Rollers Guide with Bracket
Cantilever Gate Hardware Upper Rollers and Bracket Set
DIFFERENCE BETWEEN A CANTILEVER GATE AND A SLIDING GATE
The obvious benefit of choosing a cantilever sliding gate system is " no need to track"
Unlikly standard sliding gates, the cantilever sliding gate solution doesn't need a perfectly level or concrete flat surface and can deal with dirt or gravel driveway perfectly.
BENEFITS OF CANTILEVER GATES
Perfect solution for sloped and/or non-concrete driveways
Esthetic design, easy installation, no welding needed
Long lasting durable hardware, silent and maintenance-free
An effective way to improve security on your property
The Cantilever gate is a unique type of sliding gate, but with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that helps the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.
CANTILEVER SLIDING GATE DESIGN and PERFORMANCE
Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarse and noisier than cantilever gates. Since cantilever gate wheels are off the ground, this style can span a wider range of terrain including gravel, grass, blocks, and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in all weather conditions.
The smart appearance, efficient design, and craftsmanship in a cantilever gate are sure to impress owners, visitors, and customers visiting the property.
Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.
Cantilever gates have been designed to glide through the air rather than along tracks on the driveway and do not require any ground installation. Cantilever Sliding Gate All-In-One Systems are quicker and easier to install and have longer lifespans as they float through the air.
Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways.
Super Duty Duty Feature Rich 24V Italian Sliding Gate Motor Overview
At a glance
The Proteous 1000 SUPER DUTY system boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.
System Features
Capacity
60% Duty Cycle
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
1000KG Capacity (1 Tonne)
Ultra long 10 metre gate capacity
Everything and more as standard..
Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)
Special Features
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Safety Features
Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface
Control Board Overview
Accessories Compatibility and Controlling Options
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Remote Features
Dimensions
Four point Tilt Leveling
Specifications
Transformer
24V AC
Rectification
In Housing Rectifier
Motor Output Voltage
24v DC
Max Operating Power
550 Watts
Maximum Gate Length
10 Metres
Maximum Gate Weight
1000 KG
Speed
26 cm/s
Working temperature
-20° - 50°
RF
APC Rolling code 433.92mhz
Motor Duty Cycle
60%
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
24V DC
Operator Inbuilt Safety
Over current + Encoder Sensitivity
(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli
Interlocking Gear Racks Made in Italy by Stagnoli
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
Modular gear racks kit includes;
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
