Product SKU: GFR30x2-PS-6000-DC

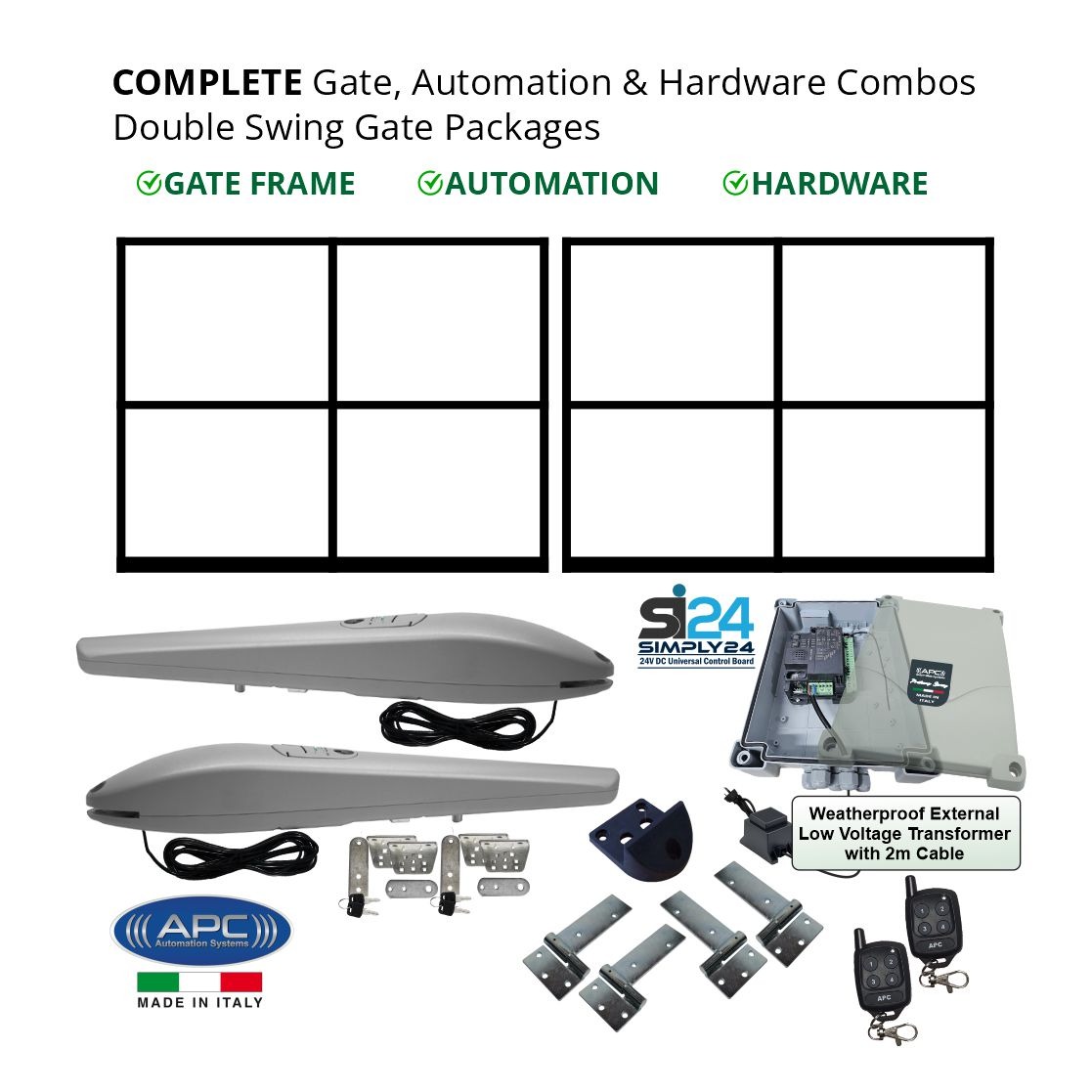

6m Gate Frames (2 x 3m), Automation & Hardware Combos with Italian Made Heavy Duty Gate Opener System. Complete Double Swing Electric Gate Packages

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Complete Double Gate Frames, Electric Gate Automation & Hardware Combos with Italian Made Heavy Duty Gate Opener System. APC Double Swing Electric Gate Packages

6m Gate Frames (2 x 3m), Automation & Hardware Combos with Italian Made Heavy Duty Gate Opener System. Complete Double Swing Electric Gate Packages

Product SKU: GFR30x2-PS-6000-DC

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$3,207.00

  • Double Gate Frames for Cladding with Italian Made Easy to Install Gate Automation and Hardware

  • Kit Includes

    01 3m Gate Frame (QTY: 2)
    02 APC Proteous 3000 Linear Actuator with Built in Adjustable Stop. Italian Made Swing Gate Opener Motor (QTY: 2)
    03 Cable for Proteous Swing Gate Opener Motor ( 2 Core 2mm Non-Shielded Cable 6 or 11m ) (QTY: 2)
    04 APC Simply 24V Universal Control Box (QTY: 1)
    05 Standard AC/DC Powered with 2m Cable for Simply24 Control Box (Upgrade Option Below for 24V LV External Transformer with 20m Cable) (QTY: 1)
    06 APC Four Button Keyring Remote (QTY: 2)
    07 Left Side Strap Hinges (Top & Bottom Left Side Hinge Set) (QTY: 1)
    08 Right Side Strap Hinges (Top & Bottom Right Side Hinge Set) (QTY: 1)
    09 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    10 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

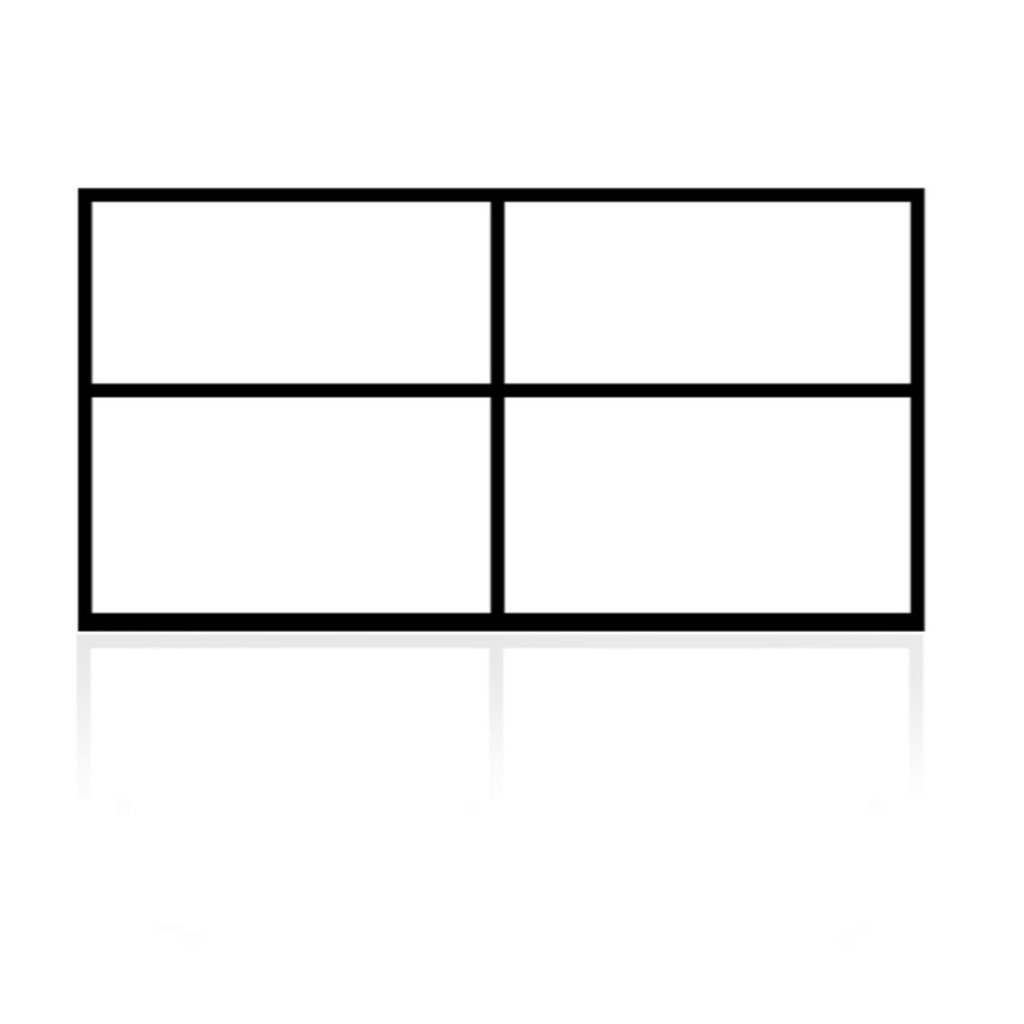

Gate Frame with Vertical and Horizontal Support Rails For Cladding

Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials




Key Features
  • 1500mm Height
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

Suitability
  • Double Swing Gate Applications
  • Residential Use
  • Commercial Use


Italian Made Extra Heavy Duty Linear Actuator APC PS-6000






Packing a punch the APC Proteous 6000 system can deliver 2000N of thrust to operate gates up to 600kg for each gate leaf or 3m in length for each gate leaf. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.



Adjustable built-in stopper


Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.


Actuator Overview



Extra Heavy Duty Single Gate Opener



System Capacity For Each Gate Leaf

Extra Heavy Duty Single Gate Opener

Installation Geometry





Specifications

Thrust 2000N
Motor Voltage
24v DC
Manual override
Via override key supplied
Working temperature
-20° - +50°
Duty Cycle
90%
Maximum stroke
360mm (without stoppers -30mm for each stopper)
Gates size
3m max for each gate leaf
Gate weight
600kg max for each gate leaf

24V Universal Control Box | APC SIMPLY24

The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).



System Features

  • Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
  • Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
  • 80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
  • Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
  • Customizable auxiliary output for the electric or magnetic lock.
  • Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
  • Compatible with Induction Loop and Vehicle Motion Detector.
  • Power trimmer to regulate motor power.
  • Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
  • Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
  • Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.



Special Features

  • Energy Saving Mode.
  • Optional battery backup system
  • Flexibility in programming each channel of the remote
  • Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
  • Customizable auxiliary output for electrical or magnetic lock
  • Induction Loop Compatible for auto opening or as a safety device.
  • Supports programmable timers.



Safety Features

  • Adjustable Over current adjustments
  • Safety Sensor connection input configurable for opening and/or closing
  • Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times



Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)



Gate Automation Remote Control Features

Ready to clip onto your keyring | Gate Opener Remote Control

APC Four Button Keyring Remote Control for Gate Automation System

APC Four Button Keyring Remote Control for Gate Automation System

  • Featuring High-Security rolling codes transmitting a unique code chosen at random
  • Slim Design
  • Keyring Clip-on System
  • Completely Backwards Compatible with all legacy APC Control Boards

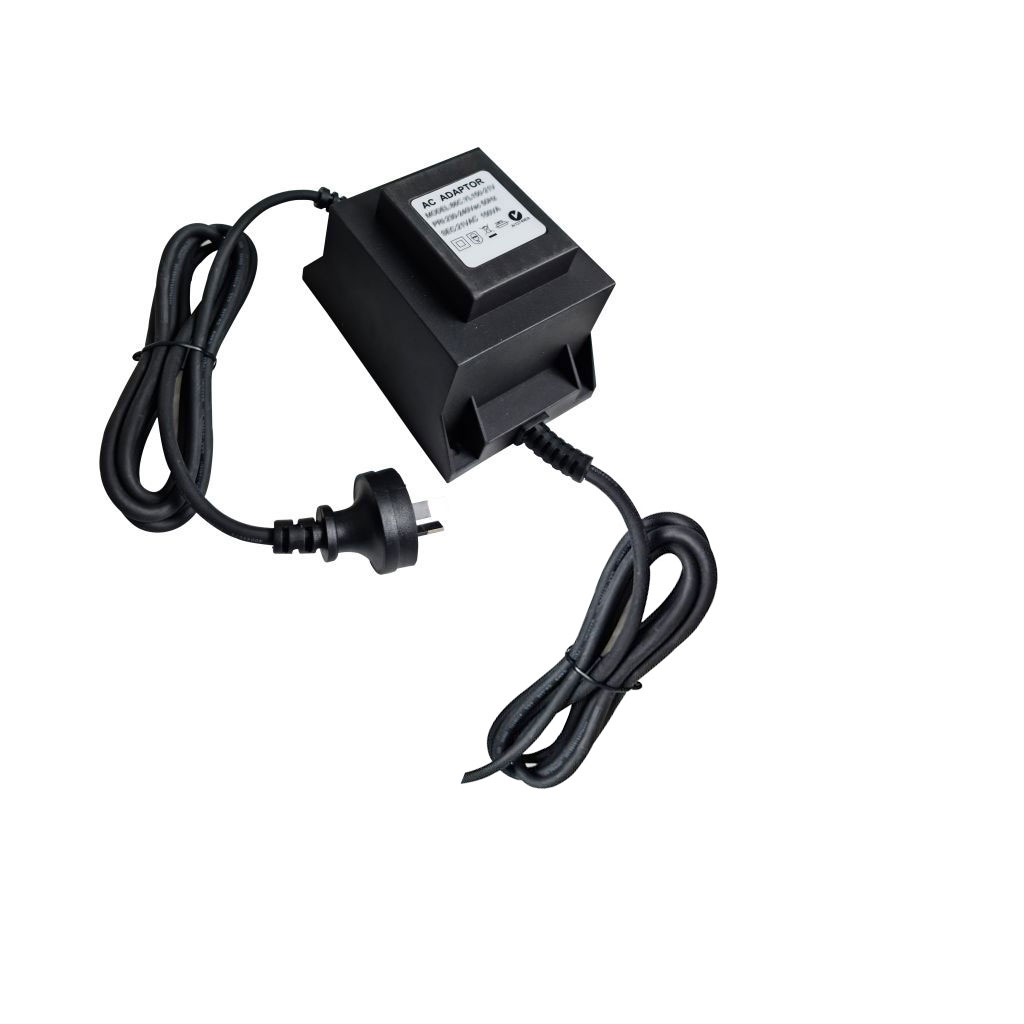

External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 2-meter cable.





Specifications



Mains power supply: 230 Vac +/- 10%, 50-60 Hz

Motor power supply: 24 V DC 280 W and 10 A peak motor

Warning light power supply: 24V max 15W

Gate pilot lamp power supply: 24 Vdc max 10 W

Accessories power supply (photocells &): 24 Vdc max 10 W

Radio receiver frequency: 433.920 MHz

Storable remote controls: 170

Radio antenna input: Rg58

Operating temperature: -20°C / +50°C

65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.



65mm Rubber Gate Stop Dimensions





Heavy Duty Galvanized Strap Hinge For Swing Gates Top & Bottom Left & Right Side Hinge Set

Left & Right Side Strap Hinge

Key Advantages:

  • Simple Screw On Installation

  • Lift On Design

  • Galvanized Steel and will not rust

  • Heavy Duty and Suited for up to 100Kg / 3 Meter Gates

  • Capacity can be increased by installing and additional hinge

  • Concealed Ball Bearing Design

  • Service Free Maintenance

  • Inspection/Lubrication Point

Dimensions

 Left & Right Side Strap Hinge

Specifications

Rating (KG)

100KG per gate leaf

Material

Galvanized Steel

Hinge Type

Heavy Duty Strap Hinge with Concealed Ball Bearing

Installation

Screw to Gate and Post
