5m Complete Telescopic Sliding Gate Hardware for Two-Part Driveway Sliding Gate and Gate Automation Combo. | Italian Made Super Duty 1000KG Capacity Sliding Gate Opener and Hot Dip Galvanized German Steel Complete Telescopic Sliding Gate Hardware DIY Kit, Made in Europe by CAIS [SHORTBACK DUE 5.0] for Two-Part Driveway Gates

Product SKU: P1000-DUE5

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
  • New
Get More Info.. Get More Info..

Kit Price:

$3,499.00 $3,673.00 APC Automotion Plus Sale

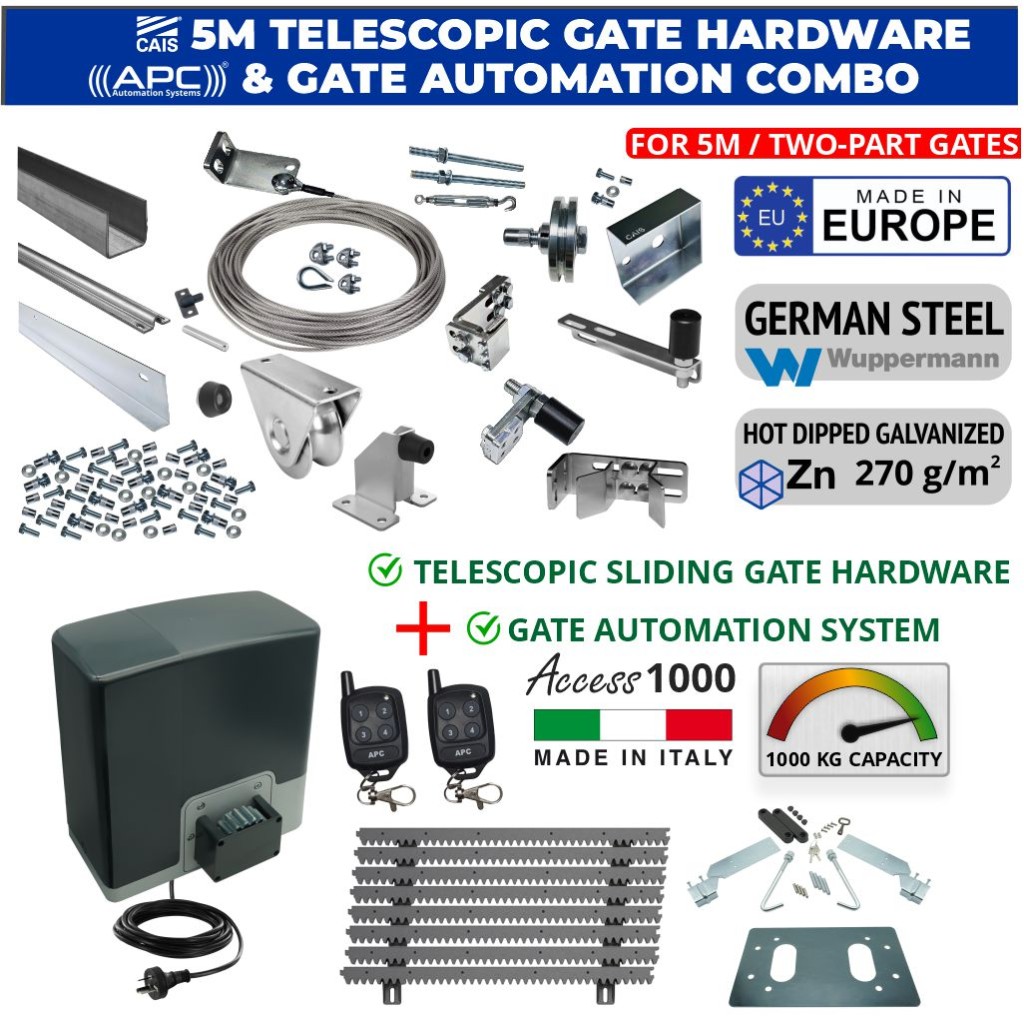

  • 5m Complete Telescopic Gate Hardware with Italian Made Super Duty 1000KG Capacity Sliding Gate Opener

  • Kit Includes

    01 5m Telescopic Sliding Gate Hardware Complete Kit With Track, Wheels, Cable, Cover for Cable and More (TWO-Part Sliding Gate Hardware Set) Made in Europe by CAIS German Steel(QTY: 1)
    02 Proteous 1000, Italian Made Strong Sliding Gate Motor(QTY: 1)
    03 APC Four Button Keyring Remote(QTY: 2)
    04 Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli(QTY: 4)
    05 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer)(QTY: 1)
    06 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order.(QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Super Duty Duty Feature Rich 24V Italian Sliding Gate Motor Overview

At a glance

The Proteous 1000 SUPER DUTY system boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.

System Features

Capacity

60% Duty Cycle
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
1000KG Capacity (1 Tonne)
Ultra long 10 metre gate capacity

Everything and more as standard..

Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Dimensions

Four point Tilt Leveling

Specifications

Transformer 24V AC
Rectification In Housing Rectifier
Motor Output Voltage 24v DC
Max Operating Power 550 Watts
Maximum Gate Length 10 Metres
Maximum Gate Weight 1000 KG
Speed 26 cm/s
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Motor Duty Cycle 60%
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity



(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.







Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.


Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)







Two-Part Telescopic Sliding Gate Set for 5-Meter Driveway Gate
[ CAIS Shortback DUE 5.0 Hot Dip Galvanized German Steel ]

5m Complete Telescopic Sliding Gate Installation Kit for Two-Part Driveway Sliding Gate (TWO-Part Sliding Gate Hardware Set) CAIS SHORTBACK DUE 5.0

What are telescopic sliding gates?

The telescopic sliding gate is the “space-saving gate” since, compared to a conventional sliding gate with a single leaf, it comprises 2, 3 or 4 leaves that overlap each other when opening, thus occupying less space.

Heavy Duty Telescopic Sliding Gate Opener Hardware German Steel with Hot Dip Galvanized. Made in Europe by CAIS.

Telescopic Sliding Gate Hardware Complete Kit. All in One Pack Telescopic Sliding Gate Kit for 5m Driveway Gates.

CAIS Shortback DUE 5.0 | Two-Part Sliding Gate Hardware Set Includes:

5m Complete Telescopic Sliding Gate Hardware for Double Sliding Gate Telescopic System CAIS SHORTBACK DUE 5.0

  • Bolt Down Side Gate Stop with Rubber Bumper
  • Small Rubber Bumpers
  • Sliding Gates Wheels
  • Single-Roller Gate Guide with Bracket Assembly
  • Gate to Gate Guide Rollers (Diameter: 38 mm)
  • Ten Meters of Wire (Diameter: 4 mm)
  • Wire Tensioner
  • Ground Fixing Screws + 2 Nuts (Diameter: 12x200 mm)
  • Wire Fixing L-Shaped Plate (80x50x55 mm)
  • Wire Tensioning Rollers (Diameter: 60 mm)
  • L-Shaped Cover Plates (1600 mm)
  • L-Shaped Cover Plates (1350 mm)
  • Sliding Gate Ground Track, Guide Rails (2800 mm)
  • Fixing Pins for Guide Rail (Diameter: 13 mm)
  • U-Guide Channel Rails (2810 mm)
  • and other parts

Note: The gate frame and grid filling are not part of the set!



How do telescopic sliding gates work?

The structure of the telescopic gate consists of two or more modular wings, and the way it works is similar to a telescope – when the wings are closed, they move one after the other. The telescopic gate, like the sliding gate, with the structure of the telescopic gates design slides on two rails side by side.

What is the difference between a telescopic gate and a sliding gate?

Traditional sliding gates need the same length of opening space, but telescopic gates allow twice the opening width into half the space. Example - If you had a four-metre opening but only two and a half metres of run-off area with a standard sliding gate, there is simply no way to install in this area. That can be triple or quatro telescopic structure design gates according to requirements.
