4M Complete Cantilever Gate Hardware and Automation Package. Hot Dip Galvanised German Steel Cantilever Sliding Gate Hardware (Made in Europe by CAIS) and Heavy Duty 500kg Sliding Gate Opener Standalone Solar OFF Grid Power System (Made in Italy)
Product SKU: P500-SOL-E-BOX-4
In Stock
Freight Delivery
This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
4M Complete Cantilever Gate Hardware and Automation Package. Hot Dip Galvanised German Steel Cantilever Sliding Gate Hardware (Made in Europe by CAIS) and Heavy Duty 500kg Sliding Gate Opener Standalone Solar OFF Grid Power System (Made in Italy)
Add-On Items (Discounted when purchased along with this Kit)
Product Information
4m Cantilever Sliding Gate Hardware (All In One Box) DIY Kit | German Steel | Made in Europe by CAIS
Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways. Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.
CANTILEVER GATE SPACE REQUIREMENTS
A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.
THE INSTALLATION STEPS
The installations do not require complicated steps and materials, and therefore the working time is not too long as well. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.
CANTILEVER CONSTRUCTION SITE PREPARATION
SPACE
Single cantilever gates move in one direction, often directly parallel to an existing fence line. This efficient use of space makes a cantilever gate an ideal choice when designing a property’s perimeter fence and security system.
THE "ALL-IN-ONE" CANTILEVER SLIDING GATE HARDWARE
We have to ensure that all the gate hardware that you need to assemble the cantilever sliding gate is included.

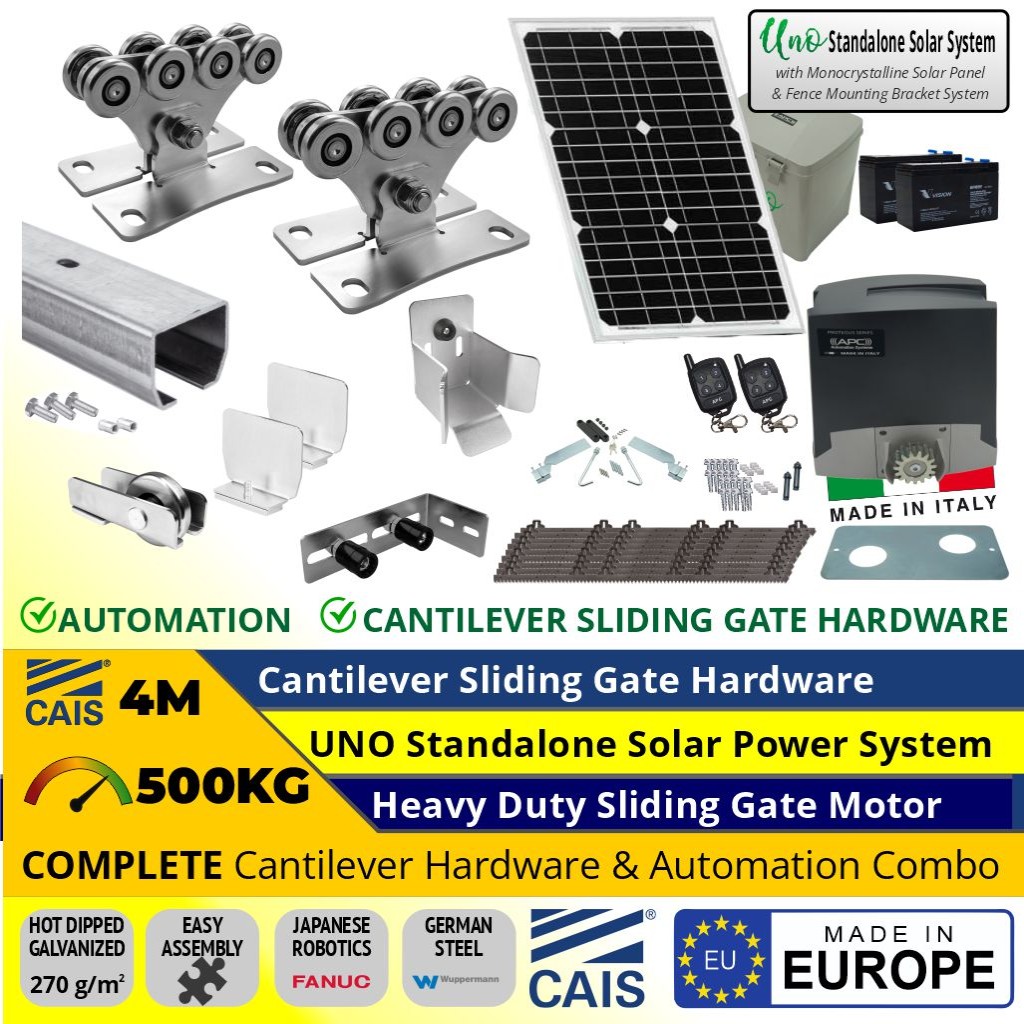

See what the "ALL IN ONE" box includes:
Eight Wheel Carriages
Heavy Duty C Profile Guide Track (3.5mm German Steel) For Cantilever Gate
C Profile Guide End Cap With Screw
C Profile Guide Guide Support Wheel for Cantilever Gate System
U Guide Stop With Rubber for Cantilever Gate Closing Position
U Stop Bracket with Installation Bolts and Screws for Cantilever Gate System
Upper Rollers and Bracket Set for Cantilever Sliding Gate
Bolts and Rivet Nuts for Cantilever Gate Guide Track Easy Assembly
Installation Instructions
Eight-Wheeled Carriage For Up To 325Kg Cantilever Gate
Cantilever sliding gate system carriage wheel for up to 325 kg max gate weight.
Enhanced design and superior products from Europe using high-quality German steel.
EIGHT-WEEL CARRIAGES FOR THE CANTILEVER GATE
C2 High-Quality Bearings
Carriages Center Holes Milled Not Laser Cut
Multi Riveted Sections
Mono-Block Eight Wheeled Carriage
No Welded Parts
"C" Profile Guide For Cantilever Gate, 3.5mm Thickness, Hot Deeped Galvanized German Steel
"C" Profile Guide For Cantilever Sliding Gate, 3.5mm Thickness, Hot Deeped Galvanized German Steel, 15 Bolts 15 Rivet Nuts Included
Steel "C" Profile Guide For Cantilever Sliding Gate
Enhanced design and superior products from Europe using high-quality German steel.
Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory
Holes at the track's top allow it to be easily bolted to an aluminium gate.
The steel is sourced from the leading German company Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.
THE INSTALLATION STEPS
The installations do not require complicated steps and materials, so the working time is not too long. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.
Bolts and Rivet Nuts Pack for "C" Profile Guide Cantilever Sliding Gate
Bolts and Rivet Nuts are Included in each Cantilever "C" Profile Guide
Bolts and Rivet Nuts for Cantilever Sliding Gate Guide Track
Slotted Hole Punched Every 400mm in "C" Profile Guide Track
Bolts and Rivet Nuts Pack
Easy Assembly
No Welding Required
Small Guide Support Wheel For Cantilever Sliding Gates
The end wheel guides the gate up onto the end cup and helps to support the gate while it is resting.
End Wheel For Cantilever Sliding Gate Systems
Cantilever Gate Hardware Small Guide Support Wheel
Small End Cap for Cantilever C Gude Track
The end cap is an addition to the gate to cap off the cantilevered track.
End Cap For Cantilever Sliding Gate
Cantilever Gate Hardware Small End Cap
132mm End Stop for Cantilever Sliding Gates
The end stop supports the gate when it is fully open and fully closed.
End Stop For Cantilever Sliding Gate
Cantilever Gate Hardware Small End Stop
End Stop Bracket for Cantilever Sliding Gates
The end stop bracket supports the gate when it is fully open and fully closed.
End Stop Bracket For Cantilever Sliding Gate
Cantilever Gate Hardware End Stop Bracket
Small Upper Rollers and Bracket Set for Cantilever Sliding Gates
High Qualy Two Roller Guide Plate
Cantilever Sliding Gate Upper Rollers Guide with Bracket
Cantilever Gate Hardware Upper Rollers and Bracket Set
DIFFERENCE BETWEEN A CANTILEVER GATE AND A SLIDING GATE
The obvious benefit of choosing a cantilever sliding gate system is " no need to track"
Unlikly standard sliding gates, the cantilever sliding gate solution doesn't need a perfectly level or concrete flat surface and can deal with dirt or gravel driveway perfectly.
BENEFITS OF CANTILEVER GATES
Perfect solution for sloped and/or non-concrete driveways
Esthetic design, easy installation, no welding needed
Long lasting durable hardware, silent and maintenance-free
An effective way to improve security on your property
The Cantilever gate is a unique type of sliding gate, but with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that helps the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.
CANTILEVER SLIDING GATE DESIGN and PERFORMANCE
Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarse and noisier than cantilever gates. Since cantilever gate wheels are off the ground, this style can span a wider range of terrain including gravel, grass, blocks, and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in all weather conditions.
The smart appearance, efficient design, and craftsmanship in a cantilever gate are sure to impress owners, visitors, and customers visiting the property.
Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.
Cantilever gates have been designed to glide through the air rather than along tracks on the driveway and do not require any ground installation. Cantilever Sliding Gate All-In-One Systems are quicker and easier to install and have longer lifespans as they float through the air.
Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways.
Heavy Duty Feature Rich 24V Italian Sliding Gate Motor Overview
At a glance
The Proteous 500 boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.
System Features
Capacity
90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra long 10 metre gate capacity
Only 150mm Narrow Depth
Everything and more as standard..
Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)
Special Features
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Safety Features
Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface
Control Board Overview
Accessories Compatibility and Controlling Options
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Remote Features
Dimensions
Installation Options
Concrete in Base Plate
Surface Mounted Raised Base Plate (Add-On Item)
Four point Tilt Leveling
24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications
Maximuim Power
20W/40W/60W
Optimum Operational Voltage
36V
Open Circuit Voltage
43.2V
20W Panel Dimensions
640 x 300 x 25mm
40W Upgrade Panel Dimensions
535 x 515 x 30mm
60W Upgrade Panel Dimensions
805 x 535 x 30mm
APC Uno Standalone Solar System
The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). In the case of 33aH batteries a Master Uno Large Box and Slave Uno Large Box are required, see details below.
Key Features:
Direct fitting of APC Sun power Regulator (available separately)
Easy to access with the tool free clip lock system
Can be secured with a small padlock
Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each
Dimensions (UNO BOX and UNO BOX LARGE)
UNO BOX
Uno Box Outer Dimensions
Height
205mm (Including cable glands) 180mm Without
Width
180mm
Depth
249mm Including Mounting bracket, 210mm without
UNO BOX LARGE
Uno Box Large Outer Dimensions
Height
281mm (Including cable glands) 255mm Without
Width
263mm
Depth
230mm Including Mounting bracket, 189mm without
Battery Requirments and Configuration
Battery Dimensions (each)
Battery Size
12V Configuration
24V Configuration
Uno Box Requirments
151x65x99mm
BAT-9 (9aH)
1x Battery Required
2x Batteries Required
Up to Two Batteries in one Master Uno Box
181x77x167mm
BAT-17 (17aH)
1x Battery Required
2x Batteries Required
Up to Two Batteries in one Master Uno Box Large
195x130x167mm
BAT-33 (33aH)
1x Battery Required
2x Batteries Required
One Battery in Master Uno Box Large
(and One Battery in Slave Uno Box Large for 24V)
Typical Configuration
Battery Wiring
33aH Configuration
At a glance
12-24V Compatible
LITHIUM Battery Compatible
Easy to use LCD Interface
Compatible with Most Batteries
32 Bit Micro Controller
Extra Large Wiring Terminals
12 Stages of Protection including short circuit, temperature, over and undercharge etc.
Metal Heat sink
USB Output
In Depth
Automatic Voltage Selection
The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.
Multiple Battery Modes
The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.
Overcharge and Discharging
The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.
Overload and Short Circuit Protection
The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.
Reverse Polarity Protection
In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.
USB Output Terminals
The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.
Heavy Duty Design
Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.
Specifications
System Voltage
12V/24V DC auto
PV Max Input Voltage
55V
Self-consumption
10mA
Max Charging current
10A
Max Discharging current
10A
Battery type
Sealed(Default)/Gel/Flood/Lithium
LVD
11.0V ADJ 9V...12V ; x2/24V
LVR
12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage
13.8V ADJ 13V... 15V ; x2/24V
Boost Voltage
14.4V ADJ 13V...17V ;x2/24
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage
16.5V ; x2/24V
Reverse Connection Protection
Yes
Load Over Current Protection
Yes, each 30s auto restart again
Controller Over Temperature
Yes
USB Output
5VDC/1A 2PCS
Charging Type
PWM
Charge circuit voltage drop
<=0.25V
Discharge circuit voltage drop
<=0.1V
Temperature Consumption#
For 12V system:-24mV /°C ; x2/24V
Relative humidity
≤95%, N.C.
Working Temperature
-20°C~+55deg;C(Product can work continuously at full load)
LCD temperature range
-20°C~+70°C
Waterproof grade
IP32
Mounting hole size
Φ5mm
Terminals
10mm²/8AWG
Weight
245g
Overall dimension(mm)
190×108×41.5
24V 9aH Battery System
Supplied with the automation kit, the 24V Battery System* (2 x 12V 9Ah Batteries) will allow for continued use of the gate system, whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged, it will continue to float charge to keep the batteries topped up and ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.
*Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life
Specifications
Transformer
24V (Uno Solar System)
Motor Output Voltage
24v DC
Max Operating Power
300 Watts
Maximum Gate Length
10 Metres
Maximum Gate Weight
500 KG
Speed
28 cm/s
Working temperature
-20° - 50°
RF
APC Rolling code 433.92mhz
Motor Duty Cycle
90%
Auxiliary Inputs
0V Momentary Pulse
Accessories Voltage
24V DC
Operator Inbuilt Safety
Over current + Encoder Sensitivity
(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli
Interlocking Gear Racks Made in Italy by Stagnoli
The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation
Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.
Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware
This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.
Modular gear racks kit includes;
A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)
