Product SKU: GFR25x2-890FM
In Stock
Product SKU: GFR25x2-890FM
Kit Price:
$2,139.00

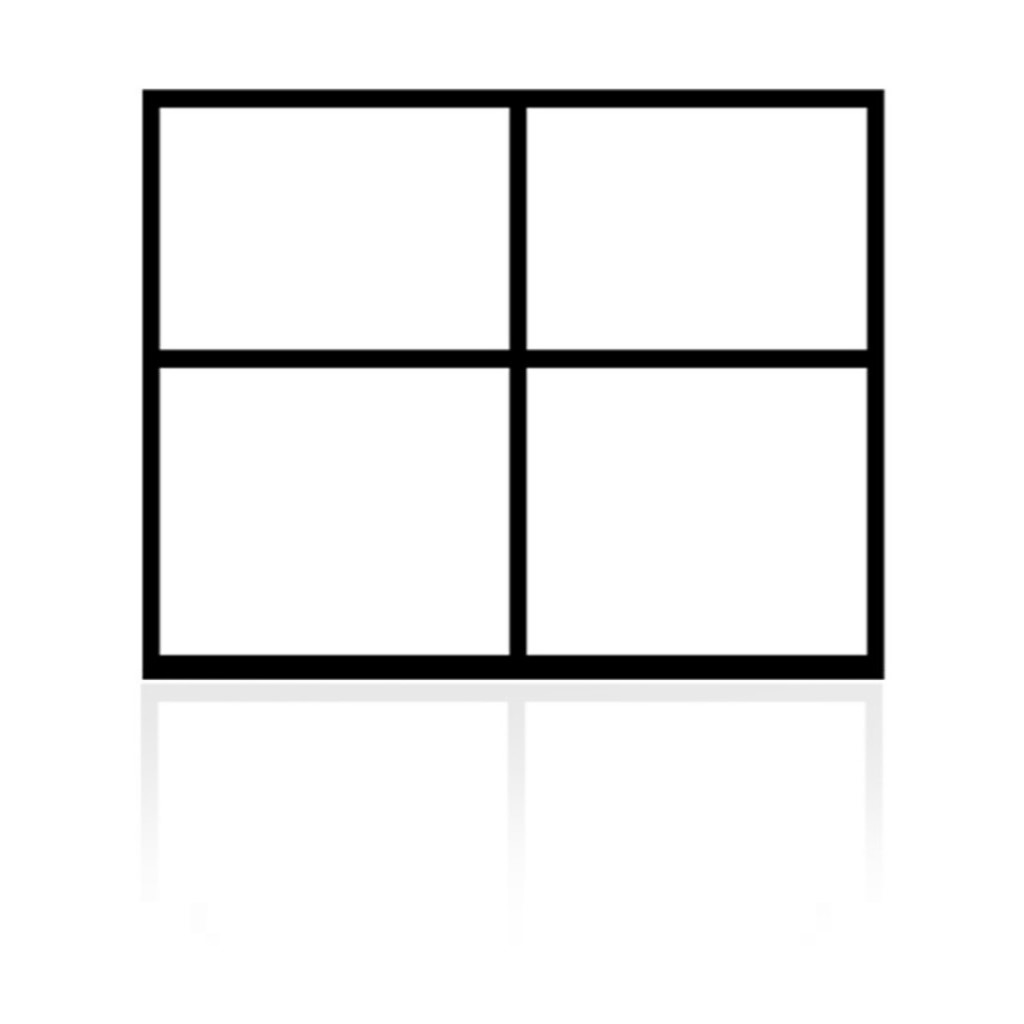

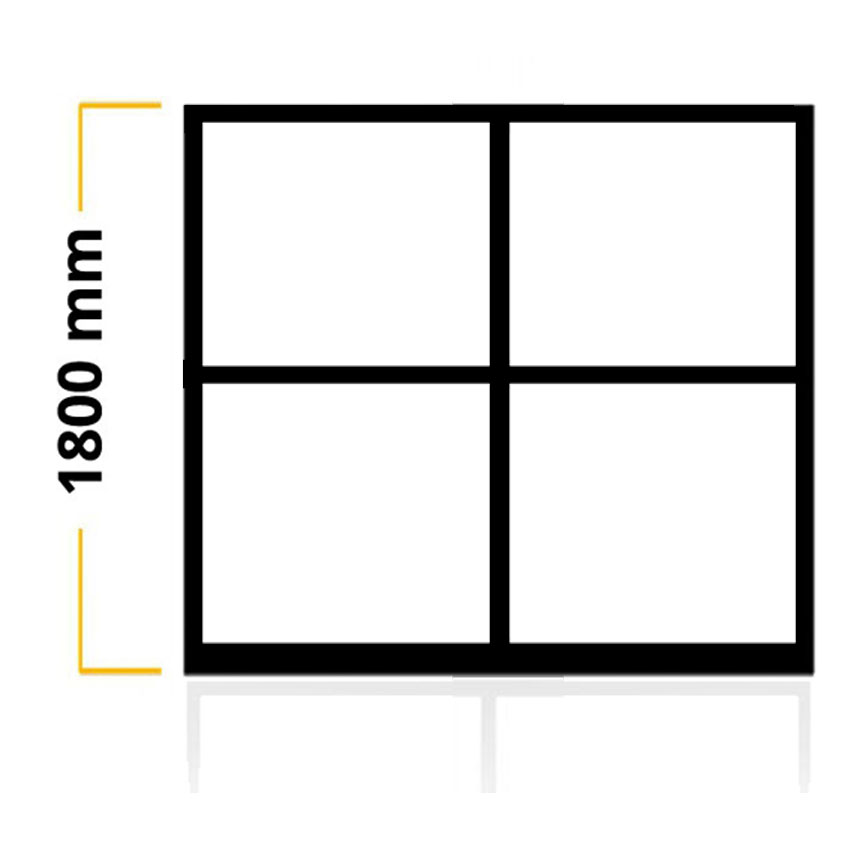

Robust 80x40 - 40x40 Cross Braced Steel, Satin Black Powdercoating, Robust 80x40 - 40x40 Steel
Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button
Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output
Any or all of the following may be connected to operate the gate
Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.
Power Input | 240V AC (Pre wired with 1.2m Cable) |
Transformer | 24V AC |
Rectification | On Board Bridge Rectifier |
Motor Output Voltage | 24v DC |
Battery Backup | 24V |
Working temperature | -10° - 50° |
RF | APC Rolling code 433.92mhz |
Lock Output (Primary) | 12-30V DC (Depending on Configuration) |
Lock Output (Secondary) | 12V DC |
Auxiliary Inputs | 0V Momentary Pulse |
Accessories Voltage | 24V DC |
Over current | 1A to 5A |
Your (Kit and Add-On) Price:
$2,139.00
